Shaw Bohn Combi Strapmaster 7 in 1 Tool Punch Model B Eagle Morlin
For sale is Shaw Bohn Combi Strapmaster 7 in 1 Tool Punch Model B Eagle Morlin. Call to inquire 773-234-5l55
Portable - Manually Operated - One-Man Tool Shop
ON THE JOB SITE
General Features:
- Portable - Manually Operated - One-man Tool shop - Model A StrapMaster, Punches & Dies for HVAC, garage door braces, brackets and hangers. Model A works with mild steel up to 1" wide.
- This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
- The StrapMaster Cuts, Bends, Twists, Punches Steel Strapping and Cuts and Bends Rod. A great investment in your productivity.
- The StrapMaster will pay for itself after just a few uses. For HVAC, garage door braces, brackets and hangers.
- Model A works with mild steel up to 1" wide.
The 7 IN 1 TOOL fabricates the custom brackets, hangers and bracing you need to keep the job running. The 7 IN 1 TOOL cuts, bends twists, punches holes in strapping and also cuts and bends steel rod.
Model B: for HVAC, garage door braces, brackets and hangers, for masonry and working with stainless steel. Model B works with mild or stainless steel up to 1-1/2" wide.
-7.5 Ton Capacity
-Cuts 2" Steel Strap
-Cuts Steel Strap Up To 1/4" Thick
-Bends Steel Strap 1-1/2” Wide x 3/16"
-Twists Steel Strap 1-1/2" Wide x 3/16"
-Punches Holes in 1/8" Strap Up To 9/16" Max
-Punches Holes in 1/4" Strap Up To 3/8" Max
-Standard Punch Size 13/32" (Availbale 1/16" to 9/16" Standard)
-Cuts Round Steel Rod Up To 3/8"
-Bends Round Steel Rod Up To 3/8"
-Cuts Angle Iron - 2” x 2” x 1/4” Thick
-Working Material (Mild or Stainless Steel)
Compare:
The 7 IN 1 TOOL |
Model A 5 Ton Capacity |
Model B 7.5 Ton Capacity |
| Cuts steel strap up to: |
3/16" thick |
1/4" thick |
| Bends steel strap: |
1" x 1/8" |
1-1/2" x 3/16" |
| Twists steel strap: |
1" x 1/8" |
1-1/2" x 3/16" |
| Punches holes in 1/8" strap: |
1/2" max |
9/16" max |
| Standard Punch: (Punch and die Sizes available: 1/16" - 9/16") |
9/32" diameter |
13/32" diameter |
| Cuts round steel rod up to: |
3/8" diameter |
3/8" diameter |
| Bends round steel rod up to: |
1/4" diameter |
3/8" diameter |
| Cuts angle iron: |
2" x 2" x 1/8" thick |
2" x 2" x 1/4" thick |
| Weight: |
34 lbs |
39 lbs |
| Dimensions |
26 x 7 x 9 |
40 x 7 x 9 |
| Material |
Mild Steel |
Mild or Stainless Steel |
Dimensions: 7 x 18 x 27
I am setting the price to sell it. If you see this ad, the Shaw Bohn Combi Strapmaster 7 in 1 Tool Punch Model B Eagle Morlin is available! Make me an offer. Call with questions.
INCLUDED IN PURCHASE
Shaw Bohn Combi Strapmaster 7 in 1 Tool Punch Model B Eagle Morlin
Brand: Shaw Aero Development

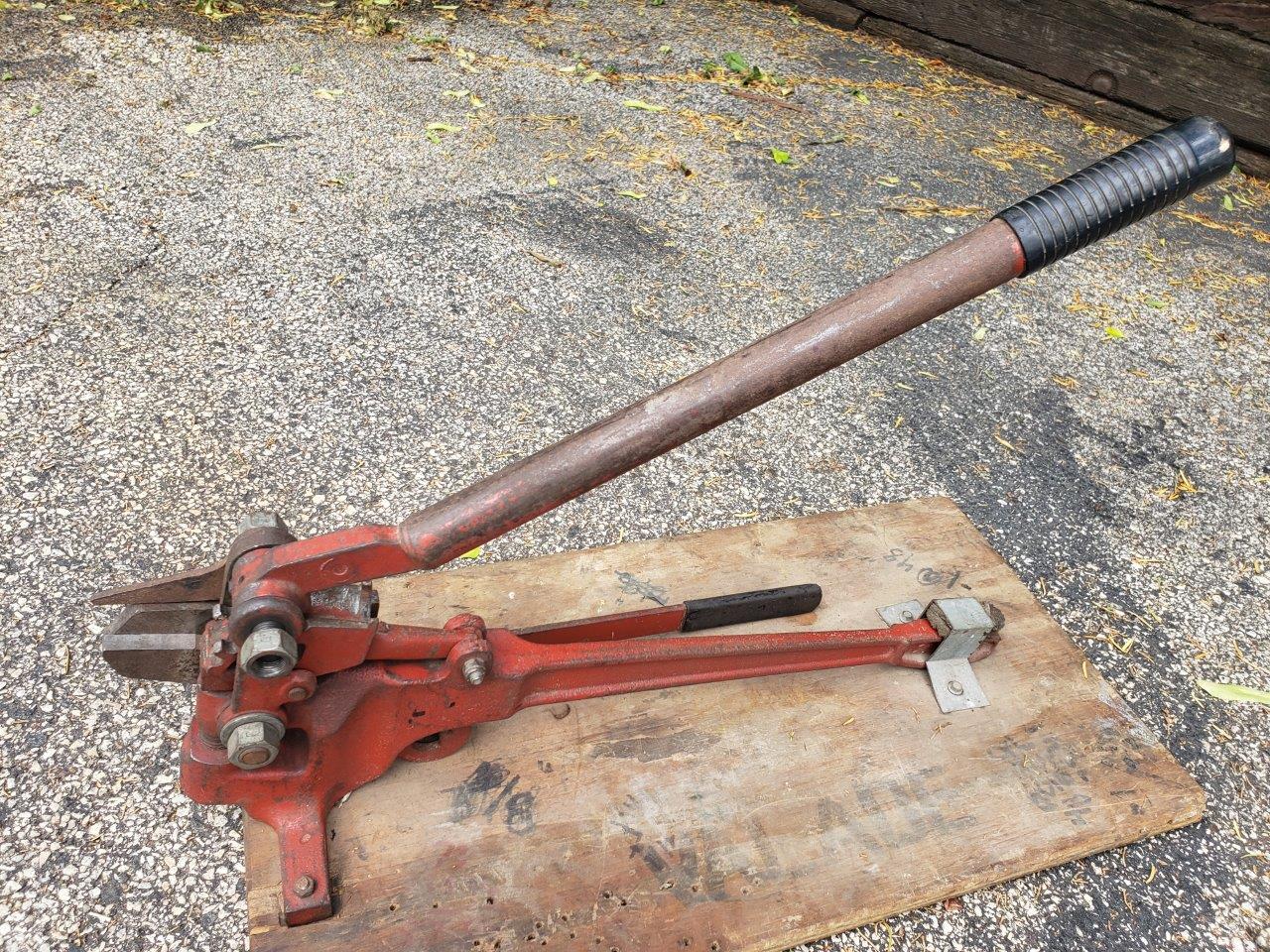

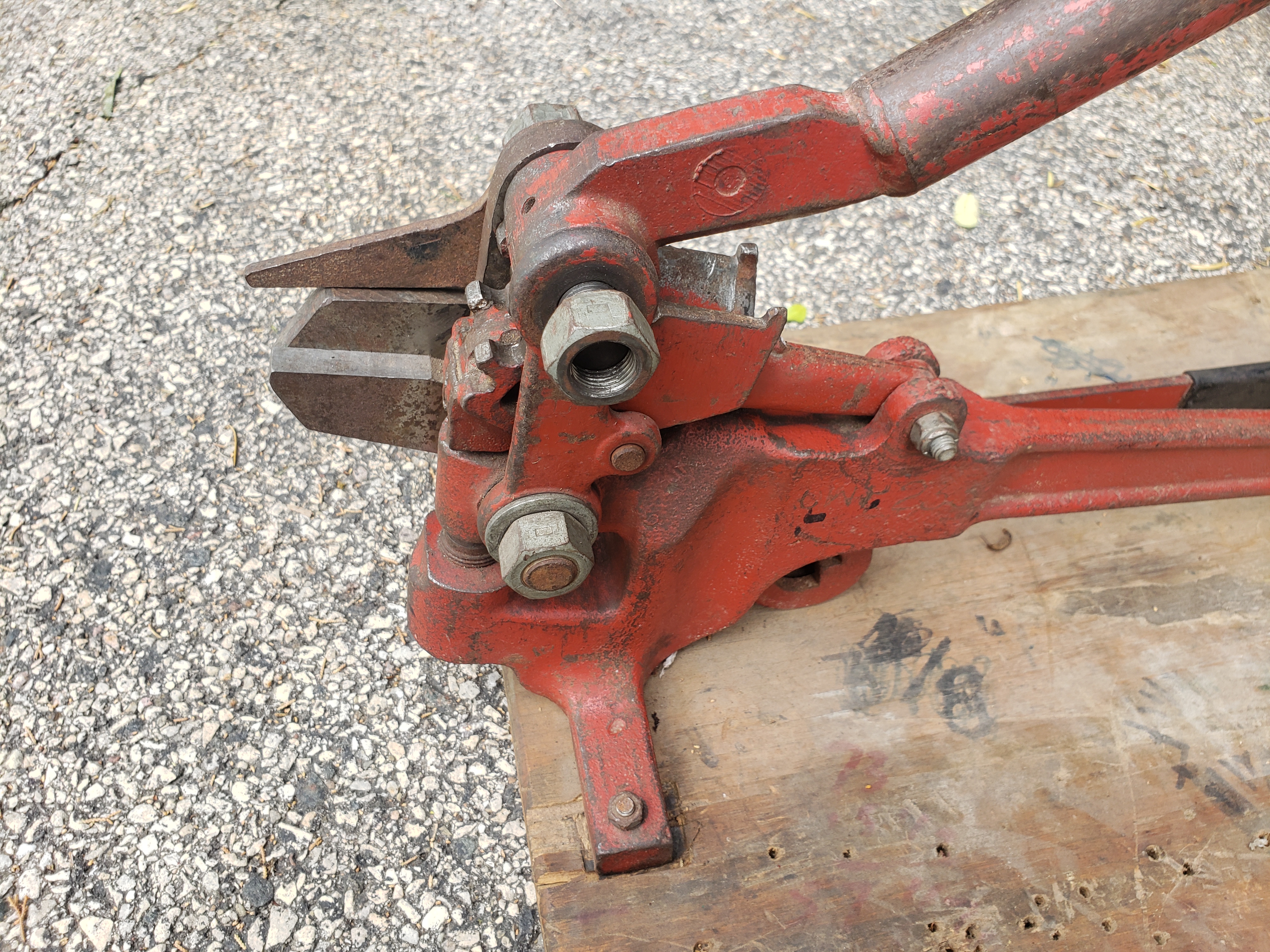

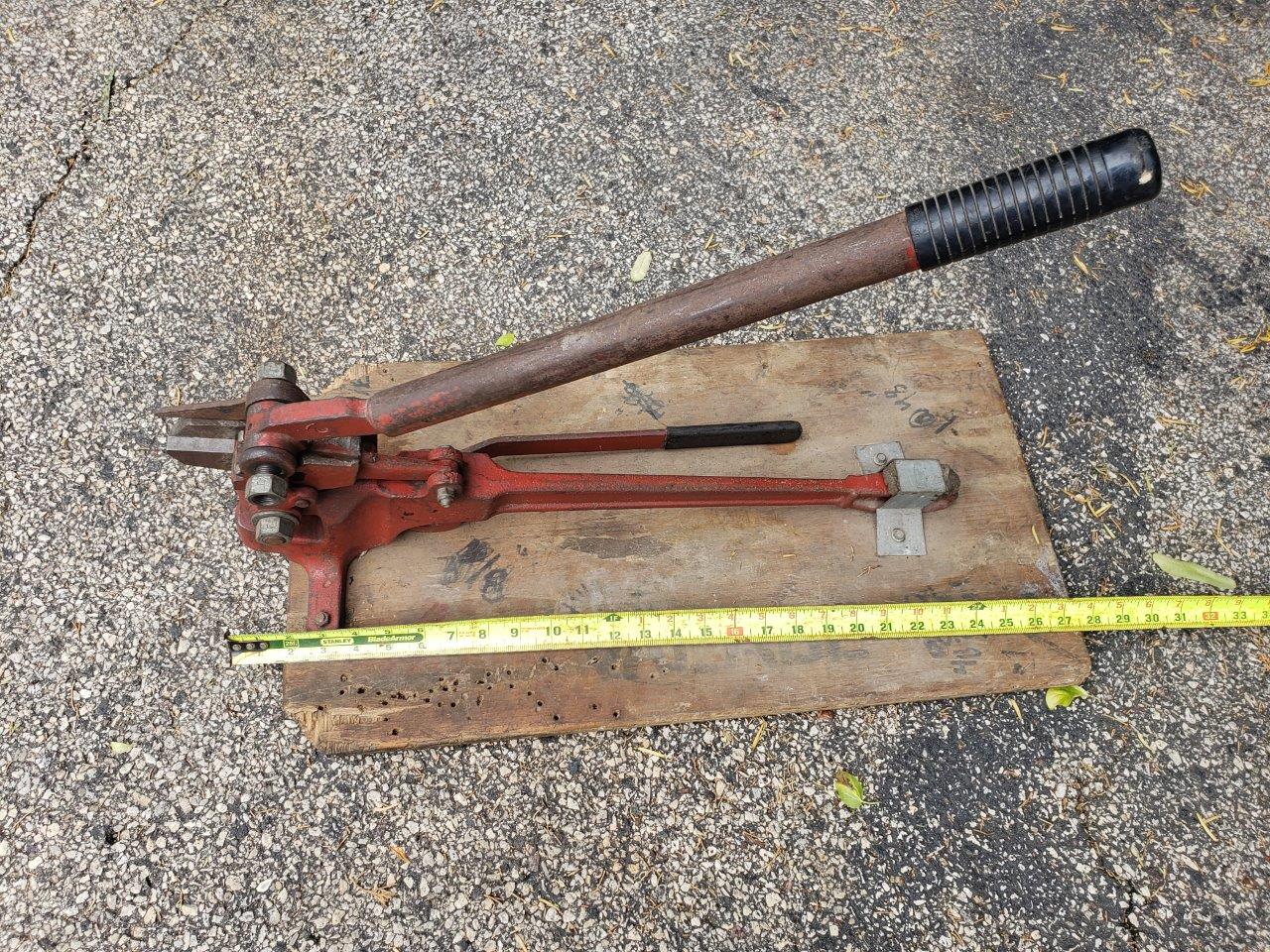

Please see pictures for further details (click to enlarge)
