Sale
1/2 HP 1090 RPM 1 Speed, CW, 230V, OEM York Coleman Luxaire Condenser Fan Motor S1-02424110001 024-24110-001 F48L10A50
Original price was: $135.00.$120.00Current price is: $120.00.

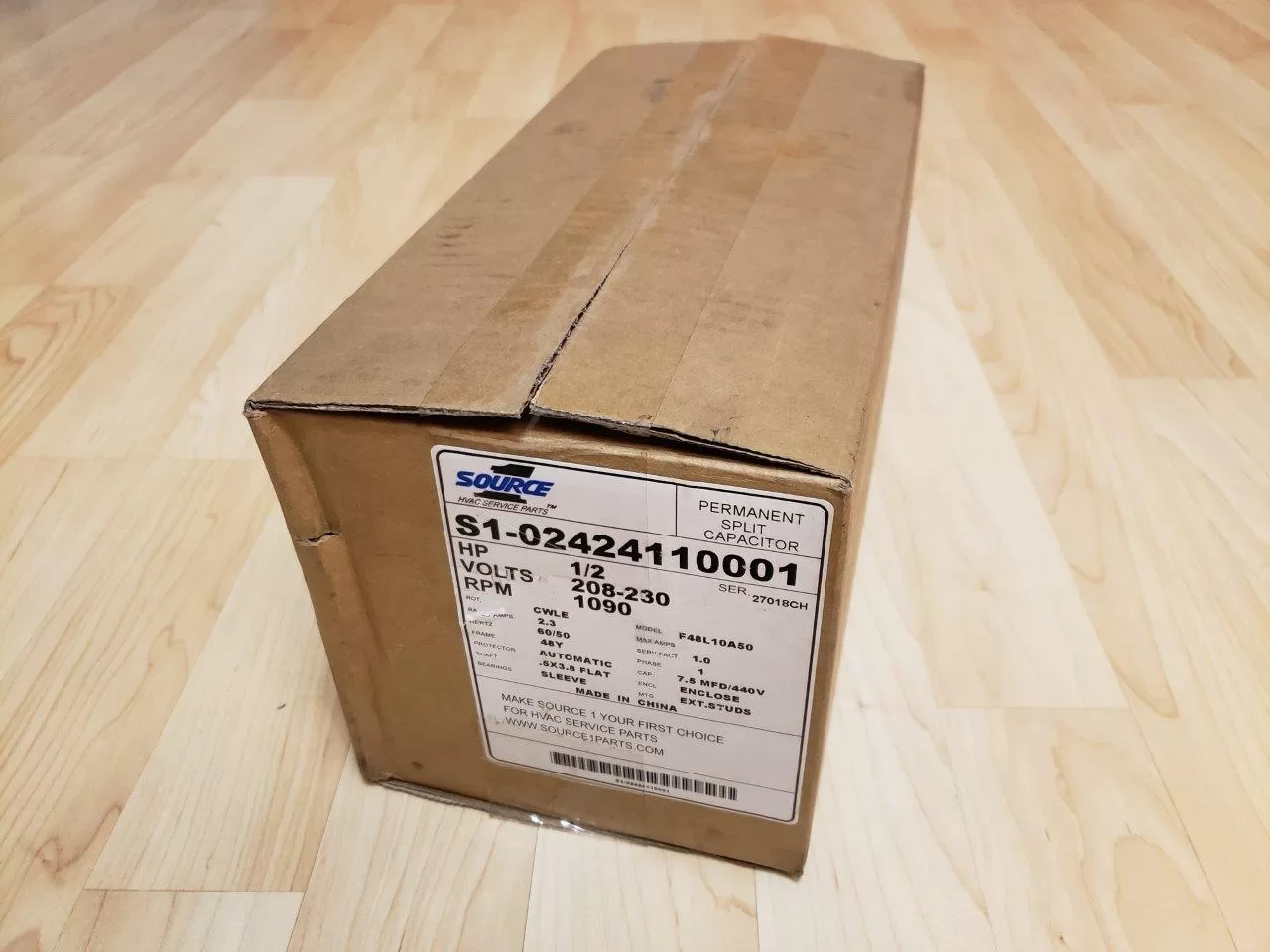

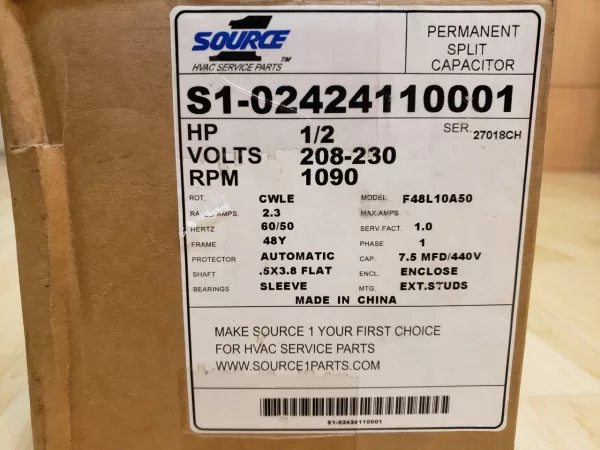

S1-02424110001 CONDENSER MOTOR, 1/2 HP, 1090/1, CW, 230-1-6 1090 RPM 208-230V
- 1/2 hp, 1090 RPM, 2.2 amps, 1090 RPM 1-Speed
- Shaft 1/2″ x 4″
- Rotation: CW Lead End
- Motor Diameter = 5 5/8″
- Motor Case Length = 4″
- Leadless Design
- F48L10A50
- Frame 48Y
- Includes 2-Prong 7.5 MFD Capacitor / 440V
- Rotation: CCW Shaft End
- Number of Speeds: 1
- Service Factor (SF): 1.00
- Bearings: Sleeve
- Thermal Protection: Automatic
OEM Replacement York Part # 024-24110-001
- Length: 15 in / 38.10 cm
- Width: 7 in / 17.78 cm
- Height: 7 in / 17.78 cm
- Weight: 15 lbs / 6804 g
Suggested replacement reference for: Dayton 4UY48, 5KCP39LGN418S, 024-24110-001, W48A11T388
Similar to Century OYK1056V1, PSC (Permanent Split Capacitor) 5-5/8″ Diameter OEM Replacement Blower Motor – OYK1056V1
| Horse Power (HP) | 1/2 |
|---|---|
| Speed | 1075 RPM |
| Voltage | 230V |
