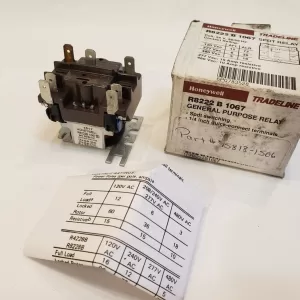

Honeywell R8222B1067 24 V General Purpose Relay with SPDT switching

Honeywell R8222B1067 24 V General Purpose Relay with SPDT switching

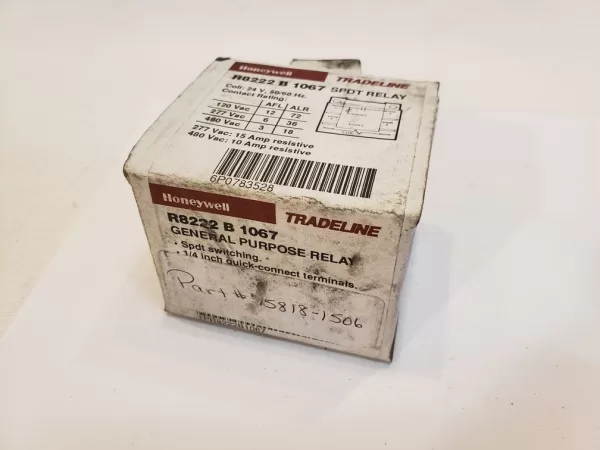

A brand-new, unused, undamaged item in its original packaging.

Description
Provide general purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Features
• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
• Untaped coil assures cooler operation.
• Laminated magnet construction for higher efficiency.
• Base designed for easy replacement of competitive relays.
• Double quick-connect coil terminals.
• Plug compatible with Steveco 90-340 and Mars 90340.

Product Specifications
Description: 24 V General Purpose Relay with Spdt switching
Coil Ratings Voltage: 24 Vac
Switching: SPDT
Electrical Connections (main): 1/4 in. quick-connect terminals
Electrical Ratings, Contacts (full load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
Electrical Ratings, Contacts (locked rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
Electrical Ratings, Contacts (resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12 Vdc
Frequency: 50 Hz
Frequency: 60 Hz
Dimensions (in.): 1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
Dimensions (mm): 48 mm high x 55 mm wide x 60 mm deep.
Temperature Ratings (F): -20 F to +155 F
Temperature Ratings ©: -29 C to +68 C
Approvals, Underwriters Laboratories Inc: UL Listed: File No. E59779, Guide No. NLDX2
Approvals, Canadian Standards Association: Certified: File No. LR35066, Guide No. 184-N-13.13

Replaces Many Relays With The Same Switching And Coil Voltages:
Replaces:
Honeywell: R8222A, R8222B
Guardian: Series 900, Series 1200, Series 1220
Steveco: 90-290, 90-293
Mars: 90290, 90293
RBM: 91-102006-13300, 91-102006-113000, 84-20102-101, 84-20105-101, 84-20103-301, 84-20106-301, Type 91, Type 84, Type 184, Type 98000
Potter Brumfield: AK3AY, AKC3AY
General Electric: CR120J10012, CR120J00112, CR120J
General Controls: R4A121C, R4A021D, R4B121C, R4B021D

The Honeywell R8222B1067 is a versatile and durable 24 V general-purpose relay widely used across various applications due to its reliability and efficiency.

Product Specifications:

• Manufacturer: Honeywell
• Model: R8222B1067
• Type: General Purpose Relay
• Coil Voltage: 24 VAC
• Switching: Single Pole Double Throw (SPDT)
• Electrical Connections: 1/4 in. quick-connect terminals
• Electrical Ratings (Contacts):
  • Full Load: 3 A @ 480 VAC; 6 A @ 208 VAC, 240 VAC, 277 VAC; 12 A @ 120 VAC
  • Locked Rotor: 18 A @ 480 VAC; 35 A @ 208 VAC, 240 VAC, 277 VAC; 60 A @ 120 VAC
  • Resistive: 10 A @ 480 VAC; 20.8 A @ 120 VAC, 208 VAC, 240 VAC, 277 VAC
• Pilot Duty Ratings:
  • Min/Max: 3 VA/25 VA @ 24 VAC; 125 VA @ 120 VAC, 240 VAC, 480 VAC
  • Resistive: 3 A @ 277 VAC (0.75 power factor)
  • Powerpile (N.O. contacts only): 0.25 A @ 0.25 to 12 VDC
• Frequency: 50/60 Hz
• Dimensions: 48 mm x 55 mm x 60 mm or 1 7/8 in. x 2 5/32 in. x 2 3/8 in.
• Temperature Ratings: -29°C to +68°C (-20°F to +155°F)
• Approvals: UL Listed, CSA Certified

Uses:

• HVAC Controls: Commonly used in heating, ventilation, and air conditioning systems to control the operation of fans, pumps, and other equipment.
• Lighting Controls: Can be employed to manage lighting systems within commercial and residential buildings.
• Industrial Applications: Suitable for use in industrial settings for controlling small motors, solenoids, and other electrical devices.

Pros:

• Versatility: Able to replace many other relays with similar specifications, providing flexibility in maintenance and replacements.
• Durability: Designed to operate reliably within a wide range of temperatures and electrical loads.
• Ease of Installation: Quick-connect terminals make wiring straightforward and quick.

Cons:

• Specialization for General Use: While it is a general-purpose relay, its specifications might not be suitable for all potential specialized applications.

Installation:

• Wiring: Should be completed by a professional or an individual with electrical knowledge to ensure safety and functionality. It’s crucial to ensure that the coil and load circuits are correctly connected.
• Placement: Install in a location that respects the ambient temperature range and allows for adequate air circulation to prevent overheating.

Comparison with Similar Products:

When comparing the Honeywell R8222B1067 to other relays like the Guardian Series 900 or Mars 90290, consider the electrical ratings and physical dimensions to ensure compatibility with your system. The broad compatibility with other models makes it a preferred choice for a variety of applications.

Related Items:

• Wire connectors and terminals
• Mounting brackets for secure installation
• Additional protective enclosures if used in environments with high dust or moisture

Disclaimer:

Honeywell is a registered trademark. The mention of Honeywell and any part numbers is for descriptive purposes only and does not imply any affiliation with or endorsement by Honeywell.

This Honeywell general-purpose relay is a reliable choice for a wide range of applications requiring robust and efficient electrical switching.
