Allen Bradley Kinetix Feedback Cable Model: 2090-XXNFMF-S03 3M Series A

Condition: used available as a 3-meter feedback cable.

Product Overview:

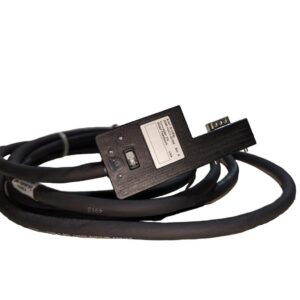

This Allen Bradley Kinetix Feedback Cable (Model: 2090-XXNFMF-S03, Series A) is designed for high-resolution or incremental feedback applications in Kinetix motion control systems. It features a DIN Type 4 Connector at the motor end and flying leads at the drive end, providing flexibility in system integration. The cable is 3 meters long and uses a durable Industrial TPE jacket in black for reliable use in industrial environments.

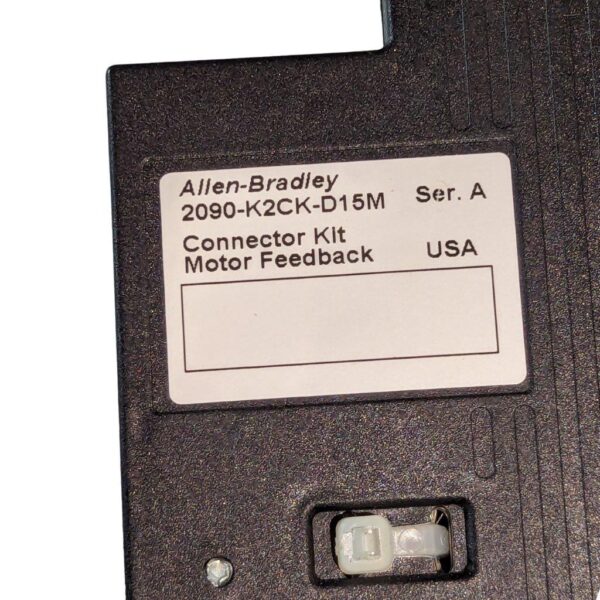

This configuration is intended for non-flex applications, making it suitable for static installations where cable flexibility is not required. The second end of the cable includes an Allen Bradley 2090-K2CK-D15M Motor Feedback Breakout Connector, a 15-pin D-Sub male connector for precise and secure connections.

Key Specifications:

• Model: 2090-XXNFMF-S03
• Length: 3 meters
• Series: A
• Cable Type: Feedback, DIN Type 4 Connector, Non-Flex
• Jacket Material: Industrial TPE (Black)
• Connector Type:
  • Motor End: Threaded DIN connector (DIN Type 4)
  • Drive End: Flying leads
  • Second Connector: Allen Bradley 2090-K2CK-D15M Motor Feedback Breakout Connector (15-pin D-Sub male)
• Voltage Rating: 30V

Key Features:

• High-Resolution or Incremental Feedback: Designed for applications requiring precise motion control in Kinetix systems.
• Non-Flex Configuration: Suitable for stationary installations where cable movement or bending is not required, ensuring longevity and reliability.
• Durable Industrial TPE Jacket: The black TPE jacket provides resistance to industrial environments, enhancing durability and protection.
• Versatile Connectivity: The threaded DIN connector at the motor end ensures a secure connection, while the flying leads at the drive end offer flexibility for different wiring configurations.
• Breakout Connector: Includes the 2090-K2CK-D15M 15-pin D-Sub male breakout connector for convenient connection to drive systems.

Applications:

• Kinetix Motion Control Systems: Suitable for connecting motors to Kinetix drives for precise feedback and control.
• Industrial Automation: Ideal for static installations in manufacturing and production lines requiring accurate motion control feedback.
• CNC and Robotics: Suitable for CNC machinery and robotic systems where incremental feedback is essential for precision.

Pros:

• Reliable and Durable: Built with industrial-grade materials for long-lasting performance in demanding environments.
• Versatile Integration: The flying lead configuration offers flexibility for integrating the cable into various system setups.
• Secure Connectivity: The threaded DIN connector ensures a stable connection to the motor, minimizing signal loss and interference.

Cons:

• Non-Flex Design: Not suitable for dynamic applications where cable flexibility or movement is required.
• 30V Limit: Voltage rating is limited to 30V, which may not be suitable for all applications requiring higher voltage.
