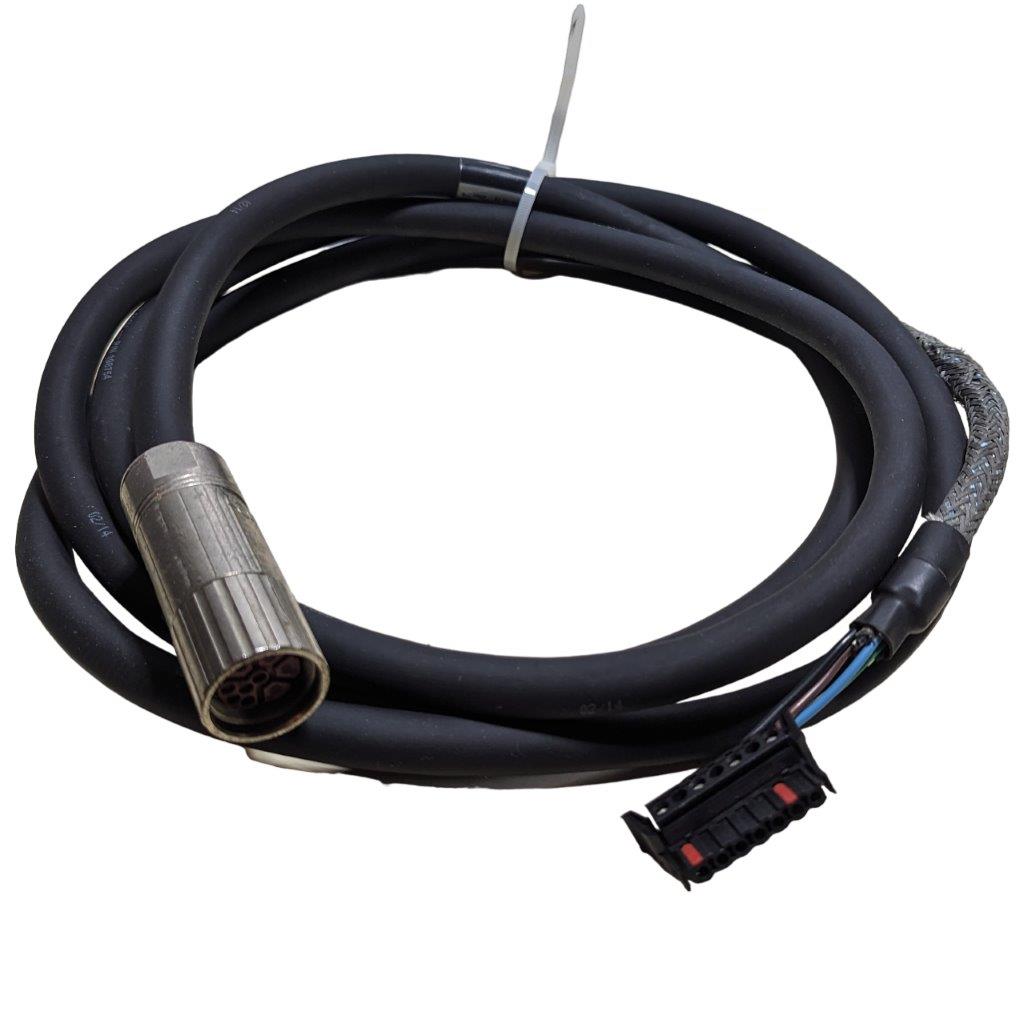

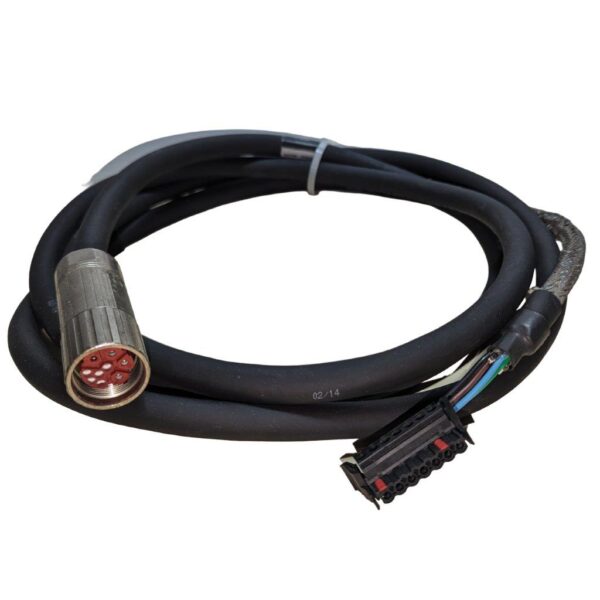

Allen Bradley Kinetix Motor Power Cable | Model: 2090-XXNPMF-16S03 | Series A | 3 Meters
Original price was: $175.00.$122.00Current price is: $122.00.
1 in stock
Condition: Used, tested and fully functional.
Product Overview:
This Allen Bradley Kinetix Motor Power Cable (Model 2090-XXNPMF-16S03, Series A) is a high-performance industrial cable designed for connecting Kinetix motors to their corresponding drives. It is a standard (non-flex) type cable, featuring a TPE (Thermoplastic Elastomer) jacket that provides durability and resistance to environmental conditions. The cable supports three-phase power transmission, making it suitable for various heavy-duty applications.
Key Specifications:
- Model: 2090-XXNPMF-16S03
- Cable Length: 3 meters (9.8 feet)
- Series: A
- Cable Type: Standard (non-flex), shielded cable
- Jacket Material: Industrial TPE, black
- Voltage Rating: 600V
- Wire Gauge: 16 AWG

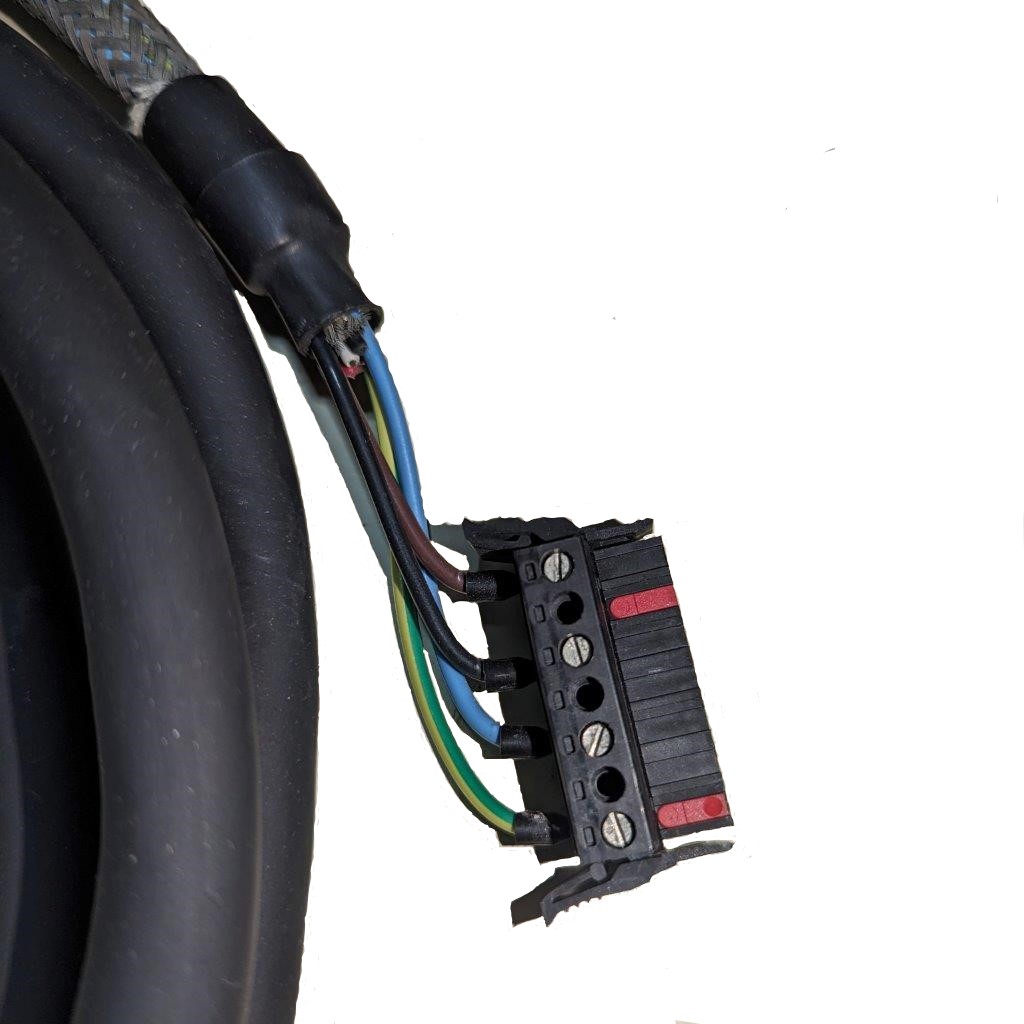

- Configuration:
- Four Conductors for three-phase power
- Additional four conductors (18 AWG) for motor brake and spare connections
- Weight: Approximately 0.276 kg/m (0.186 lb/ft)

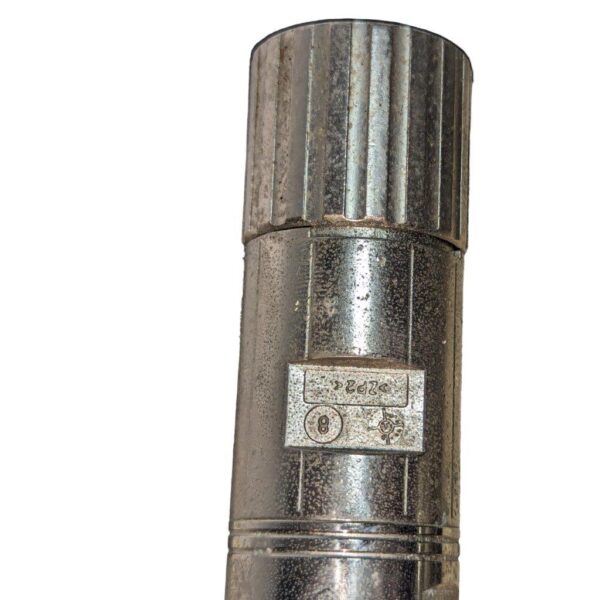

- Connector: (supposedly) B-ST-A-109-FR-06-55-0036-000
Key Features:
- Four Conductor Design: Includes conductors for three-phase power and extra conductors for motor brake connections, providing versatility for complex motor setups.
- Durable TPE Jacket: The black TPE jacket is designed for use in industrial environments, offering resistance to wear, chemicals, and abrasions.
- Shielded Construction: Ensures protection against electromagnetic interference (EMI), maintaining signal integrity.
- 600V Rating: Suitable for high-power applications, offering a stable power connection to Kinetix motors.
- Compatibility: Designed for use with Allen Bradley Kinetix drive systems, providing reliable connections and signal transmission.
Applications:
- Industrial Automation: Ideal for driving Kinetix servo motors in automation systems such as assembly lines, CNC machines, and robotic arms.
- Manufacturing Equipment: Suitable for integrating with motorized equipment in manufacturing settings where precise motor control is required.
- HVAC Systems: Can be used in HVAC applications for connecting motor-driven units to control systems.
Pros:
- High-Voltage Capacity: Supports up to 600V, suitable for powering large motors and heavy-duty equipment.
- Shielded and Durable: Offers reliable protection against interference and harsh industrial environments.
- Standard Length: At 3 meters, it provides enough length for flexible installations while maintaining performance.
Cons:
- Non-Flex Design: This cable is not designed for dynamic or continuous bending applications; it is ideal for static installations.
Disclaimer:
Allen Bradley and Kinetix are trademarks of Rockwell Automation, Inc. The use of these names is for identification purposes only and does not imply endorsement.
Related Models:
- 2090-XXNPMF-14S05 – A 5-meter variant of the motor power cable with similar specifications.
- 2090-CSBM1DF-18AAxx – Continuous-flex motor power cable for dynamic applications.
- 2090-CSBM1DG-14AFxx – An armored version for environments requiring extra protection.
Related:
- Allen Bradley Kinetix motor power cable
- 2090-XXNPMF-16S03
- Three-phase power cable
- 600V industrial motor cable
- TPE non-flex cable
- Shielded motor cable 3 meters
| Weight | 5 lbs |
|---|---|
| Dimensions | 14 × 14 × 3 in |
