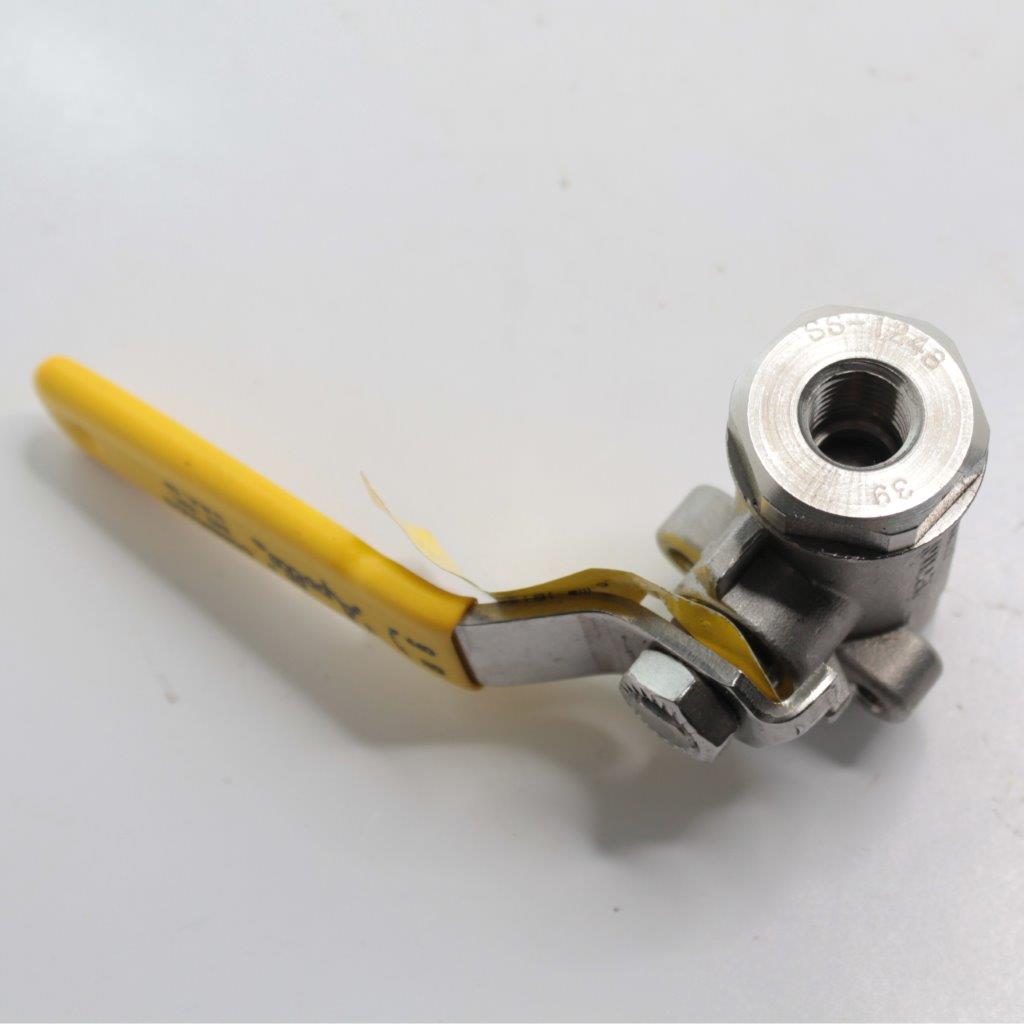

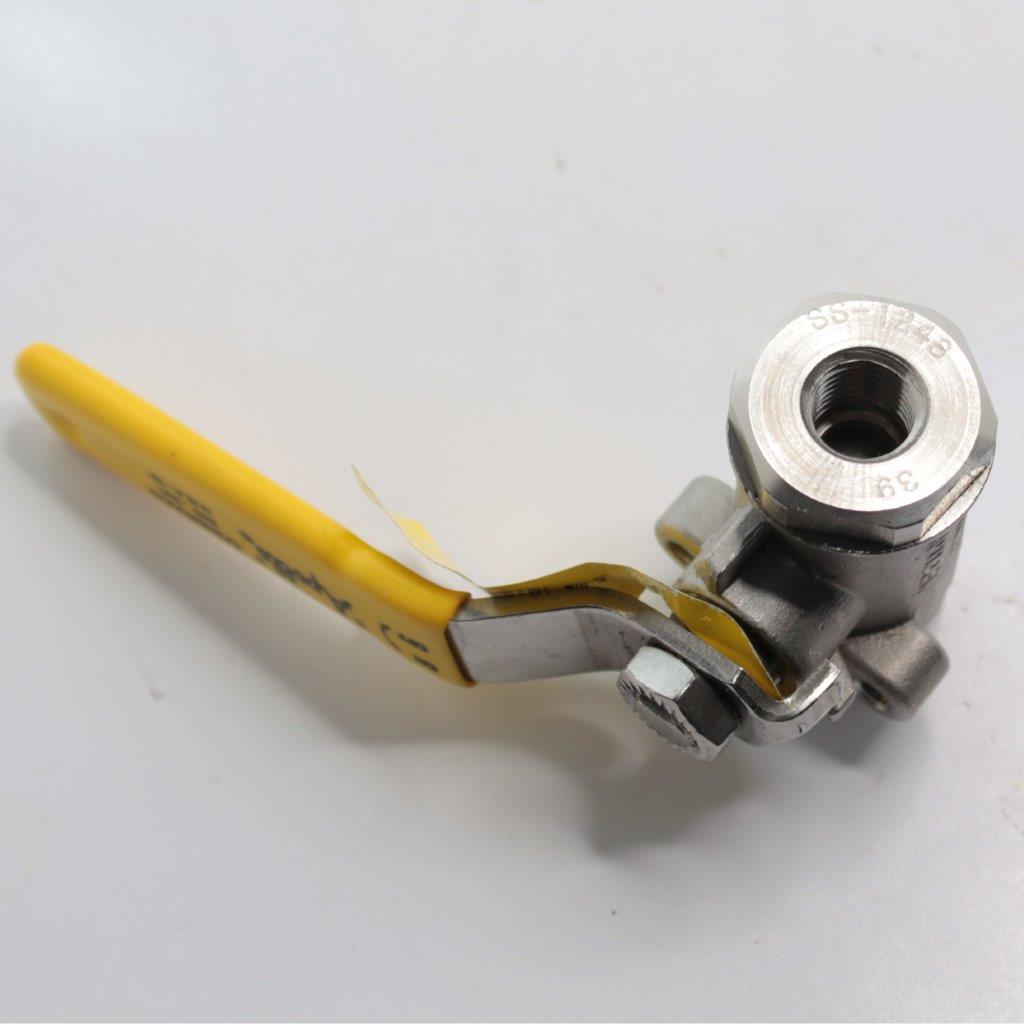

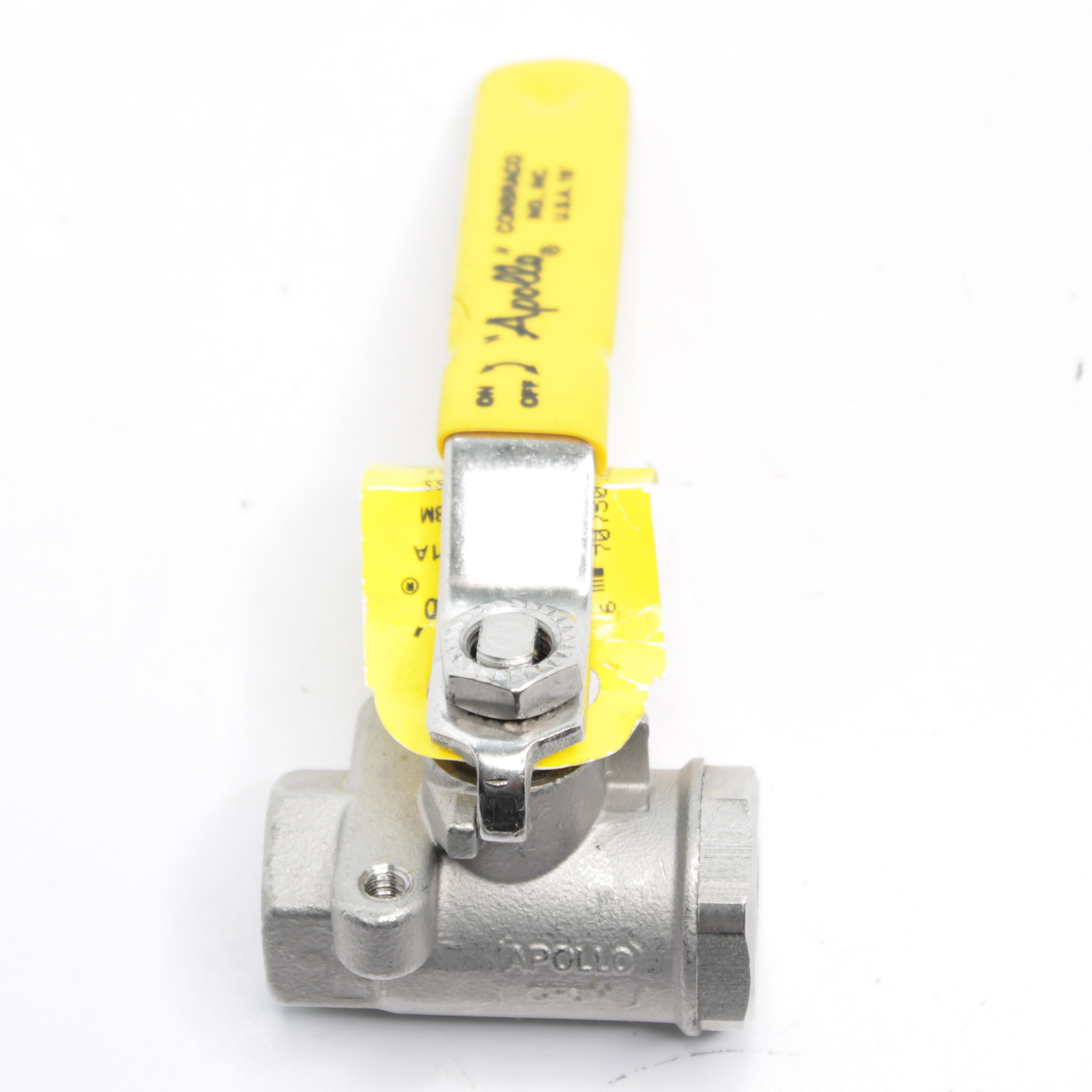

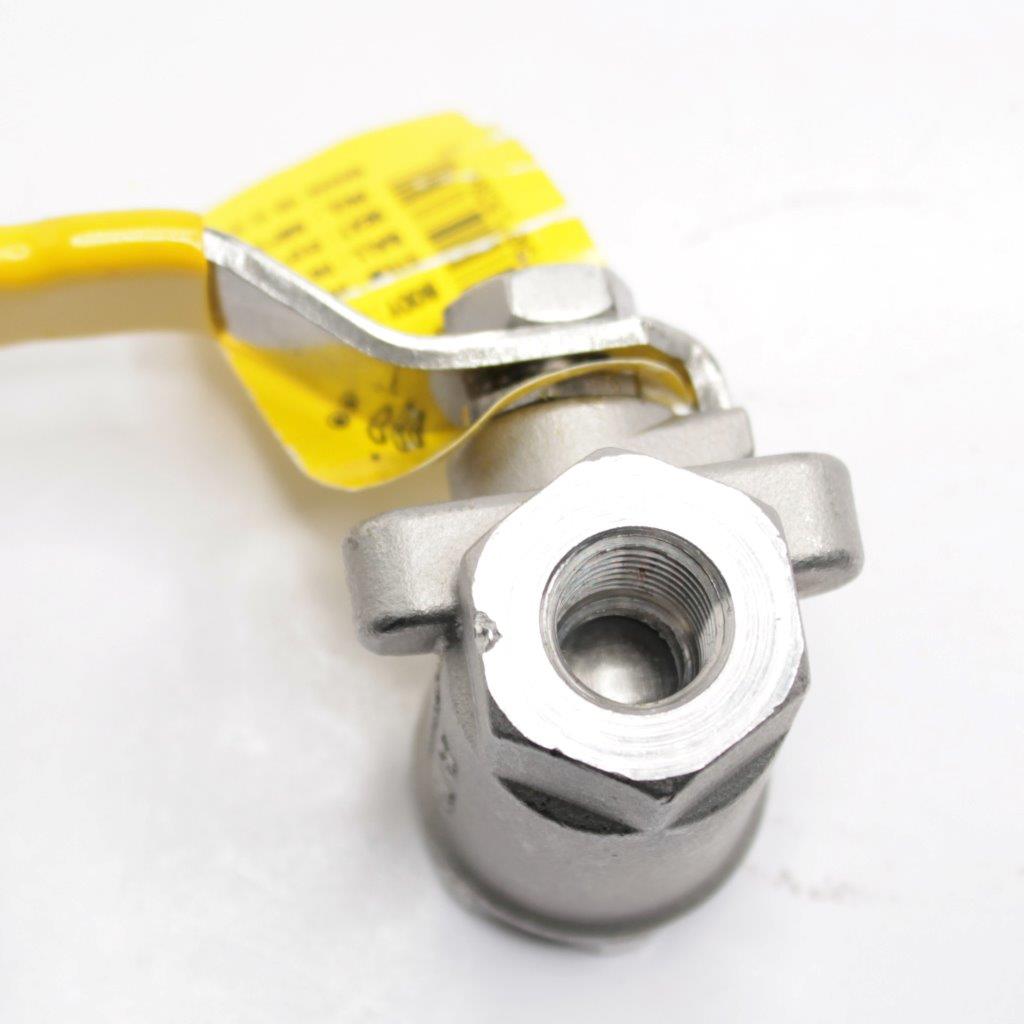

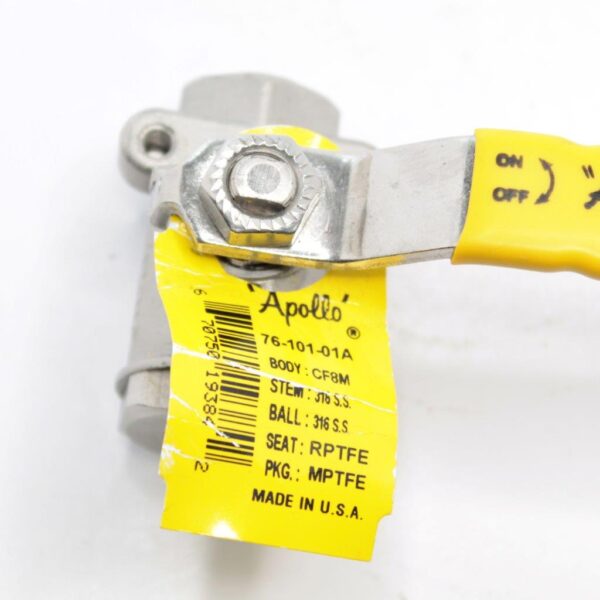

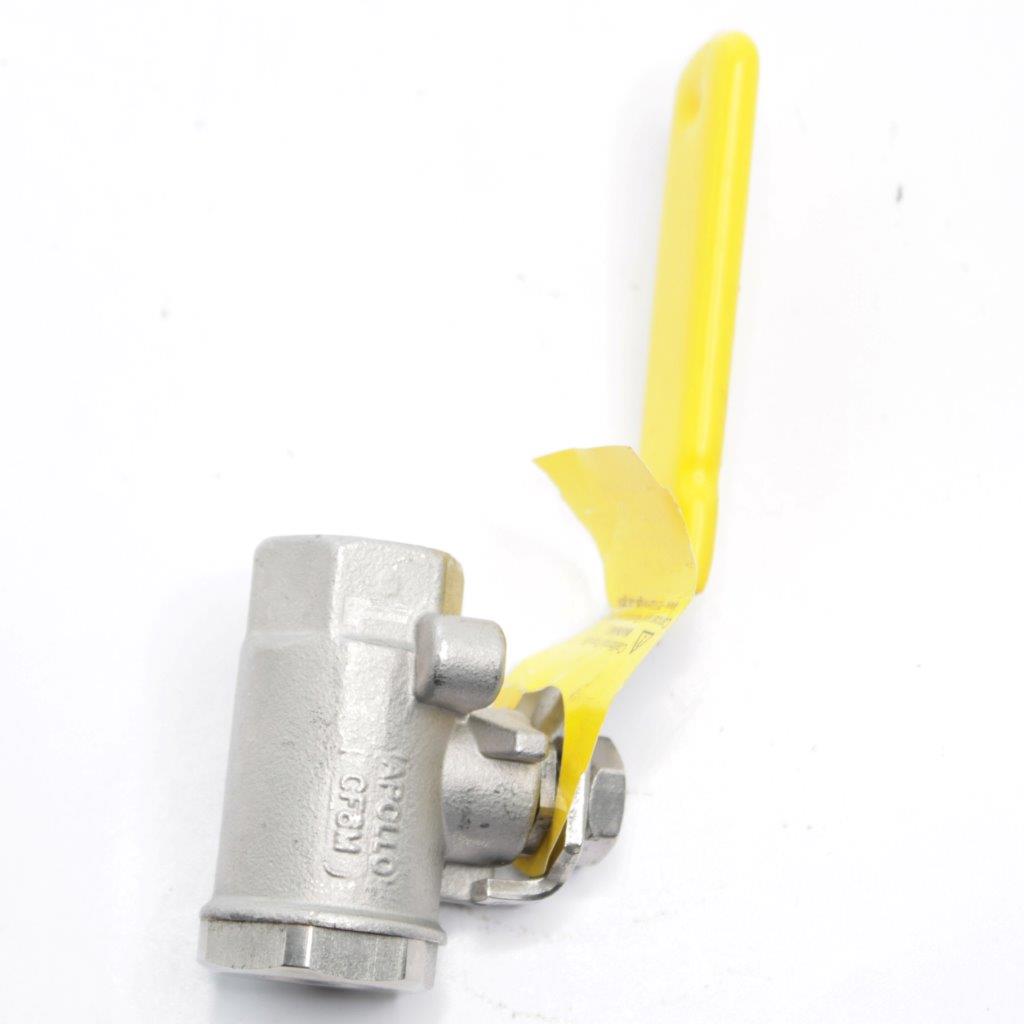

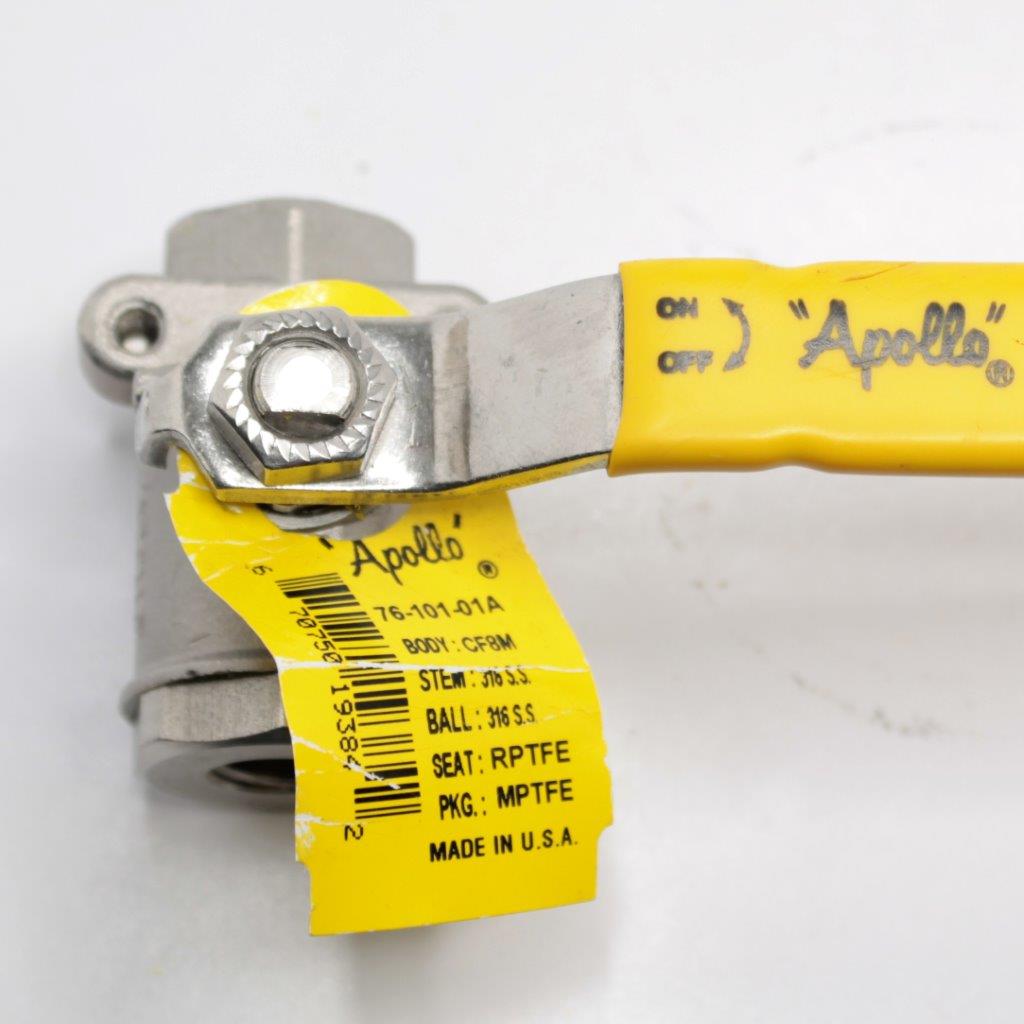

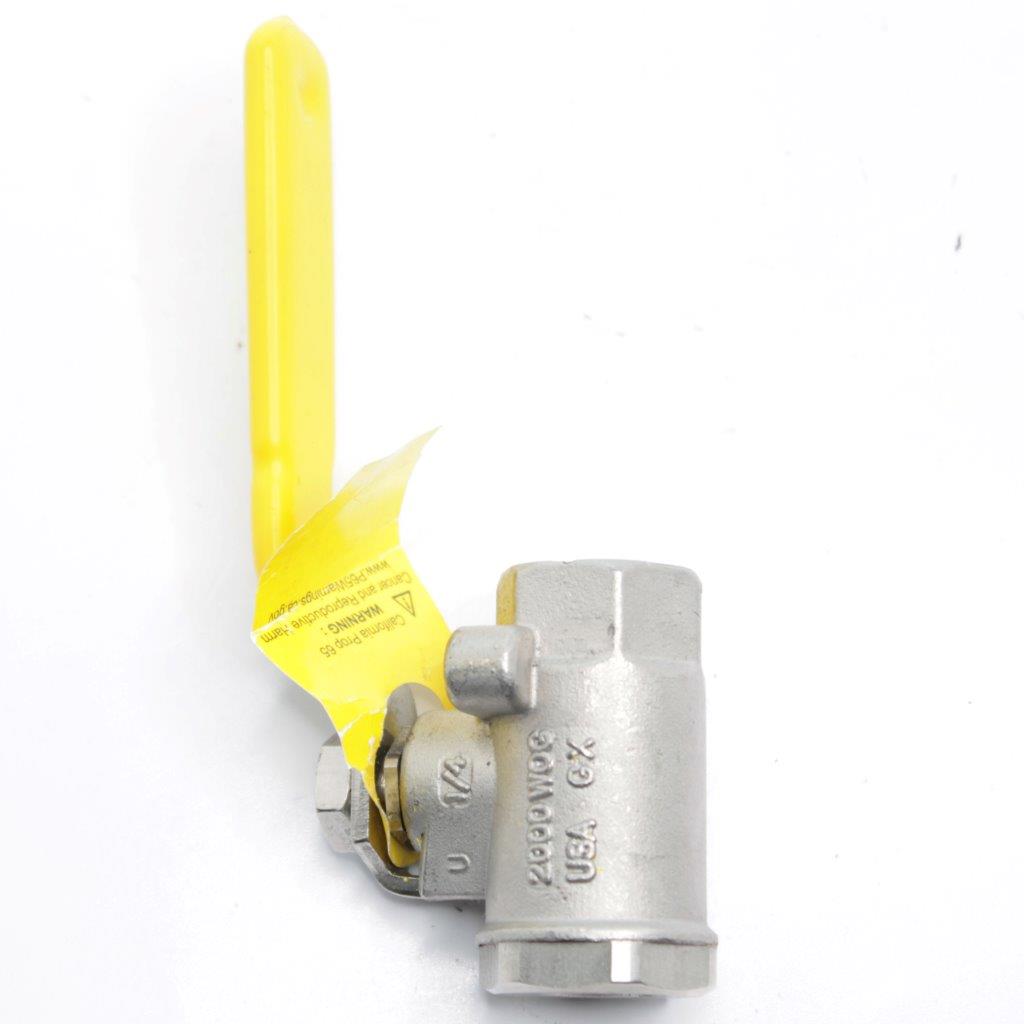

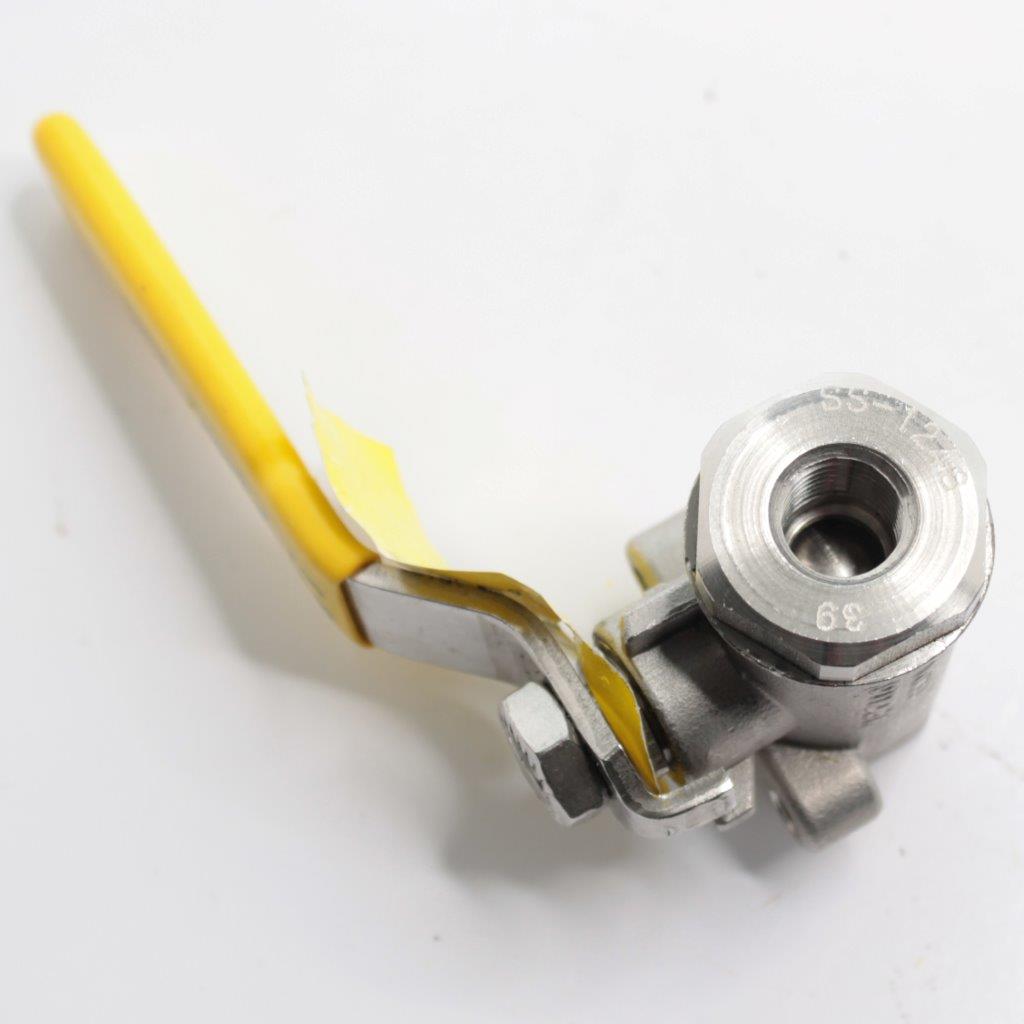

Apollo 1/4″ 7610101A Standard Manual Ball Valve 0.25 inch Pipe FNPTxFNPT 76-101-01A

The Apollo 7610101A is a reliable and robust manual ball valve designed for a variety of industrial and commercial applications. It is constructed with high-quality materials to ensure durability and long-term performance.

Product Specifications:

• Item: Ball Valve
• Model Number: 7610101A
• Pipe Size: 0.25 inch (1/4 inch)
• Connection Type: Threaded (NPT) FNPT x FNPT
• Body Material: CF8M, 316 Stainless Steel
• Port: Standard
• Max. Pressure: 2000 CWP (Cold Working Pressure)
• Ball Material: 316 Stainless Steel
• Handle Material: 304 Stainless Steel
• Handle Type: Lever
• Seat Material: Reinforced Polytetrafluoroethylene (RPTFE)
• Stem Packing: Modified Polytetrafluoroethylene (MPTFE)
• Stem Bearing: Reinforced Polytetrafluoroethylene (RPTFE)
• Stem Material: 316 Stainless Steel
• Body Seal: Polytetrafluoroethylene (PTFE)

Key Features:

• High-Quality Construction: Made from CF8M (316 Stainless Steel) for excellent corrosion resistance and durability.
• Standard Port: Provides adequate flow for various applications while maintaining a compact size.
• High Pressure Rating: Can handle up to 2000 CWP, making it suitable for high-pressure applications.
• 316 Stainless Steel Ball and Stem: Ensures longevity and reliability in demanding environments.
• Lever Handle: Easy manual operation with a quarter-turn lever for quick and precise control.
• Sealing Materials: Features RPTFE seats, MPTFE stem packing, and PTFE body seals for excellent chemical resistance and minimal maintenance.

Applications:

• Industrial Piping Systems: Suitable for controlling the flow of liquids and gases in industrial applications.
• Commercial Plumbing: Ideal for use in commercial water and gas supply systems.
• Chemical Processing: Resistant to corrosion and chemicals, making it suitable for chemical handling and processing.
• Food and Beverage Industry: Safe for use in systems where hygiene and material compatibility are crucial.

Installation and Setup:

1. Preparation:
   • Ensure the piping system is depressurized before beginning installation.
   • Gather necessary tools, such as pipe wrenches and thread sealant (Teflon tape or pipe dope).
2. Installation:
   • Apply thread sealant to the male NPT threads of the pipes.
   • Thread the pipes into the FNPT connections on the valve body, ensuring they are securely tightened.
   • Align the valve handle for easy access and operation.
3. Final Checks:
   • Inspect all connections for tightness and ensure there are no leaks.
   • Test the valve by operating the lever handle to ensure smooth operation and proper sealing.

Maintenance Tips:

• Regular Inspection: Periodically check the valve for signs of wear or leakage.
• Operation: Operate the valve periodically to ensure it remains functional and to prevent seizing.
• Cleaning: Clean the valve and surrounding area to prevent dirt and debris from affecting its operation.

Safety and Compliance:

• Pressure Rating: Always use the valve within its specified pressure rating to ensure safety and longevity.
• Proper Handling: Handle the valve carefully during installation to avoid damaging the threads or internal components.
• Compliance: Ensure the valve is suitable for your specific application and complies with relevant industry standards and regulations.

The Apollo 7610101A Standard Manual Ball Valve is a versatile and durable valve designed for a wide range of applications. Its high-quality construction and materials ensure reliable performance in demanding environments. Proper installation and maintenance will ensure optimal functionality and extend the lifespan of the valve.
