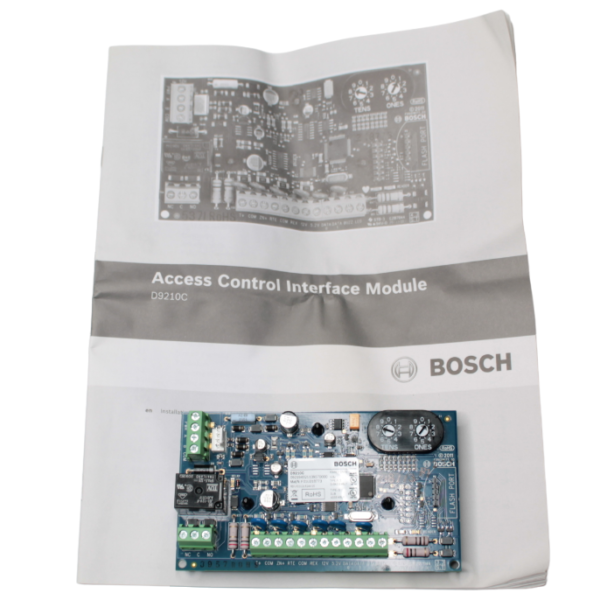

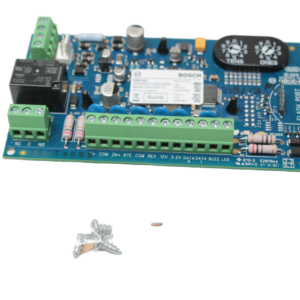

Bosch D9210C Access Control Interface Module

Bosch D9210C Access Control Interface Module

New: A brand-new, unused, undamaged item in its original packaging.

Description:
The D9210C Access Control Interface Module is a fully supervised, addressable SDI bus device that allows access control integration for Bosch G Series Control Panels. This highly reliable module offers 14 programmable levels of access authority. Authority for access is controlled by the level of the user, the time of day, the state of the door and the armed state of the area. Each of the authority restrictions can be controlled through automatic and manual functions. Users can be added to the system with local programming using RPS (Remote Programming Software), D5200, or with credentials using the Add User function through keypads.

Functions:
Reader Input
• Standard 5-wire Weigand interface.
• +5 VDC or +12 VDC supplied to power readers.
• Open collector output for reader LED.
Unsupervised Inputs
• Tamper – supports normally open devices.
• REX – supports normally open devices. Request to Exit on short.
• RTE – supports normally open devices. Request to Enter on short.
Supervised Input
• 1000Ω End of line resistor.
• Use for door contact.

Door States
Four-door states are controlled through the keypad, RPS (Remote Programming Software), scheduled events (Skeds) and automatic programmable functions in the D9210C parameters:
• Locked: Lock Relay de-activated thru valid credential or RTE (Request to Exit) input.
• Unlocked: allows the door to be opened for free access. Lock Relay is activated.
• Secured: does not allow access unless a Fire Unlock occurs. Valid credential or RTE will not activate relay.
• Fire Unlock: allows free access no matter what the previous door state or armed state is. This is a programmable option that can be used to allow free access into or out off the building upon a fire alarm.
Two automatic functions link the door state to the arming state of the area:
• Auto Door: When the area is disarmed, the door state is switched to “Unlocked.”
• Disarm on Open: with this function as “Yes,” a user with valid access rights will activate the strike and disarm the system after the door is opened. With this function as “No,” the area will disarm upon the strike activation.
Indicators
• Heartbeat LED: Blue LED blinks on and off when system is operational. A steady On or Off LED indicates a system error.

Specifications:
Environmental Considerations
Relative Humidity: Up to 93% non-condensing
Temperature Operating: 0° to +49°C (+32° to +120°F)
Electrical Requirements
Current Draw: 110 mA max (Board) +150 mA max (Reader)
Voltage (operating): 8.5 – 13.8 V
Reader Requirements
+5.2 VDC: Power out to 5.2 VDC card reader (5 V +/- 0.25 V for 20 to 140 mA load 150 mA maximum continuous)
DATA 0: Data 0 input from card reader (High impedance input with 47 kΩ pull up to +5.2 V)
DATA 1: Data 1 input from card reader (High impedance input with 47 kΩ pull up to +5.2 V)
BUZZER: Buzzer common upon strike activation (Sink up to 35 mA from 5-14 VDC source Output impedance is 100Ω)
LED: LED common upon card read response and strike activation (Sink up to 35 mA from 5-14 VDC source Output impedance is 180Ω)
Lock Relay (Dry Contact SPDT)
Supports: 12 VDC at 2A; 24 VDC at 2.5 A; 12/24 VAC at 1 A
Compatibility
Compatible Panels: Bosch Security Systems, Inc. D9412GV4/D7412GV4/D9412GV3/D7412GV3/D9412GV2/D7412GV2/D9412G/D7412G/D9412/D7412
Mechanical
Dimensions: (76.2 mm x 127 mm x 25.4 mm) 3 in x 5 in x 1 in

SKU: D9210C
UPC: 800549633130
