Bridge Rectifier GBPC2506 25A 600V (MB256)

Condition: New, unused, and in the original plastic package.

Product Overview:

The GBPC2506 (MB256) is a high-performance, single-phase Power Bridge Rectifier Diode designed for efficient and reliable operation in general-purpose applications. With a 25A current rating and a 600V peak reverse voltage, it is ideal for rectifying AC to DC in various electrical circuits, including power supplies and motor drives.

This rectifier features a compact, thermally efficient package with quick-connect terminals for ease of installation. Its glass passivated diode chips and robust design ensure reliability and durability under demanding operating conditions.

Key Specifications:

• Product Category: Bridge Rectifiers
• Type: Single-phase bridge
• Maximum Average Forward Current (IF(AV)): 25A
• Peak Reverse Voltage (VRRM): 600V
• Forward Voltage (Vf): 1.1V at rated current
• Maximum Surge Current (IFSM): 420A
• Reverse Leakage Current (IR): 5 µA
• Operating Temperature Range: -55°C to +150°C (Junction Temperature)

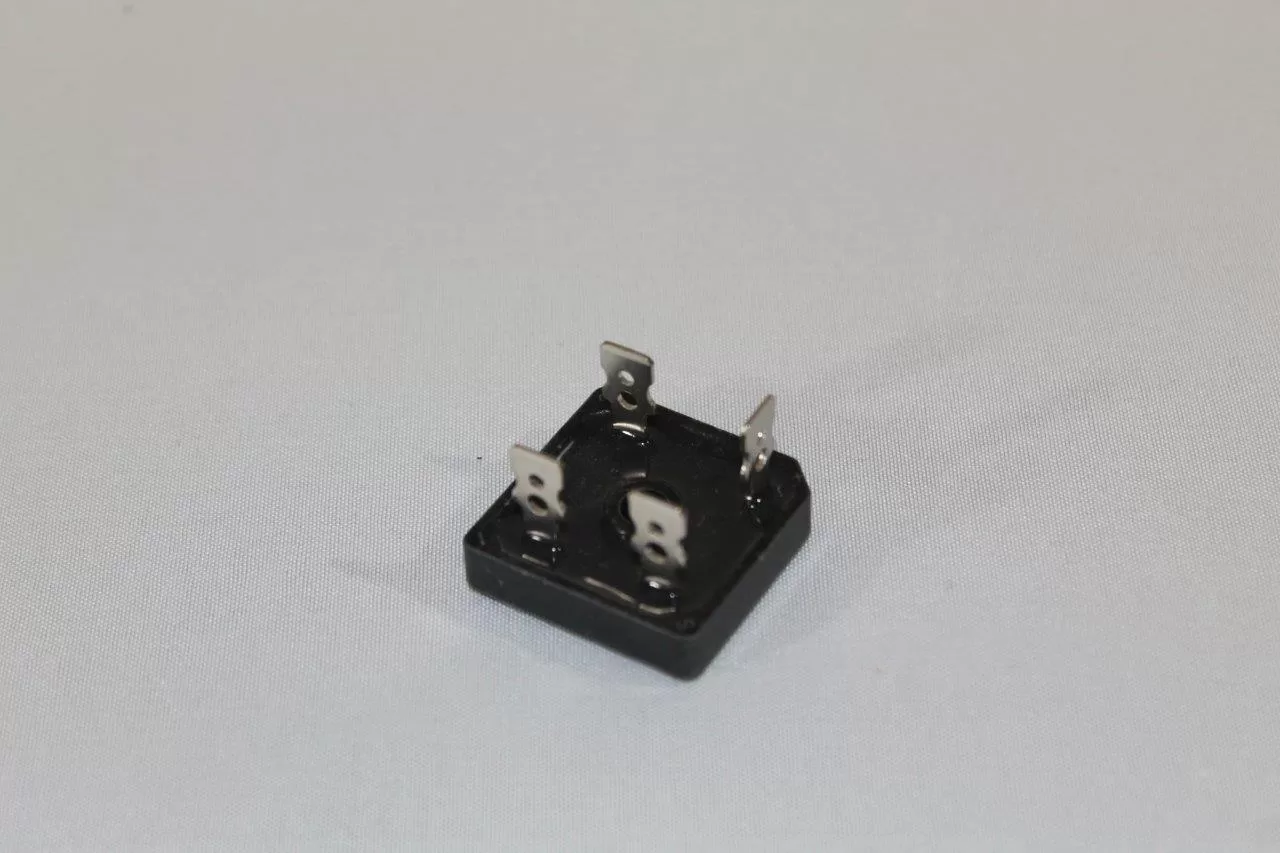

• Termination Style: Quick-connect terminals

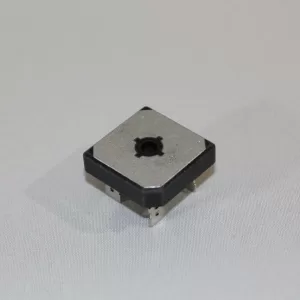

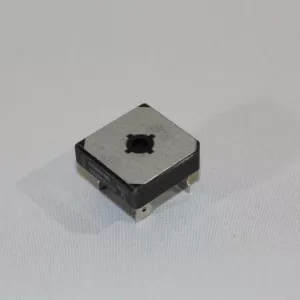

• Mounting Style: Stud mount (center hole for secure attachment)
• Compliance: RoHS Compliant

Key Features:

• High Current Capacity: Handles up to 25A, suitable for high-power applications.
• Efficient Thermal Design: Electrically insulated case with high thermal conductivity for reliable heat dissipation.
• Quick Installation: Quick-connect terminals ensure fast and easy setup.
• Robust Construction: Glass passivated diode chips provide enhanced durability and longevity.
• Versatile Mounting: Center hole allows secure stud mounting in various configurations.
• Polarity Markings: Positive polarity symbol molded on the plastic case for simple and accurate wiring.

Applications:

• Power Supplies: Converts AC to DC for use in regulated power systems.
• Motor Drives: Supports rectification for industrial and consumer motor controls.
• Battery Chargers: Ideal for rectifying current in charging circuits.
• Welding Equipment: Provides reliable rectification for robust industrial welding setups.
• General-Purpose Applications: Suitable for any circuit requiring AC to DC conversion.

Package Includes:

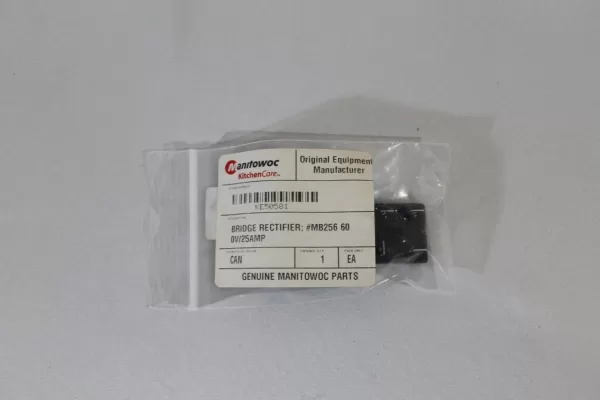

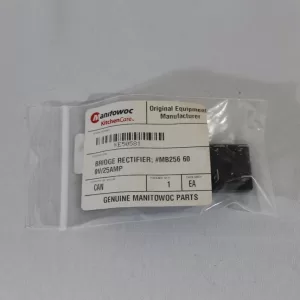

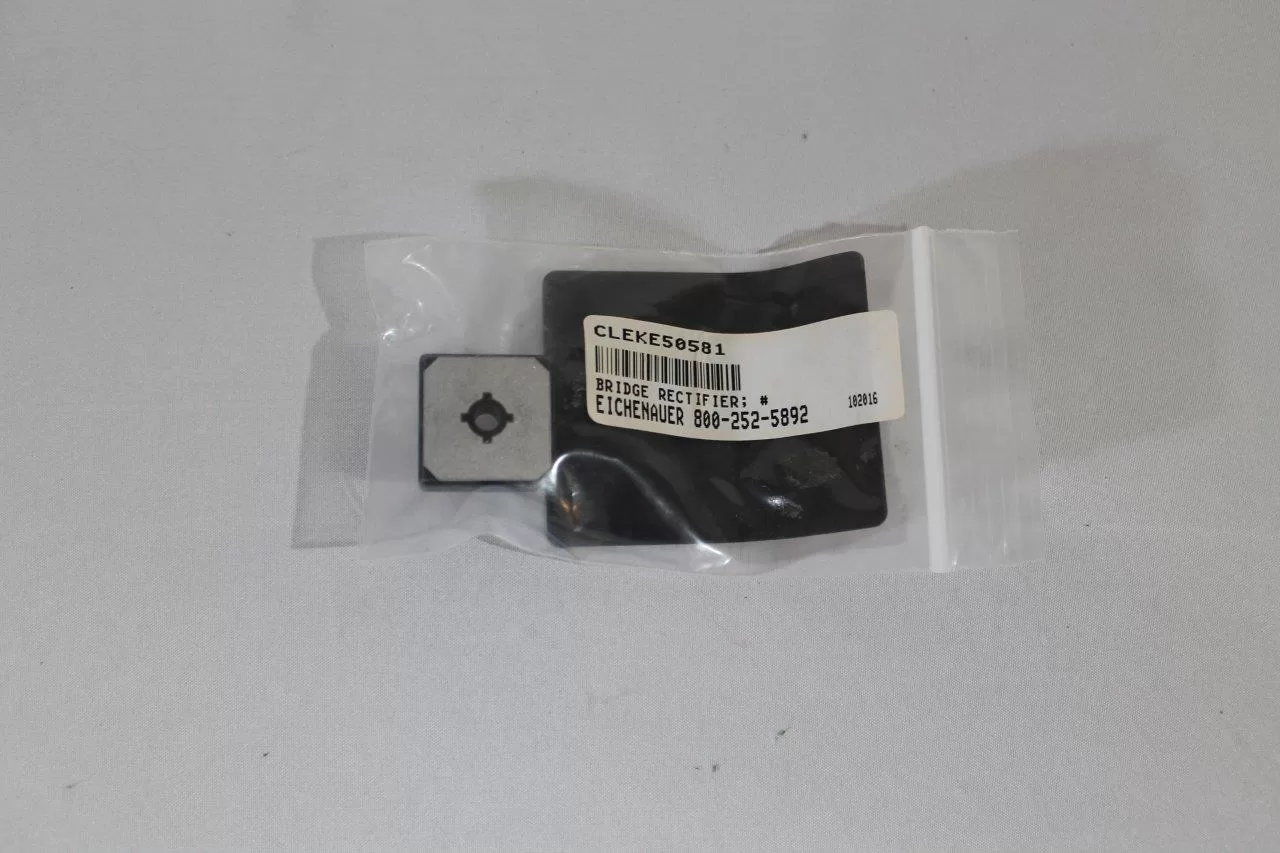

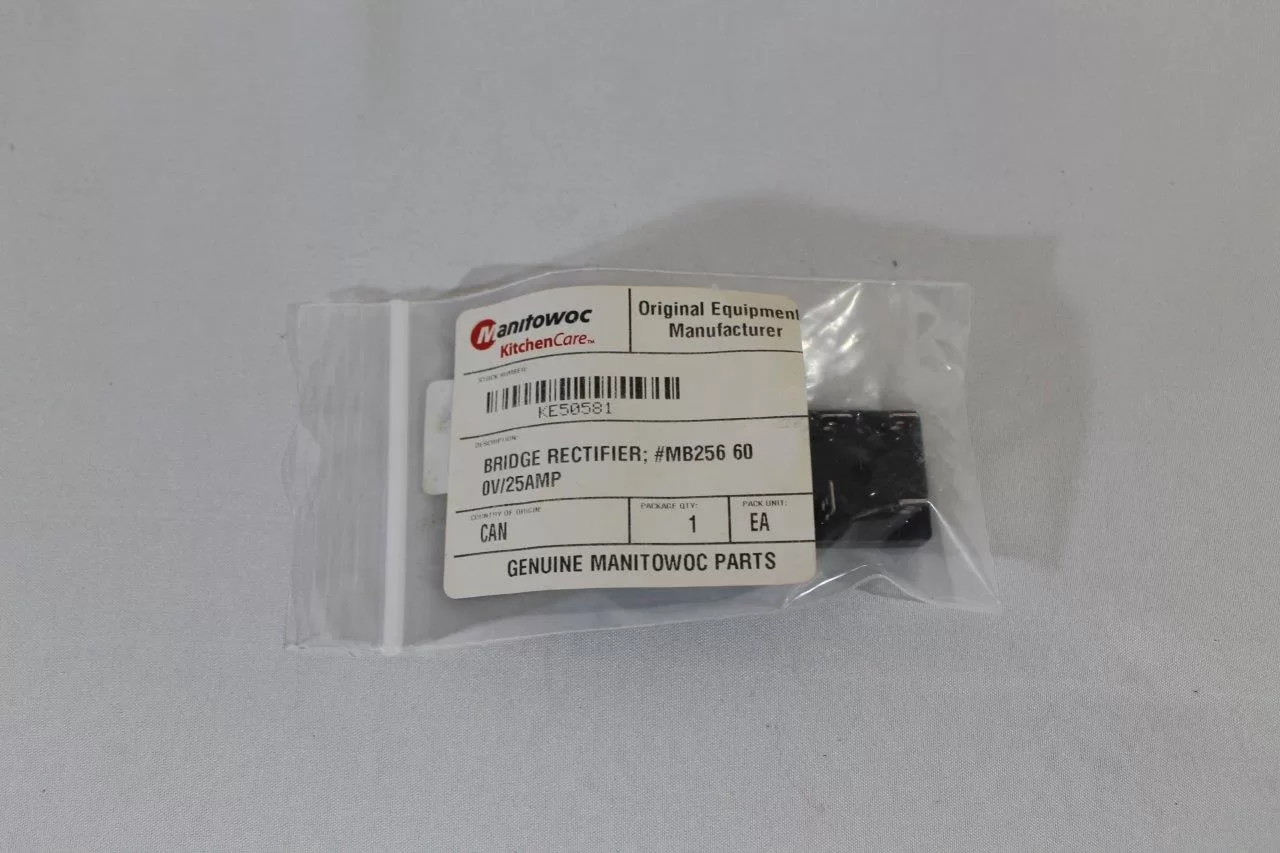

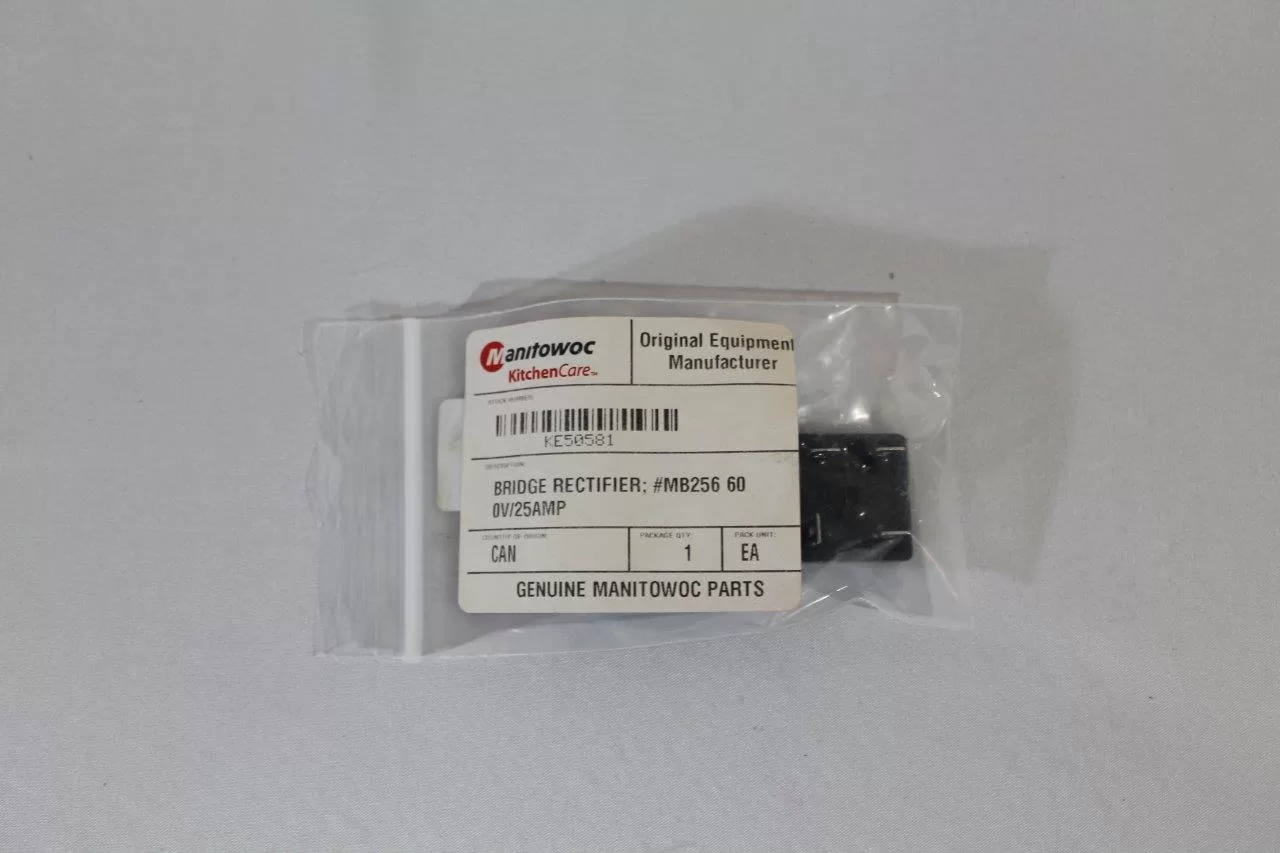

• 1 x GBPC2506 Bridge Rectifier Diode (sealed in the original plastic package).

Pros:

• Compact and space-saving design.
• High power-to-volume ratio for efficient performance.
• Broad operating temperature range for versatile usage in harsh environments.
• Durable construction ensures long-term reliability.

Cons:

• Limited to 600V peak reverse voltage; unsuitable for higher voltage systems.
• Requires proper heat dissipation for continuous high-power operation.

Comparable Products:

1. Vishay GBPC2506 – Similar specifications with high thermal efficiency.
2. ON Semiconductor KBPC2506 – A robust alternative for single-phase rectification.
3. Diodes Inc. GBPC256 – Features similar current and voltage ratings with additional compliance standards.
