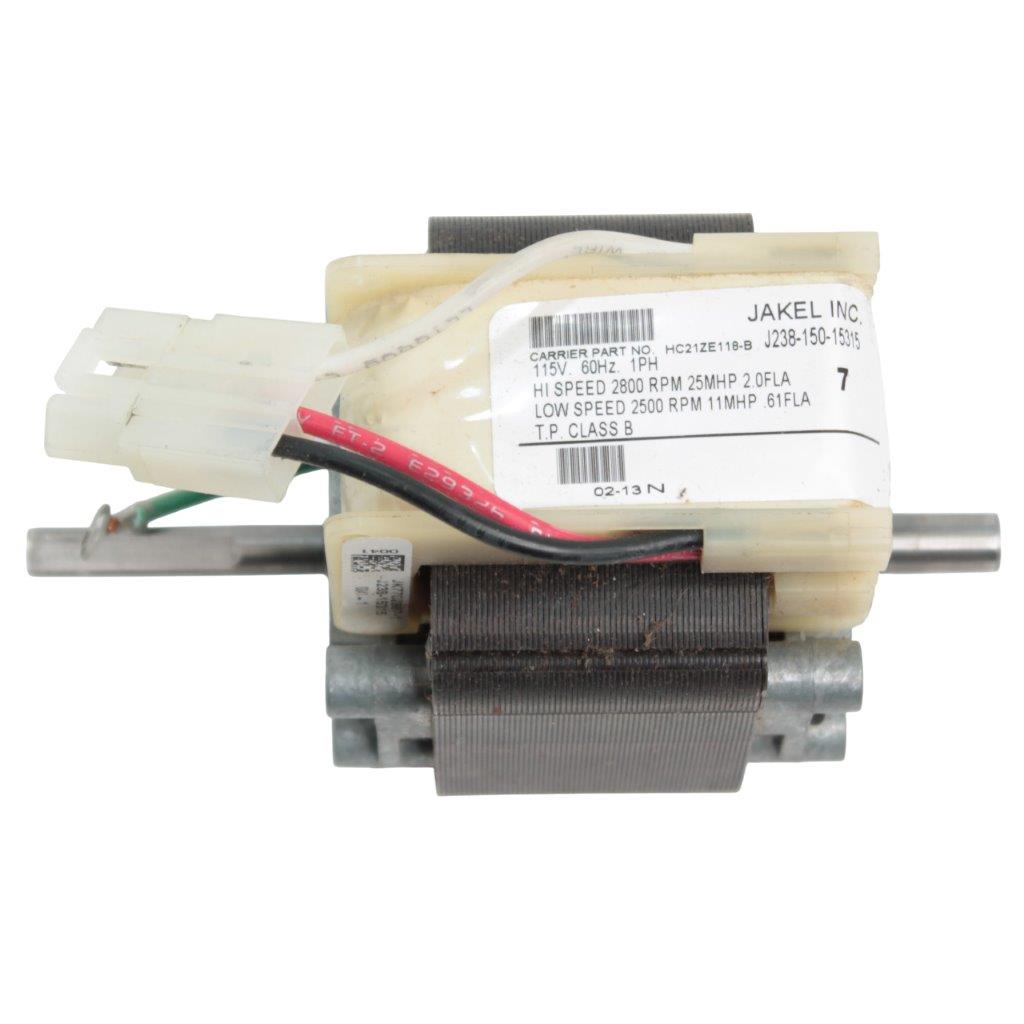

Carrier HC21ZE118-B Combustion Inducer Motor – 1/30 HP, 115V, 2800/2500 RPM
$139.00
1 in stock
Condition: New
The HC21ZE118-B Combustion Inducer Motor is an official OEM replacement motor for Carrier, Bryant, and Payne furnace systems. This draft inducer/exhaust vent motor plays a crucial role in furnace operation by expelling combustion gases and ensuring efficient venting. It features a shaded pole ball-bearing C-frame design, providing reliability and smooth operation. The motor operates at 1/30 HP, with dual-speed functionality (2800/2500 RPM) and a 115V power rating. The D-shaped shaft ensures compatibility with Carrier furnace assemblies, including HC21ZE116, HC21ZE118, and J238-150-15315 models.
Features:
- Motor Type: Combustion Inducer / Draft Inducer Motor
- Horsepower: 1/30 HP
- Voltage: 115V
- Amperage: 1.80/0.60 A
- Speed: 2800/2500 RPM (Two-Speed)
- Rotation: Clockwise (CW) when viewing shaft end
- Bearing Type: Shaded Pole Ball Bearing Motor
- Motor Protection: Shaded Pole Overload Protected
- Frame Type: C-Frame
- Shaft Details:
- Lead End: D-Shaped, 5/16″ x 3/4″
- Opposite Lead End: D-Shaped, 1/4″ x 1-5/8″
- Stack Size: 1-5/8″
Applications:
This combustion inducer motor is used in Carrier, Bryant, and Payne gas furnaces to:
- Expel combustion gases efficiently
- Improve furnace safety and performance
- Ensure proper venting and combustion
It is specifically designed for Carrier HC21ZE118, HC21ZE116, J238-150-15315, and J250-150-025305 models.
Cross-Referenced Models:
This motor is a direct replacement for:
- Carrier: HC21ZE118, HC21ZE118B, HC21ZE116
- Bryant: J238-150-15315
- Payne: J250-150-025305
Comparable Products:
If this model is unavailable, consider the following alternatives:
- Fasco A144 (1/30 HP, 115V, 2800 RPM, Shaded Pole Draft Inducer)
- Packard 66756 (1/30 HP, 115V, Dual-Speed, Inducer Motor)
- Lennox 7021-9450 (115V, 1/30 HP, Shaded Pole Furnace Blower Motor)
Related:
- Carrier HC21ZE118 inducer motor replacement
- 1/30 HP draft inducer motor for Bryant furnace
- 115V furnace blower motor shaded pole ball bearing
- Carrier Payne Bryant combustion exhaust motor
- J238-150-15315 equivalent inducer motor
Other Part Numbers
00662441446948, XJ66671-1, J23815315, 0634-1, HC21ZE118-B, 36-11, 3611, 31-14 N, JK7720990-1, Factory Authorized Parts, Replacement Components Division, Motor Inducer
Fits Carrier, Bryant, Payne Models:
330AAV024060AAJA, 330AAV024060ABJA, 330AAV024060ACJA, 330AAV024060FDJA, 330AAV036040AAJA, 330AAV036040ABJA, 330AAV036040ACJA, 330AAV036040FDJA, 330AAV036060AAJA, 330AAV036060ABJA, 330AAV036060ACJA, 330AAV036060FDJA, 330AAV036100AAJA, 330AAV036100ABJA, 330AAV036100ACJA, 330AAV036100FDJA, 330AAV042080AAJA, 330AAV042080ABJA, 330AAV042080ACJA, 330AAV042080FDJA, 330AAV048080AAJA, 330AAV048080ABJA, 330AAV048080ACJA, 330AAV048080FDJA, 330AAV048100AAJA, 330AAV048100ABJA, 330AAV048100ACJA, 330AAV048100FDJA, 330AAV048120AAJA, 330AAV048120ABJA, 330AAV048120ACJA, 330AAV048120FDJA, 330AAV060100AAJA, 330AAV060100ABJA, 330AAV060100ACJA, 330AAV060100FDJA, 330AAV060120AAJA, 330AAV060120ABJA, 330AAV060120ACJA, 330AAV060120FDJA, 330AAV060135AAJA, 330AAV060135ABJA, 330AAV060135ACJA, 330AAV060135FDJA, 330JAV036060AAJA, 330JAV036060ABJA, 330JAV036060ACJA, 330JAV036060FDJA, 330JAV048080AAJA, 330JAV048080ABJA, 330JAV048080ACJA, 330JAV048080FDJA, 330JAV048100AAJA, 330JAV048100ABJA, 330JAV048100ACJA, 330JAV048100FDJA, 330JAV060100AAJA, 330JAV060100ABJA, 330JAV060100ACJA, 330JAV060100FDJA, 330JAV060120AAJA, 330JAV060120ABJA, 330JAV060120ACJA, 330JAV060120FDJA, 331AAV024065AAJA, 331AAV024065ABJA, 331AAV024065ACJA, 331AAV024065ADJA, 331AAV036065AAJA, 331AAV036065ABJA, 331AAV036065ACJA, 331AAV036065ADJA, 331AAV036085AAJA, 331AAV036085ABJA, 331AAV036085ACJA, 331AAV036085ADJA, 331AAV048085AAJA, 331AAV048085ABJA, 331AAV048085ACJA, 331AAV048085ADJA, 331AAV048105ABJA, 331AAV048105ACJA, 331AAV048105ADJA, 331AAV060105AAJA, 331AAV060105ABJA, 331AAV060105ACJA, 331AAV060105ADJA, 331AAV060125AAJA, 331AAV060125ABJA, 331AAV060125ACJA, 331AAV060125ADJA, 331JAV036060AAJA, 331JAV036060ABJA, 331JAV036060ACJA, 331JAV036060ADJA, 331JAV048080AAJA, 331JAV048080ABJA, 331JAV048080ACJA, 331JAV048080ADJA, 331JAV060100AAJA, 331JAV060100ABJA, 331JAV060100ACJA, 331JAV060100ADJA, 333BAV036060AAJA, 333BAV036060ABJA, 333BAV036060ACJA, 333BAV036060FDJA, 333BAV048080AAJA, 333BAV048080ABJA, 333BAV048080ACJA, 333BAV048080FDJA, 333BAV060100AAJA, 333BAV060100ABJA, 333BAV060100ACJA, 333BAV060100FDJA, 333BAV060120AAJA, 333BAV060120ABJA, 333BAV060120ACJA, 333BAV060120FDJA, 333JAV036060AAJA, 333JAV036060ABJA, 333JAV036060ACJA, 333JAV036060FDJA, 333JAV048080AAJA, 333JAV048080ABJA, 333JAV048080ACJA, 333JAV048080FDJA, 333JAV060100AAJA, 333JAV060100ABJA, 333JAV060100ACJA, 333JAV060100FDJA, 333JAV060120AAJA, 333JAV060120ABJA, 333JAV060120ACJA, 333JAV060120FDJA, 58DXT060—10112, 58DXT060—11112, 58DXT060—12112, 58DXT060—13112, 58DXT080—10116, 58DXT080—11116, 58DXT080—12116, 58DXT080—13116, 58DXT100—10120, 58DXT100—11120, 58DXT100—12120, 58DXT100—13120, 58SUA060—10108, 58SUA060—10112, 58SUA080—10114, 58SUA080—10116, 58SUA100—10112, 58SUA100—10116, 58SUA120—10120, 58TMA065—10008, 58TMA065—10012, 58TMA065—11108, 58TMA065—11112, 58TMA065—12108, 58TMA065—12112, 58TMA065—13108, 58TMA065—13112, 58TMA085—10012, 58TMA085—10016, 58TMA085—11112, 58TMA085—11116, 58TMA085—12112, 58TMA085—12116, 58TMA085—13112, 58TMA085—13116, 58TMA105—10020, 58TMA105—11116, 58TMA105—11120, 58TMA105—12116, 58TMA105—12120, 58TMA105—13116, 58TMA105—13120, 58TMA125—10020, 58TMA125—11120, 58TMA125—12120, 58TMA125—13120, 58TUA040-F-13112, 58TUA040—10012, 58TUA040—11112, 58TUA040—12112, 58TUA060-F-13108, 58TUA060-F-13112, 58TUA060—10008, 58TUA060—10012, 58TUA060—11108, 58TUA060—11112, 58TUA060—12108, 58TUA060—12112, 58TUA080-F-13114, 58TUA080-F-13116, 58TUA080—10014, 58TUA080—10016, 58TUA080—11114, 58TUA080—11116, 58TUA080—12114, 58TUA080—12116, 58TUA100-F-13112, 58TUA100-F-13116, 58TUA100-F-13120, 58TUA100—10012, 58TUA100—10016, 58TUA100—10020, 58TUA100—11112, 58TUA100—11116, 58TUA100—11120, 58TUA100—12112, 58TUA100—12116, 58TUA100—12120, 58TUA120-F-13116, 58TUA120-F-13120, 58TUA120—10016, 58TUA120—10020, 58TUA120—11116, 58TUA120—11120, 58TUA120—12116, 58TUA120—12120, 58TUA135-F-13120, 58TUA135—10020, 58TUA135—11120, 58TUA135—12120, 58UHV060-F-13112, 58UHV060—10012, 58UHV060—11112, 58UHV060—12112, 58UHV080-F-13116, 58UHV080—10016, 58UHV080—11116, 58UHV080—12116, 58UHV100-F-13120, 58UHV100—10020, 58UHV100—11120, 58UHV100—12120, 58UHV120-F-13120, 58UHV120—10020, 58UHV120—11120, 58UHV120—12120, 58UXT060-F-13112, 58UXT060—10012, 58UXT060—11112, 58UXT060—12112, 58UXT080-F-13116, 58UXT080—10016, 58UXT080—11116, 58UXT080—12116, 58UXT100-F-13116, 58UXT100-F-13120, 58UXT100—10016, 58UXT100—10020, 58UXT100—11116, 58UXT100—11120, 58UXT100—12116, 58UXT100—12120, 58UXT120-F-13120, 58UXT120—10020, 58UXT120—11120, 58UXT120—12120, 58UXV060-F-13112, 58UXV060—10012, 58UXV060—11112, 58UXV060—12112, 58UXV080-F-13116, 58UXV080—10016, 58UXV080—11116, 58UXV080—12116, 58UXV100-F-13120, 58UXV100—10020, 58UXV100—11120, 58UXV100—12120, 58UXV120-F-13120, 58UXV120—10020, 58UXV120—11120, 58UXV120—12120
Questions:
- How to replace a Carrier HC21ZE118-B combustion inducer motor?
- What are the specifications for the Bryant J238-150-15315 inducer motor?
- Why is my Carrier furnace inducer motor making noise?
- Where to buy a replacement for the HC21ZE118 furnace exhaust motor?
- How to troubleshoot a Carrier Bryant furnace draft inducer motor failure?
Disclaimer:
Carrier, Bryant, and Payne are registered trademarks of their respective manufacturers. This replacement motor is designed for compatibility with their products but is not manufactured or endorsed by these brands. Always verify model compatibility before purchase.
P112
| Weight | 4 lbs |
|---|---|
| Dimensions | 7 × 7 × 6 in |
