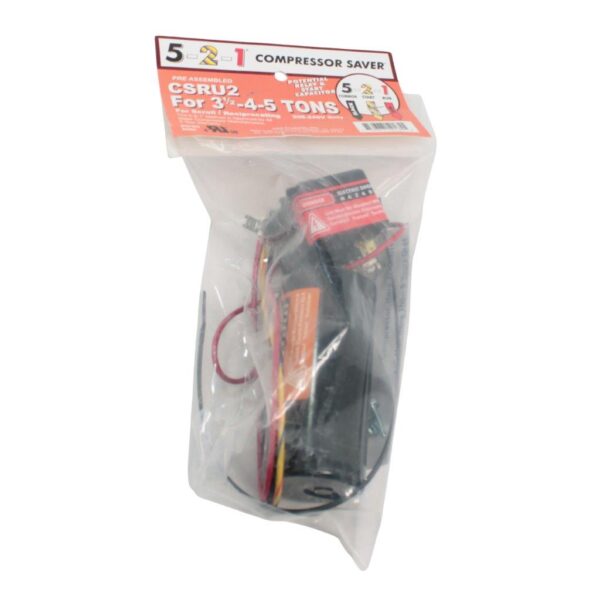

CPS Products CSRU2 5-2-1 Compressor Saver, Potential Relay & Start Capacitor, 189-227 MFD, 208/240V AC for 3.5 to 5 Tons Systems
$32.00
1 in stock
Condition: New
The CPS Products CSRU2 5-2-1 Compressor Saver is a hard start kit that enhances the startup performance of air conditioning and heat pump compressors. Designed for 208/240V AC systems, it features a 189-227 MFD start capacitor and an integrated potential relay to deliver a strong startup boost while reducing the inrush current. This 5-2-1 hard start kit minimizes the strain on the compressor, lowering electrical consumption and extending the lifespan of the unit. It is particularly useful for compressors that struggle to start under heavy loads, aging systems, or locations with low voltage supply issues.
Features
- Voltage: 208/240V AC
- Capacitance: 189-227 MFD (Microfarads)
- Hard Start Method: 5-2-1 (Capacitor, Relay, and PTCR Technology)
- Potential Relay Included: Ensures proper capacitor disengagement after startup
- Reduces Compressor Start Time: Decreases the duration of high amp draw on startup
- Extends Compressor Life: Lowers wear and tear on the compressor motor
- Energy Efficient: Reduces power consumption by limiting inrush current
- Easy Installation: Pre-wired for quick and simple setup
- Compatible with Scroll and Reciprocating Compressors
Applications
- Residential and commercial HVAC systems
- Air conditioning and heat pump compressors
- Units experiencing low-voltage startup issues
- Older systems with delayed startup problems
- Compressors operating in high-heat or high-humidity environments
Cross-Referenced Models
- Supco SPP6
- AmRad USA2230
- RectorSeal 96506
- Mars 32708
Comparable Products
- Supco SPP6E (Electronic Potential Relay)
- AmRad Turbo 200X
- Packard PTMJ189-227
- Diversitech HSK6
Related
HVAC hard start kit, air conditioner start capacitor, compressor booster, 5-2-1 compressor saver, start capacitor with potential relay, CPS Products hard start kit, 208/240V AC compressor assist, energy-saving compressor starter, AC compressor efficiency booster, hard start capacitor troubleshooting
Frequest inquiries
- How to install CPS Products CSRU2 Compressor Saver?
- Best hard start kit for 208/240V AC air conditioners
- How does a potential relay improve compressor startup?
- Signs that my AC compressor needs a hard start kit
- Differences between 5-2-1 hard start kits and PTCR start kits
P112 CloCap
| Weight | 2 lbs |
|---|---|
| Dimensions | 10 × 7 × 5 in |
