DEWALT D25313 1-inch L Shape 3 mode SDS Hammer Drill

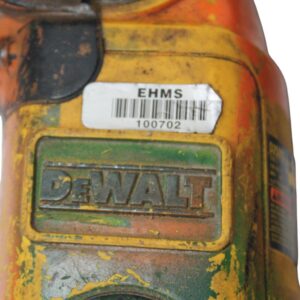

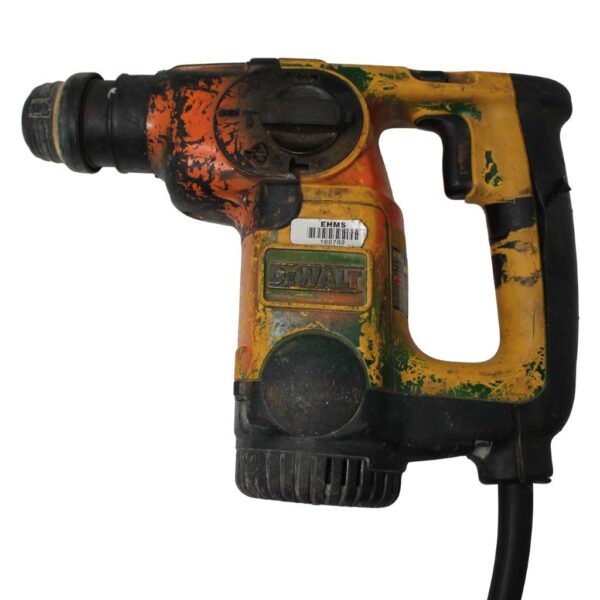

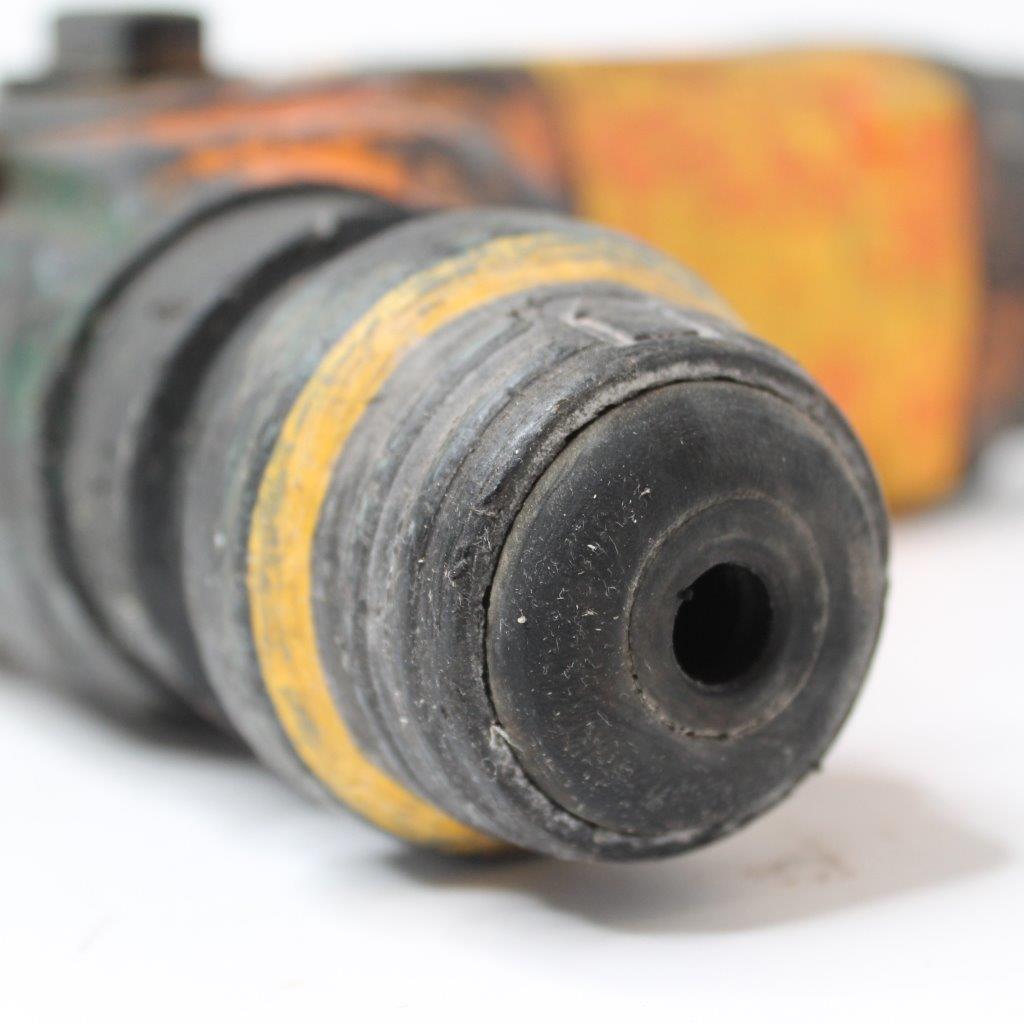

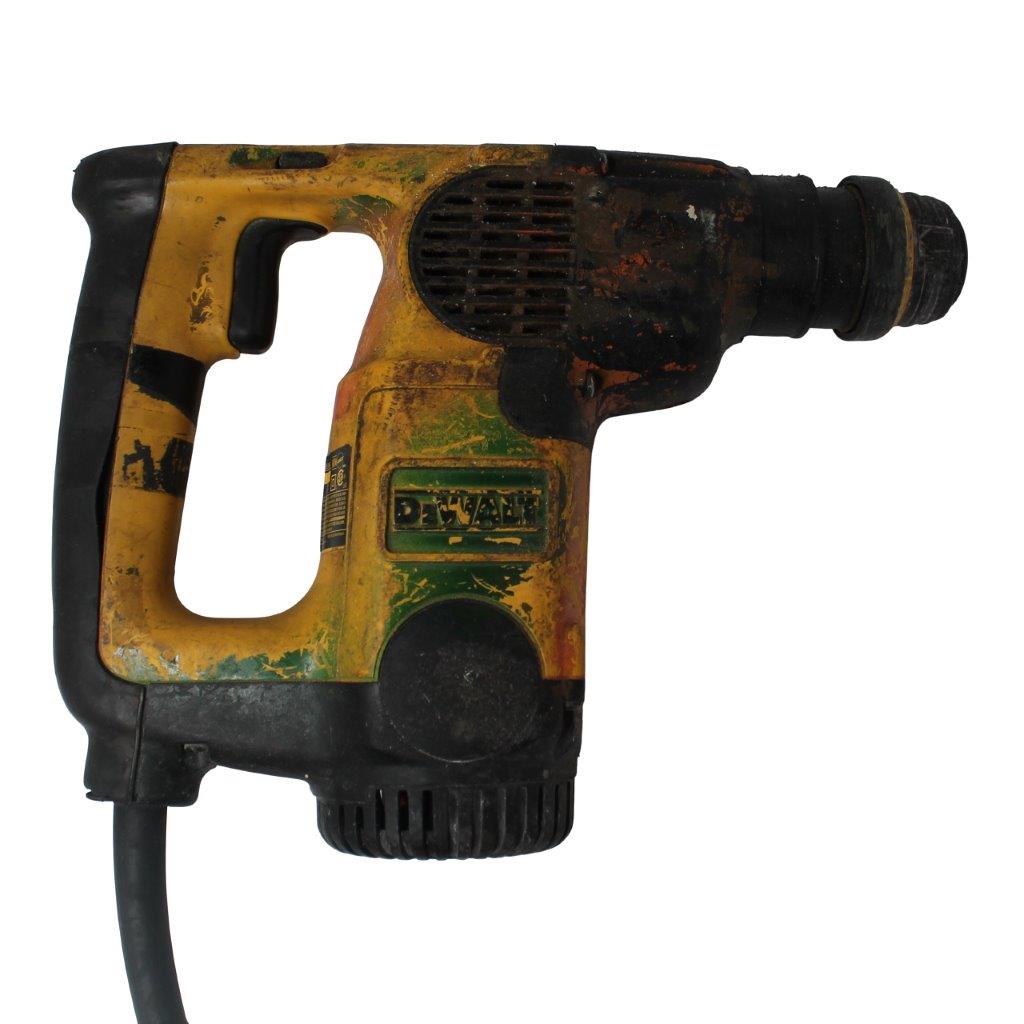

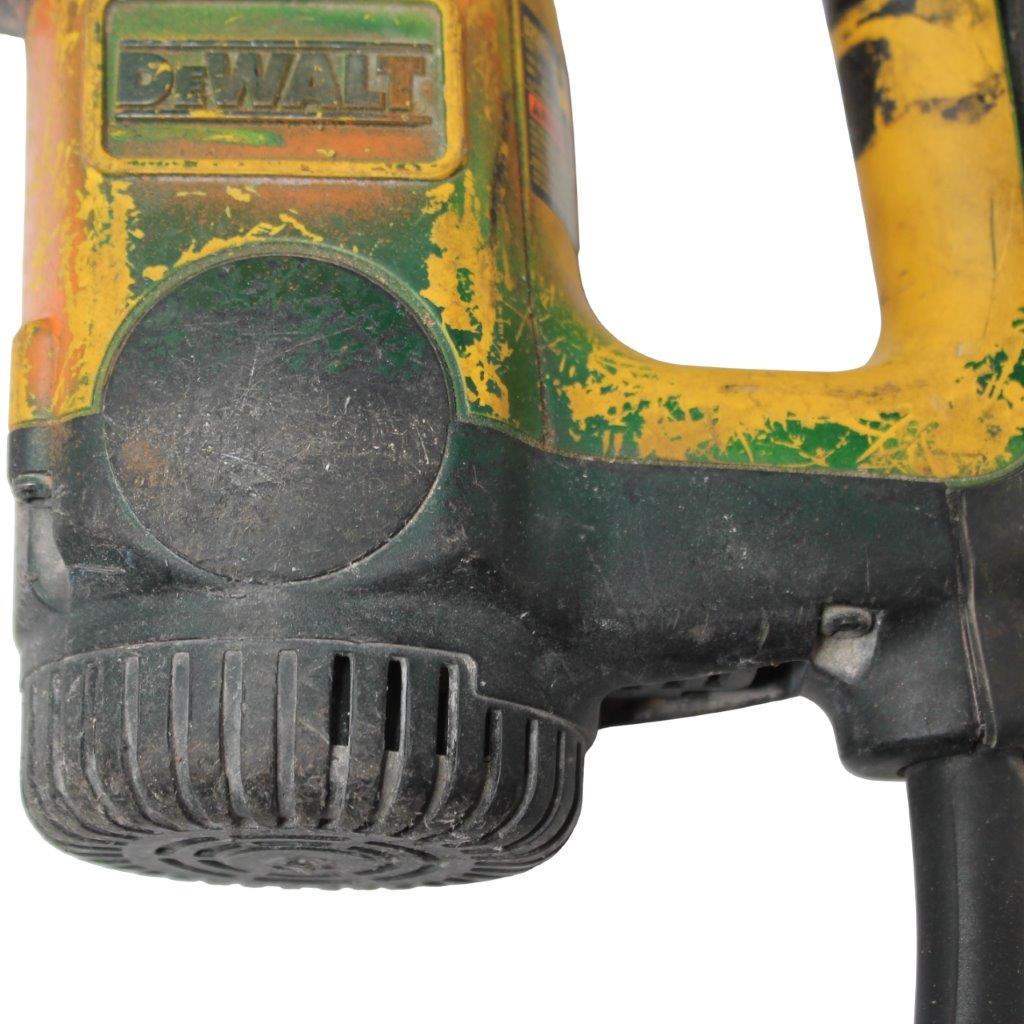

Condition: Used, tested, and in good working condition. Shows signs of wear; refer to pictures for details.

Product Overview:

The DEWALT D25313 SDS Hammer Drill is a versatile and powerful tool designed for heavy-duty applications in construction and renovation. Its L-shape design improves balance and ergonomics, while its three operating modes (hammer drill, rotary drill, and chipping only) make it suitable for various tasks. Compatible with SDS bits, it excels in drilling, chiseling, and demolition tasks.

Key Specifications:

• Model: D25313
• Power Type: Corded
• Bit Type: SDS (Special Direct System)
• Motor Power: 8.0 Amps
• Impact Energy: 2.5 ft-lbs
• Modes:
  • Hammer Drill
  • Rotary Drill
  • Chipping (Hammer Only)
• Speed: Variable
• No-Load Speed: 0-1,150 RPM
• Blows Per Minute (BPM): 0-4,300 BPM
• Drilling Capacity:
  • Concrete: 1 inch
  • Steel: 1/2 inch
  • Wood: 1-1/8 inch
• Weight: 6.5 lbs.

Key Features:

1. Three Operating Modes:
   • Hammer Drill: Combines hammering and rotation for fast concrete drilling.
   • Rotary Drill: For drilling into wood, metal, or plastic.
   • Chipping Only: For light demolition and chiseling applications.
2. L-Shape Design: Enhances balance and user comfort, reducing fatigue during extended use.
3. High Performance: The 8-amp motor delivers consistent power for demanding tasks.
4. Variable Speed Trigger: Allows precise control over drilling and chipping speeds.
5. Integral Clutch: Reduces sudden high-torque reactions to enhance user safety.

Applications:

• Concrete Drilling: Ideal for creating anchor holes or routing conduit.
• Light Demolition: Chipping tiles, removing mortar, or breaking small concrete areas.
• Wood and Metal Drilling: Suitable for precision drilling in construction or renovation projects.
• Masonry Work: Drilling into brick or stone for mounting or fastening.

Included Components (if applicable):

• DEWALT D25313 Hammer Drill
• Auxiliary handle (check if included)
• Depth rod (check if included)
• Carrying case (optional; confirm if provided)

Pros:

• Versatile 3-mode operation for various applications.
• Lightweight and ergonomic design reduces operator fatigue.
• Compatible with widely available SDS bits.
• Durable and built for heavy-duty use.

Cons:

• Signs of wear due to previous usage.
• Corded operation limits mobility compared to cordless models.

Comparable Products:

1. Bosch GBH2-28L SDS-Plus Rotary Hammer – Features vibration control and similar performance.
2. Makita HR2475 SDS-Plus Rotary Hammer – Offers a similar combination of power and versatility.
3. Milwaukee 5262-21 SDS Plus Rotary Hammer – Compact design with comparable features.

Related:

• DEWALT D25313 3-mode hammer drill
• SDS rotary hammer drill for concrete
• 1-inch DEWALT hammer drill used
• L-shape DEWALT rotary hammer chipping
• Heavy-duty demolition and drilling tool

Disclaimer:

DEWALT is a trademark of Stanley Black & Decker, Inc. The use of this name is for identification purposes only and does not imply endorsement. Always refer to the user manual for safe operation and compatibility.
