DMP 1121-W Wireless PIR OM-0064 Motion Detector, no mount bracket

DMP 1121-W Wireless PIR OM-0064 Motion Detector, no mount bracket

New: A brand-new, unused, undamaged item. No mount bracket included

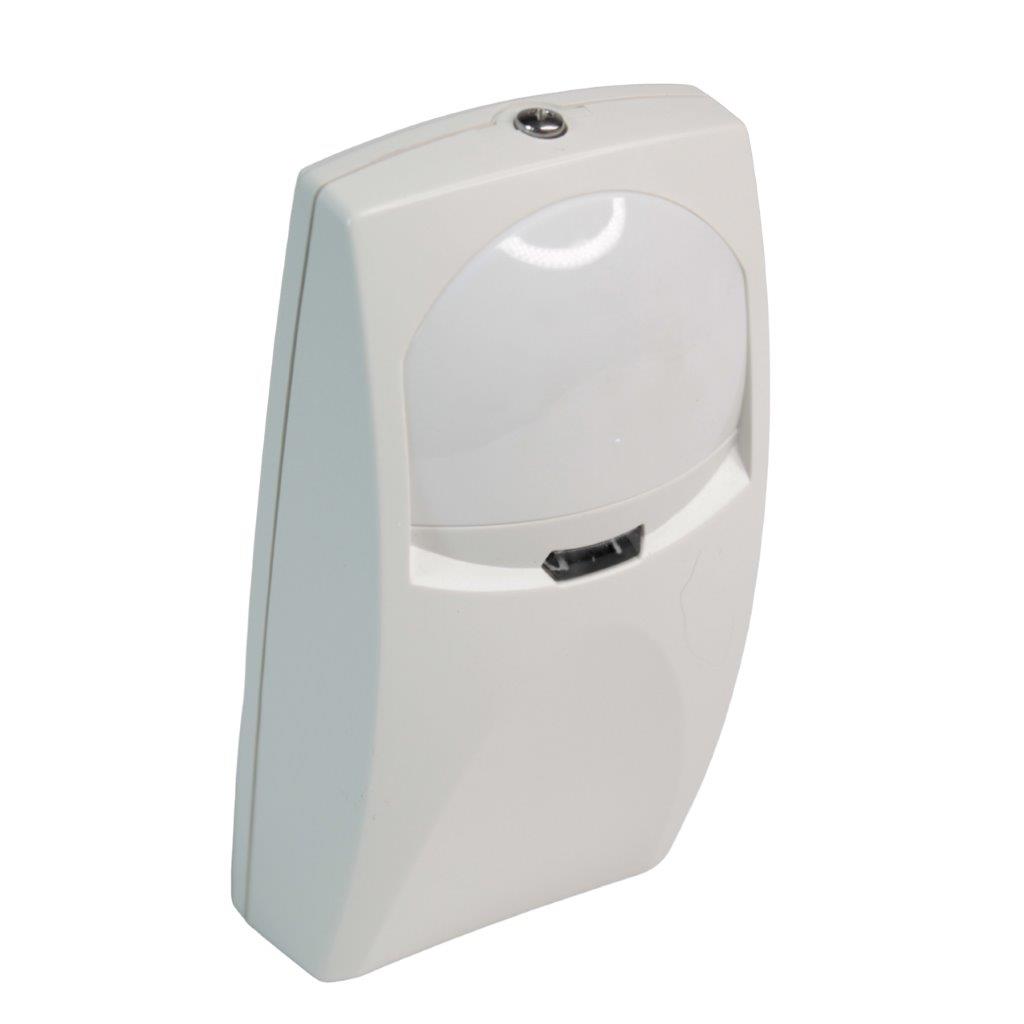

The DMP 1121-W Wireless PIR (Passive Infrared) Motion Detector is a versatile and reliable security device designed to detect movement within a specified area. With advanced features like pet immunity, low current technology, and flexible mounting options (No mount bracket included), it is suitable for various residential and commercial security applications.

Product Specifications:

• Brand: DMP (Digital Monitoring Products)
• Model: 1121-W
• Model Number: 0015040
• Battery Type: CR123A Lithium Battery, 3V
• Mounting Height: 4.9 to 8.2 feet (1.5 to 2.5 meters)
• Frequency Range: 903-927 MHz
• Dimensions: 4.8” H x 2.5” W x 1.45” D
• Color: White

Key Features:

• Low Current Technology: Ensures efficient operation with minimal battery usage, extending the life of the device.
• Low Battery Reporting: Alerts you when the battery is low, ensuring continuous protection.
• Two Minute Walk Test: Allows for easy testing of the coverage area to ensure proper installation and functionality.
• Calibration-Free Height Installation: Can be mounted at heights ranging from 4.9 to 8.2 feet without requiring calibration.
• Pet Immunity: Selectable pet immunity settings allow the device to ignore pets weighing up to 33 lbs or up to 60 lbs, reducing false alarms.
• Auto-Power Save (APS) Mode: Conserves battery life by reducing power consumption when not detecting motion.
• Sensitivity Adjustment: Allows for fine-tuning the detector’s sensitivity to suit specific application requirements.
• Tamper Switch: Built-in tamper switch for added security, ensuring the device is not tampered with without detection.

Applications:

• Residential Security: Ideal for home security systems to monitor rooms, hallways, and entry points.
• Commercial Security: Suitable for offices, retail stores, and other commercial properties to detect unauthorized movement.
• Pet Owners: Perfect for households with pets, as the pet immunity feature helps reduce false alarms caused by animals.

Installation and Setup:

1. Preparation:
   • Ensure the mounting location provides a clear view of the area to be monitored and is free from obstructions.
   • Gather necessary tools, such as a screwdriver and the optional mounting hardware.
2. Mounting the Detector:
   • Choose the appropriate mounting height (4.9 to 8.2 feet) and location (wall, corner, or ceiling using the optional bracket).
   • Secure the detector to the wall or bracket using the provided screws.
   • Ensure the tamper switch is properly engaged when the cover is installed.
3. Battery Installation:
   • Insert the CR123A lithium battery into the battery compartment, observing correct polarity.
   • Close the battery compartment securely.
4. Walk Test:
   • Activate the two-minute walk test mode by following the instructions in the manual.
   • Walk through the coverage area to verify that the detector accurately senses motion and reports to the control panel.
5. Sensitivity and Pet Immunity Adjustment:
   • Set the sensitivity and pet immunity switches to the desired positions based on your specific requirements and environment.
   • Refer to the manual for detailed instructions on adjusting these settings.

Maintenance Tips:

• Regular Testing: Periodically perform walk tests to ensure the detector is functioning correctly.
• Battery Replacement: Replace the battery as soon as the low battery alert is received to maintain continuous protection.
• Cleaning: Keep the detector clean and free of dust or debris that may affect its performance.

Safety and Compliance:

• Handling: Handle the device carefully during installation to avoid damaging internal components.
• Battery Disposal: Dispose of used batteries according to local regulations to prevent environmental harm.
• Compliance: Ensure installation complies with local security and building codes.

The DMP 1121-W Wireless PIR Motion Detector is a reliable and flexible security solution, ideal for both residential and commercial applications. Its advanced features, such as pet immunity, low current technology, and adjustable sensitivity, make it a valuable addition to any security system. Proper installation and regular maintenance will ensure optimal performance and long-term reliability.
