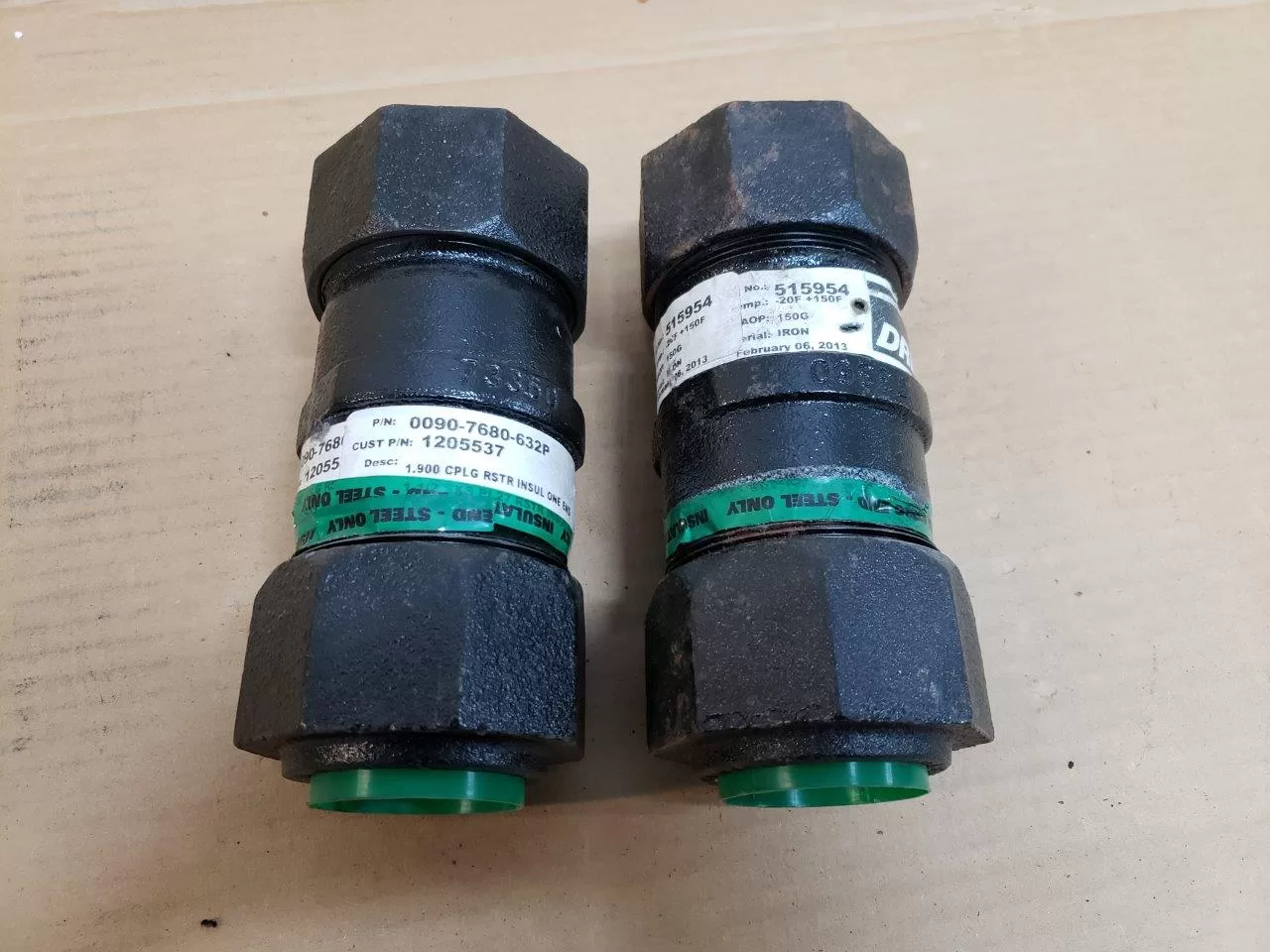

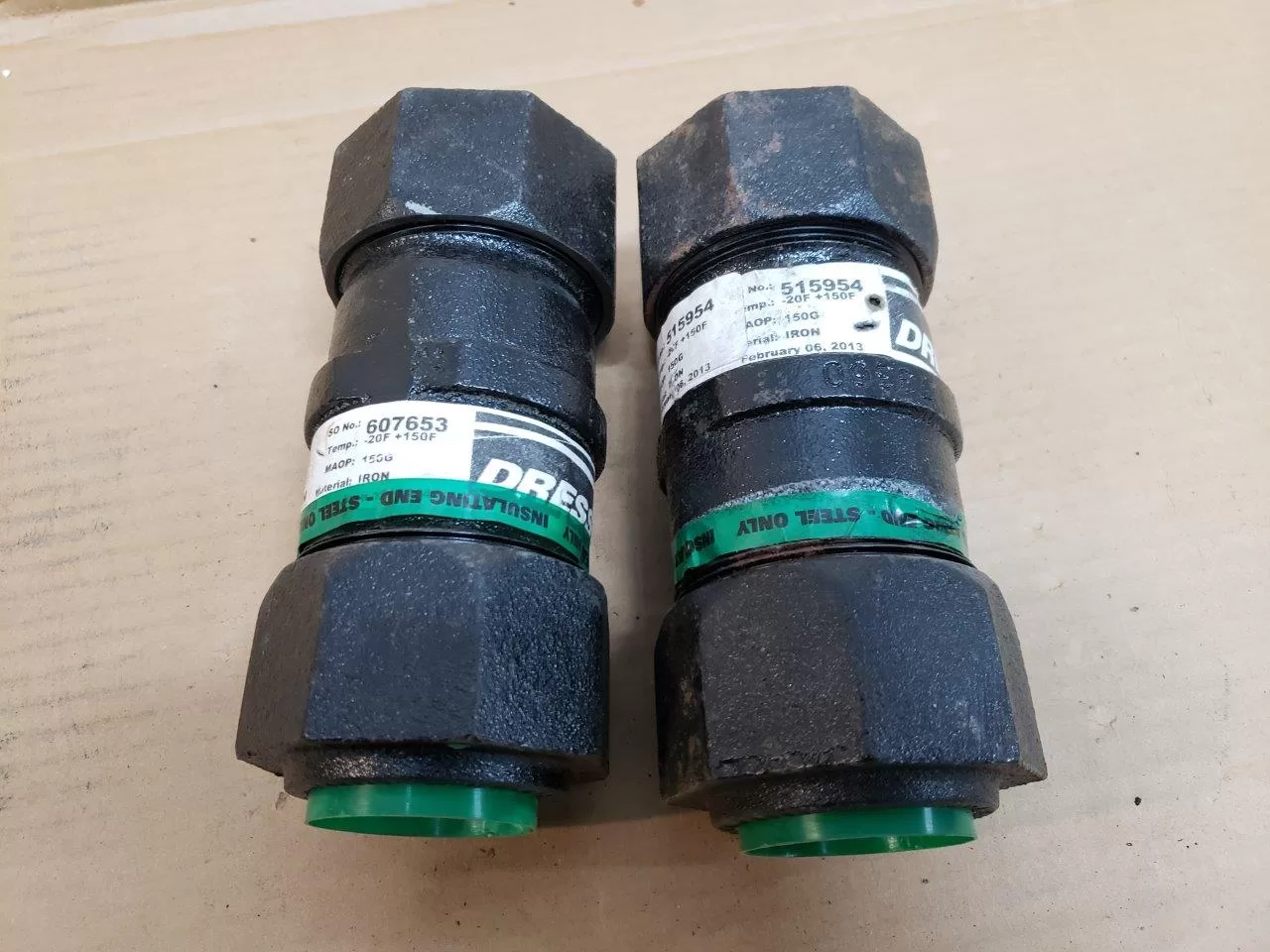

Dresser 0090-7680-632P Style 90 Insulated Restraining Couplings
A brand-new, unused, undamaged item.
2 Insulated Restraining Couplings are available. Price for 1.
Description:
For Cathodic Protection on Seal & Restraining Steel to Steel and Steel to PE Pipe* Connections
The time-proven Dresser Style 90 Coupling now offered in an insulating version. This coupling can be used to make quick pipe joints when positive restraint AND electrical isolation are required. The Dresser Style 90 Insulated Restraining coupling joins steel to steel and steel to polyethylene pipes listed in ASTM D2513.
Specifications:
Pipe Nominal Size (ID) (In.): 1-1/2”
Outside Diameter (OD) (In.): 1.900
Dresser Part Number: 0090-7680-632
Overall Length: 7-1/8
Overall Height: 3-3/8
Pipe Size Nom.: 1-1/2”
Pipe Size O.D.: 1.900
Max. Sealing Pressure: 150 PSI
Max. Steel Pipe Pullout Resistance: 3700 lbs.
| Weight | 4.9 lbs |
|---|---|
| Dimensions | 8 × 4 × 4 in |
