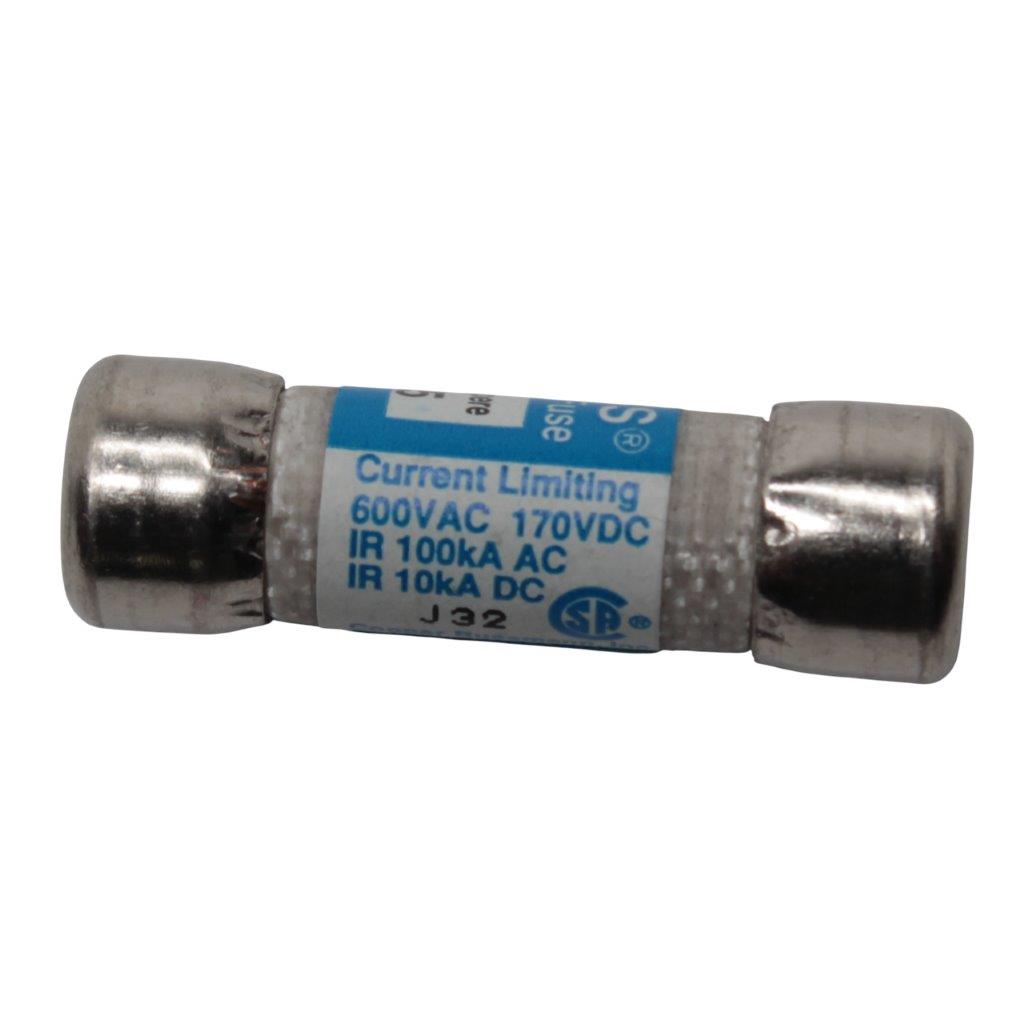

Eaton Bussmann SC-5 Class G Fast-Acting, Current-Limiting Fuse – 5A, 600VAC/170VDC, Rejection Style

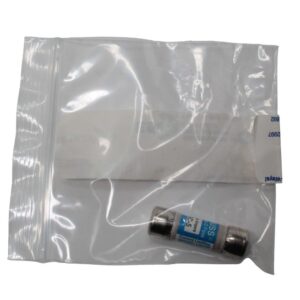

Condition: New – Factory-sealed, non-indicating fuse.

The Eaton Bussmann SC-5 is a Class G fast-acting, current-limiting fuse designed for reliable circuit protection in industrial, commercial, and residential applications. With a 5-amp rating and high interrupting capacities (100 kA at 600 VAC and 10 kA at 170 VDC), this fuse is ideal for protecting lighting, heating, and general-purpose circuits.

The rejection-style design ensures proper fuse replacement, preventing the use of incorrect fuses, while its ferrule end x ferrule end connection allows for easy installation in a wide range of fuse holders. The SC-5 is both CE marked and RoHS compliant, meeting stringent safety and environmental standards.

Features & Benefits:

• Class G fast-acting fuse for superior short-circuit protection
• Current-Limiting Design – reduces let-through energy during faults
• Amperage Rating: 5A
• Voltage Rating: 600 VAC / 170 VDC
• Interrupting Rating:
  • 100 kAIC at 600 VAC
  • 10 kAIC at 170 VDC
• Rejection-style design prevents improper fuse substitution
• Ferrule end x ferrule end connection for easy installation
• Non-indicating fuse
• CE marked and RoHS compliant

Applications:

• Lighting circuits
• Heating systems
• Control panels
• General-purpose circuits
• HVAC equipment
• Motor protection (where fast-acting fuses are applicable)

Specifications:

• Catalog Number: SC-5
• UPC: 051712250054
• Class: G
• Type: Fast-acting, current-limiting
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Physical Dimensions:
  • Length: 1.31 in
  • Height: 0.41 in
  • Width: 0.41 in
• Product Weight: 0.1 lb
• Packaging Type: Standard
• Warranty: Not applicable

Cross-Referenced Models:

• Littelfuse SLC-5 – 5A Class G Fast-Acting Fuse
• Mersen GGC5 – 5A Class G Current-Limiting Fuse
• Ferraz Shawmut AGC5 – 5A General Purpose Fast-Acting Fuse

Comparable Products:

• Littelfuse KLDR005 – 5A Class CC Time-Delay Fuse
• Mersen ATMR5 – 5A Class CC Time-Delay Fuse
• Bussmann FNQ-R-5 – 5A Class CC Dual-Element Time-Delay Fuse

Related:

• Eaton Bussmann Class G fuses
• 5A fast-acting fuse for industrial circuits
• Current-limiting rejection-style fuses
• SC-5 600V fuse for lighting and heating circuits
• Ferrule-end Class G fuse

Common Requests:

1. How to select the correct Class G fuse for industrial circuits
2. SC-5 fuse compatibility with Bussmann fuse holders
3. Difference between fast-acting and time-delay fuses
4. Proper installation of rejection-style Class G fuses
5. SC-5 interrupt rating and short-circuit protection details
