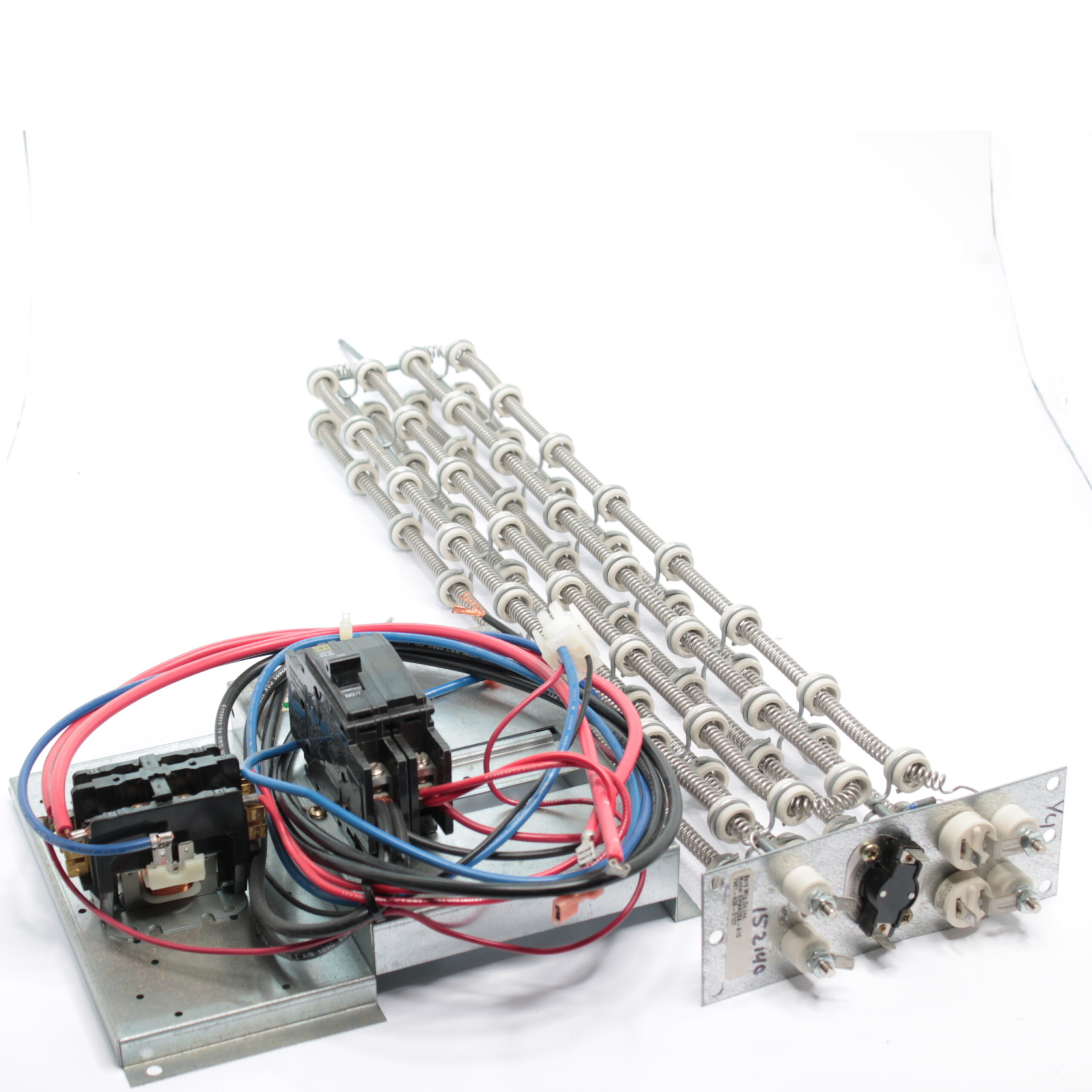

EHWA02A-A10 Electric Heater Assembly with Control Assembly – 240/208V, 10/7.5kW, Single-Phase

EHWA02A-A10 Electric Heater Assembly with Control Assembly – 240/208V, 10/7.5kW, Single-Phase

Condition: Used

The EHWA02A-A10 is a 10kW electric heater assembly with integrated control module, built for use in commercial or industrial HVAC systems requiring supplemental or primary electric heating. Operating at 240V or 208V single-phase, it delivers 10kW at 240V and 7.5kW at 208V, making it suitable for variable power setups. The heater assembly includes a control module designed for precise power and temperature regulation, and both components are marked with the same model number for matched compatibility. Ideal for air handler integration, duct heaters, or retrofit applications.

Features

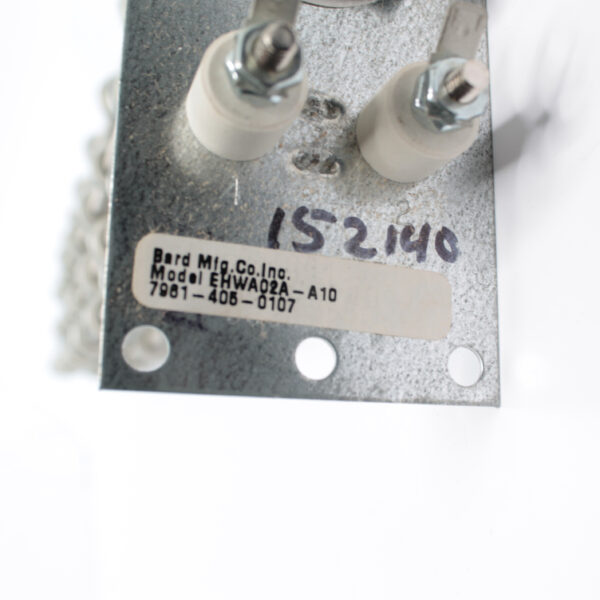

Model: EHWA02A-A10
Build/Manufacturer Number (B/M): 901010
Serial Number: B072301712-02
Voltage: 240V / 208V
Power Output:
10 kW @ 240V
7.5 kW @ 208V
Frequency: 60 Hz
Phase: Single Phase (1Ph)

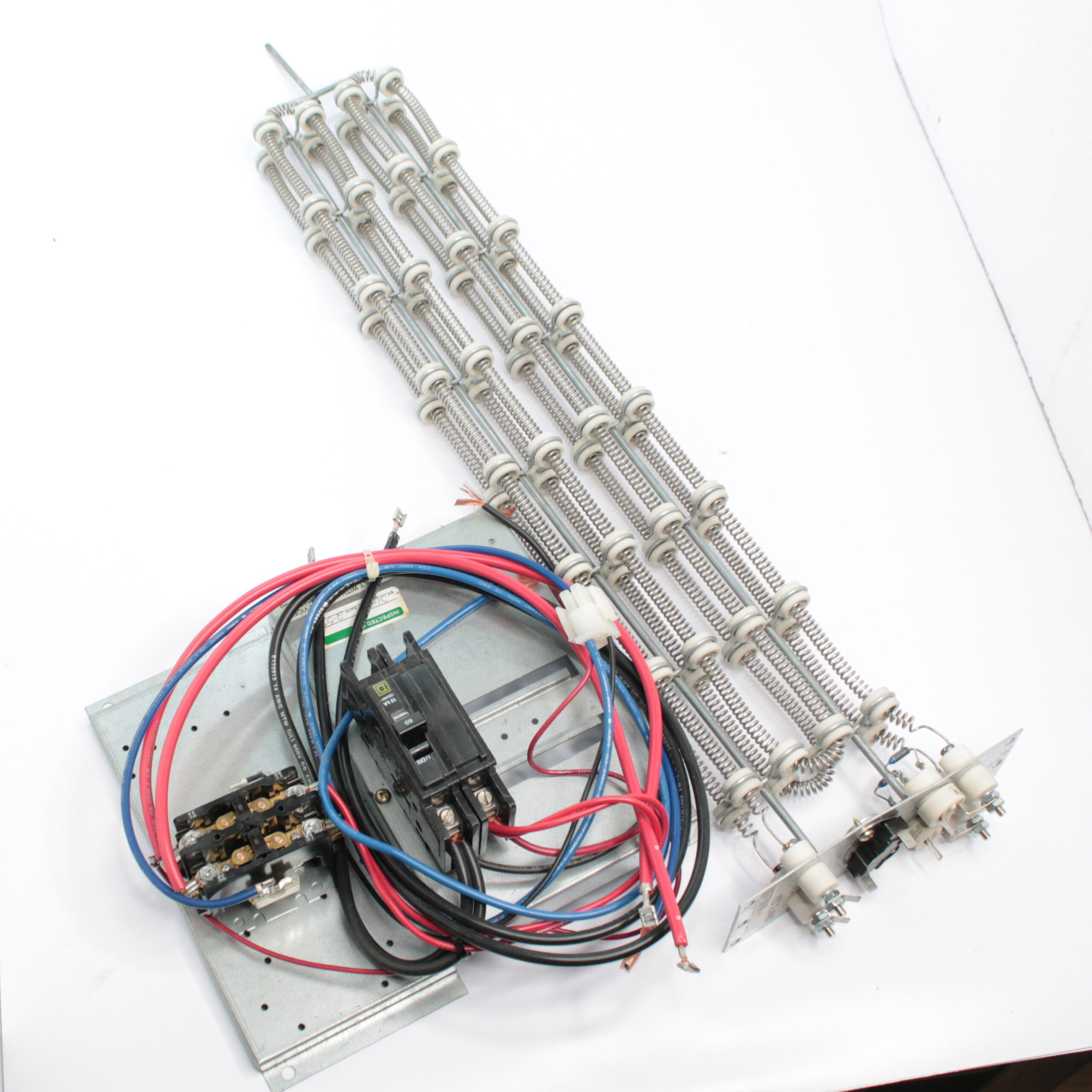

Includes:

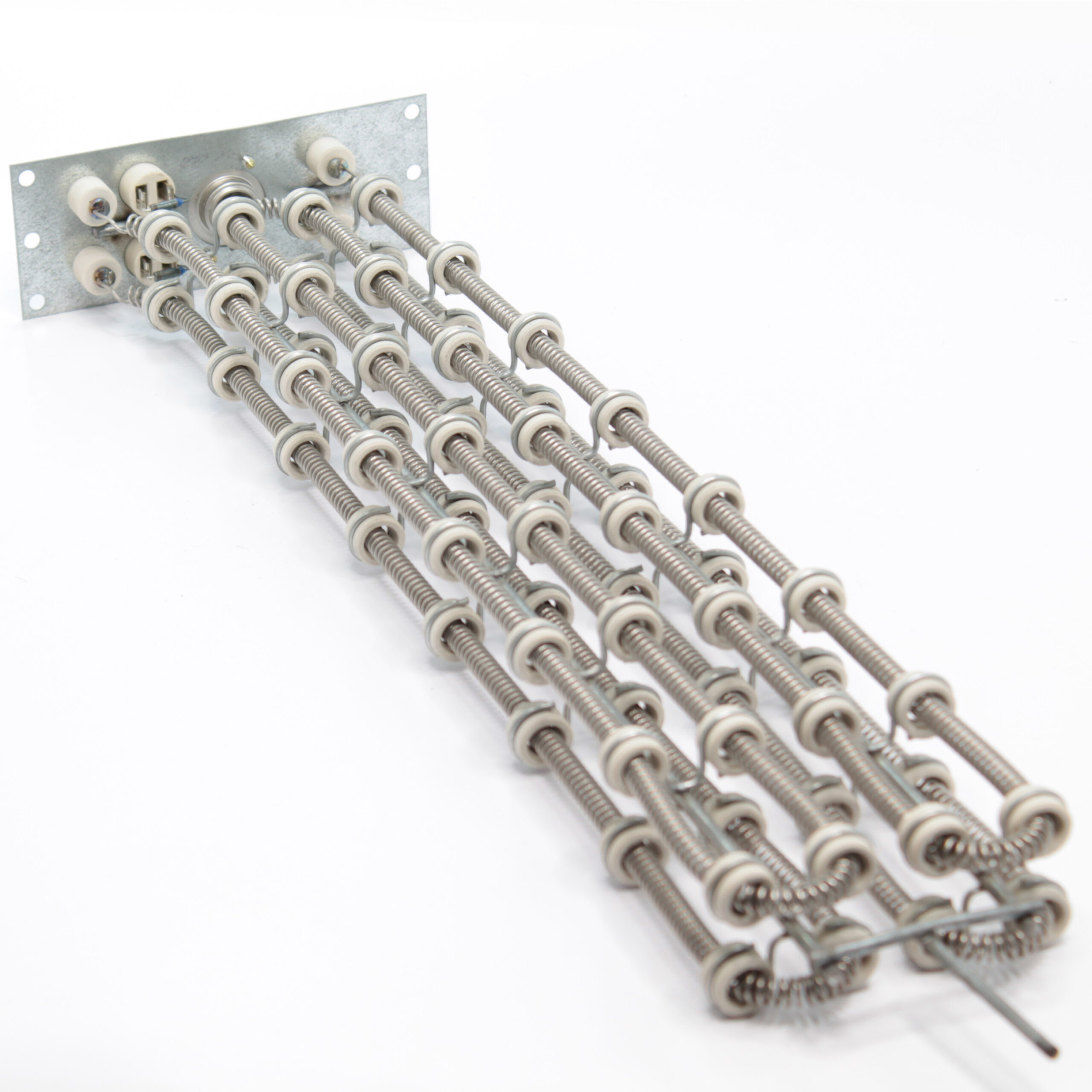

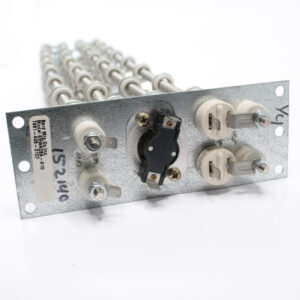

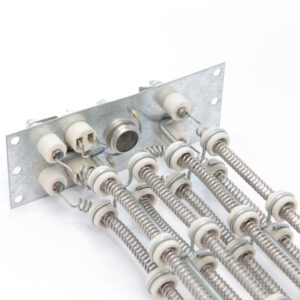

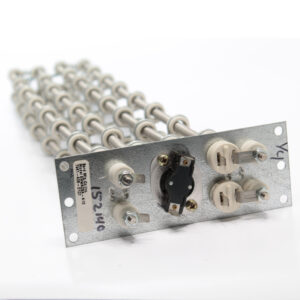

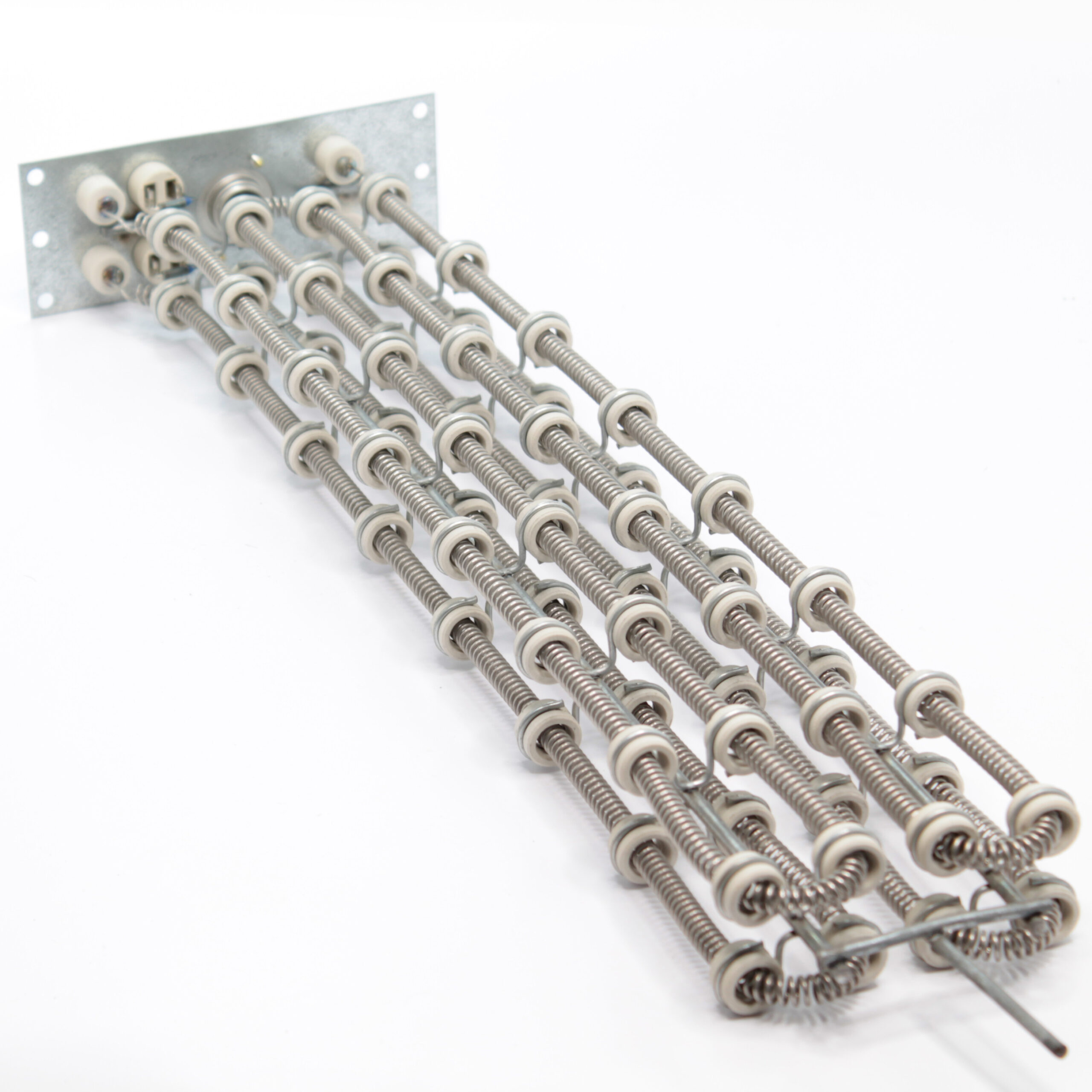

Electric Heater Assembly

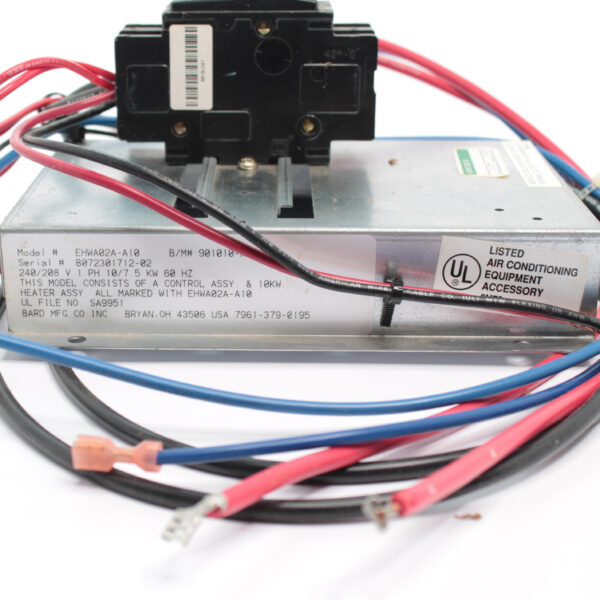

Control Assembly (matched and marked with same model)
Mounting Style: Typically used in air handler or duct-mounted configurations
Application: Supplemental or primary electric heat source in HVAC systems

Applications
This heater assembly and control unit is used in various heating configurations, including:
Commercial HVAC Air Handlers – Integrated electric heat option
Supplemental Heat in Heat Pump Systems – Provides additional heating during cold conditions
Make-Up Air Units – Heats fresh air before introduction to building interior
Retrofit Applications – Replacement for existing electric heat sections in packaged or split systems
Industrial Ventilation Systems – Maintains temperature in high-airflow environments

Cross-Referenced Models
EHWA02A-A07 – Lower capacity version (7kW)
EHBW10A-C10 – Similar 10kW heater for 240/208V single-phase applications
Goodman HKSX10XC – 10kW electric heat kit for air handlers (240V/208V)
Carrier KFCEH1001F10 – 10kW electric heater compatible with Carrier air handlers

Comparable Products
Nordyne 903773 (10kW, 240V/208V electric heat kit)
Rheem RXBH-17A10J (10kW electric heat kit for single-phase systems)
Goodman HKR-10C (Electric heat strip, 240/208V, 10kW)
Trane BAYHTR1410BRK (10kW heater with breaker for single-phase units)

Part of a Larger System
The EHWA02A-A10 is typically used in combination with:
HVAC Air Handlers – As the electric heat source
Thermostat and Fan Relays – Trigger heater operation
Breaker Kits or Disconnects – For safety and compliance
Duct Systems – Used as in-line duct heaters or final heat stage in supply air

Related
10kW electric duct heater
Single-phase 240V/208V heater kit
EHWA02A-A10 HVAC heating element
Electric heater with integrated controls
Air handler heater assembly

Common Requests:
“Replacement 10kW electric heater for 240V/208V HVAC systems”
“What system is compatible with EHWA02A-A10 heater assembly?”
“Electric heat kit for commercial air handler”
“Wiring and installation guide for EHWA02A-A10”
“Difference between 10kW @ 240V and 7.5kW @ 208V heaters”

All product names, trademarks, and registered trademarks are the property of their respective owners. Use of these names does not imply any affiliation or endorsement.
