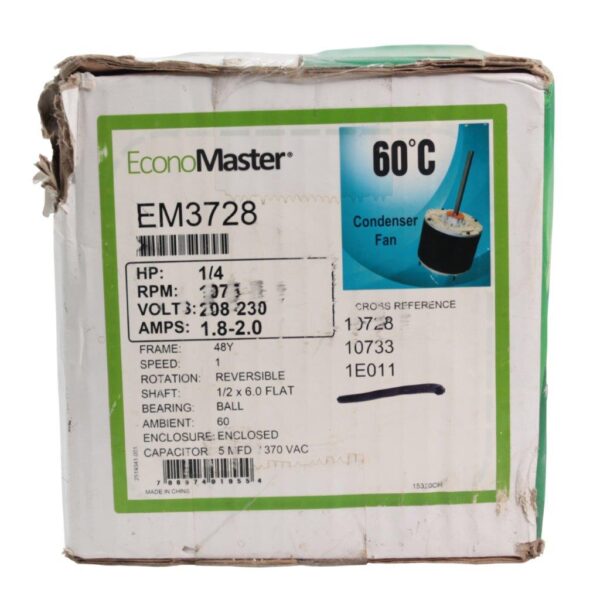

EM3728 Condenser Fan Motor, 1/4 HP, 208–230V, 1075 RPM, 48Y Frame, Reversible Rotation
$74.95
4 in stock
Condition: New – Capacitor not included (requires 5 MFD 370V capacitor). Never installed.
The EM3728 Condenser Fan Motor is a robust 1/4 HP, 1-speed, 1075 RPM motor designed for demanding HVAC condenser fan applications. It operates on 208–230 volts, features a 48Y frame, and comes with a totally enclosed enclosure (TEAO) to prevent moisture and debris intrusion. With reversible shaft rotation, sleeve bearings, and thermal protection, this motor is a reliable replacement for numerous OEM models across brands like GE, Fasco, Century, Goodman, and more.
This PSC (Permanent Split Capacitor) motor is thermally protected, engineered for shaft-up, shaft-down, and Rheem-style mounting, making it highly adaptable across multiple condenser unit configurations.
Specifications:
- Horsepower: 1/4 HP
- Voltage: 208–230 VAC
- Current (Amps): 1.8–2.0 A
- Speed: 1075 RPM
- Speeds: Single-speed
- Phase: Single
- Frame: 48Y
- Bearing Type: Sleeve
- Shaft Diameter: 1/2″
- Shaft Length: 5.5″
- Body Length: 4-1/8″
- Rotation: Reversible (CW or CCW)
- Insulation Class: B
- Thermal Protection: Yes
- Motor Type: PSC
- Output Power: 0.19 kW
- Mounting: Shaft up/down & Rheem mount
- Capacitor Required: 5 MFD, 370 VAC (not included)
- Enclosure: Totally Enclosed Air Over (TEAO)
- Diameter: 5-5/8″
Features:
- Energy-efficient PSC design
- Sleeve bearing for quiet operation
- Enclosed motor housing for protection against environmental contaminants
- Direct OEM replacement for many HVAC models
- Thermally protected for safe and reliable operation
- Reversible rotation for versatile installation
Applications:
- Residential and light commercial condenser fans
- Compatible with a variety of HVAC condensing units
- Replacement motor for Goodman, GE, ICP, Heil, Tempstar, and more
- Suitable for shaft up, shaft down, and horizontal mounting
Cross-Referenced and Replacement Models:
GE: 3728, 3732
Fasco: D7909, D749, D7749
Century: FSE1026SF, FSE1026SV1
Packard: 43732, 43732F
AO Smith: ODG1026, F48F97A01, F48F97A76
Goodman: B13400-247
Mars: 03278, 03732, 10728, 10733
US Motors: 1860, 1876
First Choice: Y4632
Smart Electric: 238228
ICP / Comfortmaker / Heil / Tempstar / Arcoaire (OEM compatibility)
Comparable Products:
- Genteq 3732 (1/4 HP, 1075 RPM, 48Y, 230V)
- Fasco D7909 (1/4 HP, single speed, 1075 RPM)
- Century FSE1026SF (PSC condenser motor with similar ratings)
- Mars 10728 / 10733
- US Motors 1860
Can Be Used In or As Part Of:
- Goodman, ICP, Heil, Tempstar, Arcoaire condensing units
- Rheem-style HVAC systems
- Universal replacement for 48Y-frame 1/4 HP condenser motors in the 1075 RPM class
- Designed to work with standard fan blades and capacitor kits
Related:
Condenser fan motor, 1/4 HP 1075 RPM motor, EM3728 motor, 230V HVAC motor, reversible rotation condenser motor, Rheem mount motor, PSC sleeve bearing motor, replacement HVAC fan motor, 48Y frame motor, 5 5/8″ diameter motor, universal air conditioner motor
Common Requests:
- “Is EM3728 a direct replacement for GE 3732?”
- “What capacitor is required for EM3728 motor?”
- “Can I mount this motor shaft-up or shaft-down?”
- “Does the EM3728 support reversible rotation?”
- “What are the wiring instructions for EM3728 motor?”
Disclaimer: All product names, trademarks, and registered trademarks are the property of their respective owners. Use of these names is for reference purposes only and does not imply affiliation or endorsement.
P111
Weight | 16 lbs |
---|---|
Dimensions | 15 × 8 × 9 in |
