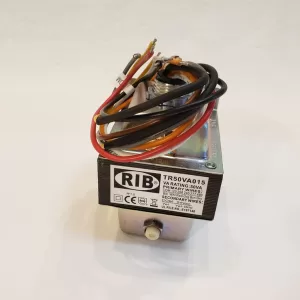

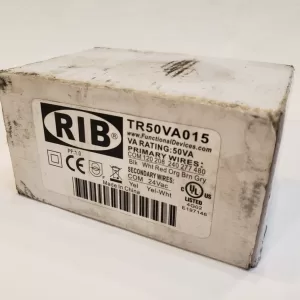

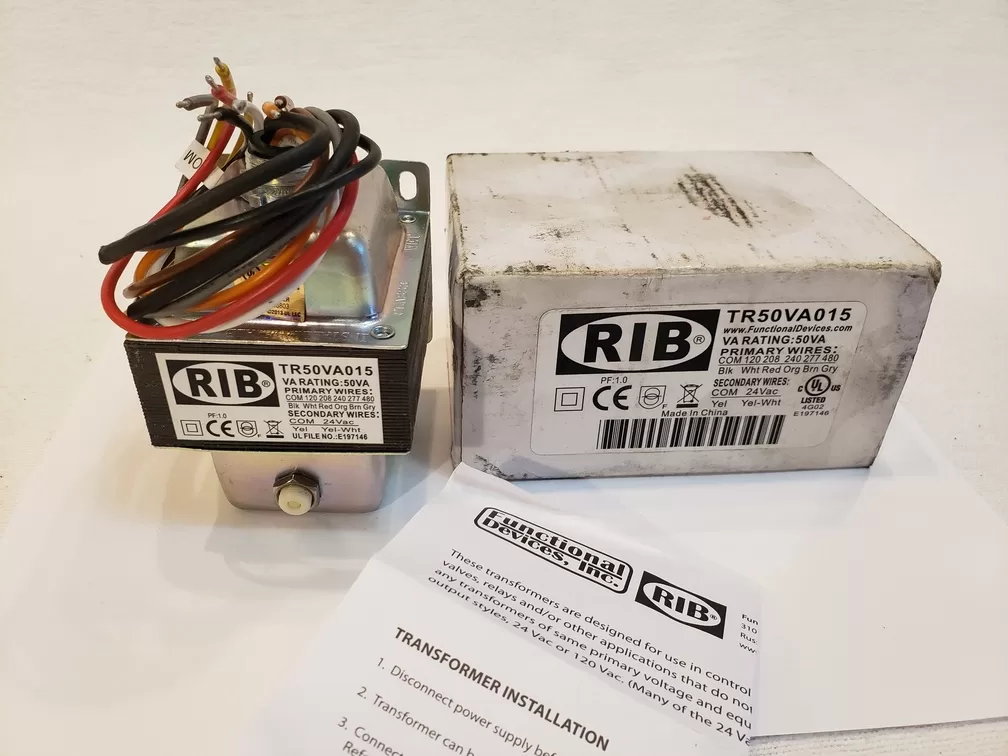

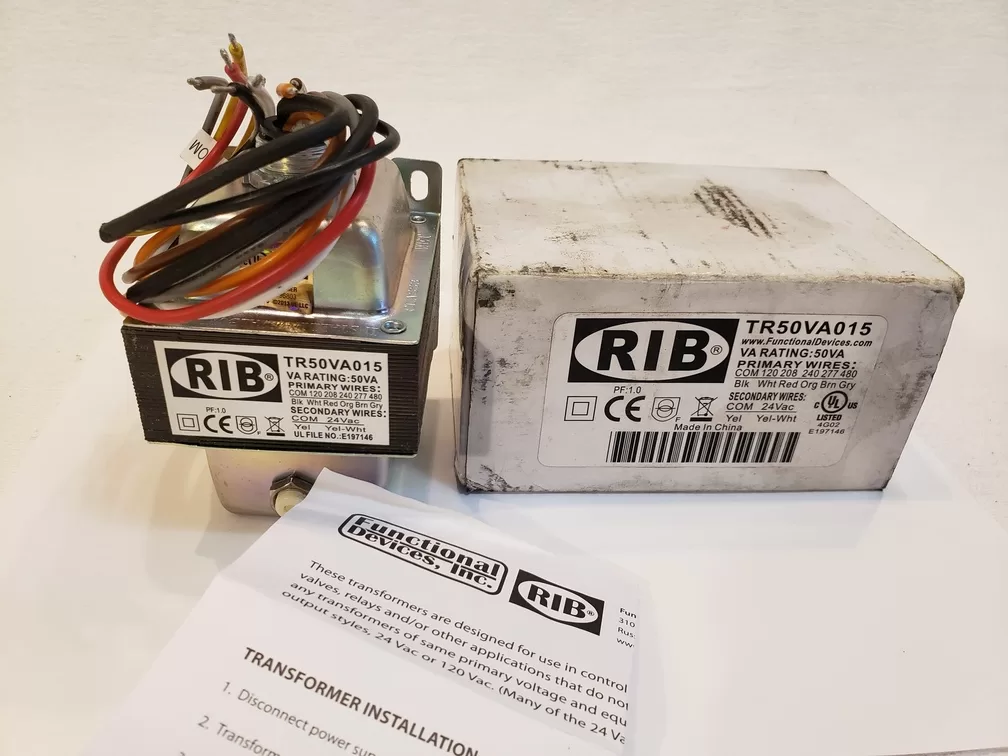

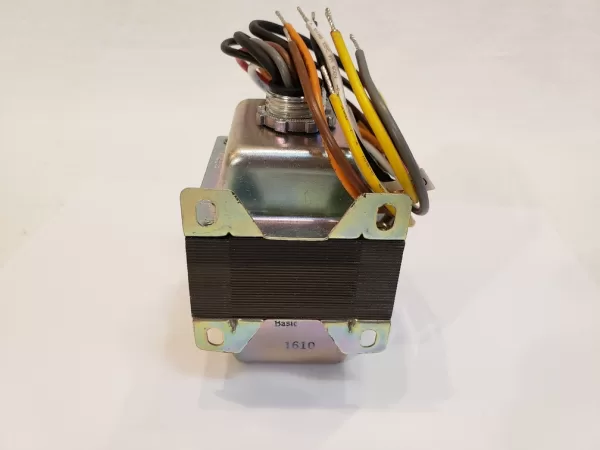

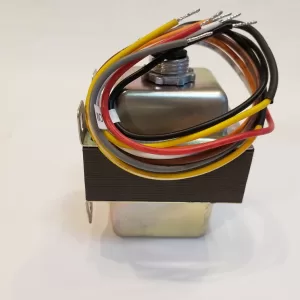

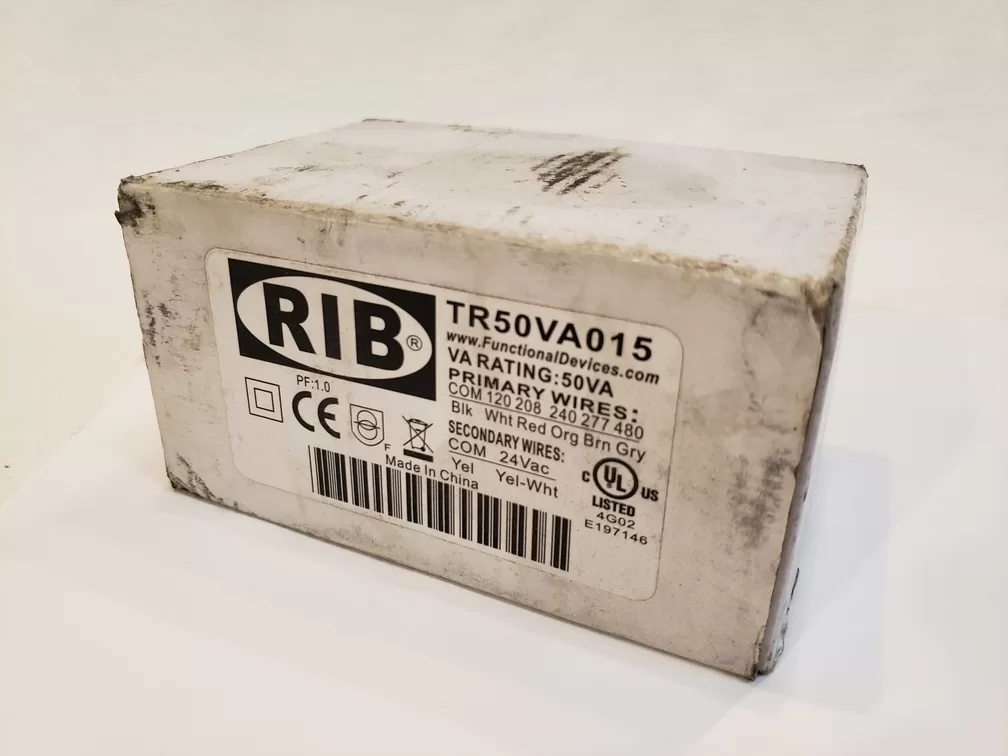

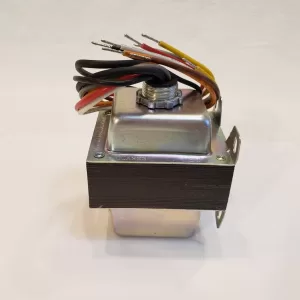

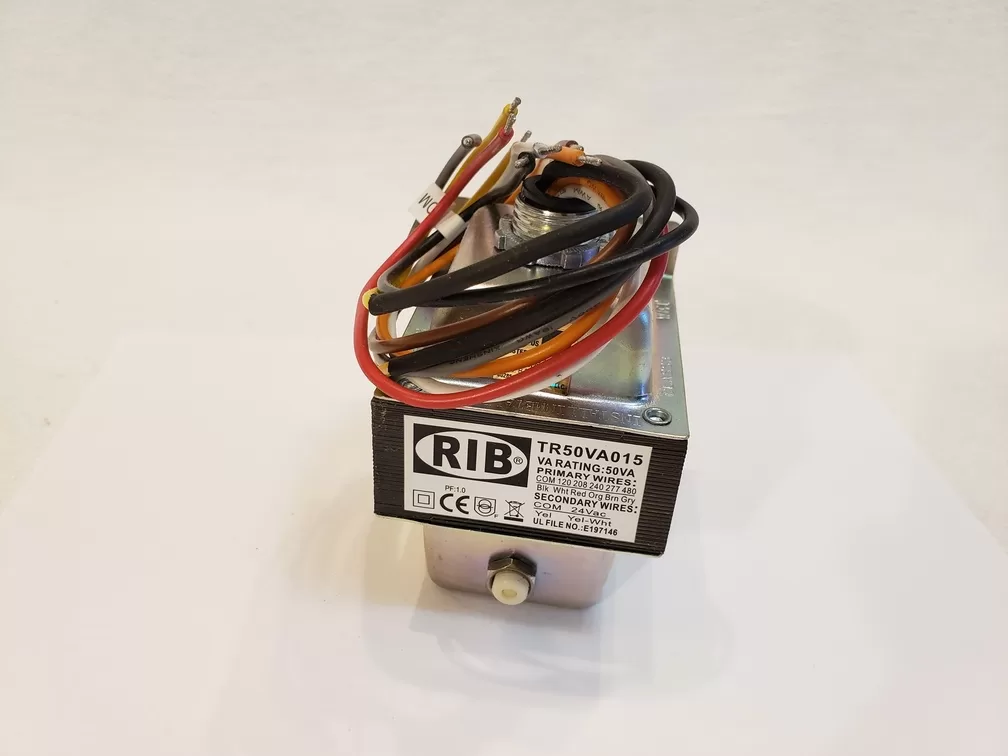

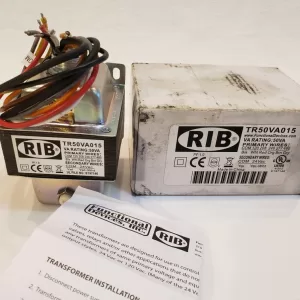

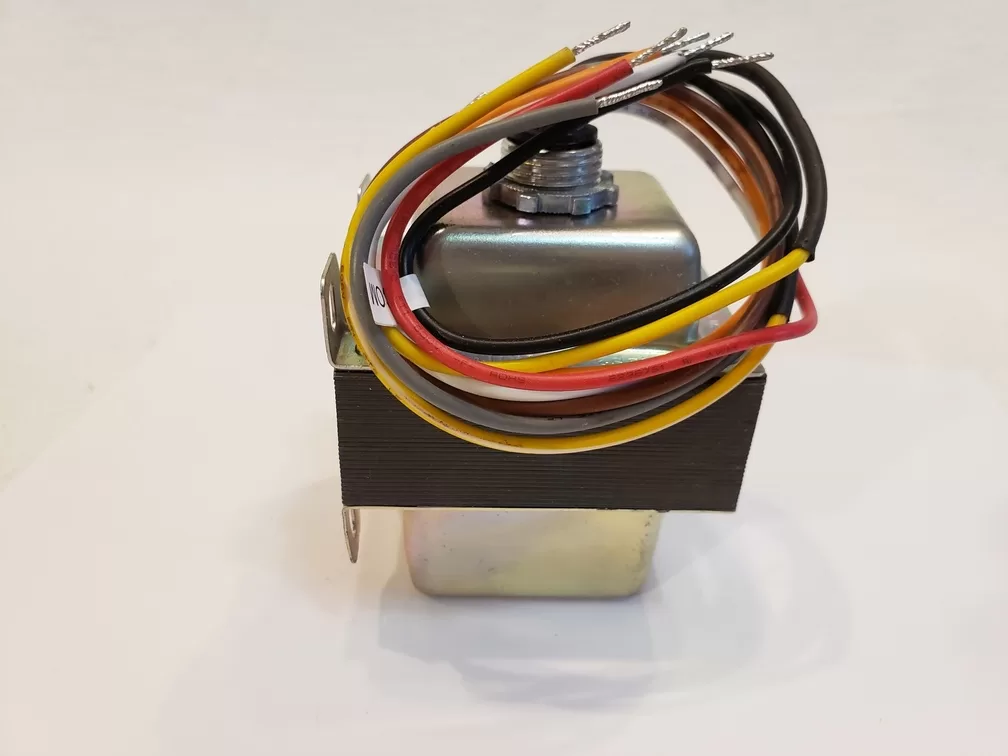

Functional Devices TR50VA015 Transformer, 50VA, 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount
Functional Devices TR50VA015 Transformer, 50VA, 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount

Functional Devices RIB TR50VA015 Transformer, 50VA, 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount

$32.79

Click to buy

Add to Wishlist
Compare
UPC: 696505481279

Functional Devices RIB TR50VA015 Transformer, 50VA, 480/277/240/208/120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount
A brand-new, unused, undamaged item in its original packaging.

Product description
Functional Devices RIB TR50VA015 transformer, 50VA, 480/277/240/208/120 to 24 VAC, circuit breaker, foot and single threaded hub mount. Manufactured by Functional Devices, Inc.

SPECIFICATIONS
VA Rating: 50
Frequency: 50/60 Hz

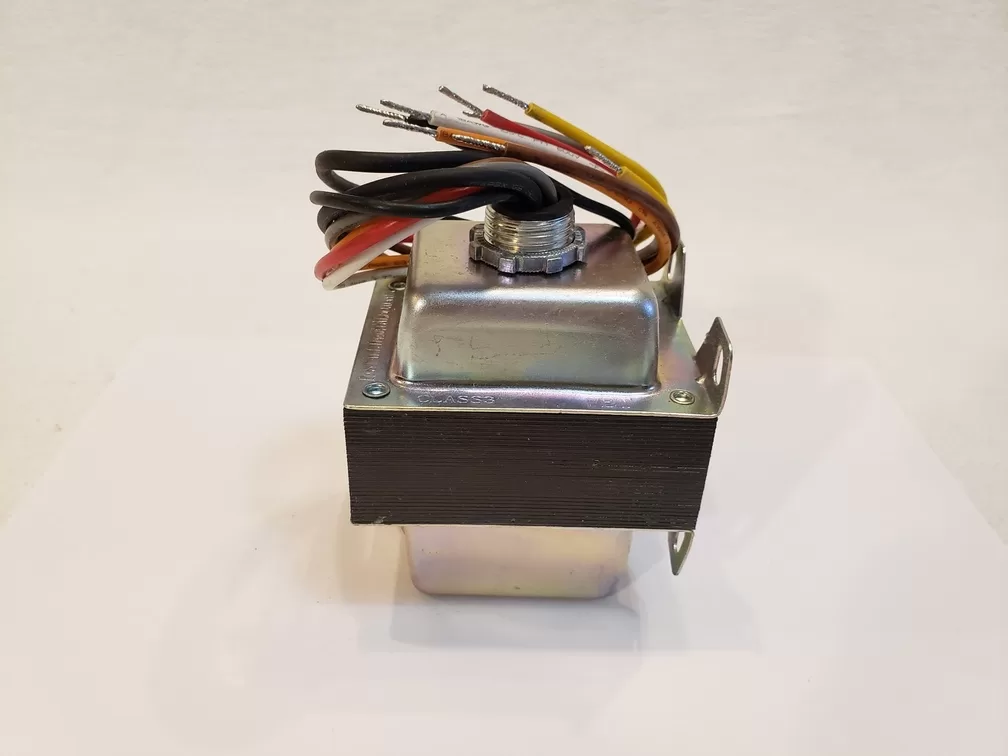

Mounting: Foot & Single Threaded Hub
Over Current Protection: Circuit Breaker
Dimensions: 3.405 ̋ x 2.517 ̋ x 3.013 ̋ (w/ .500 ̋ NPT Hub)
Wire Length: 9.5 ̋ Typical w/ .5 ̋ Strip
Operating Temperature: -30 to 140° F
MTBF: 100,000 Hours @ 77° F
Construction: Split-Bobbin
Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS
