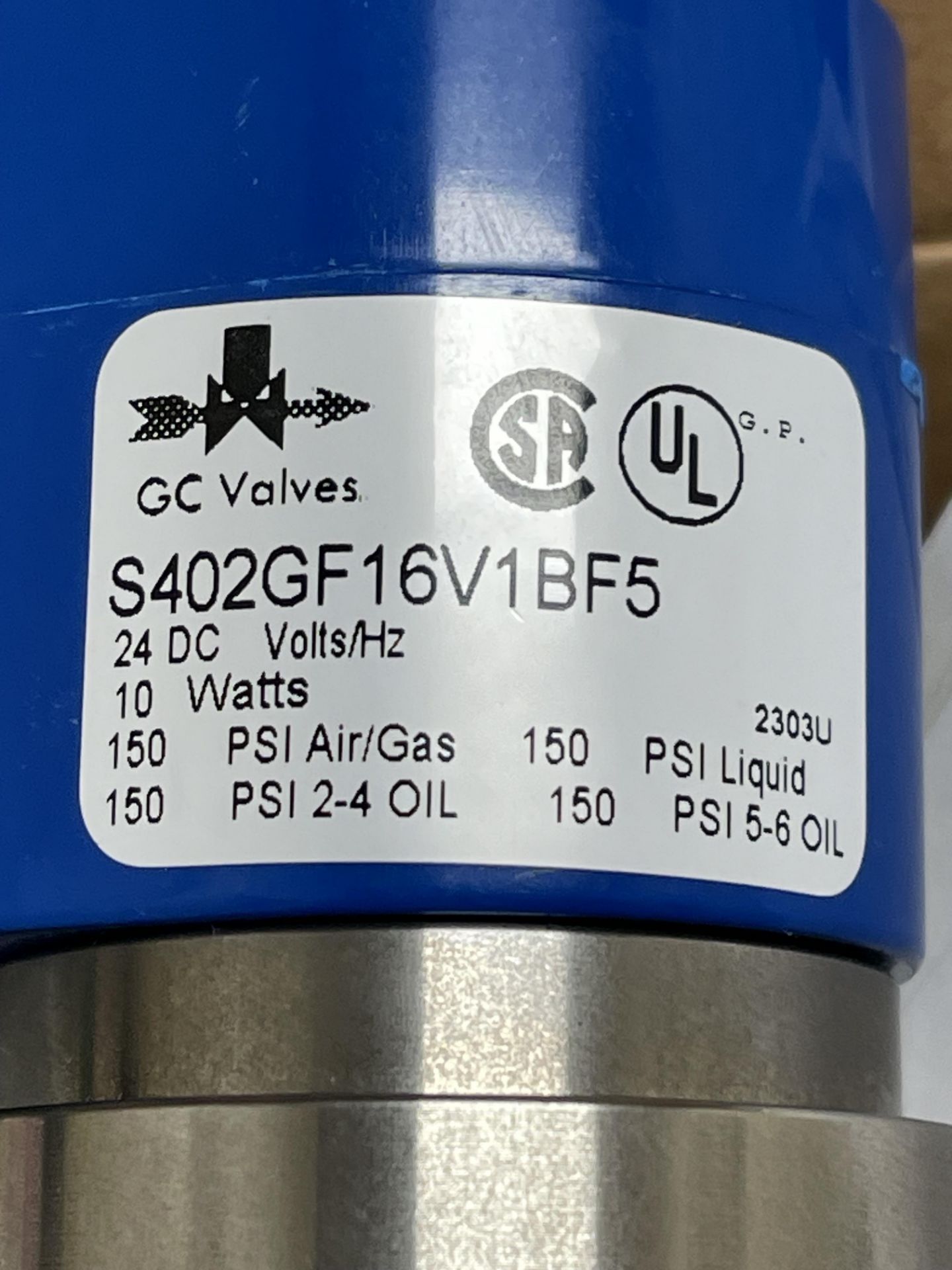

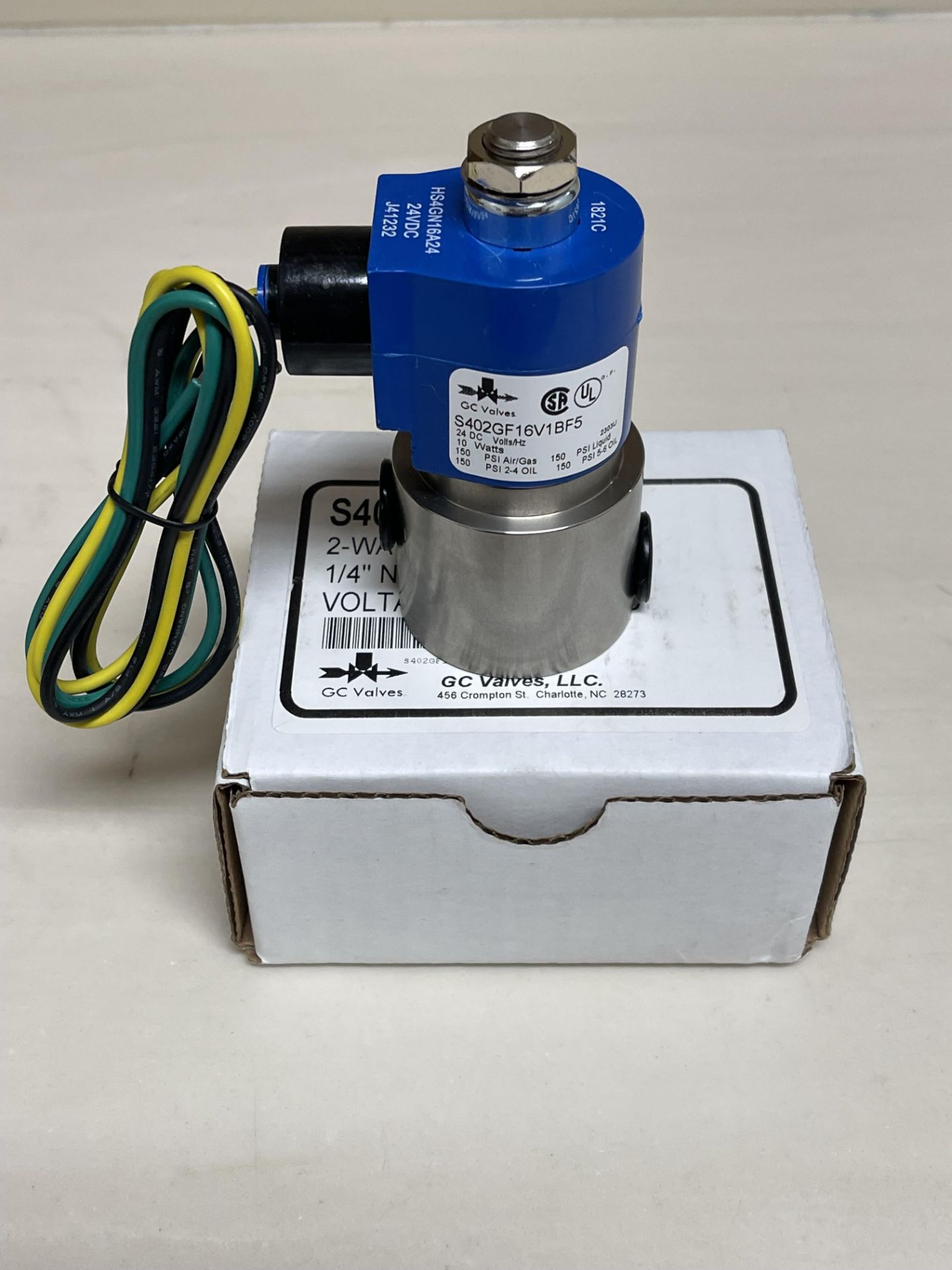

GC Valves S402GF16V1BF5 1/4″ Normally Open Stainless Steel Solenoid Valve, 24 VDC, 0–150 PSI for Air, Water, and Oil

Condition: New

The GC Valves S402GF16V1BF5 is a 1/4-inch normally open solenoid valve constructed from stainless steel, designed for controlling the flow of air, water, and oil in various industrial applications. Operating on a 24 VDC power supply, it efficiently manages systems with pressures ranging from 0 to 150 PSI. Its robust design and reliable performance make it suitable for demanding environments requiring precise fluid control.

Features:

• 1/4″ NPT Port Size – Standard threading for easy integration into existing systems.
• Normally Open Configuration – Allows fluid flow when de-energized; closes when energized.
• Stainless Steel Construction – Provides corrosion resistance and durability.
• 24 VDC Operation – Compatible with common DC power supplies.
• Pressure Range: 0–150 PSI – Suitable for various low to medium pressure applications.
• Piloted Piston Design – Enhances operational efficiency and reliability.

Here’s a breakdown of the likely components based on the code and GC Valves product information:

• S40: Indicates the valve series.
• 2: Likely refers to a 2-way valve.
• GF: Might indicate a specific type or material within the S40 series, possibly related to the body material (G = Brass, F = 316 Stainless Steel).
• 16: Could indicate the valve’s size or pressure rating.
• V: Likely indicates the valve type, possibly a ball valve.
• 1: Might indicate a specific configuration or option within the valve type.
• BF5: Potentially indicates the seal material and pipe size (B = EPDM, F = 316 Stainless Steel, 5 = 1/2″ NPT).

Applications:

• HVAC Systems – Regulating refrigerant or coolant flow.
• Water Treatment Facilities – Controlling water distribution and processing.
• Oil and Gas Industry – Managing oil flow in pipelines and machinery.
• Industrial Automation – Fluid control in automated manufacturing processes.
• Food and Beverage Processing – Handling liquids in sanitary environments.

Cross-Referenced Models:

• GC Valves S402GF16N1CF5 – Similar specifications with potential variations in materials or design.
• ASCO 8210G094 – 1/4″ normally open solenoid valve with brass body and similar pressure ratings.
• Parker 7321BZN2UN00 – 1/4″ normally open solenoid valve suitable for water and air applications.

Comparable Products:

• ASCO 8210G095 – Stainless steel 1/4″ normally open solenoid valve with 24 VDC coil.
• Burkert 0290 A – 1/4″ normally open solenoid valve designed for fluid and gas control.
• Danfoss EV220B 6B – 1/4″ stainless steel solenoid valve for water and oil applications.

Additional Notes:

• Installation Orientation: Can be mounted in any position; however, vertical orientation with the coil on top is recommended for optimal performance.
• Maintenance: Regular inspection and cleaning are advised to ensure longevity and reliable operation.
• Electrical Connection: Ensure proper wiring and voltage compatibility to prevent damage to the coil.
• Seal Material: Verify compatibility with the specific fluid media to prevent leakage or degradation.
