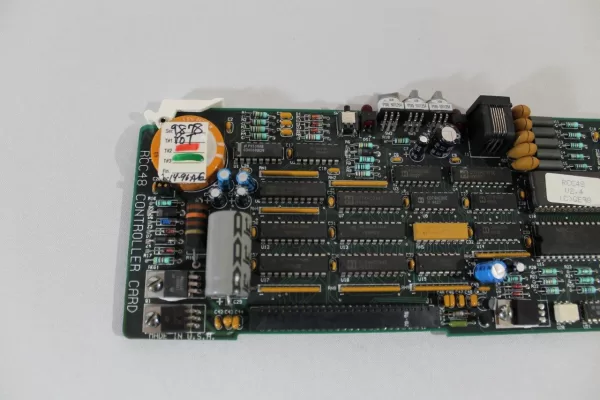

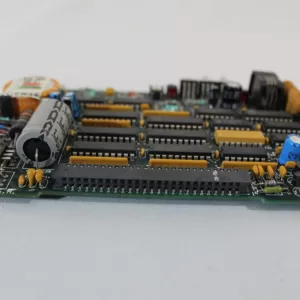

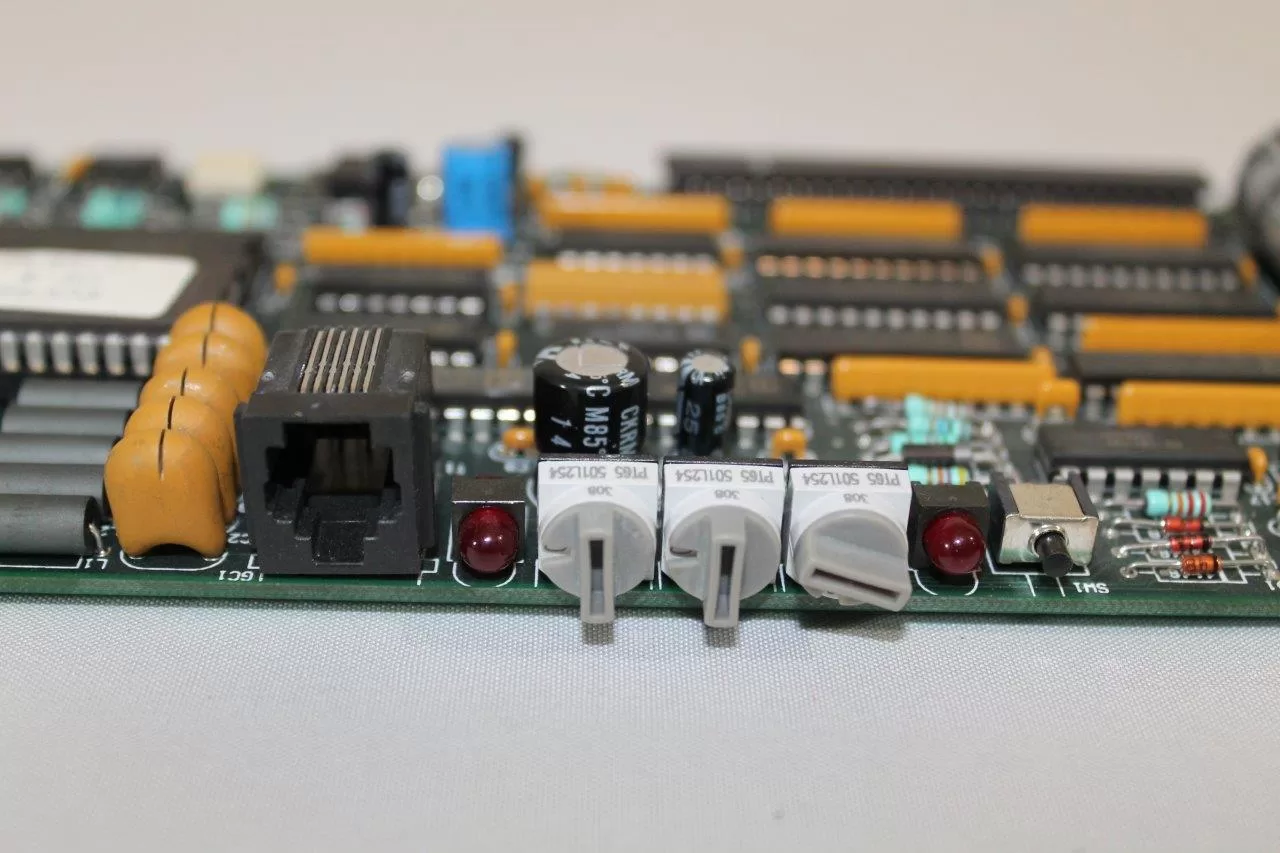

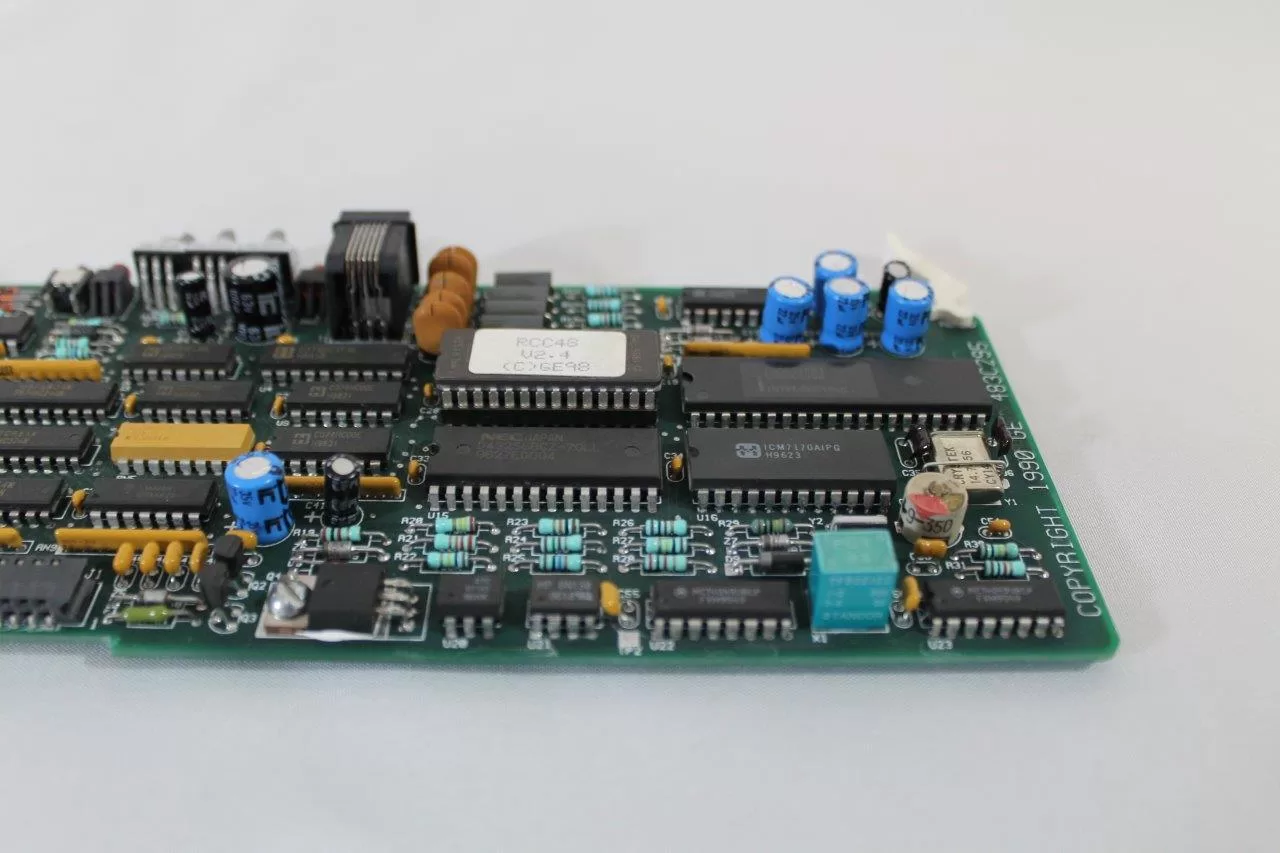

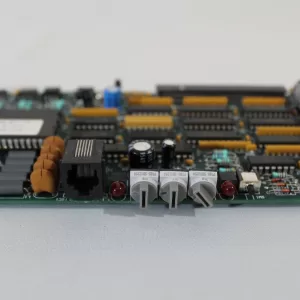

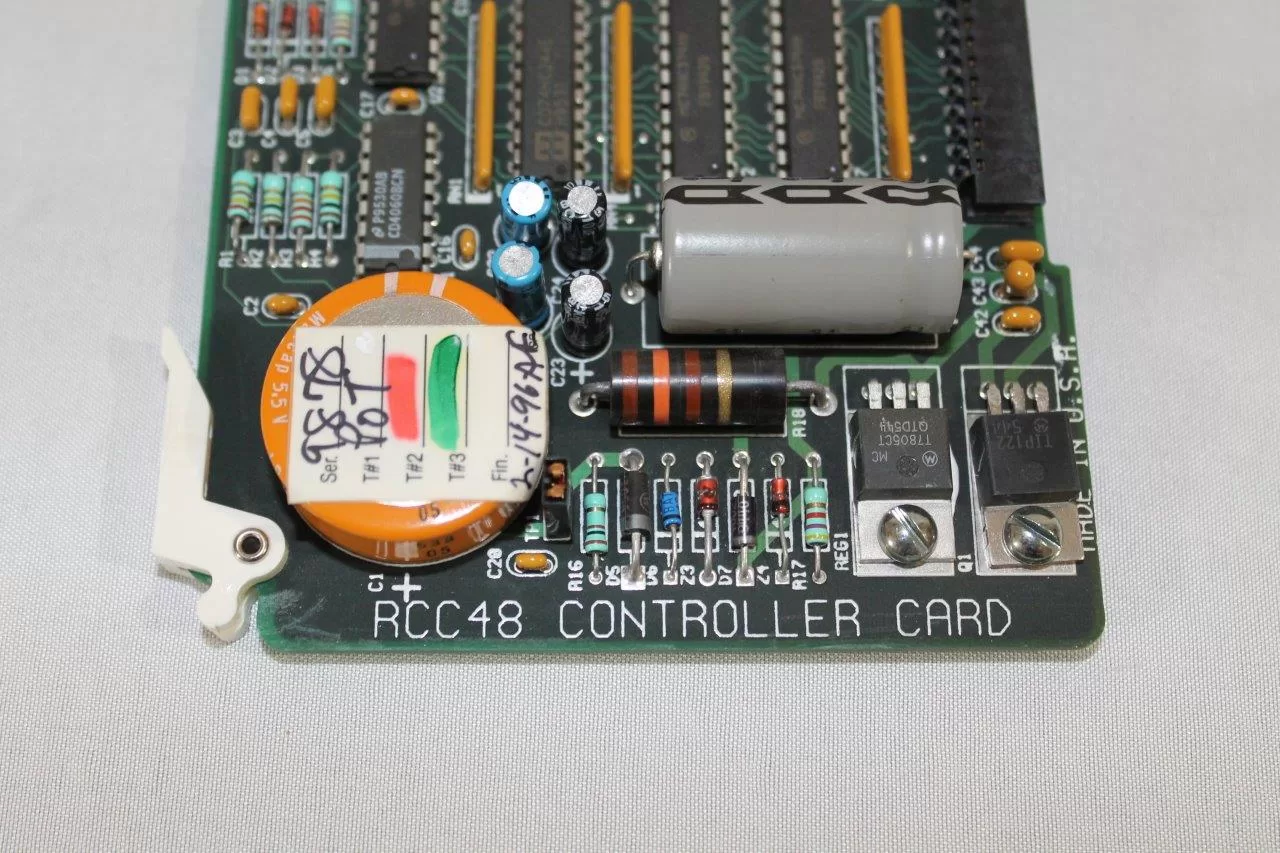

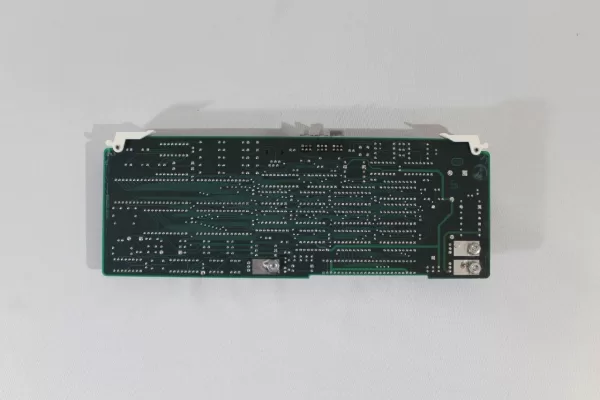

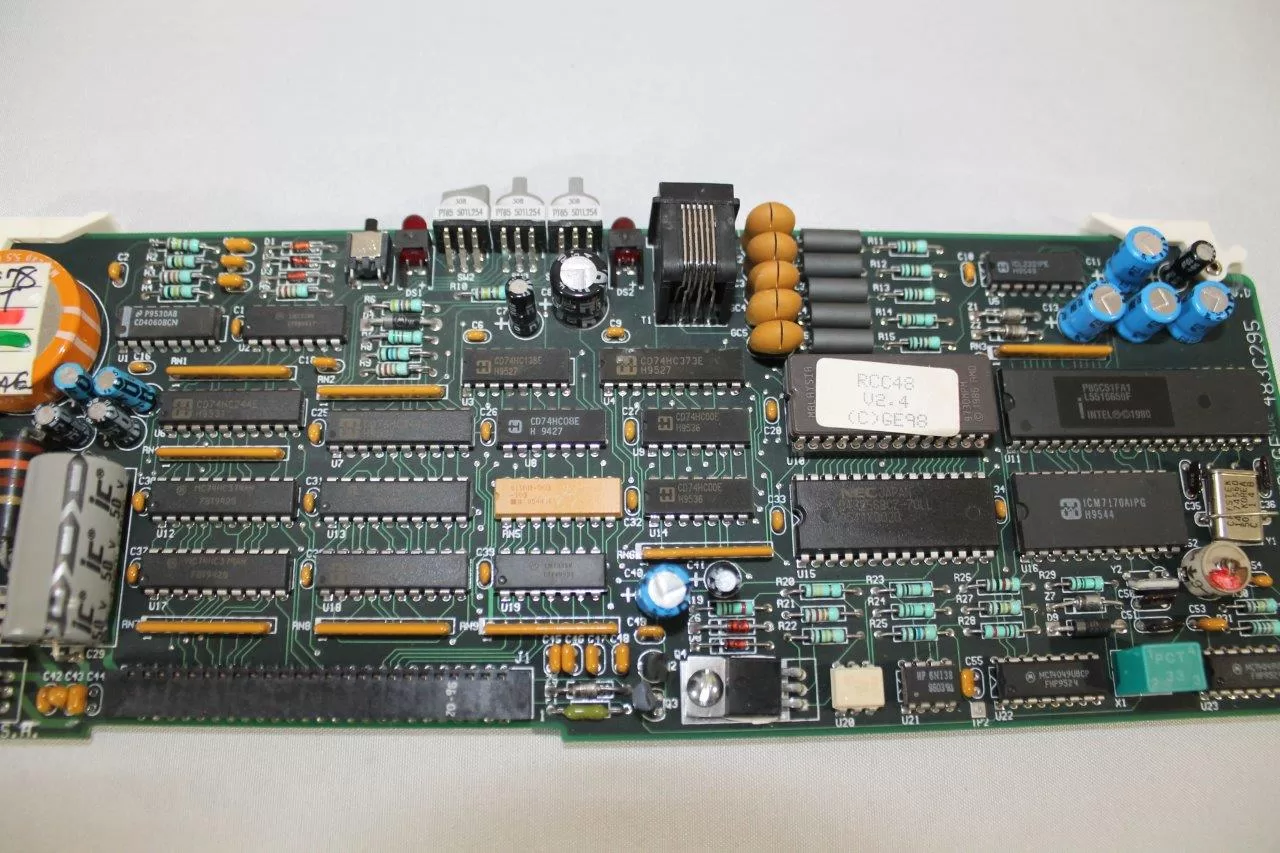

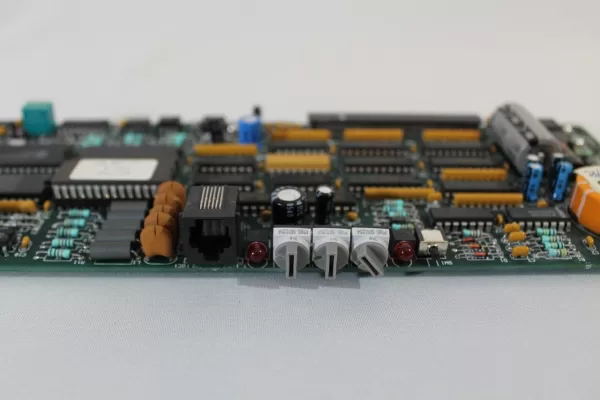

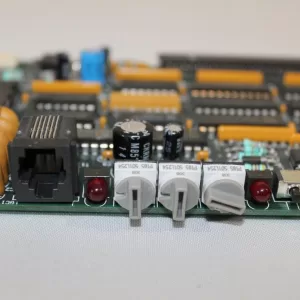

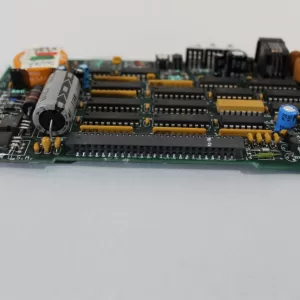

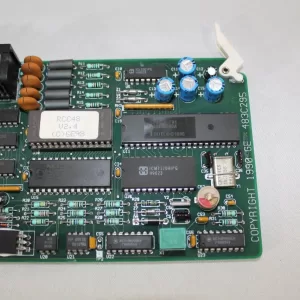

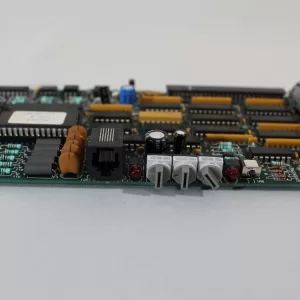

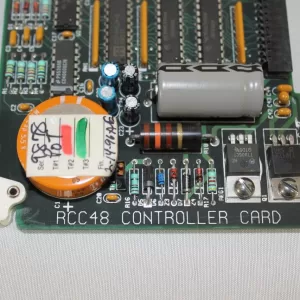

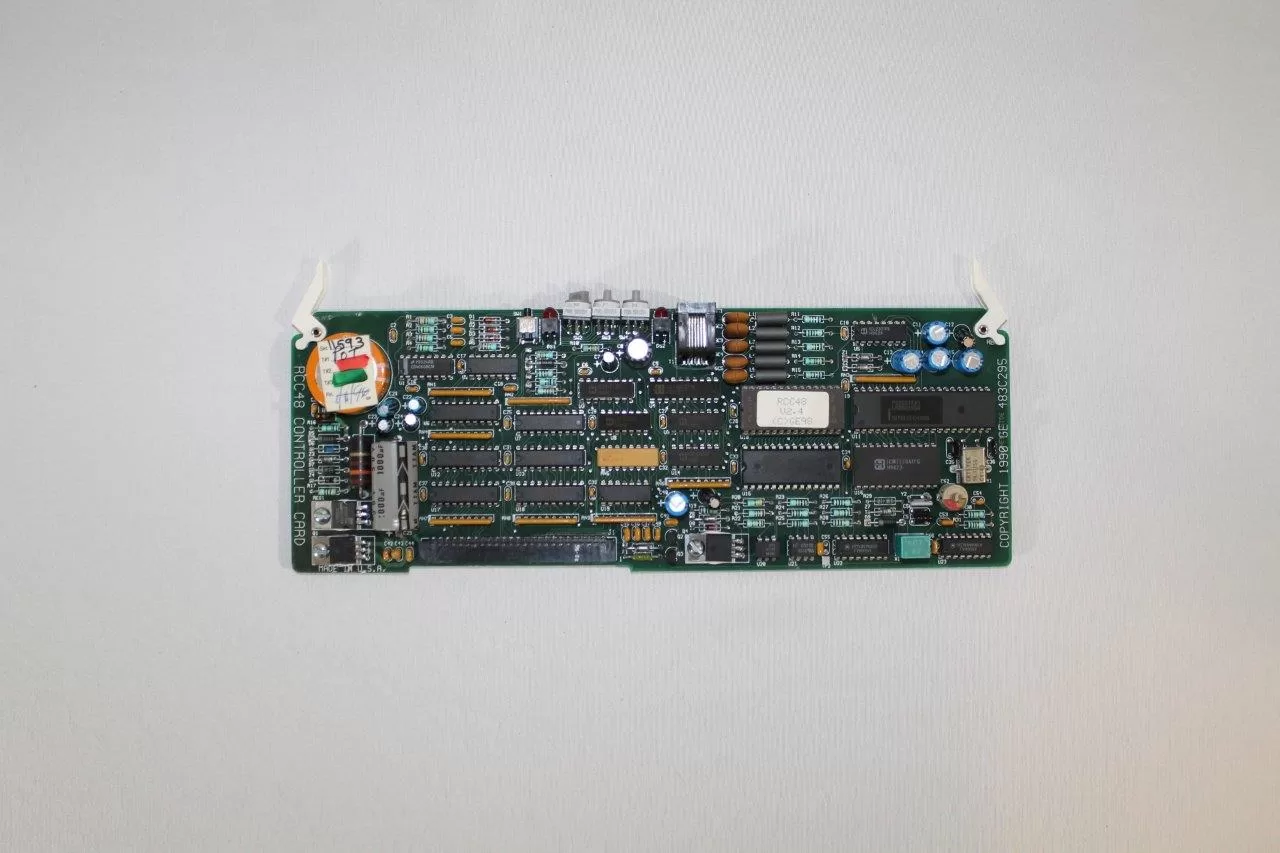

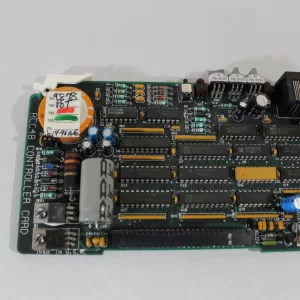

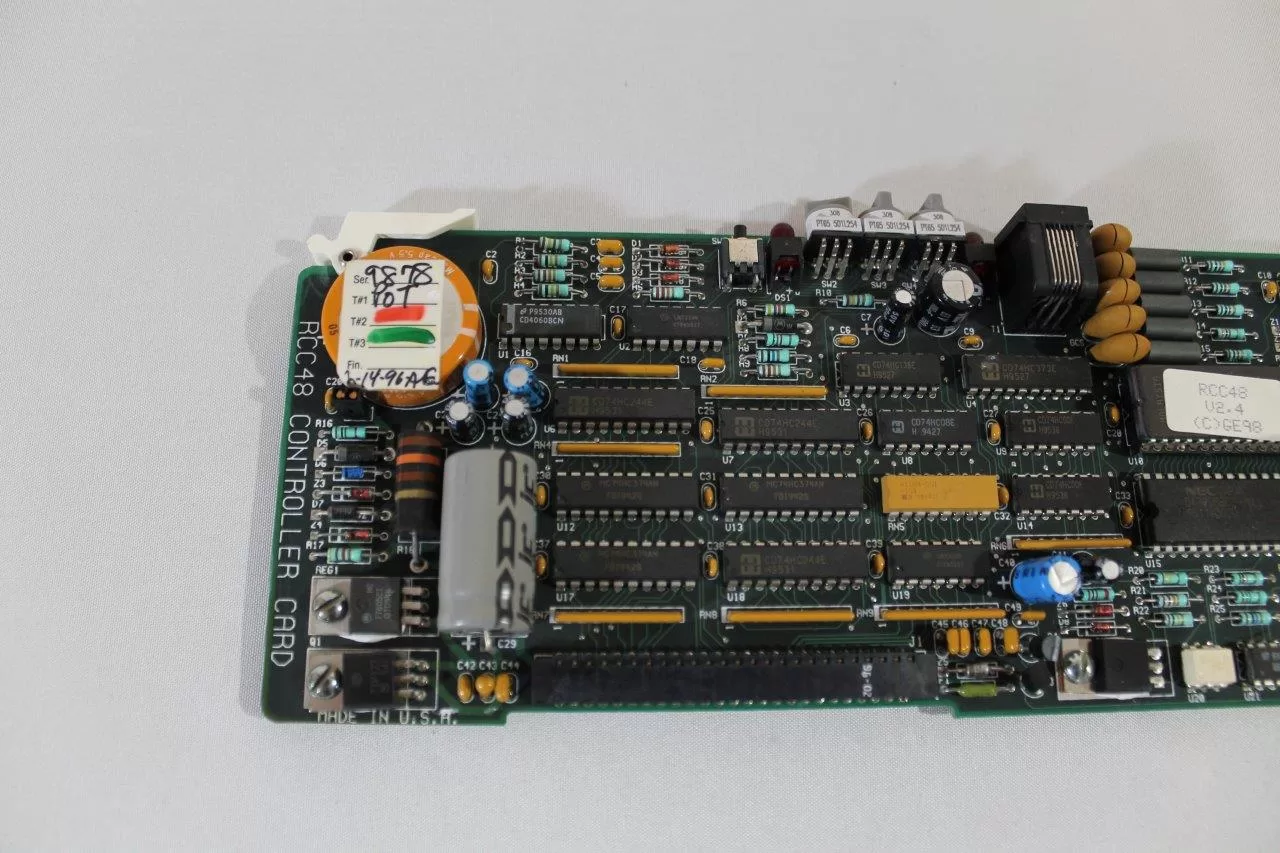

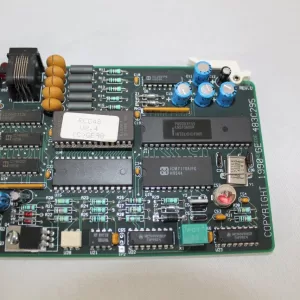

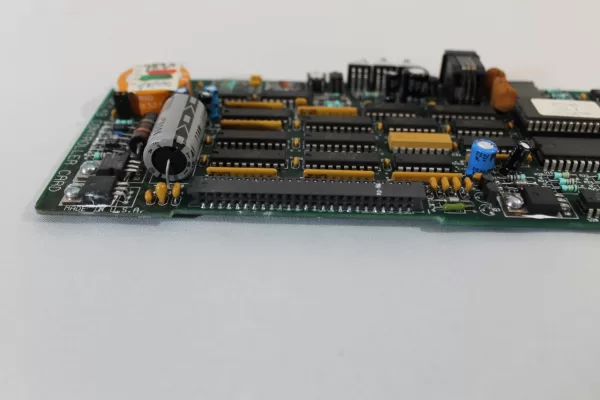

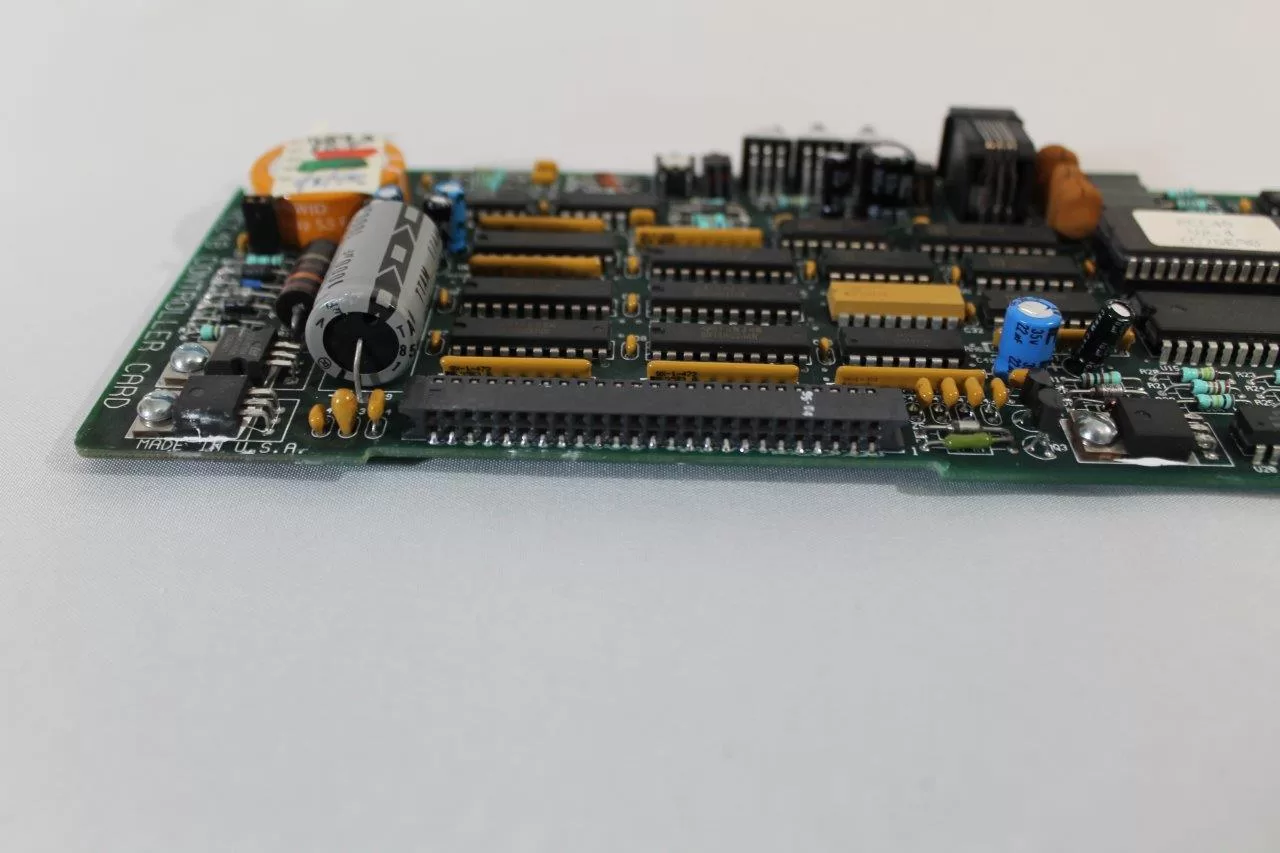

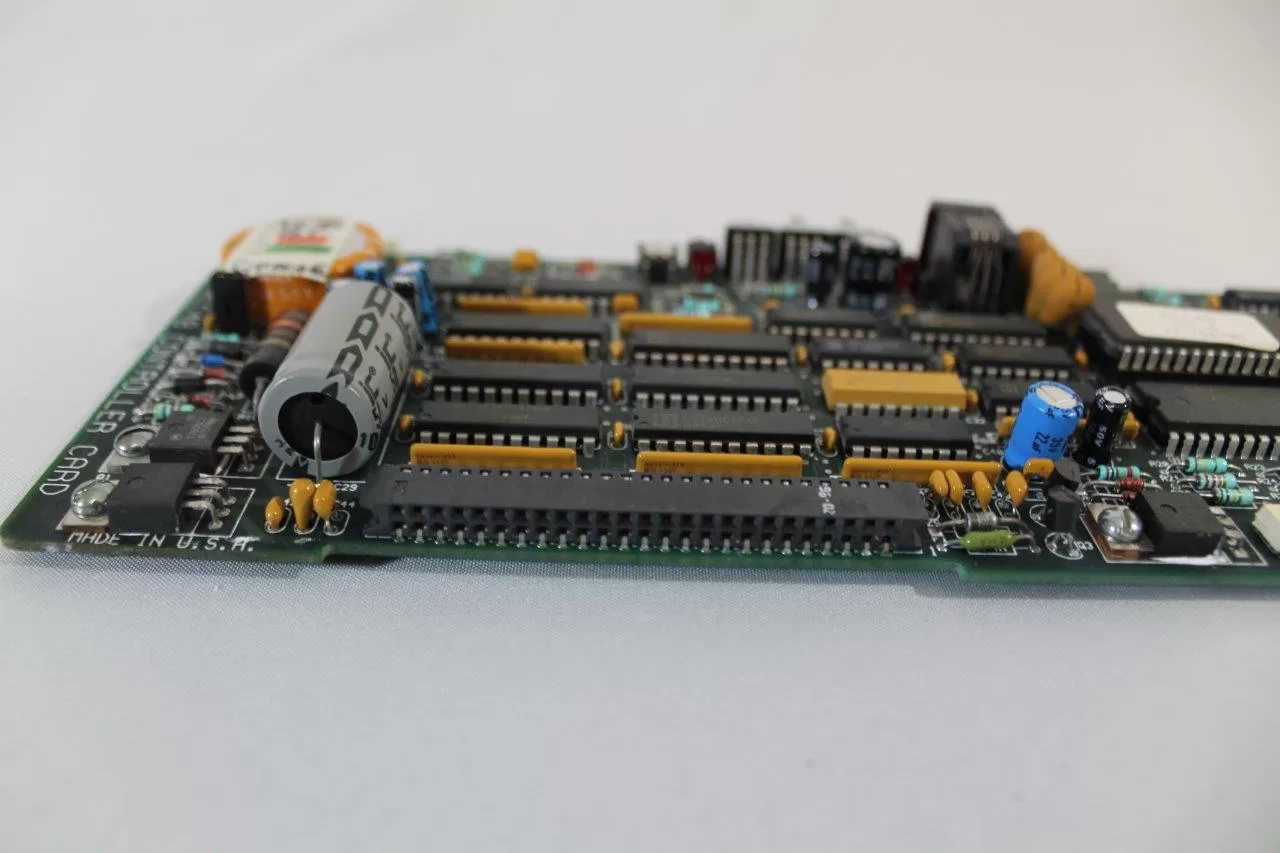

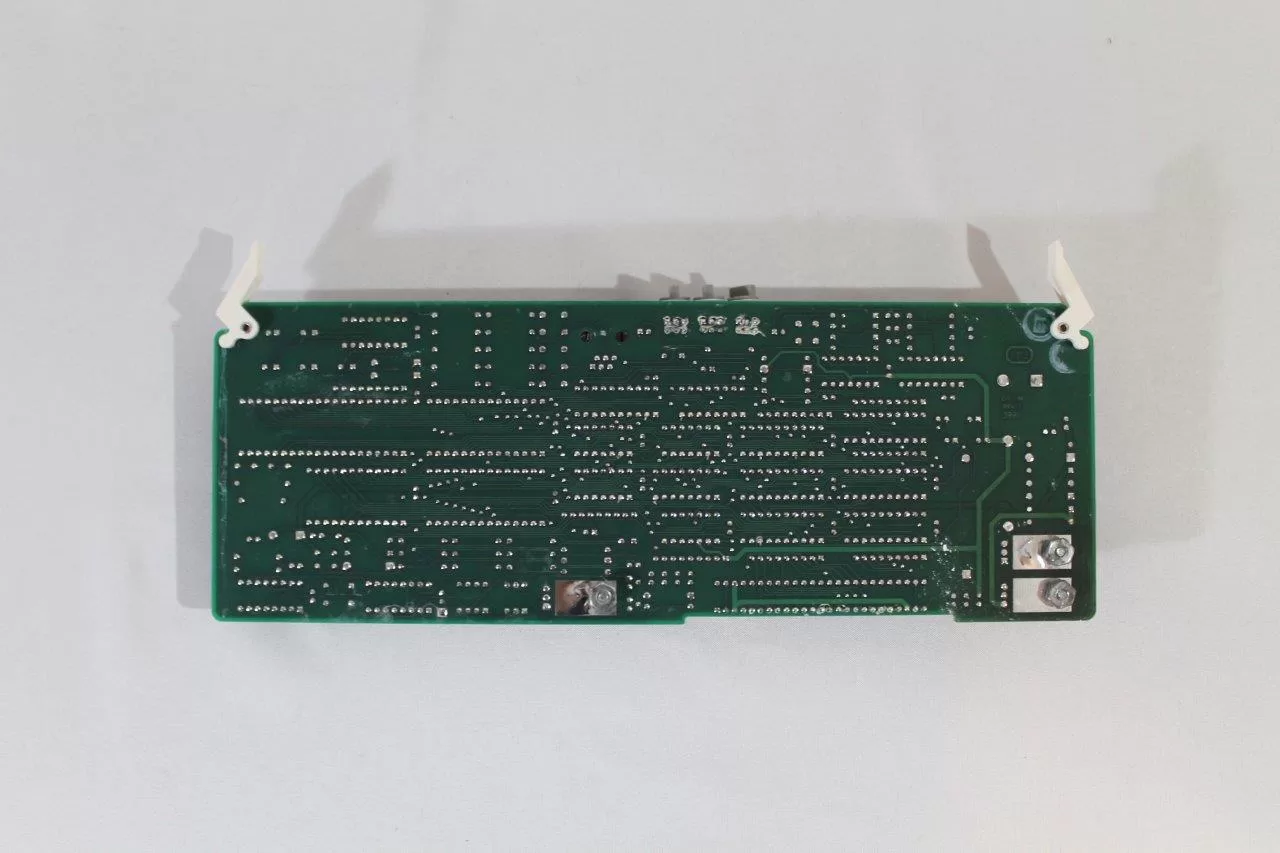

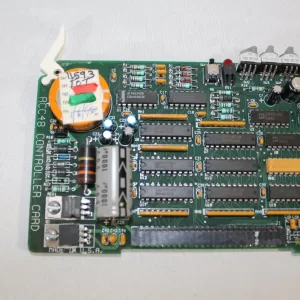

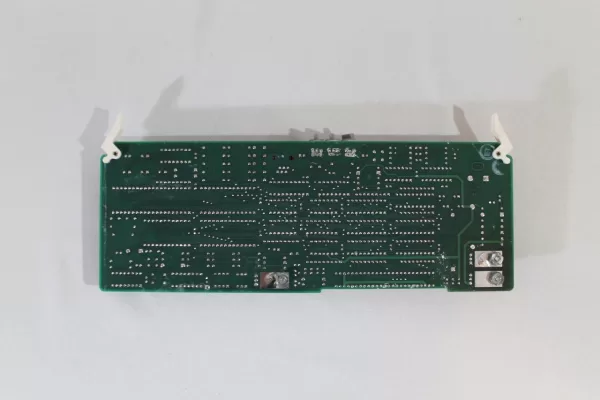

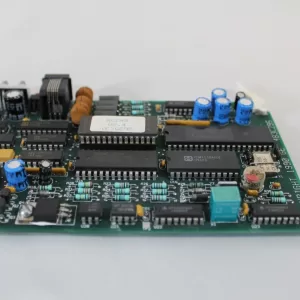

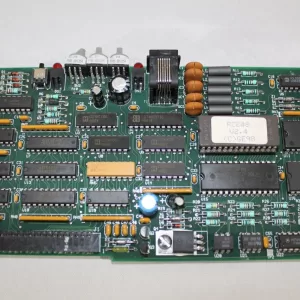

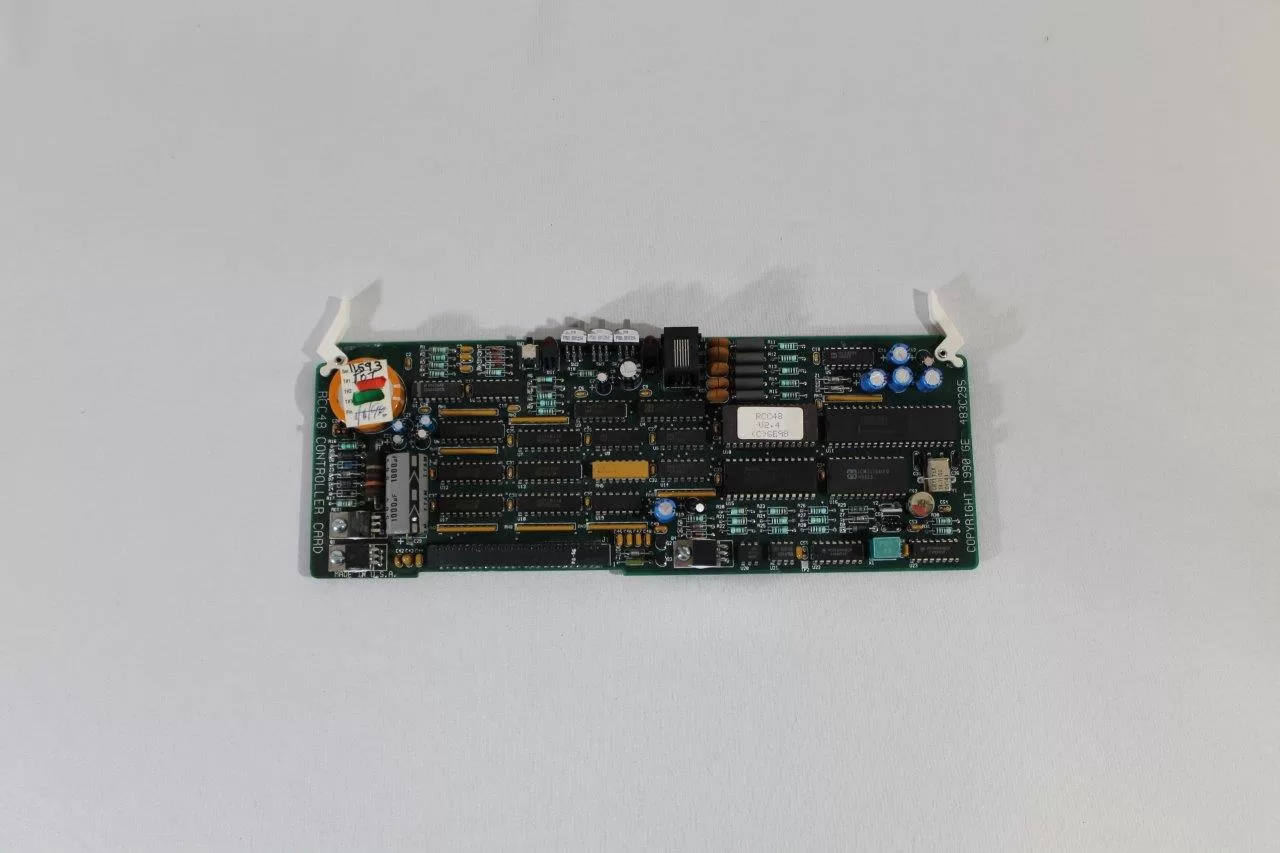

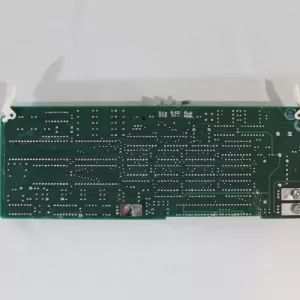

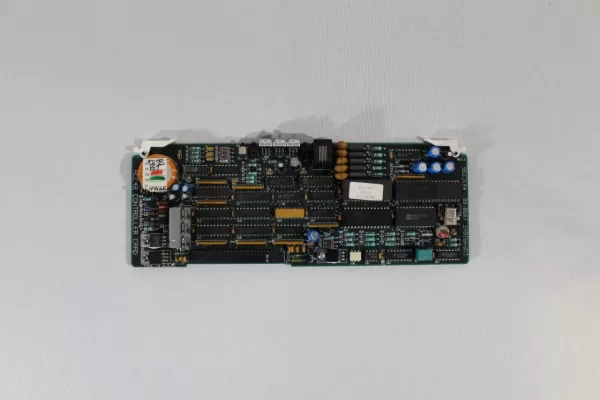

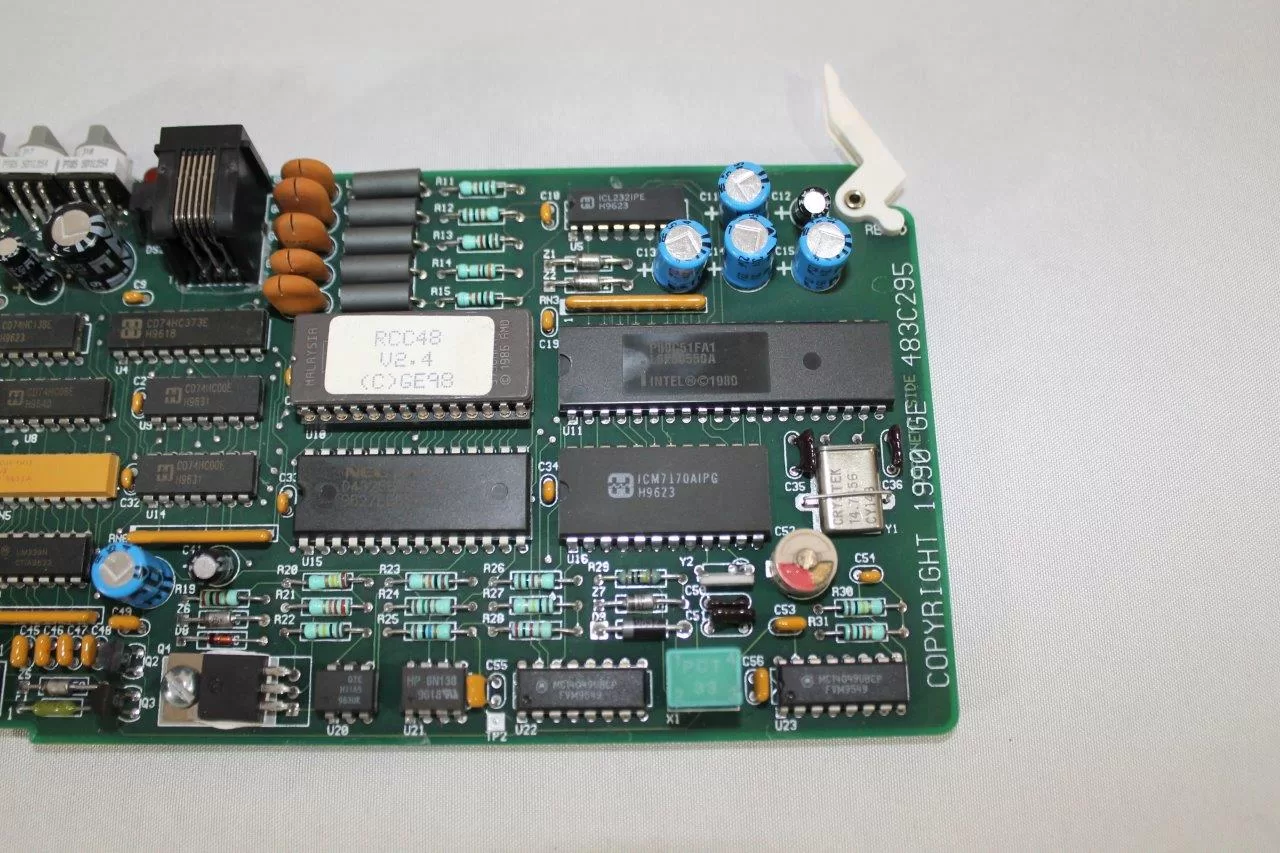

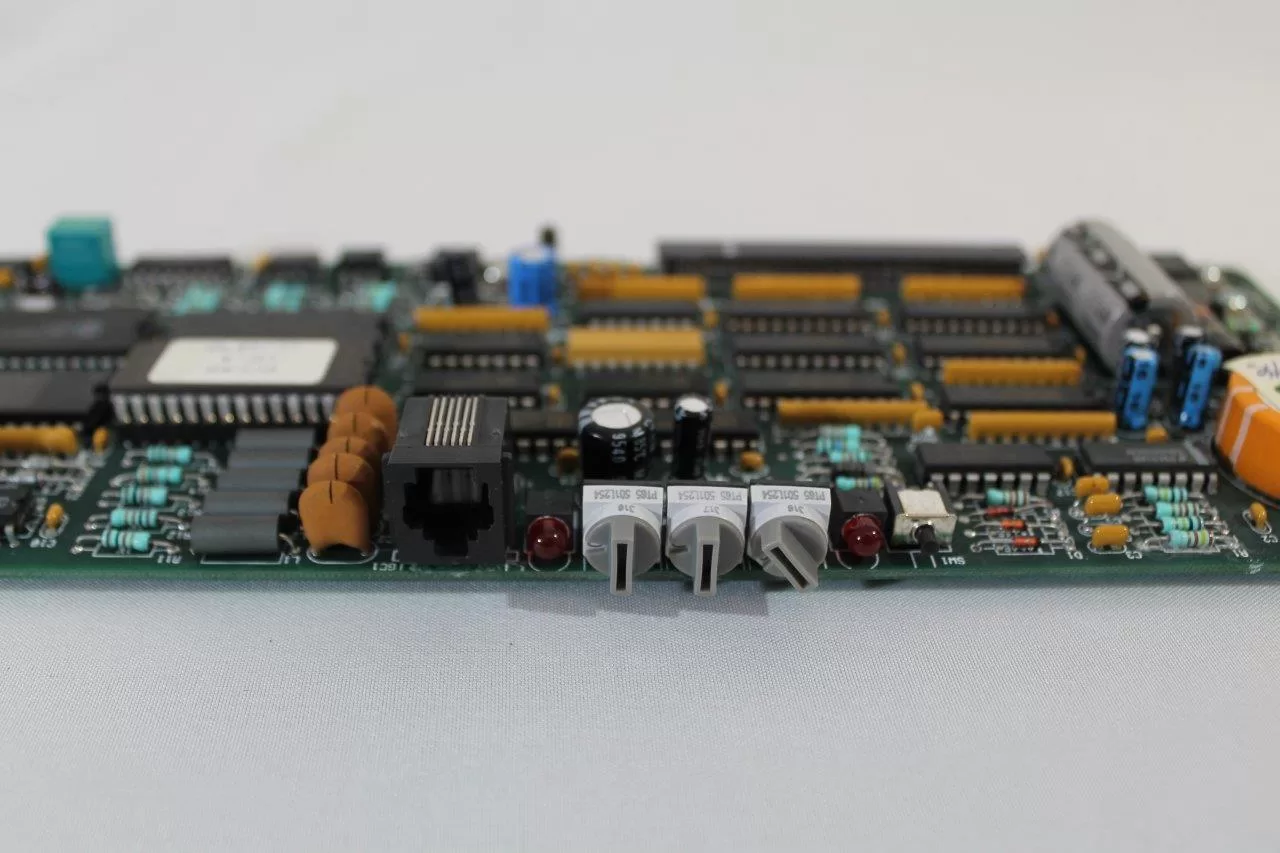

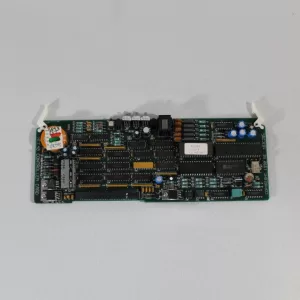

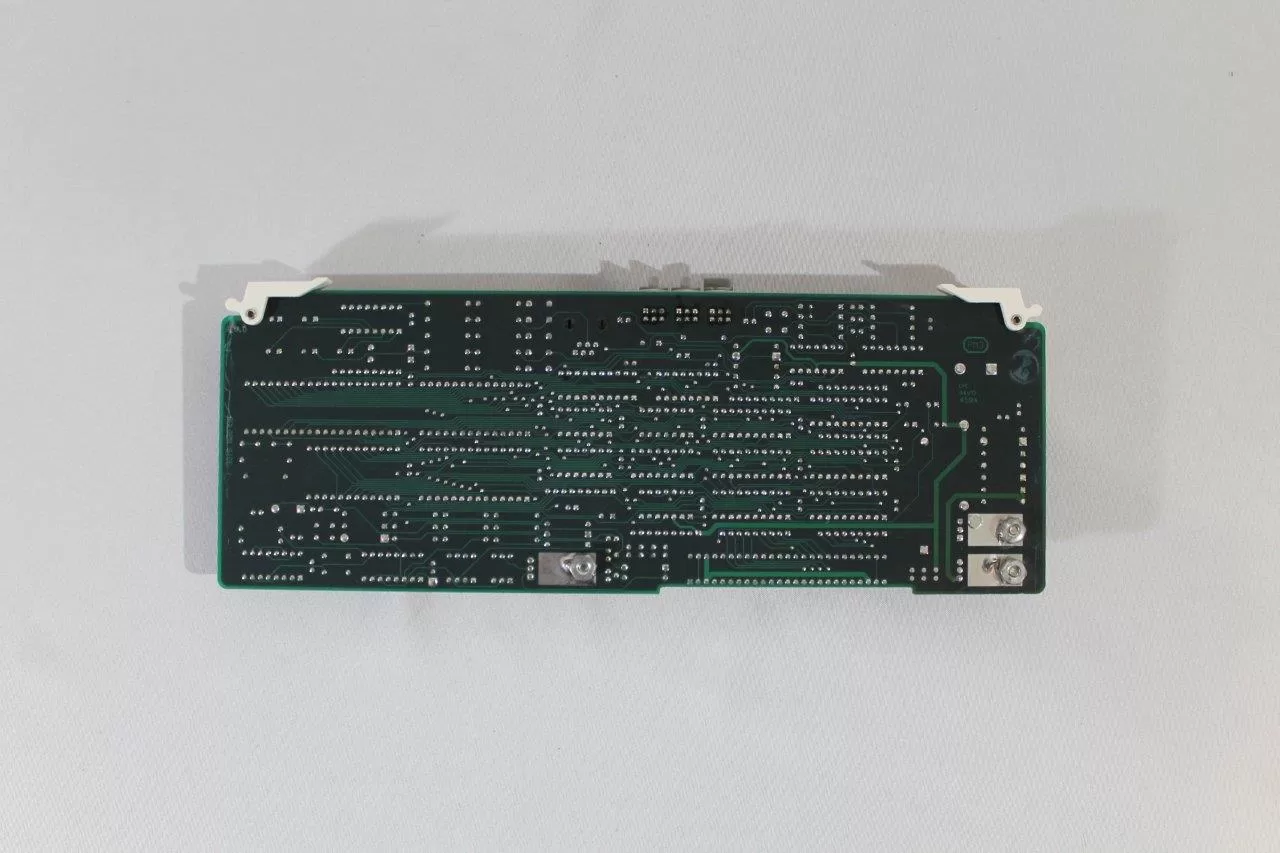

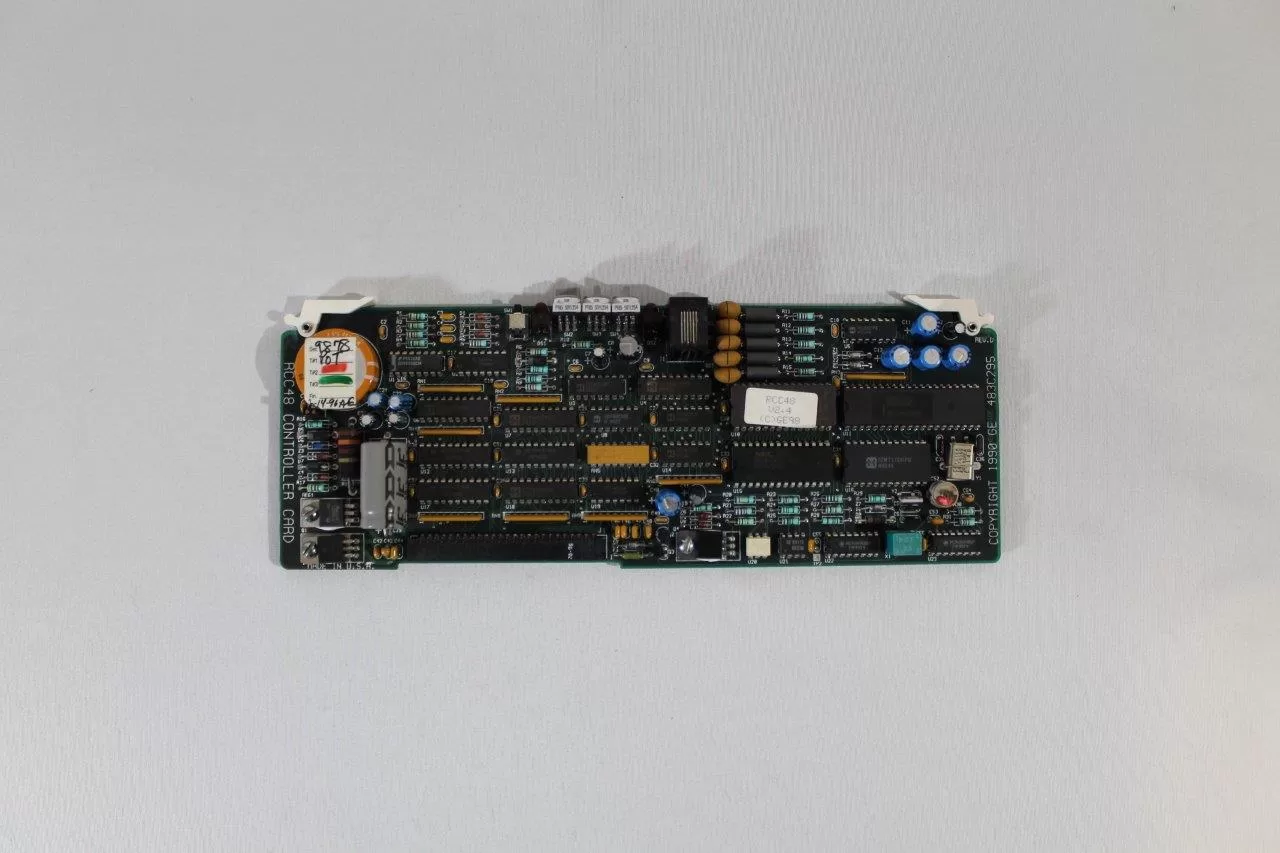

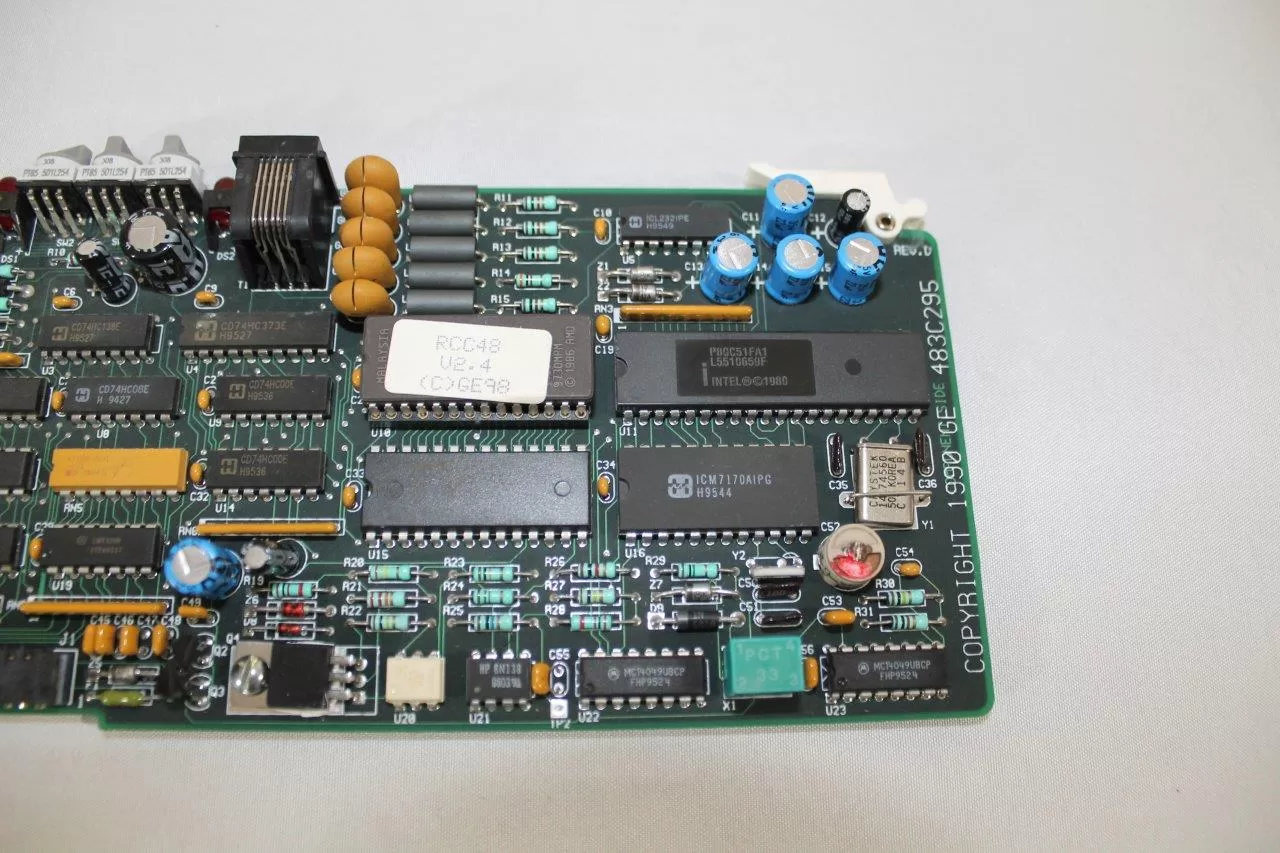

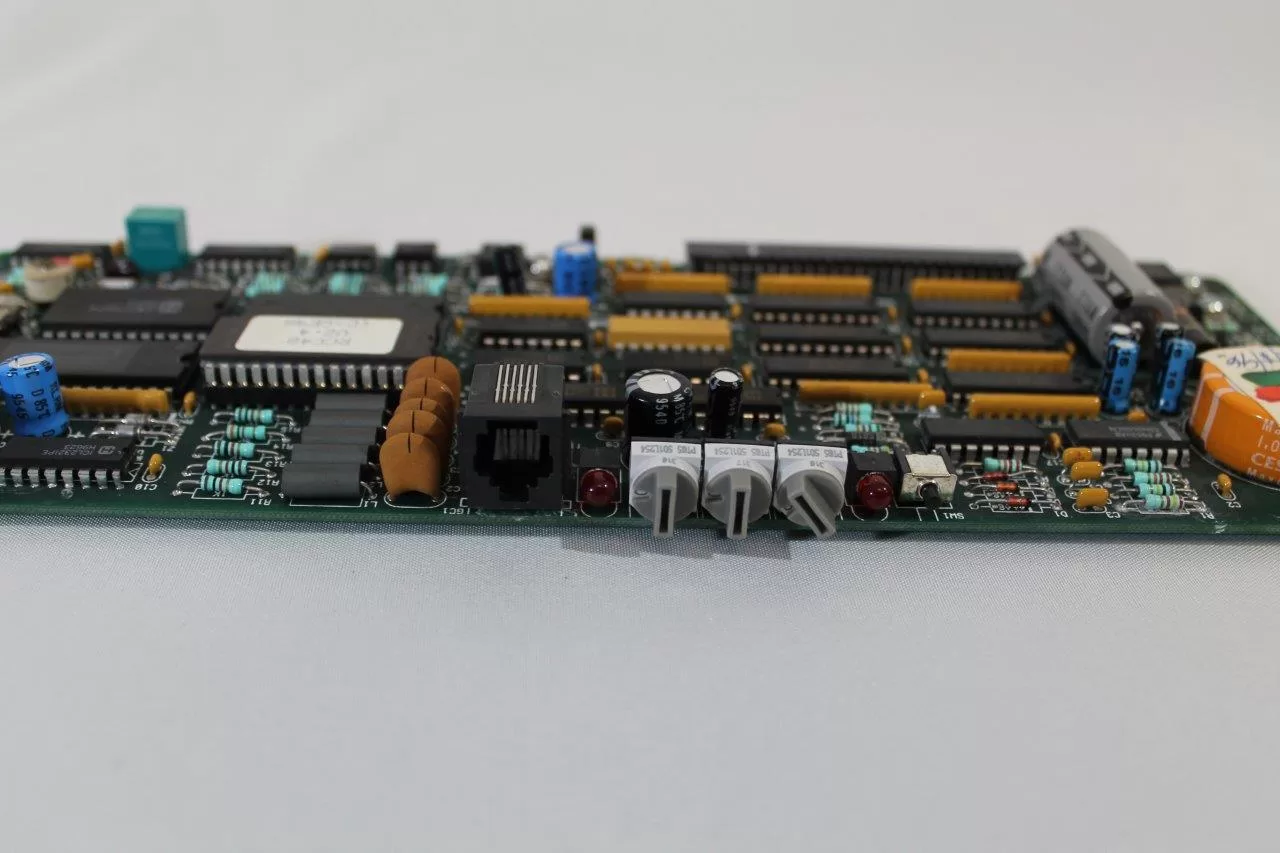

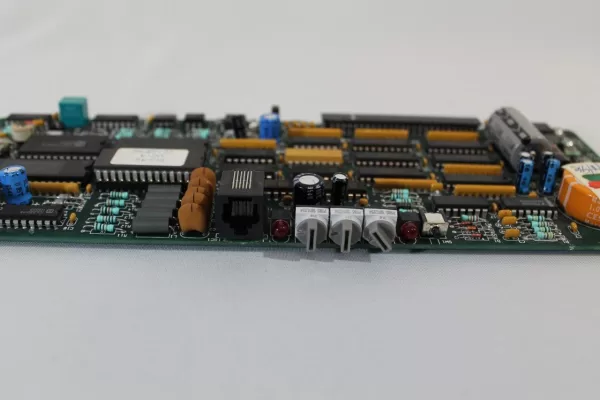

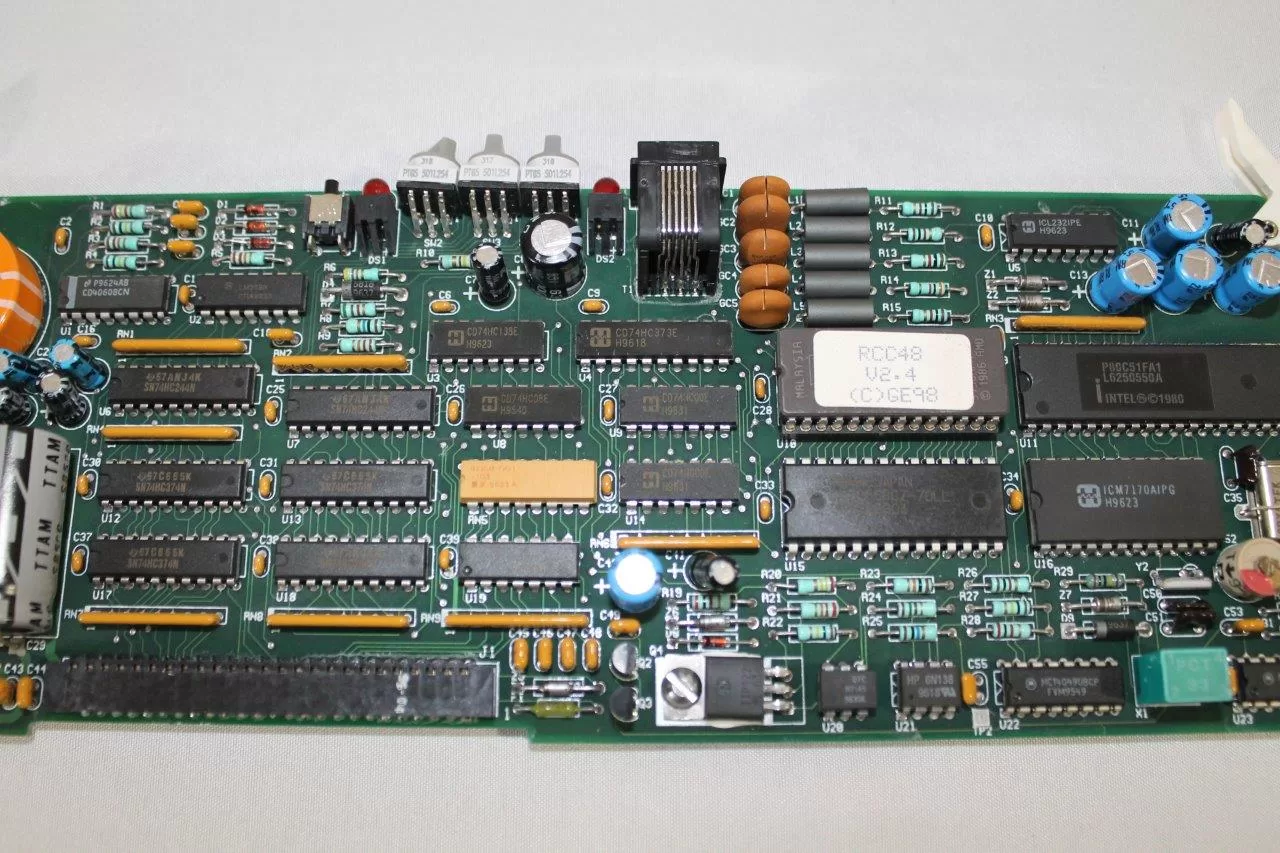

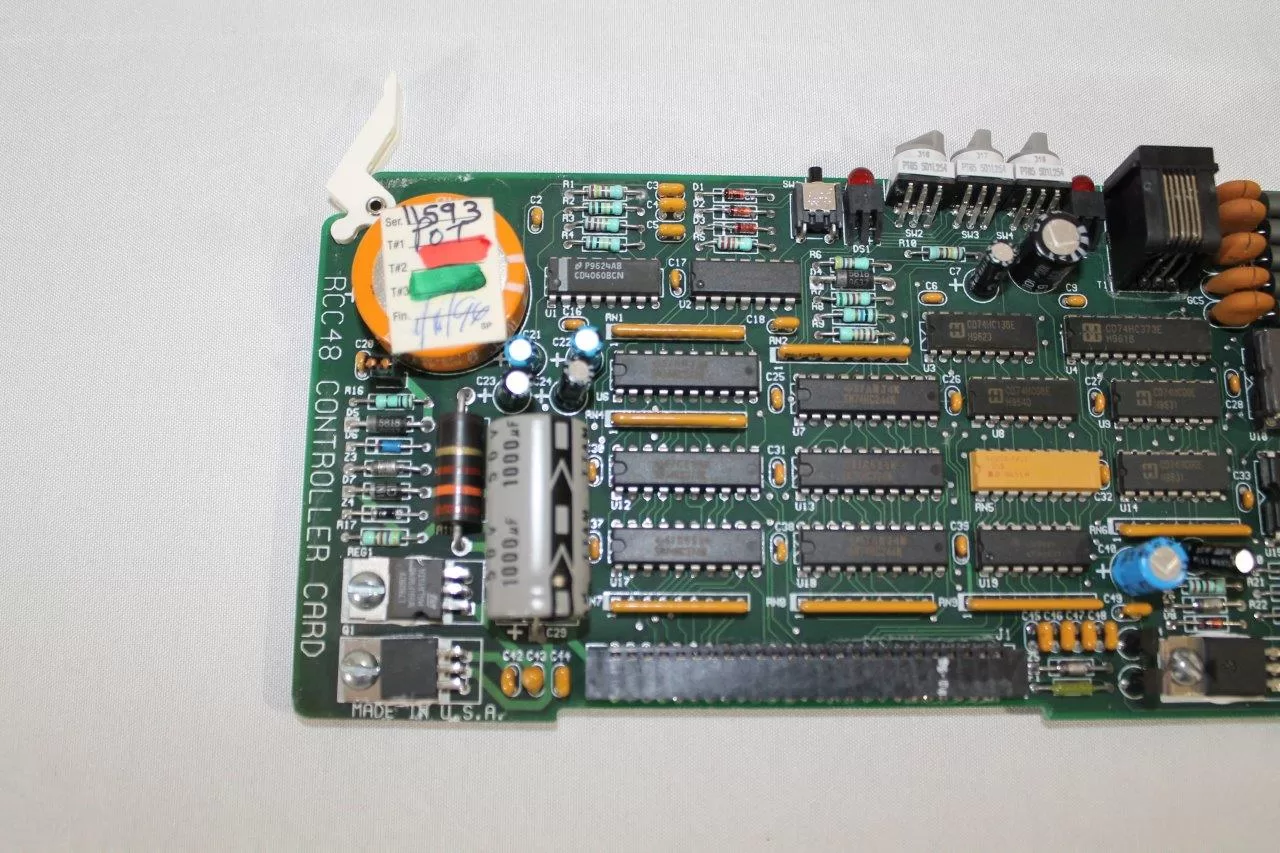

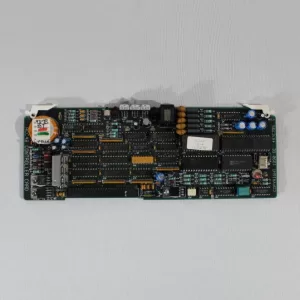

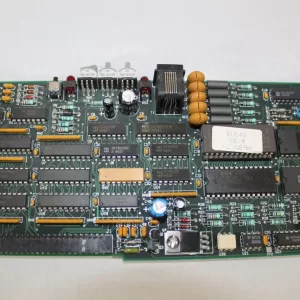

General Electric RCC48 Total Lighting Control Board Simple

Condition: New, unused overstock item. Sold as used.

Product Overview:

The General Electric RCC48 Total Lighting Control Board is a sophisticated and programmable solution designed to manage lighting in commercial and industrial facilities. It serves as the intelligence hub for GE Lighting Automation Panels (LAP), supporting up to 48 relays with extensive customization and energy-saving capabilities.

This board is particularly suited for facilities that require centralized lighting control, programmable scenarios, and compatibility with a variety of light technologies, including LED, fluorescent, and incandescent systems.

Key Specifications:

• Model: RCC48
• Relay Control Capacity: Up to 48 relays
• Communication Ports: RS232 and Dataline
• Relay Driver Cards (Optional): Supports up to 4 RRDC12 cards for additional relay management.
• Programmable Switch Inputs:
  • 3, 6, 9, or 12 programmable global switch inputs
  • 2 programmable panel switch inputs
• Memory Backup: Retains programming during power outages.
• Dimensions: Plug-in modular design for easy installation.
• Change-of-State Monitoring: Provides status updates via RS232 or Dataline.

Features:

• 48-Relay Control: Direct switching for up to 48 lighting zones, supporting dimming, on/off, and scene activation.
• Programmable Scenarios: Customizable lighting scenes for specific times, events, or occupancy.
• Energy Efficiency: Reduces energy consumption by enabling granular control over individual lighting zones.
• Centralized Control: Allows management of lighting systems across an entire facility from a single panel.
• Runtime and Status Monitoring: Provides detailed runtime information for all connected relays.
• Robust Communication: RS232 and Dataline ports facilitate seamless integration with building automation systems.
• Ease of Use: Intuitive programming interface for facility managers and technicians.

Applications:

The RCC48 Total Lighting Control Board is ideal for:

• Commercial Buildings: Office complexes, retail spaces, and entertainment venues.
• Industrial Facilities: Factories, warehouses, and manufacturing plants.
• Education and Healthcare: Schools, universities, hospitals, and clinics.
• Hospitality: Hotels, resorts, and conference centers.
• Multi-Zone Lighting Management: Any facility requiring detailed control over multiple lighting zones.

Benefits:

1. Energy Savings: Reduces electricity usage by automating lighting zones and minimizing waste.
2. Customizable Control: Offers tailored lighting settings to meet the needs of different areas or tasks.
3. Centralized Management: Simplifies monitoring and adjustments for large-scale lighting systems.
4. Seamless Integration: Compatible with a range of lighting technologies and building management systems.
5. Reliable Operation: Memory backup ensures uninterrupted operation even during power outages.

Pros:

• Supports a wide range of lighting technologies.
• Scalable design allows for expansion using RRDC12 Relay Driver Cards.
• Intuitive programming and setup.
• Durable construction and reliable performance for industrial-grade use.

Cons:

• Requires additional RRDC12 cards for full 48-relay functionality.
• Installation and programming may require skilled personnel for optimal setup.

Comparable Products:

1. Lutron Vive HJS-1 – Wireless lighting control system for commercial use.
2. Leviton Omni-Bus Main Controller – Centralized lighting control for multi-zone environments.
3. Crestron DIN-AP4 – Advanced programmable lighting and automation control system.
