Genteq Evergreen IM 6010 ECM Brushless Direct Drive Blower Motor 1 HP, 115/230V, 1075 RPM, 5-Speed, Constant Torque

Condition: New – No external overload protection required; electronics are encapsulated and protected.

The Genteq Evergreen IM 6010 is a premium ECM brushless direct drive blower motor, rated at 1 HP and engineered to deliver high efficiency, quiet operation, and superior performance over traditional PSC motors. Operating on dual voltage (115/230V), it supports constant torque operation across multiple speeds and features advanced rotation sensing, making installation easier and more reliable.

Ideal for residential and light commercial HVAC systems, this motor replaces direct drive PSC blower motors typically found in air handlers, furnaces, and packaged units, especially those originally built around 6-pole 1075 RPM designs. The soft start and off ramp ensure quieter performance and extended equipment life. With encapsulated electronics, integrated 6kV surge protection, and up to 80% motor efficiency, this motor is both rugged and energy-smart.

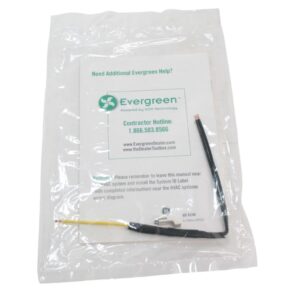

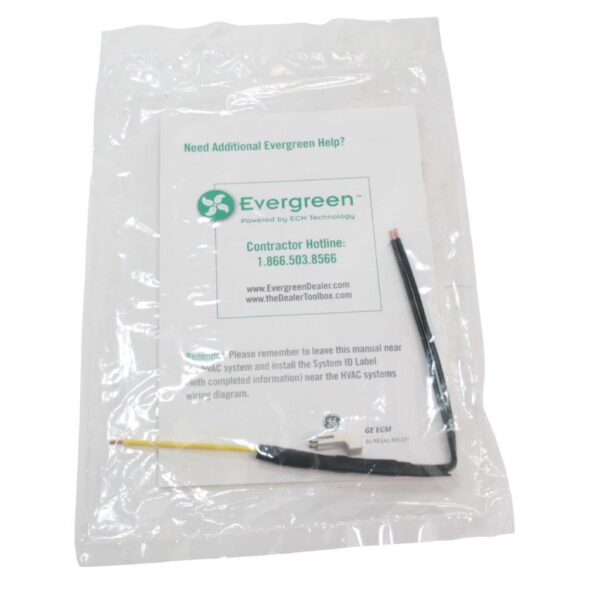

Only Yellow/black wire is included besides the motor itself. See pictures for more information.

Specifications:

• Model: Genteq Evergreen IM 6010 5SME39SXL111
• Horsepower: 1 HP (replaces motors in 1/2 – 1 HP range)
• Voltage: 115/230V (dual-rated)
• Phase: Single (1 Ph)
• Frequency: 50/60 Hz
• Speed: 1075 RPM
• Number of Speeds: 5 speeds (4 discrete + 1 continuous fan)
• Motor Type: ECM (Brushless DC, Constant Torque)
• Amps: 6.7 A (115V) / 11 A (230V)
• Rotation: Automatically sensed and reversible ccw/cw-le
• Frame: NEMA 48 (5.6″ Diameter)
• Mounting: Round belly band (standard 48-frame)
• Shaft Diameter: 1/2″
• Shaft Length: 5″
• Enclosure Type: Open Air Over
• Bearings: Ball
• Poles: 12
• Insulation Class: B
• Thermal Protection: Encapsulated internal electronics
• Surge Protection: Integrated 6kV
• Ambient Temperature Max: 104°F
• Motor Duty: Continuous Air Over
• Orientation: Horizontal
• Harness: 42″ pre-installed for plug-and-play with existing relays or circuit boards

Key Features:

• Efficiency up to 80% – drastically reduces energy usage
• Dual-voltage operation for flexibility in installation
• Automatic rotation sensing – no guesswork on airflow direction
• Constant torque – maintains airflow against higher external static pressures
• Soft start/stop – reduces noise and wear
• Pre-wired harness – simple installation without added controls
• Rugged design – encapsulated electronics and 6kV surge protection for longevity
• Quiet, efficient continuous fan mode – ideal for comfort and air circulation

Applications:

• OEM and retrofit blower motor replacement
• Residential furnaces and air handlers
• Light commercial HVAC indoor blower systems
• Replaces 6-pole, 1075 RPM direct drive PSC motors
• Ideal in systems that demand quieter and more efficient operation

Cross-Referenced or Comparable Models:

• Genteq Evergreen IM 6510 (1/2 HP version)
• Genteq X13 1 HP Motors
• Mars Azure 10860
• US Motors ECM142
• Broad Ocean ECM-7158 Series
• Regal Beloit 6205E ECM motor

Related:

ECM blower motor, variable speed furnace motor, constant torque HVAC motor, Genteq Evergreen 1 HP motor, 48 frame ECM motor, 1075 rpm ECM replacement, high-efficiency air handler motor, soft start blower motor, ECM motor 115V 230V, Genteq IM 6010 motor, reversible ECM HVAC motor

Common Requests:

1. “Can I replace a PSC blower motor with this Genteq ECM motor?”
2. “Does the Evergreen IM 6010 auto-detect rotation?”
3. “Is this motor compatible with existing fan relays?”
4. “What systems does the IM 6010 work with?”
5. “Do I need an external controller for this ECM motor?”
