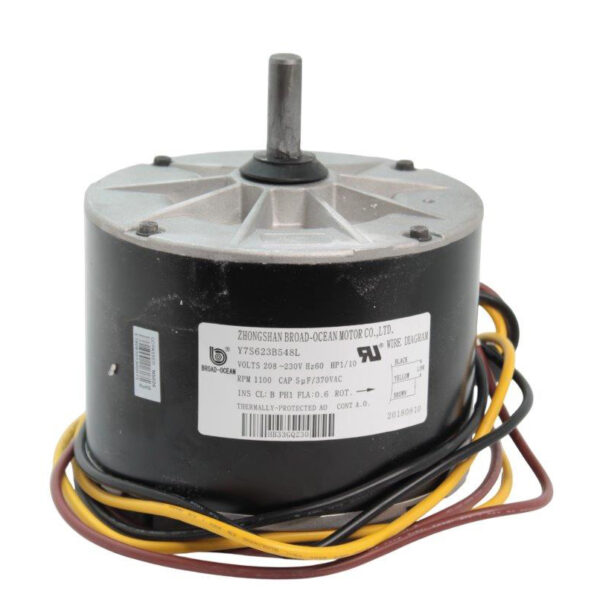

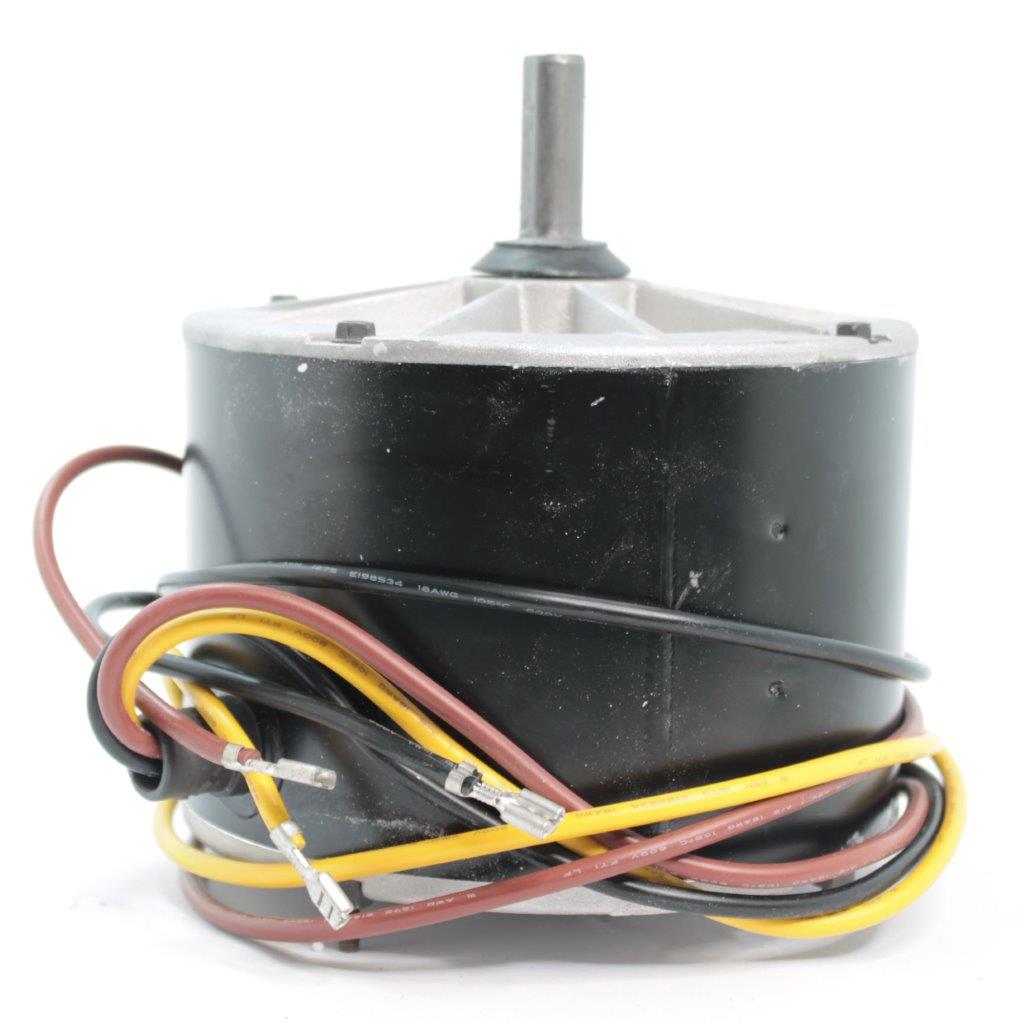

Carrier HB33GQ230 / Broad Ocean Y7S623B548L Condenser Fan Motor – 1/10 HP, 208–230V, 1100 RPM, 48Y Frame, CWLE Rotation

Condition: New – Capacitor not included (requires 5 MFD @ 370V).

The Carrier HB33GQ230, manufactured by Zhongshan Broad Ocean (part number Y7S623B548L), is a high-quality 1/10 HP condenser fan motor designed for use in Carrier and Bryant HVAC units. With its 1100 RPM, single-speed, and clockwise rotation (viewed from lead end), this motor is an exact-fit replacement for dozens of Carrier model numbers, particularly in 1.5 to 2.5 ton systems.

This motor features ball bearings for extended life, a 1/2″ diameter single-side flat shaft, and comes in a compact 48Y frame size with 2″ shaft length. It is ideal for outdoor condenser applications requiring durability and energy-efficient PSC performance.

Specifications:

• Brand: Carrier / Zhongshan Broad Ocean
• Model Numbers: HB33GQ230, Y7S623B548L
• Horsepower: 1/10 HP
• Voltage: 208–230 VAC
• Frequency: 60 Hz
• Phase: Single
• Amperage: 0.75 A
• Speed: 1100 RPM
• Number of Speeds: 1
• Frame: 48Y (5.6″ diameter)
• Rotation: CWLE (Clockwise Lead End)
• Shaft:
  • Type: Single side flat
  • Diameter: 1/2″
  • Length: 2″
• Motor Duty/Cooling: Air Over / Continuous
• Thermal Protection: Yes (Automatic reset)
• Insulation Class: B
• Bearing Type: Ball
• Mounting Style: Belly band or extended studs (dependent on unit)
• Weight: 10 lbs
• Capacitor Required: 5 MFD @ 370V (not included)

Features:

• Direct OEM replacement for Carrier systems
• Durable ball bearing construction
• Thermally protected for reliable, long-term operation
• 48Y frame size – industry standard for residential systems
• Easy replacement for common 1/10 HP motors
• PSC design for energy-efficient performance
• Clockwise rotation from the lead end (CWLE)

Compatible With (Selected Carrier/Bryant Models):

• 24ABB324A0L30011, 24ABB330A0L30011, 25HCE424AP030011
• 113ANA0240L0BFAA, 113ANA0300N0BEAA, 126SAN02400WAAAB
• PA13NA02400LAAAA, PA13NA030000BBAA, PA13NR03000GAHAA
• BA13NA02400LAAAA, PH13NB024000AAAA
• PH13NR02400GAJAA, PA16NW02400GBAAA
• PH14NB024P0GAAAA, CA13NA03000LAAAA
  (Full model compatibility provided above)

Comparable Motors:

• Emerson K55HXLGN-1234 (1/10 HP, 1100 RPM, 230V, 48Y)
• Genteq 3732 (Slightly higher HP, similar RPM/Frame)
• Century FSE1016SF (1/10 HP, 1100 RPM, ball bearing)
• Mars 10589 (Common OEM replacement for 1/10 HP condenser motors)

Related Search Phrases:

small outdoor AC fan motor, 1/10 hp 230v condenser motor, Carrier AC fan motor replacement, HB33GQ230 condenser fan motor, Broad Ocean Y7S623B548L motor, HVAC motor for Carrier unit, 1100 rpm 48Y frame motor, ball bearing condenser motor, CW lead end AC motor

Common Requests:

1. “Is this a direct replacement for Carrier PA13NA units?”
2. “What size capacitor do I need with this motor?”
3. “How do I check motor rotation direction?”
4. “Is this motor compatible with Bryant outdoor units?”
5. “Can this motor be used for both heating and cooling seasons?”

Trademark Disclaimer: Carrier® and other mentioned brand names are trademarks of their respective owners. All names and model numbers are used for identification purposes only and do not imply any affiliation or endorsement.
