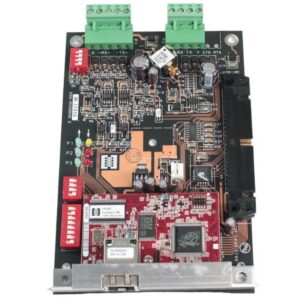

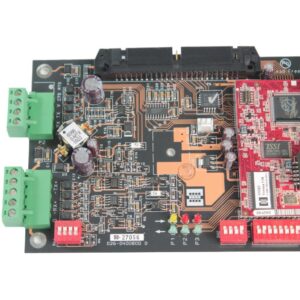

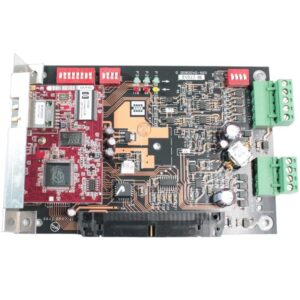

Hirsch SNIB2 Secure Network Interface Board Ver 5.98

Original price was: $209.00.Current price is: $159.00.

1 in stock

SNIB2

Hirsch SNIB2 Secure Network Interface Board Ver 5.98

New: A brand-new, unused, undamaged item in its original packaging.

The Hirsch SNIB2 is a secure network interface board designed to facilitate high-performance communication between DIGI*TRAC controllers and host PCs. Utilizing the XNET2 protocol, it offers multiple connectivity options and advanced security features, making it ideal for secure and reliable network setups.

Product Specifications:

  • Brand: Hirsch Electronics
  • Model: SNIB2
  • Version: 5.98
  • Sub-Category: Industrial Computer Accessory

Key Features:

  • High-Performance Protocol: Uses the XNET2 protocol for efficient and reliable communication.
  • Multiple Ports: Includes three ports for versatile connectivity:
    • 10/100BASE-T Ethernet Port: For TCP/IP network connections.
    • Multi-Drop RS-485 Channel: For networked connections between SNIB2s and other devices.
    • Direct Connection to Host PC: Via RS-232.
  • Optically Isolated Ports: Ensures electrical isolation for RS-485 and RS-232 ports, enhancing reliability and safety.
  • Baud Rates: Supports RS-485 multi-drop communication at up to 115 KBps and Master SNIB2 to downstream SNIB communication at up to 19.2 KBps.
  • AES Encryption: Supports AES (128-bit Rijndael) encryption between the Host PC and Master SNIB2, and between the Master SNIB2 and downstream SNIB2, ensuring secure data transmission.
  • Integral XBox Functionality: Master SNIB2 supports integral XBox functionality for globalization.
  • UL Listed and CE Certified: Meets industry standards for safety and performance.

Applications:

  • Access Control Systems: Networks DIGI*TRAC controllers to a host PC, enhancing access control systems with secure and efficient communication.
  • Secure Data Transmission: Ensures secure communication between networked devices in high-security environments.
  • Industrial Networking: Ideal for industrial settings requiring robust and reliable network interfaces.

General Installation and Setup:

  1. Preparation:
    • Ensure all devices (controllers, PC, and SNIB2) are powered off before installation.
    • Gather necessary tools, including a screwdriver and appropriate cables for connections.
  2. Mounting the SNIB2:
    • Install the SNIB2 board into the designated slot within the DIGI*TRAC controller or appropriate housing.
    • Secure the board using the provided screws.
  3. Connecting to Network and Devices:
    • Ethernet Port: Connect the 10/100BASE-T Ethernet port to your network using a standard Ethernet cable.
    • RS-485 Channel: For multi-drop connections, use the RS-485 port and connect it to other SNIB2 devices or controllers.
    • RS-232 Port: Connect the RS-232 port directly to the host PC for direct communication.
  4. Configuration:
    • Power on the devices and configure the network settings via the host PC.
    • Set up the XNET2 protocol settings and encryption parameters as required.
    • Use Velocity Version 2.6 SP2 or later to configure and manage the network connections and device settings.
  5. Testing and Verification:
    • Verify all connections are secure and functioning correctly.
    • Test communication between the host PC and the DIGI*TRAC controllers through the SNIB2.
    • Ensure encryption settings are properly configured and data transmission is secure.

Maintenance Tips:

  • Regular Testing: Periodically test the communication links and encryption settings to ensure ongoing security and functionality.
  • Firmware Updates: Keep the SNIB2 firmware updated to the latest version to maintain security and performance.
  • Physical Inspection: Regularly inspect the board and connections for signs of wear or damage.

Safety and Compliance:

  • UL Listed and CE Certified: Ensure compliance with industry standards for safety and performance.
  • Handling: Handle the SNIB2 board with care during installation to avoid damaging sensitive components.
  • Electrical Safety: Ensure proper grounding and isolation of the RS-485 and RS-232 ports to prevent electrical interference.

The Hirsch SNIB2 Secure Network Interface Board is a robust and versatile solution for secure and efficient communication in access control systems. Its multiple connectivity options, advanced encryption capabilities, and high-performance protocol make it ideal for industrial and high-security applications. Proper installation and regular maintenance will ensure optimal performance and long-term reliability.

NL28

Weight 0.5 lbs
Dimensions 5 × 3 × 7 in
