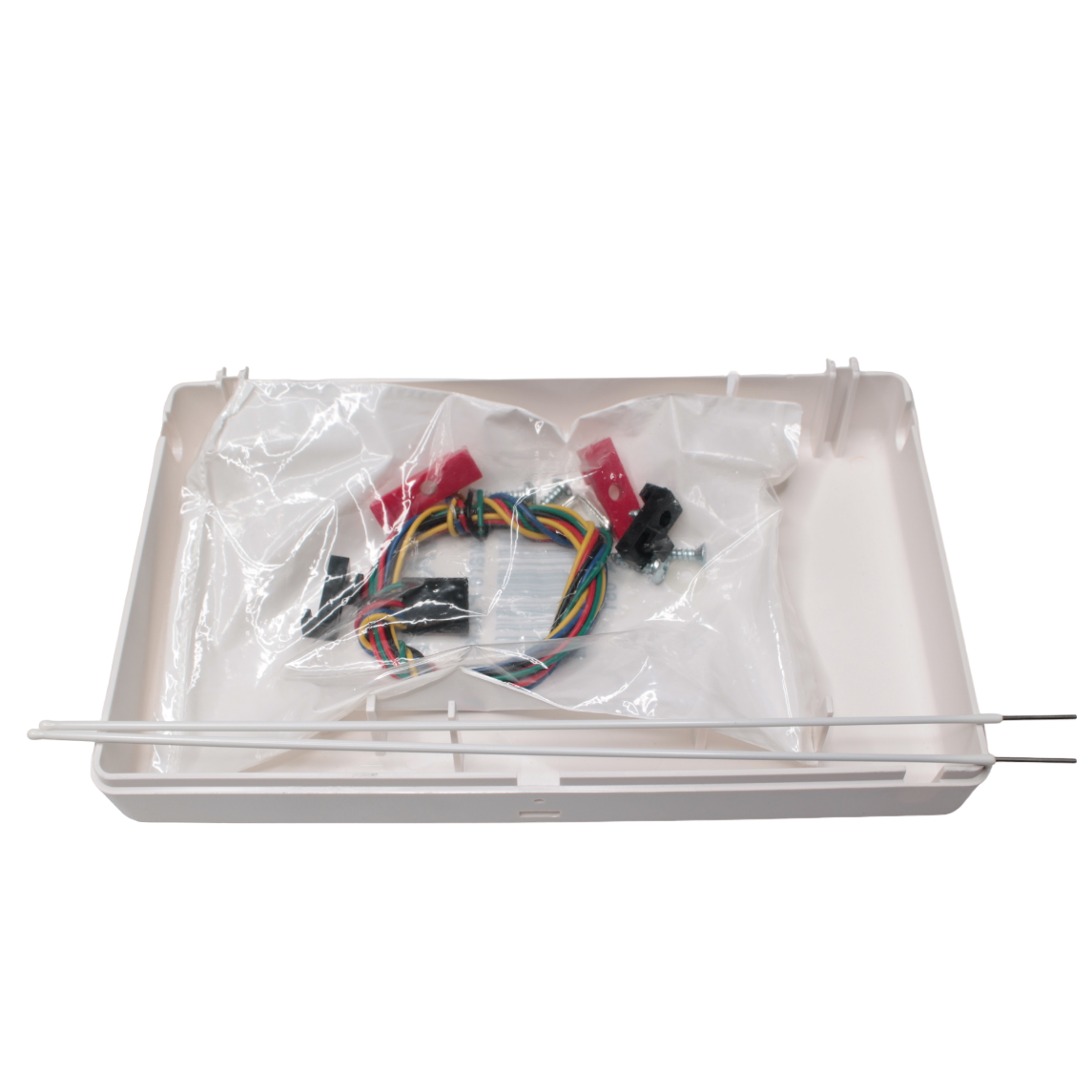

Honeywell 5881EN High Security Wireless Receiver 5881ENM Up to 16 zones

Honeywell 5881EN High Security Wireless Receiver 5881ENM Up to 16 zones

New: A brand-new, unused, undamaged item in its original packaging.

Description:
The 5881EN Series of RF receivers is designed for use with control panels that support an RF receiver connection via the keypad terminals. The receiver recognizes alarm, status, and keypad control messages from wireless transmitters operating at 345MHz.
One or two individually identified receivers can be employed, depending on the control used. Connection of multiple receivers to a control can provide redundant coverage or extend coverage in large areas.
These receivers feature a Spatial Diversity System that virtually eliminates the possibility of “nulls” and “dead spots” within the coverage area. The 5881EN series of receivers use ADEMCO’s High Security technology, and can be used in commercial fire installations.

Specifications:
Dimensions: 7-3/8″ W x 4-3/8″ (10-7/8” w/antenna) H x 1-7/16″ D (188mm W x 112mm H (277mm w/antenna) x 37mm D)
Input Voltage: 12VDC (from control’s keypad terminals)
Current: 60mA (typical)
Operating Temperature: 0-50°C
Interface Wiring:
RED 12VDC input (+) Aux. Power
GREEN: Data Out to Control
YELLOW: Data In from Control
BLACK: Ground (–)
Brand: Honeywell
Model #: 5881ENM
SKU: 5881ENM
UPC: 781410331136
