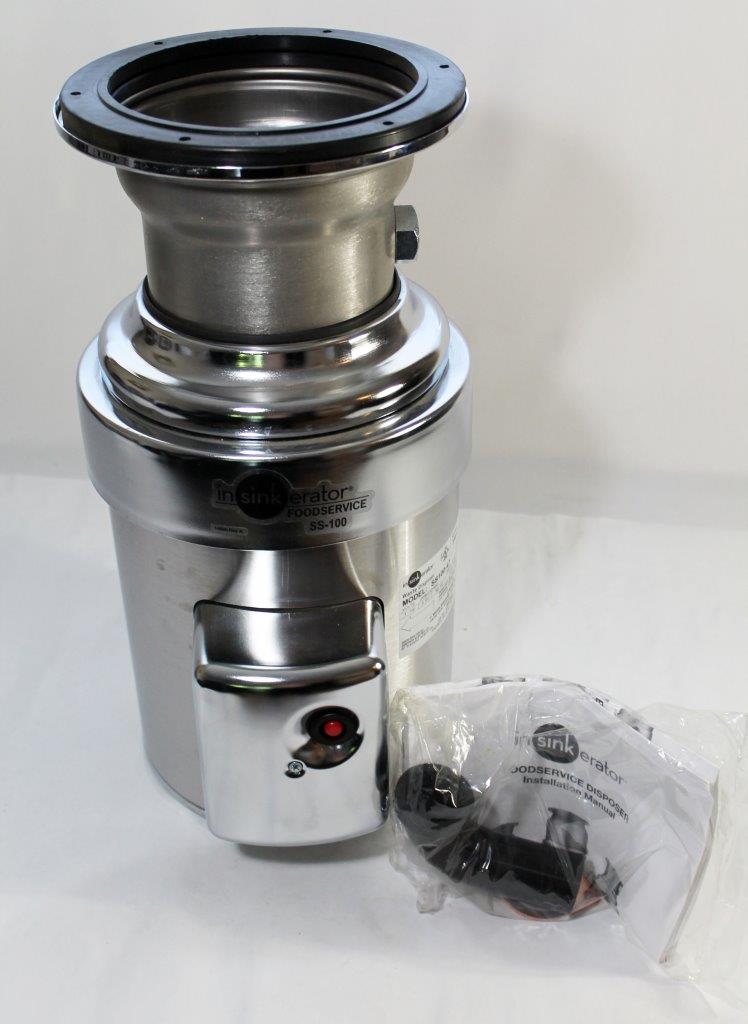

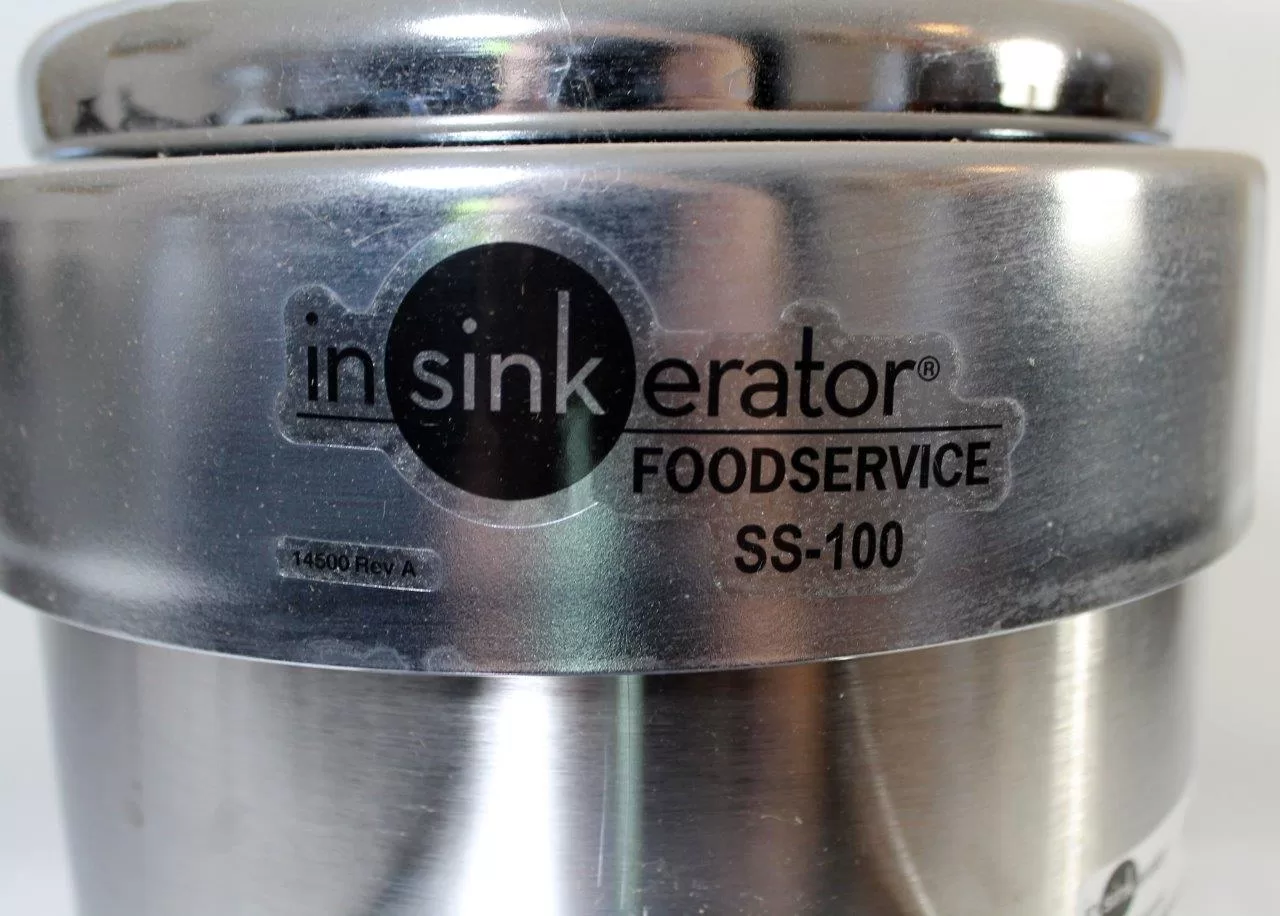

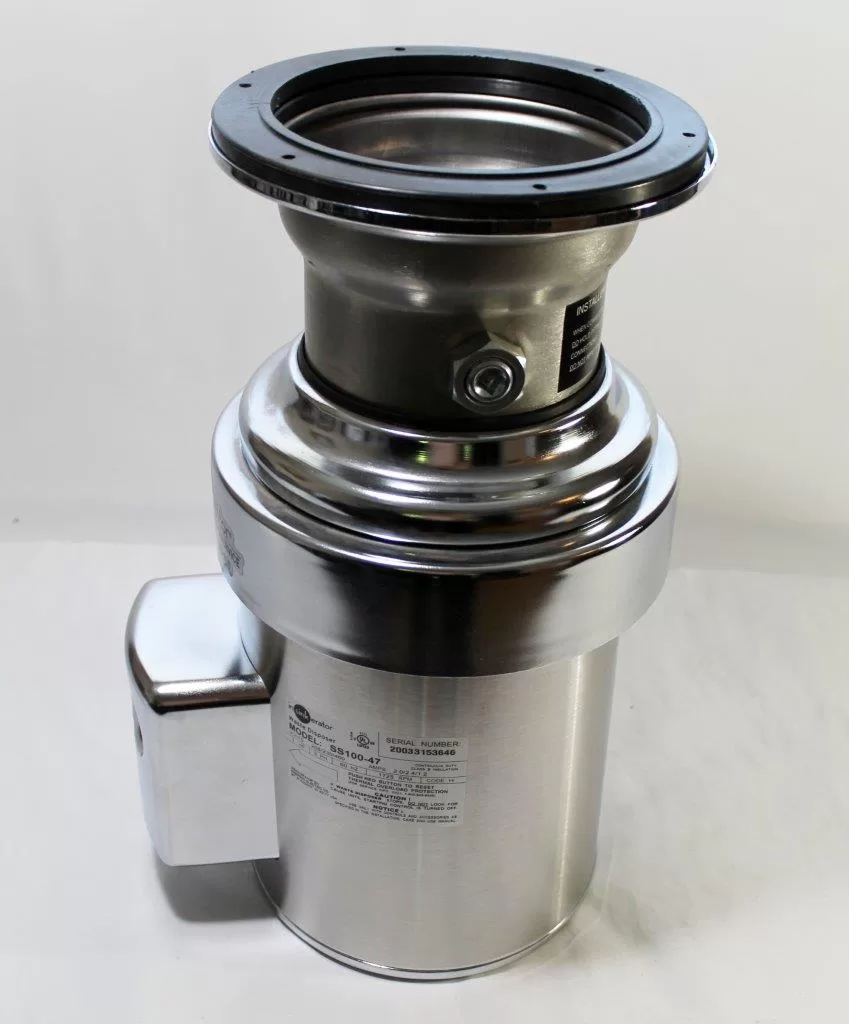

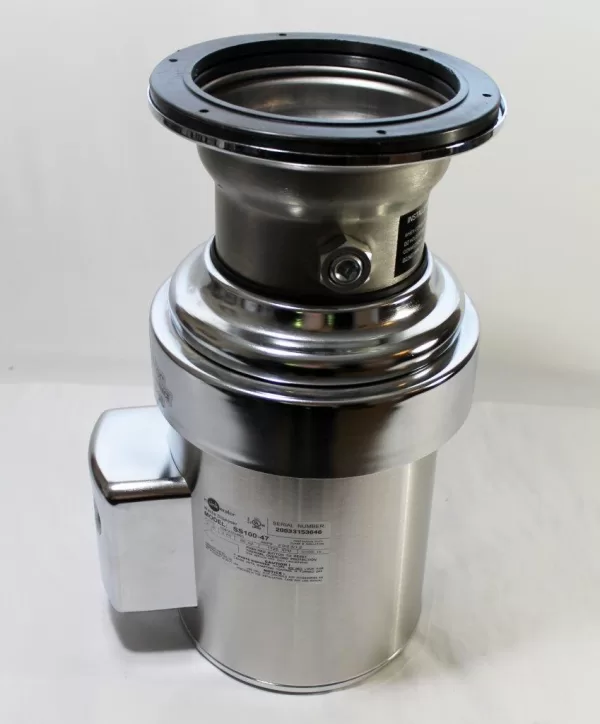

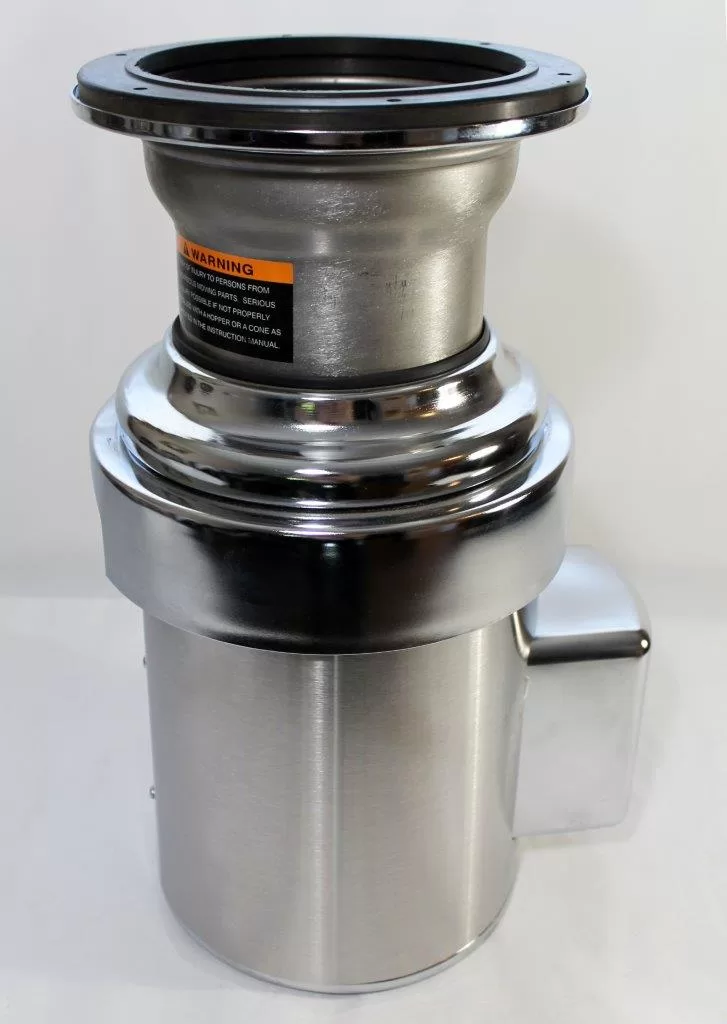

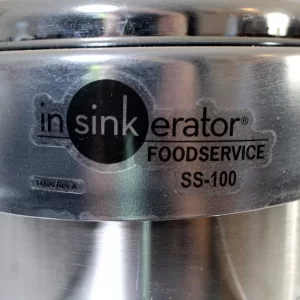

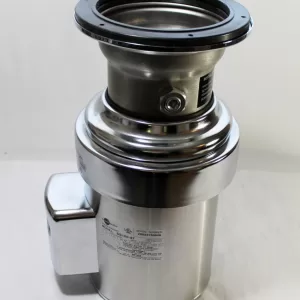

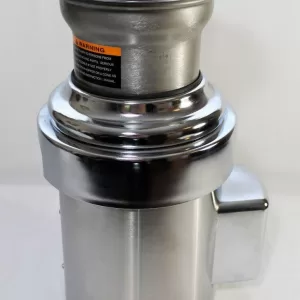

InSinkErator SS100-47 Commercial Disposer 1 HP 208-230/460V 3 Phase 13660Y

$1,639.00

13660Y

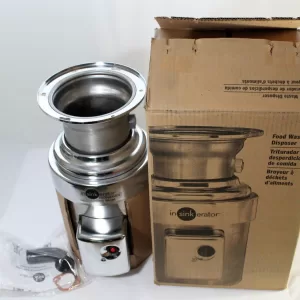

The InSinkErator SS-100-47 is a 1 hp commercial garbage disposer that’s suitable for use at soiled dish tables or vegetable prep areas in a restaurant, hotel, hospital, or cafeteria kitchen that serves up to 150 persons per meal. It features a totally enclosed, air-cooled motor that’s designed for efficiency and long life, thanks to its built-in thermal overload protection. Plus, the disposer includes a durable stainless steel grind chamber with stationary and rotating cast nickel chrome alloy cutting elements; these help ensure dependable service. For lasting sanitation, the unit’s exterior is paint free, with an all stainless steel and chrome plated construction.

This commercial disposer requires a 208-230/460V, 60 Hz, 3 phase electrical configuration for operation.

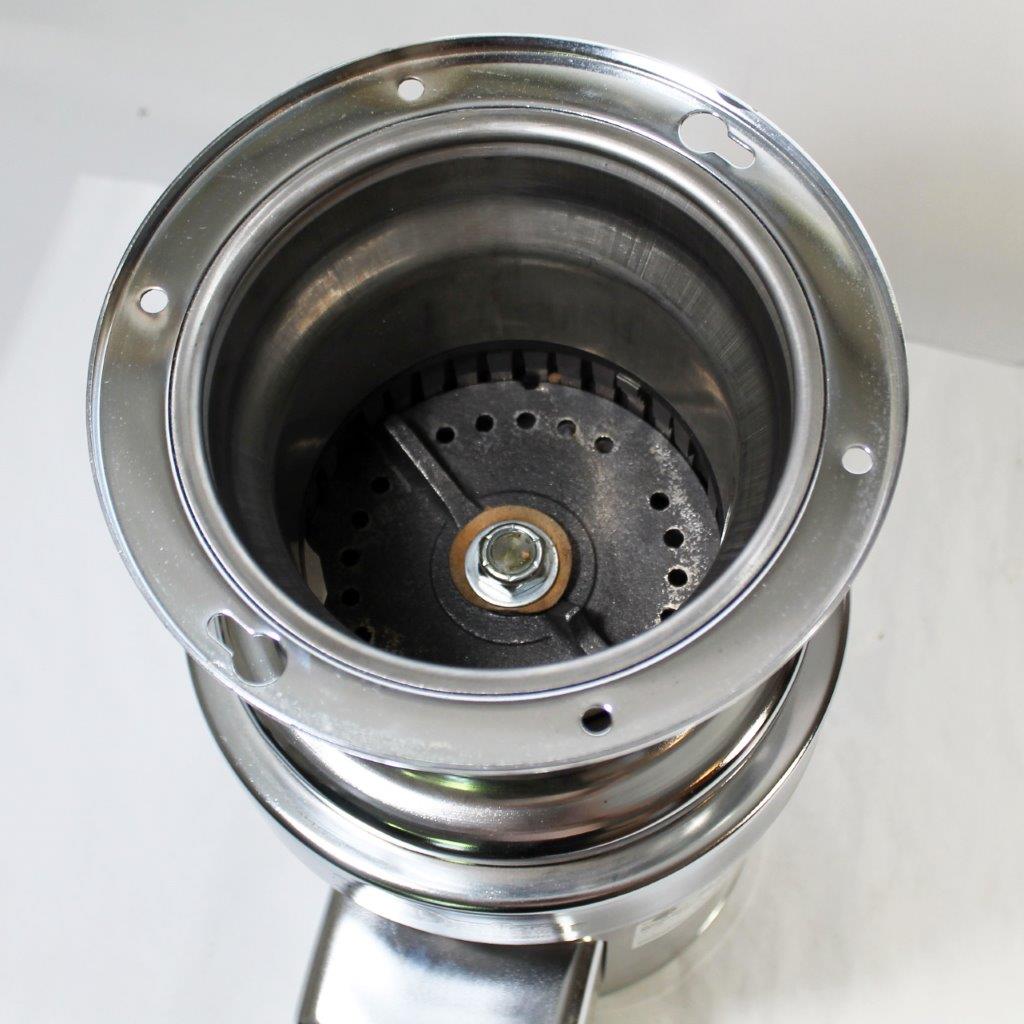

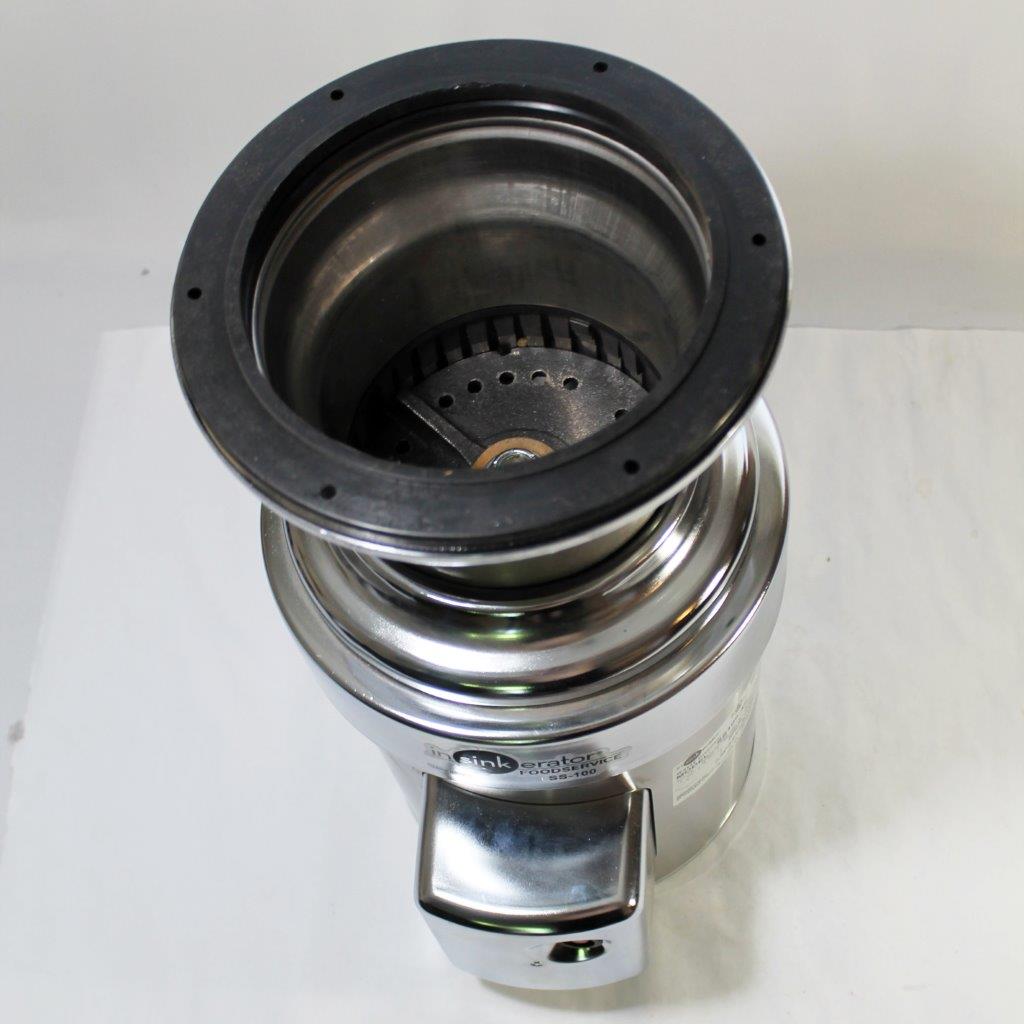

Grind chamber is constructed of stainless steel for corrosion resistance
3/4-in. rubber mounting ring is in a chrome-plated cover to maintain sanitary conditions
1-HP induction motor has built-in thermal overload protection to prevent the motor from overheating
1725 RPM
Completely enclosed for protection against exterior moisture

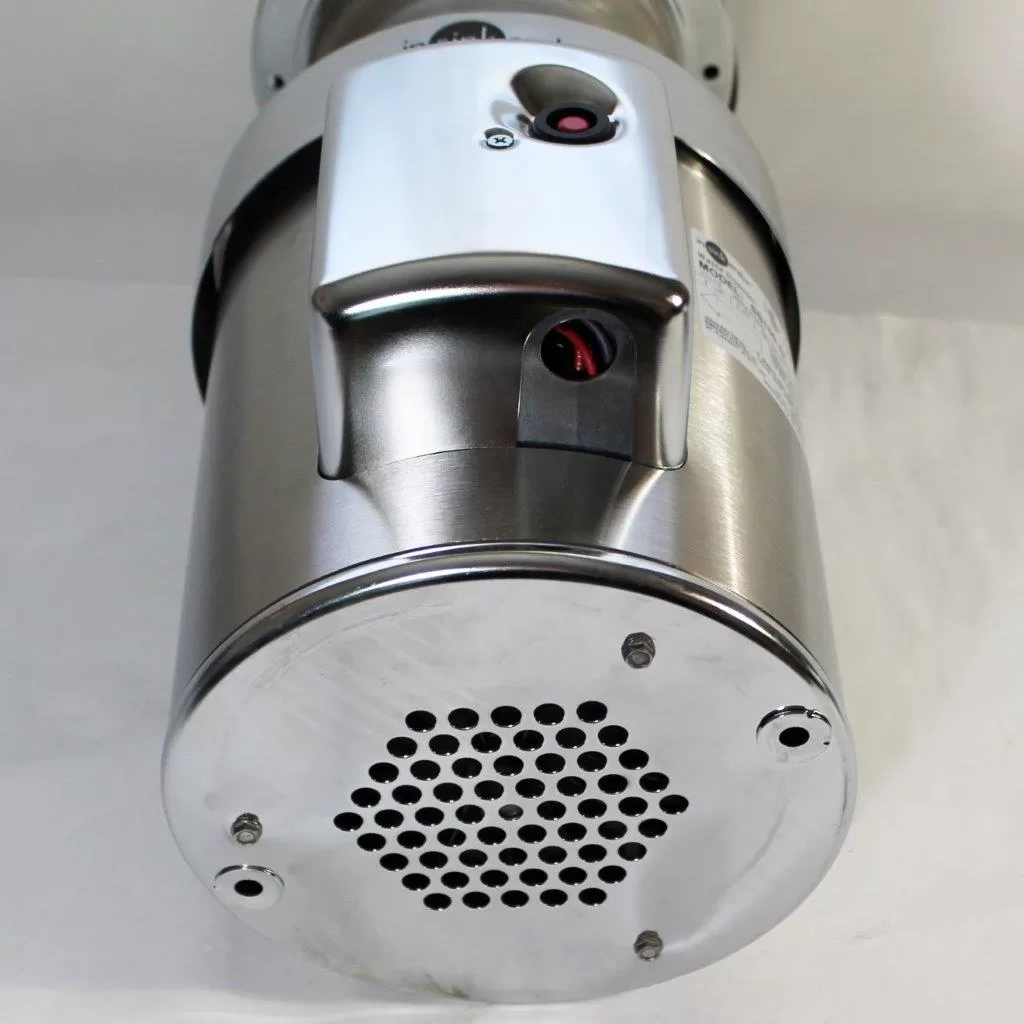

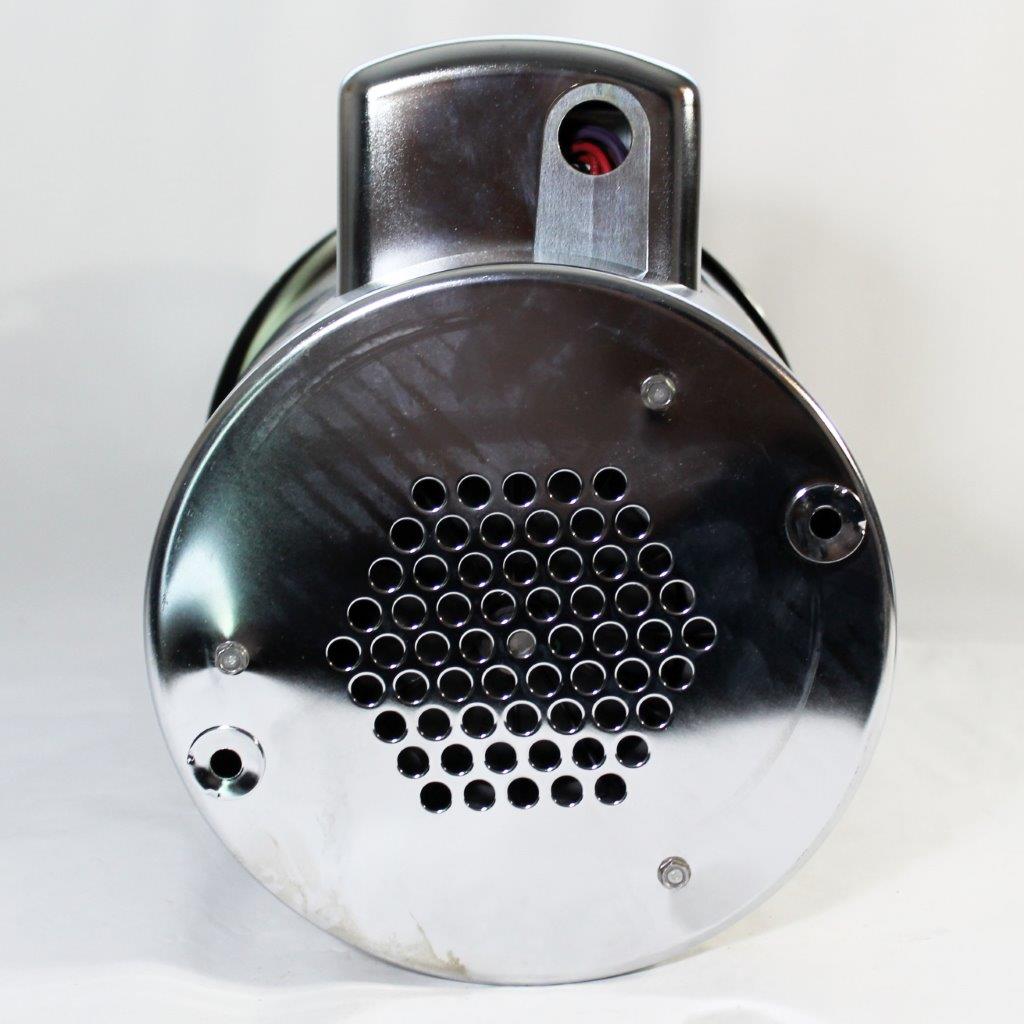

Controlled power airflow cools the motor for a lengthened life

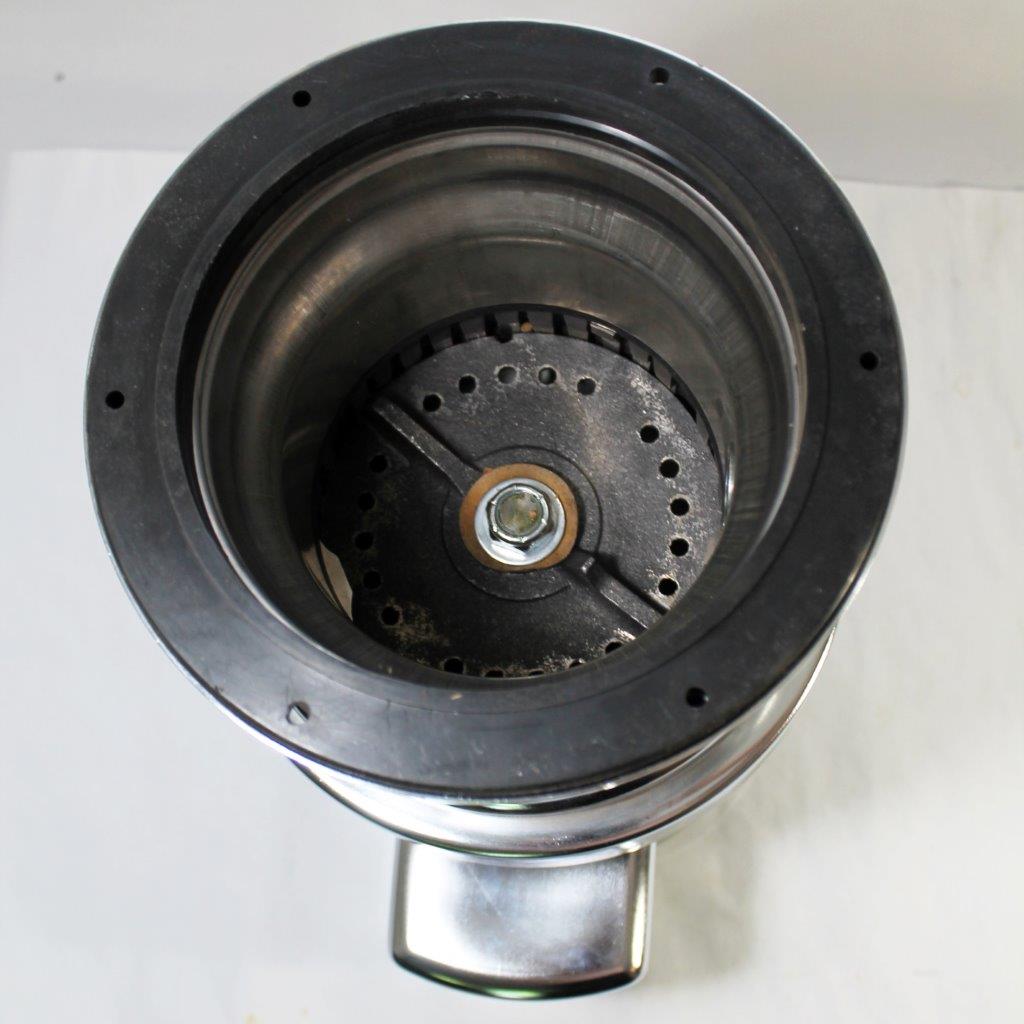

Cast nickel chrome alloy stationary and rotating shredding elements resist corrosion and are designed to reverse grind
Cushion for shock absorption is created by double tapered roller bearings
Water damage is prevented with the triple-lip seal
Spring-loaded oil seal protects against water and grease loss
5 GPM water flow is recommended
Sink Opening Dia.6-5/8 in

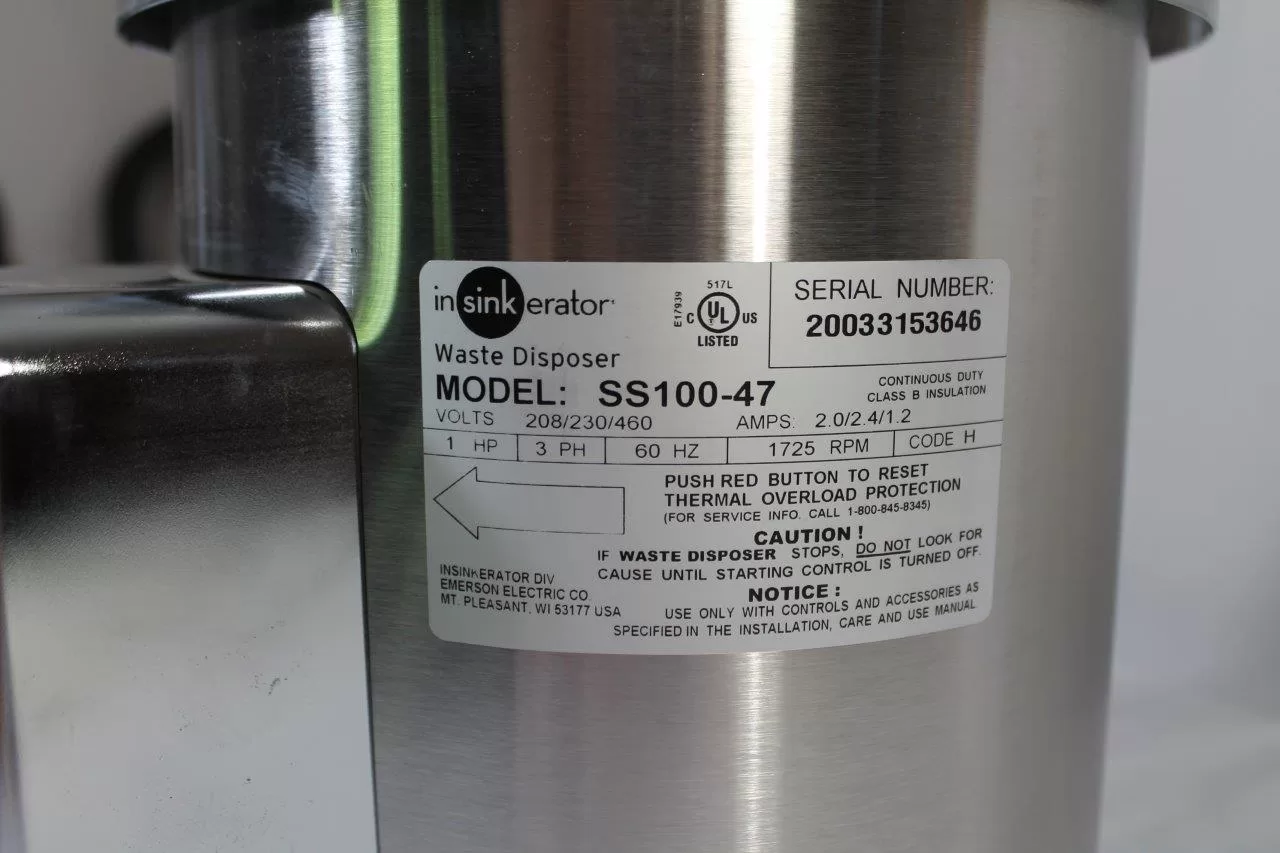

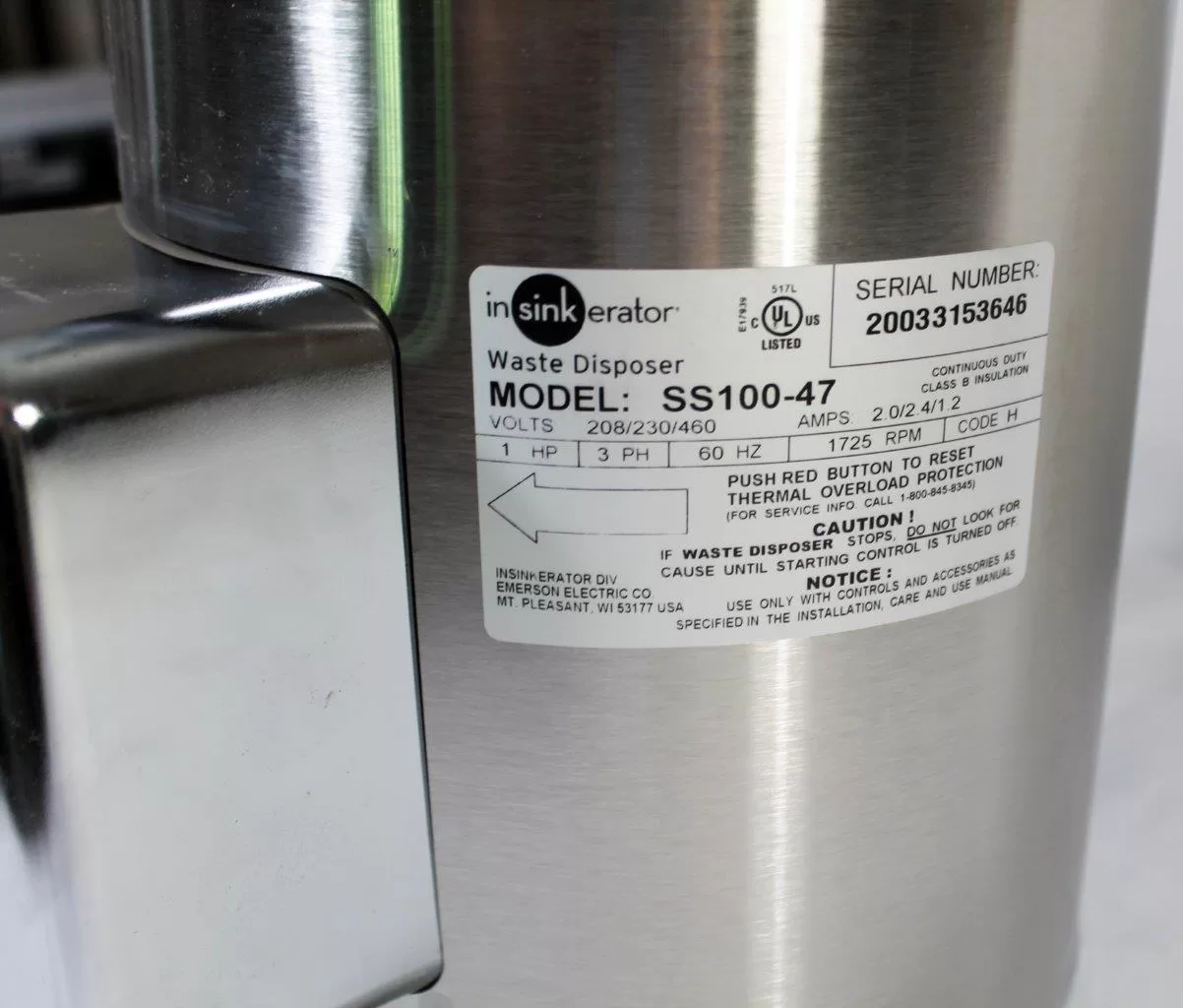

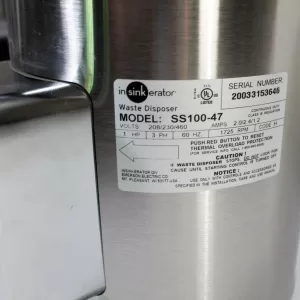

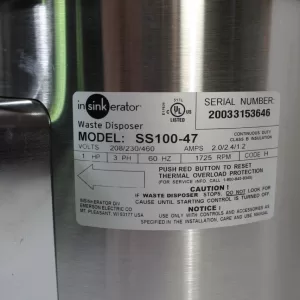

60 Hz/1 ph, 1 HP, 5.1-11.6 A, Voltage208-230/460

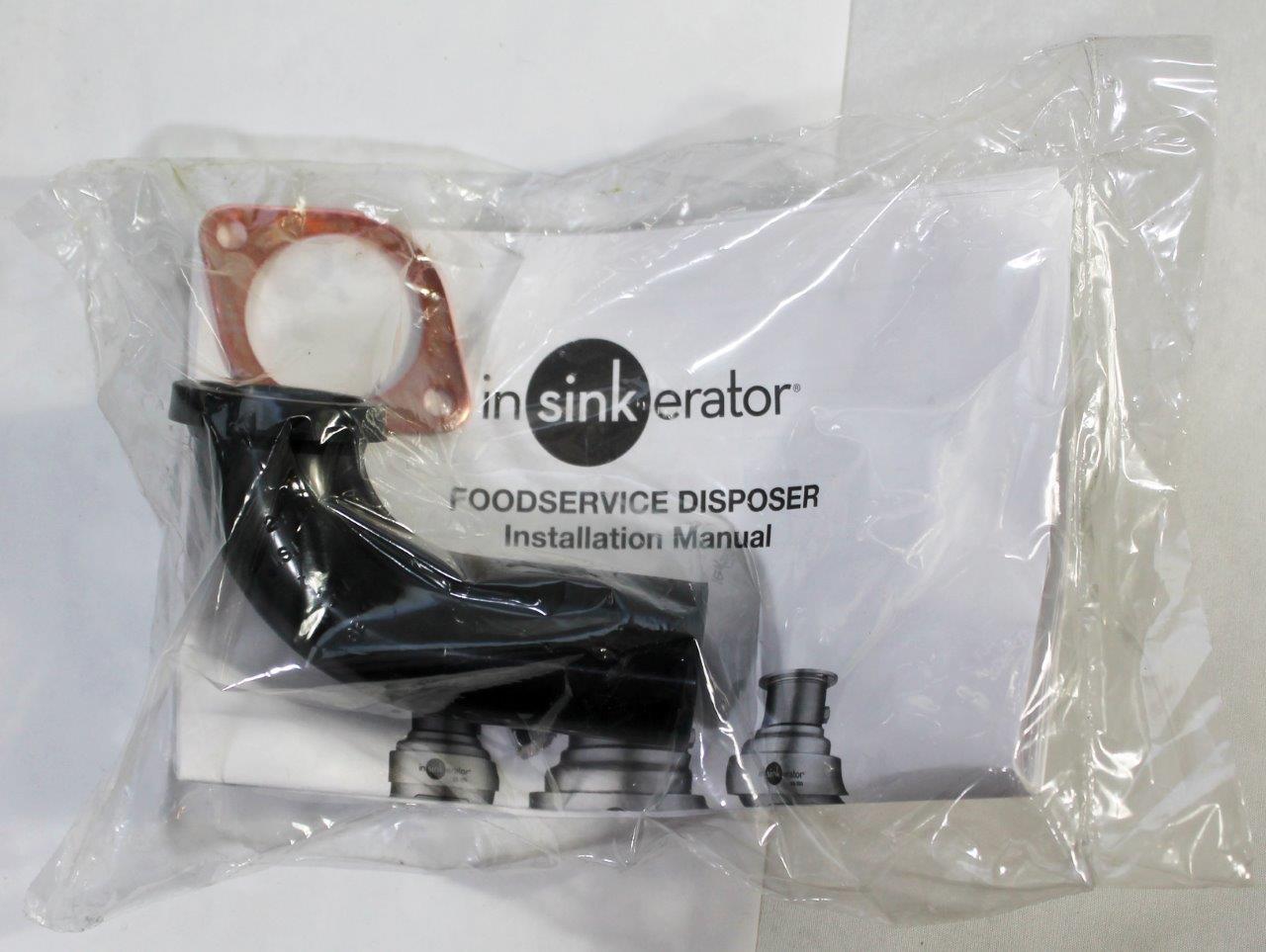

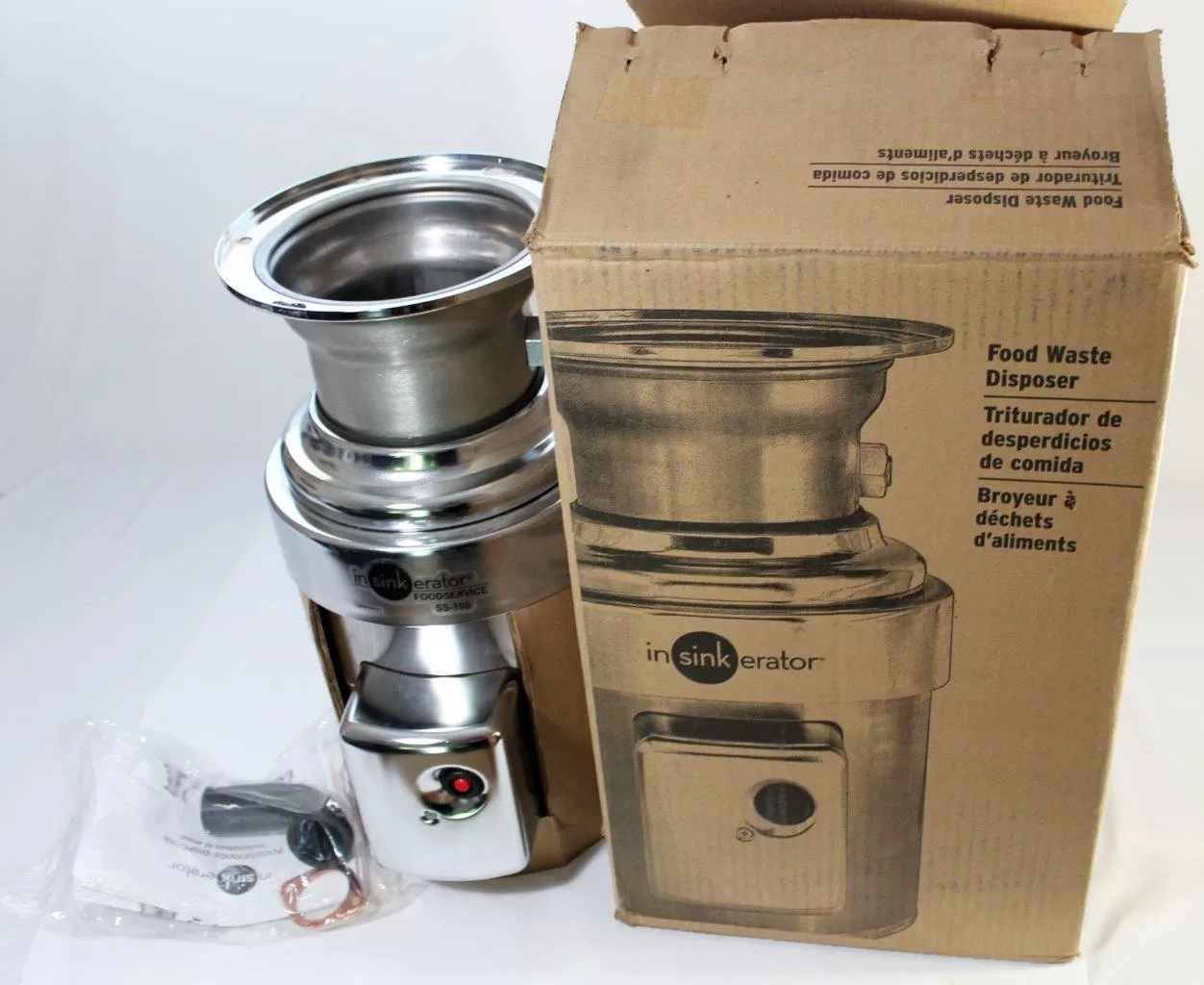

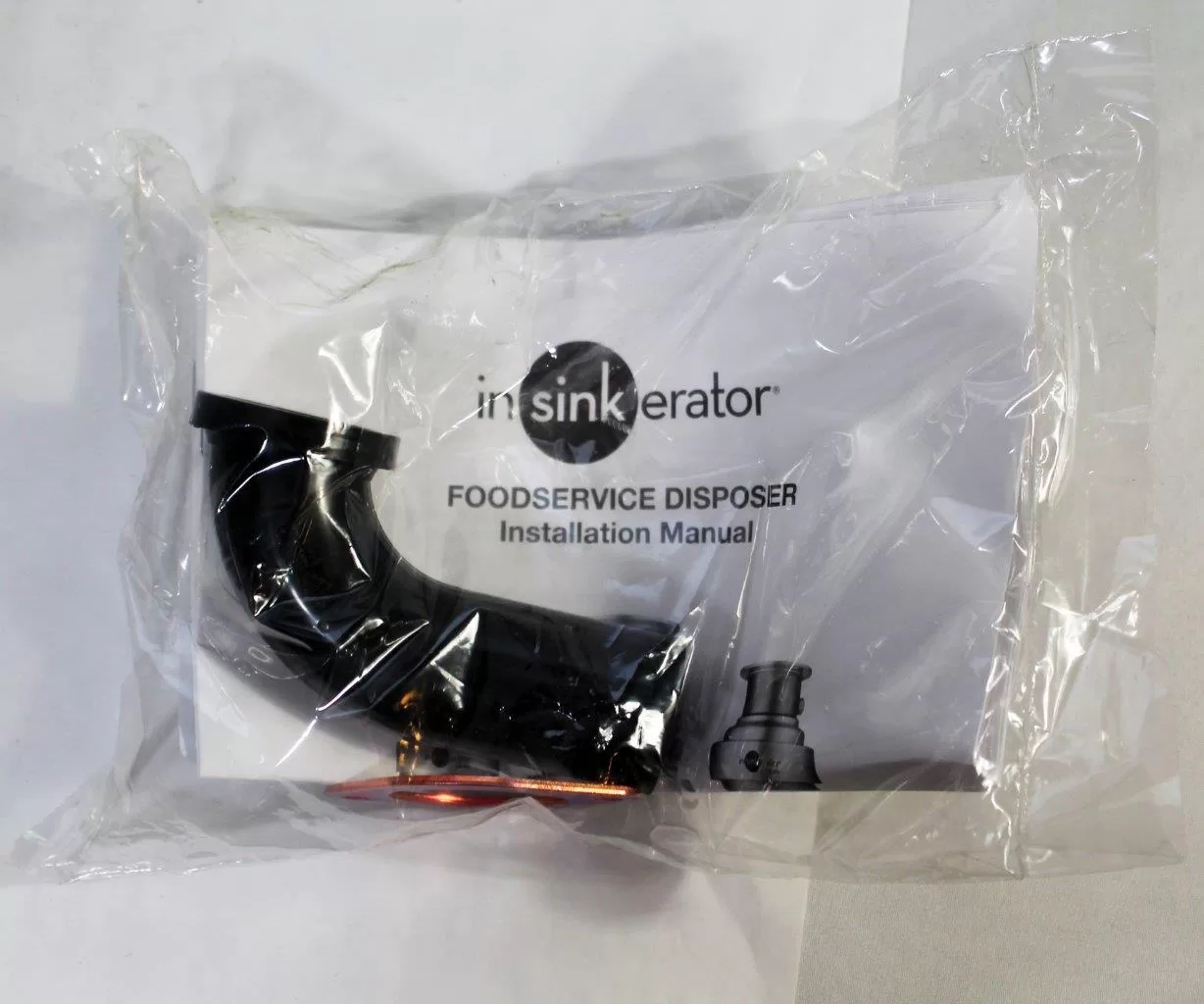

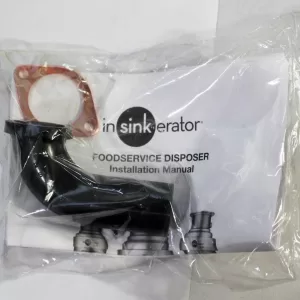

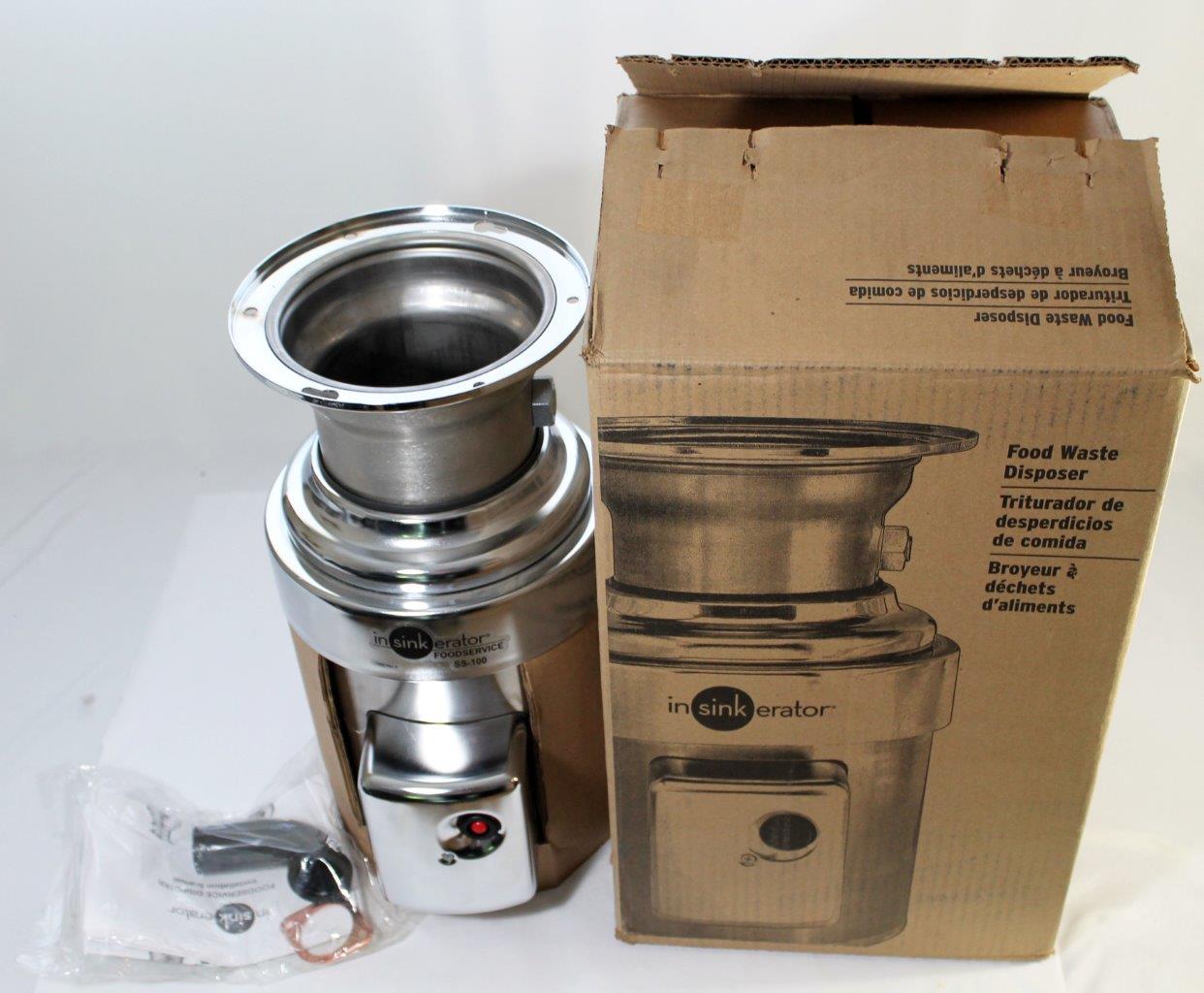

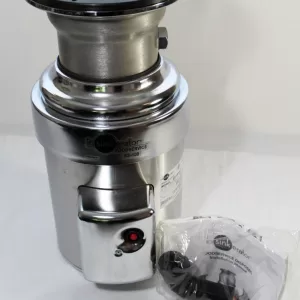

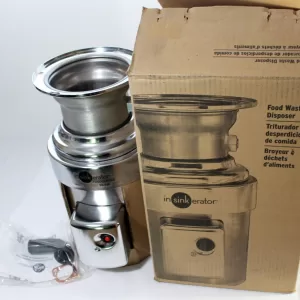

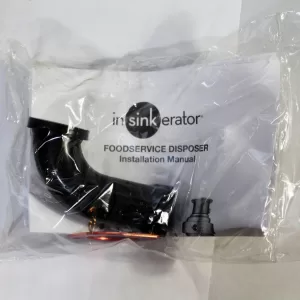

Includes: SS-100 disposer and 1 mounting gasket
Recommended for restaurants and assisted living facilities disposing majority soft foods such as fruits and vegetables

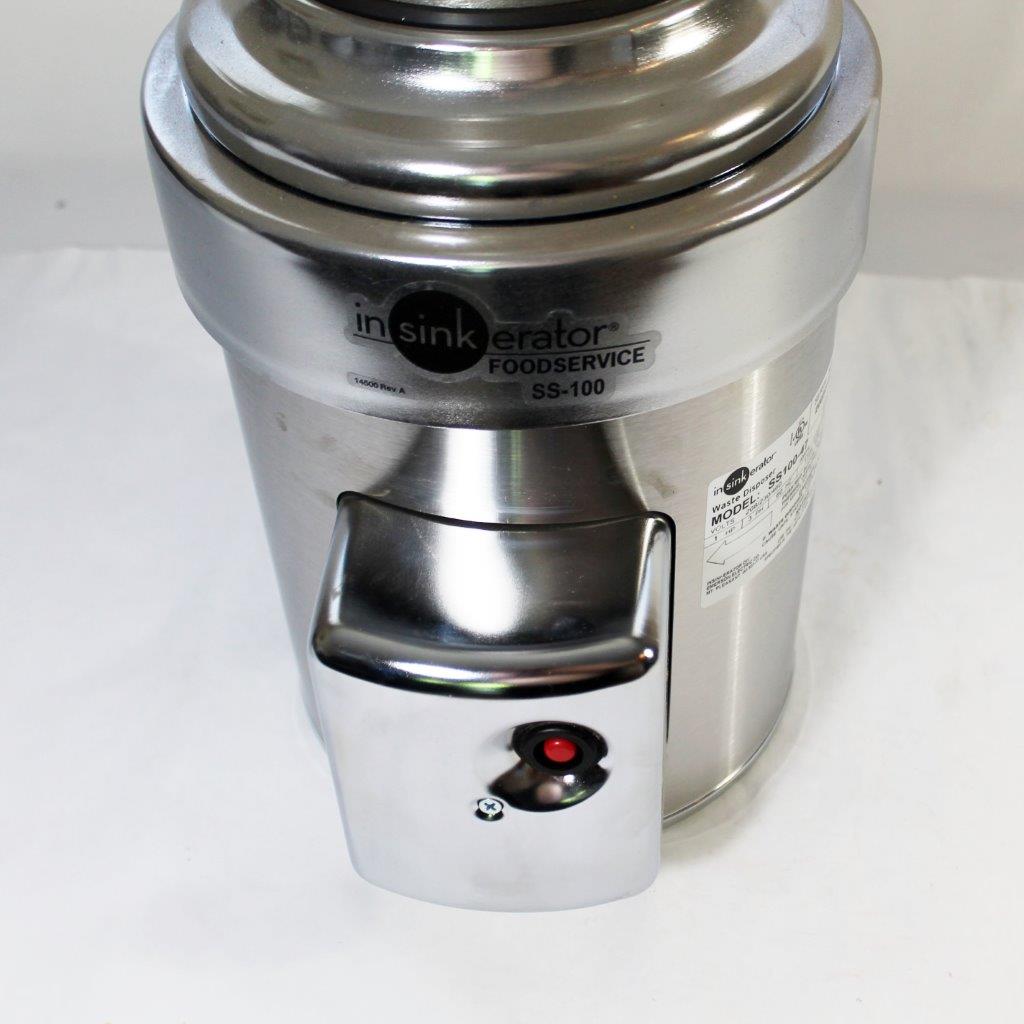

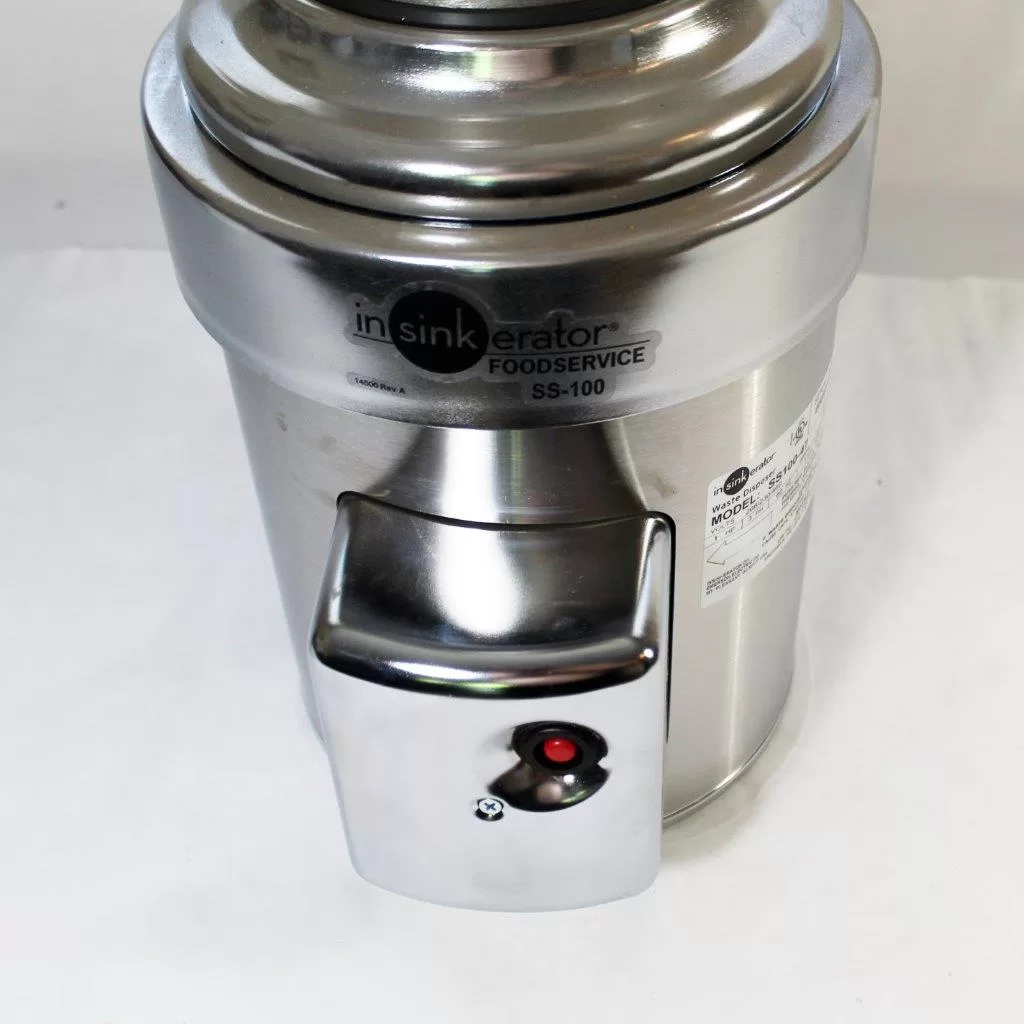

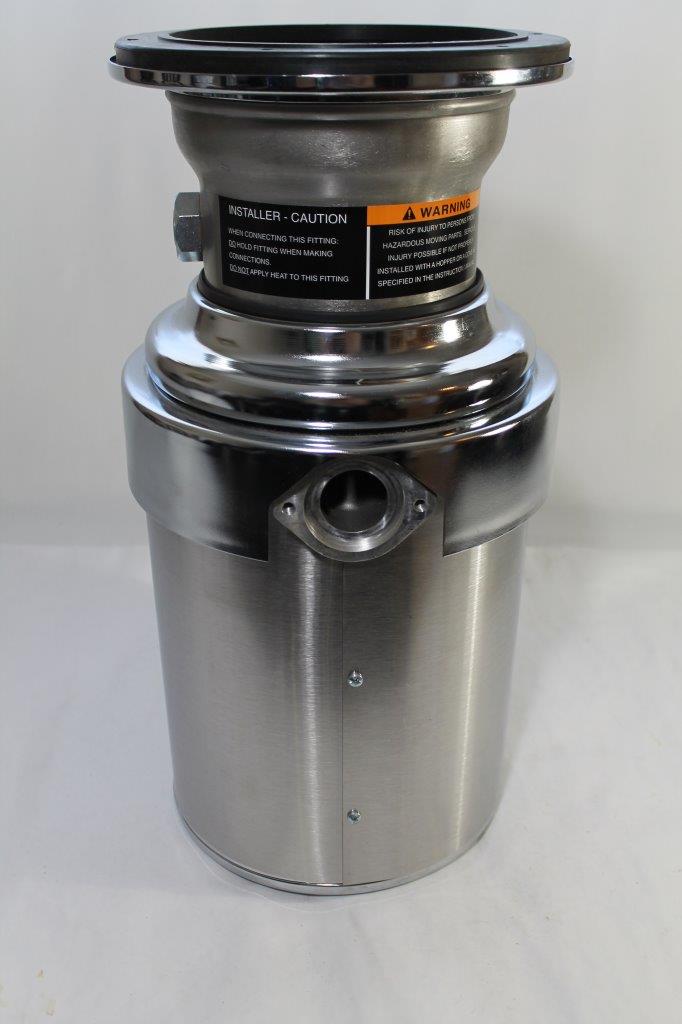

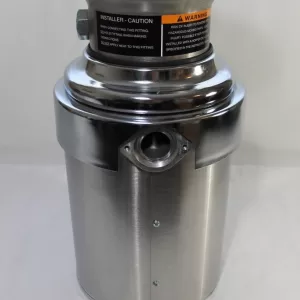

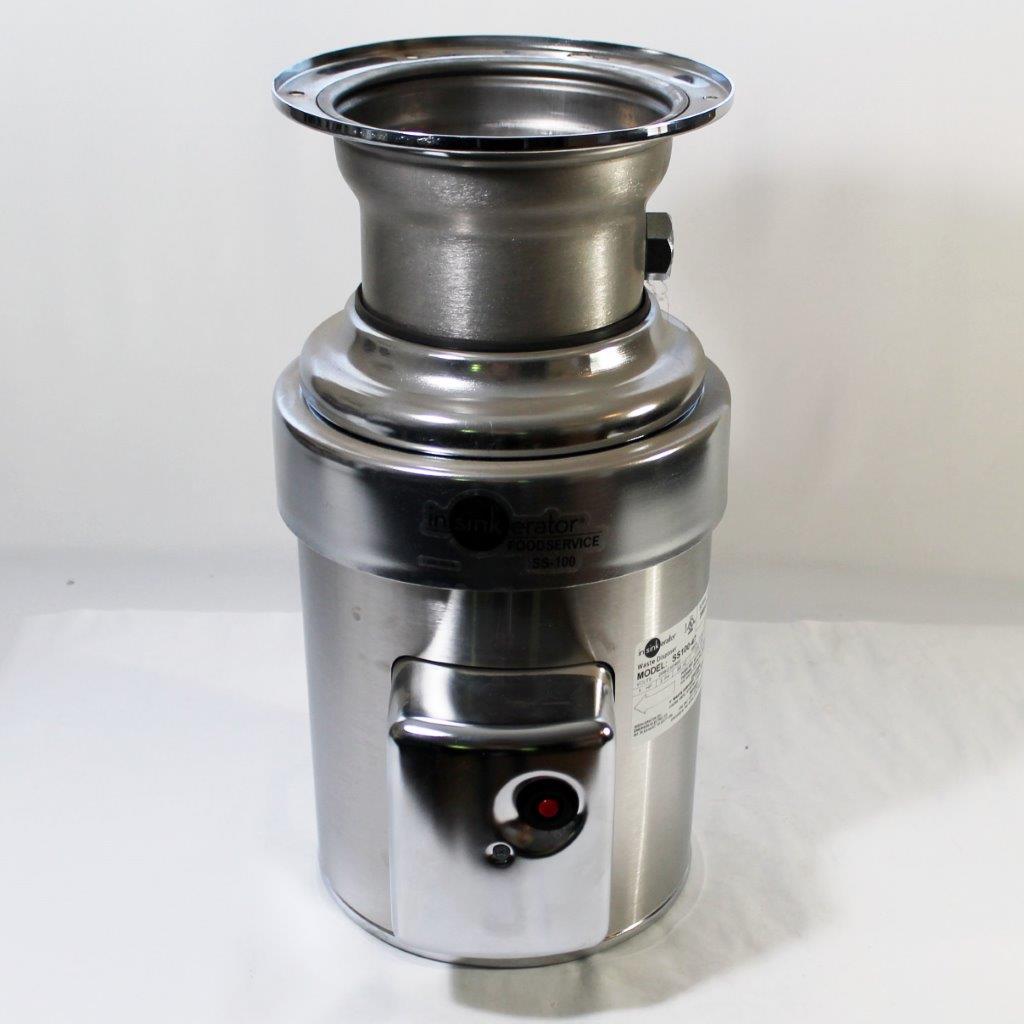

Stainless steel and chrome-plated finish
Corrosion-resistant, stainless steel grind chamber
Heavy-duty induction motor with built-in thermal overload protection
Enclosure provides protection against outside moisture with controlled power air flow to cool motor
Cast-nickel, chrome-alloy stationary and rotating shredding elements
Double-tapered Timken roller bearings provide a shock-absorbing cushion
Triple lip seal protects motor from water damage
Secondary spring-loaded oil seal provides double protection against water and loss of grease

Weight 55 lbs
Dimensions 24 × 11 × 11 in
Voltage

208-230V, 460V

Horse Power (HP)

1

Current

11 A, 5.1A
