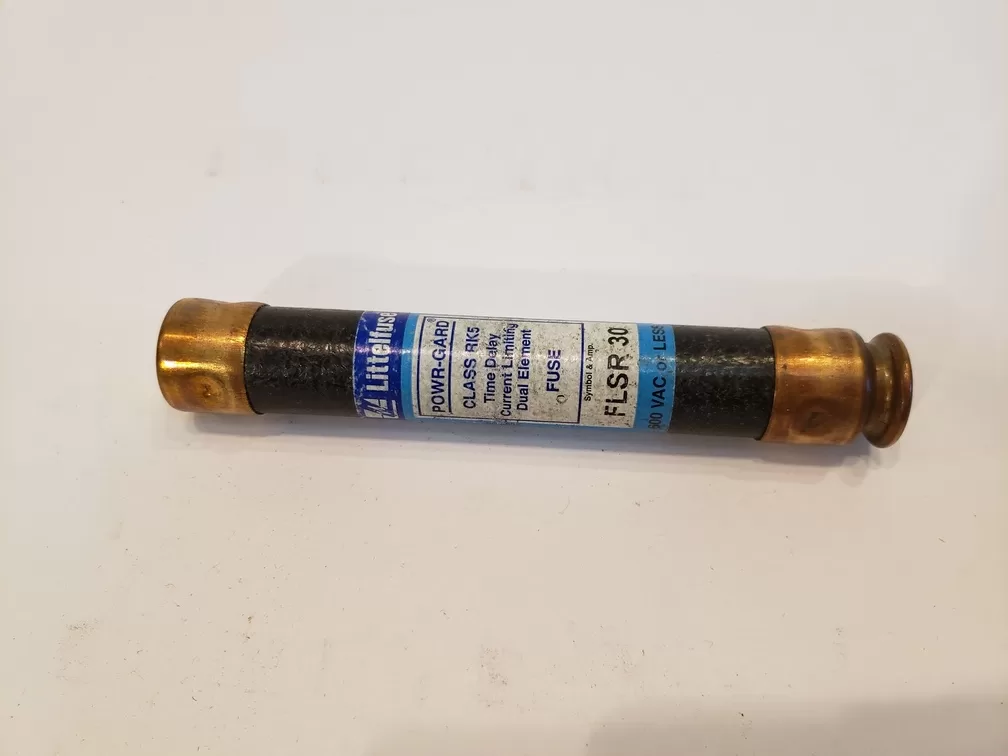

Littelfuse FLSR-30 FLSR030 30A, Dual Element Time-Delay Class RK5 Fuse

Littelfuse FLSR-30 FLSR030 30A, Dual Element Time-Delay Class RK5 Fuse

Description
Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.

Applications
• Service entrance switches
• Transformers
• Switchboard mains and feeders
• Motor control central mains and motor branch circuits
• All general purpose circuits

Features/Benefits
• Indication
• Dual-element design
• Available without indication
• Current limiting

Item Number: FLSR30
UPC: 079458170733
Brand:Littelfuse
Item Category:Fuses
Subcategory:UL Class RK5
Series:FLSR
Amps:30
Volts AC:600
Volts DC:300
Characteristic:Time Delay
Package Type:Cartridge
Interrupt Rating:200KA @ 600V
Trip Indicator:No
Alarm Contact:No
RoHS:No
Approvals:UL;CSA
Diameter (mm):20.6 MilliMeters
Body Length (mm):127 MilliMeters
Diameter (in):0.81 Inches
Body Length (in):5 Inches
H x W x D:5.05 in x .85 in x .85 in
Net Weight:2.8 oz
Gross Weight:2.8 oz
