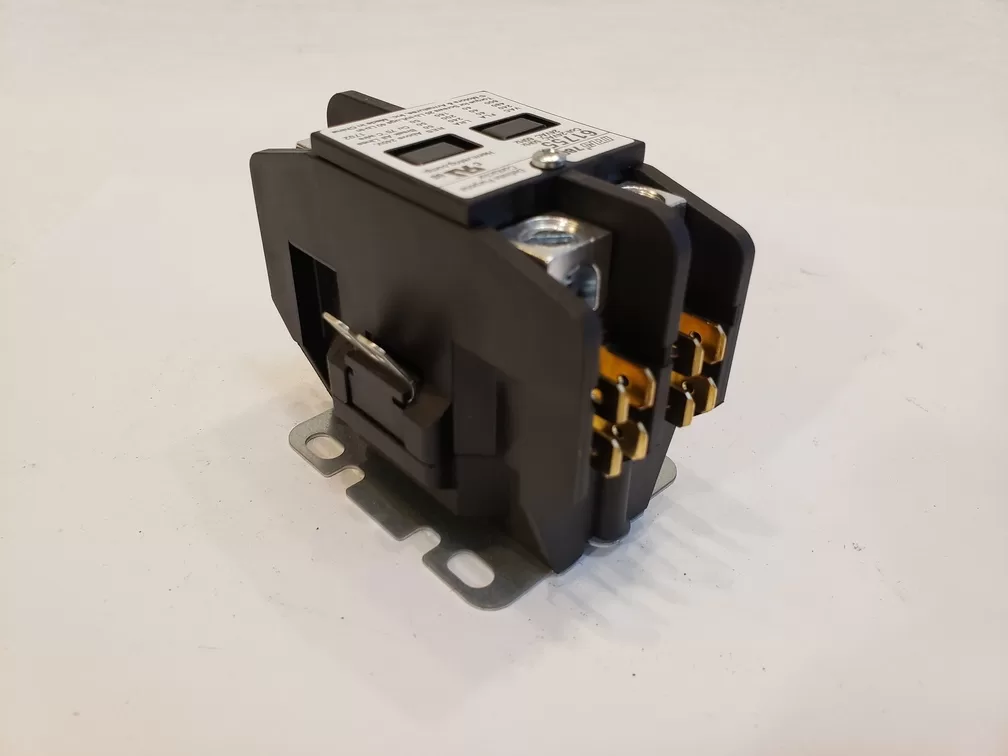

MARS 780 Definite Purpose Contactor 2 Pole 61755 40A 24V QC & BL TERM

MARS 780 Definite Purpose Contactor 2 Pole 61755 40A 24V QC & BL TERM
A brand-new, unused, undamaged item in its original packaging. Contactor Type Definite Purpose FLA Inductive Amps 40 FLA Resistive Amps 50 Number of Poles 2 Width Inches 1.97 Coil Voltage 24 Coil Hz 50/60 Lug or Screw Terminal Box Lug/Quad QC Height Inches 2.46 Depth Inches 3.19 Standards UL Number of QC Terminals Per Pole 4
Item #: 61755

Overview
MARS 780 Professional Grade Definite Purpose Contactors

Designed for use on refrigeration, air conditioning and electric heating systems
Engineered for today’s most demanding commercial refrigeration and HVAC applications
Enclosed body provides a quieter running contactor and a longer life expectancy
Oversized ‘Arch Window’ to simplify wiring
High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
Removable Coils allow field replacement of damaged coils
Removable Cover provides full access to the contacts
Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

Technical Specifications:

Contactor Type: Definite Purpose
FLA Inductive Amps: 40
FLA Resistive Amps: 50
Number of Poles: 2
Width Inches: 1.97
Coil Voltage: 24
Coil Hz: 50/60
Lug or Screw Terminal: Box Lug/Quad QC
Height Inches: 2.46
Depth Inches: 3.19
Standards: UL
Number of QC Terminals Per Pole: 4
