Monarch 5W182 Phasar LCD Portable Tachometer | 5 to 100,000 RPM

Condition: used, clean. Compact, lightweight, and easy to use, this tachometer is designed for accurate and safe non-contact RPM measurements.

Product Overview:

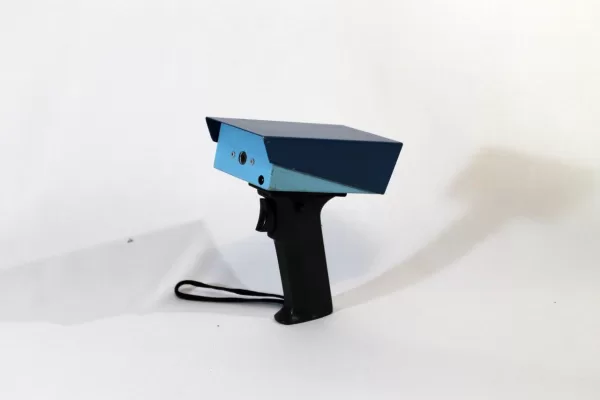

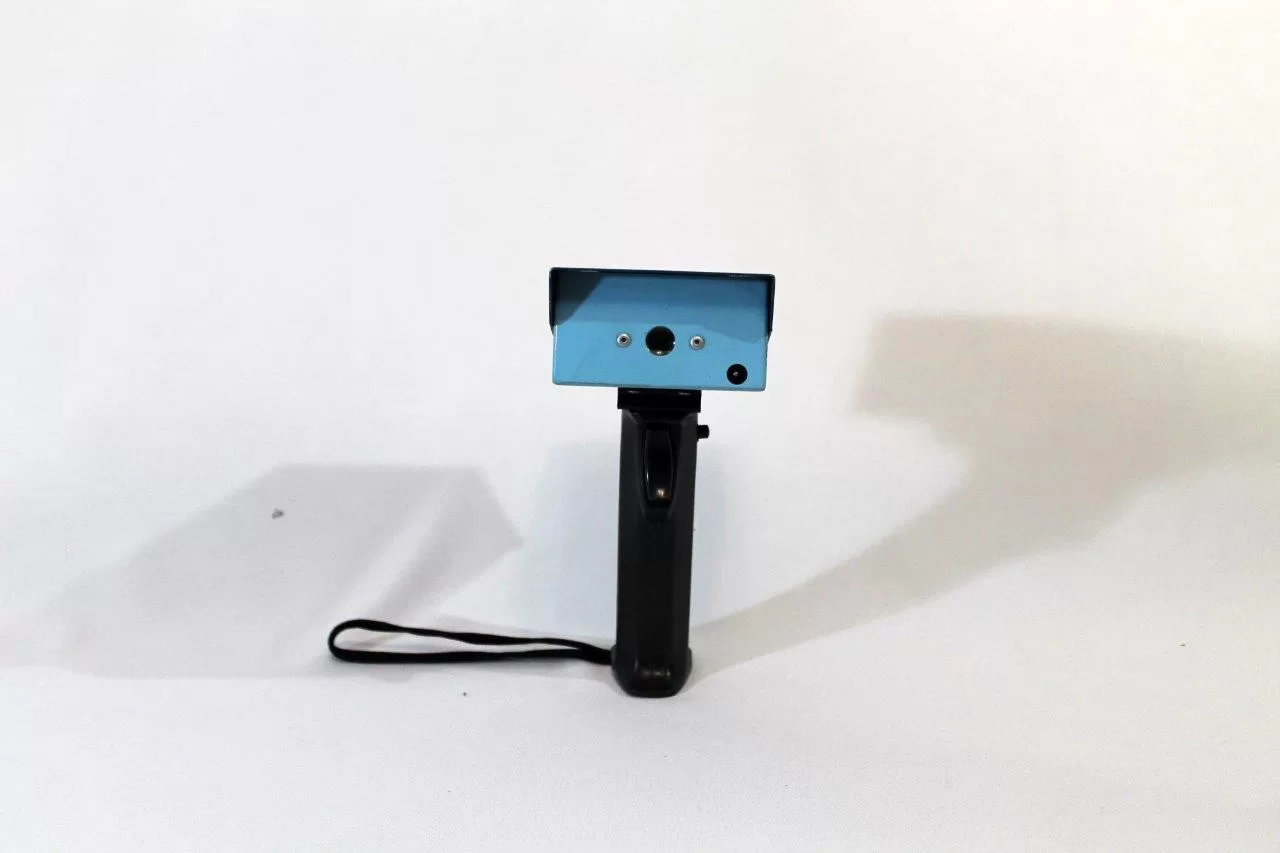

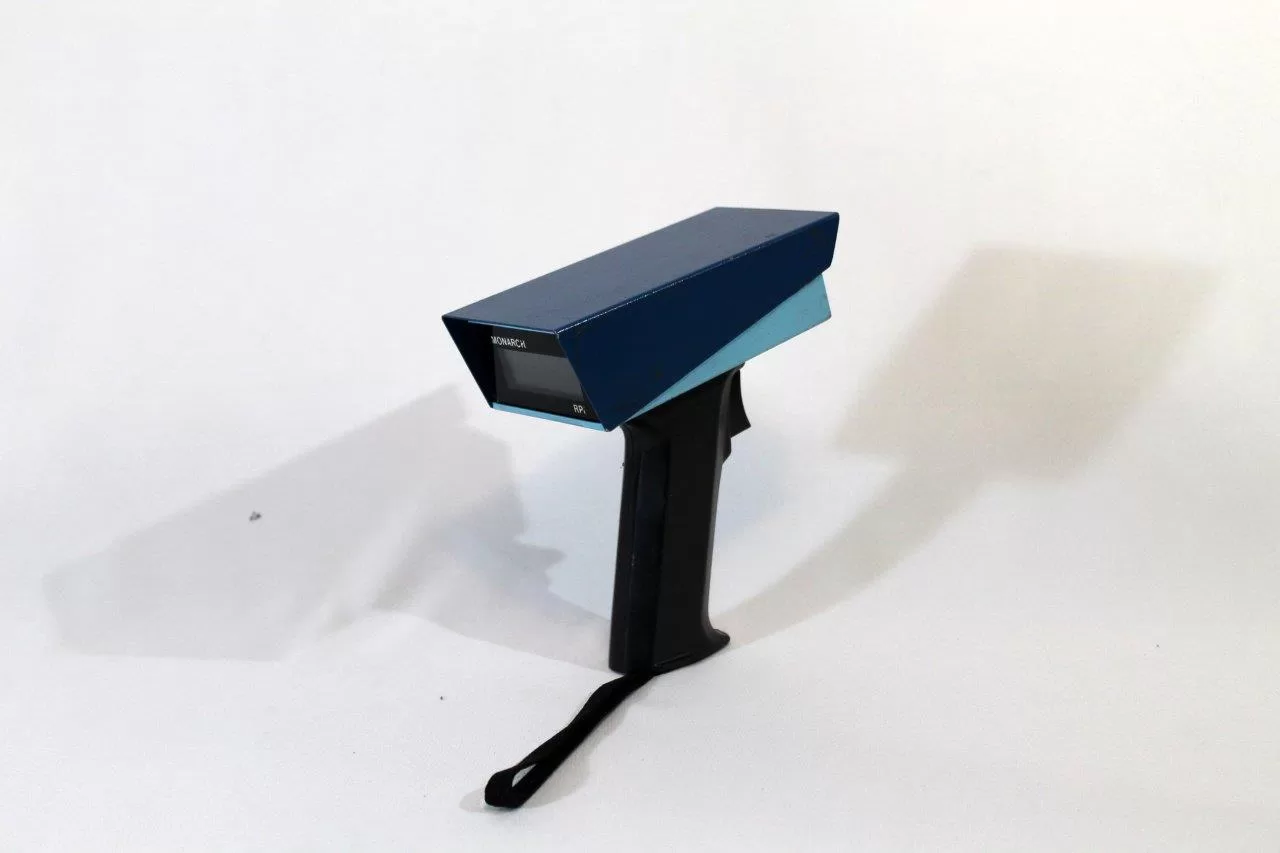

The Monarch 5W182 Phasar LCD Tachometer combines precise optical measurement with user-friendly operation in a pistol-grip design. Ideal for industrial and laboratory applications, it features a laser sight for precise targeting and a non-contact RPM range of 5 to 100,000 RPM. The integrated liquid crystal display provides clear and accurate readings. The ergonomic pistol grip design ensures ease of use during handheld operation, and a tripod mount in the handle offers stability for continuous measurements.

Key Specifications:

• Model: Monarch 5W182 Phasar
• Measurement Range: 5 to 100,000 RPM
• Accuracy: ±1 RPM or 0.01% of reading
• Resolution: 1 RPM
• Measurement Distance: Up to 10 feet from a reflective target
• Display:
  • Type: Liquid Crystal Display (LCD)
  • Size: 6 digits, 0.5″ high
• Power Options:
  • Batteries: 4 “AA” (LR6) alkaline batteries (included)
  • Optional: NiCad rechargeable batteries with AC recharger
• Physical Dimensions:
  • Size (L x W x H): 6.13″ x 3.25″ x 1.75″ plus 4.75″ handle (156 x 83 x 44 x 121 mm)
  • Weight: 1.25 lbs. (0.57 kg)
• Features:
  • Ergonomic pistol-grip trigger with latching push button
  • Tripod mounting bushing in handle for hands-free use

Key Features:

• Non-Contact Measurement: Uses a laser for safe and precise RPM measurements without physical contact.
• Wide Measurement Range: Capable of measuring from 5 RPM to 100,000 RPM, covering most industrial and mechanical applications.
• High Accuracy: ±1 RPM or 0.01% of the reading ensures reliable results for critical tasks.
• Ergonomic Design: Pistol-grip handle allows comfortable handheld operation over extended periods.
• Tripod Compatibility: Handle-mounted tripod bushing enables stable, hands-free use.
• Portability: Compact and lightweight for easy transportation between job sites.

Applications:

• Industrial Maintenance: Monitor RPMs of rotating machinery such as motors, fans, and pumps.
• Quality Control: Measure rotational speed during production for consistency.
• Laboratory Testing: Accurately measure rotational speed in experimental setups.
• Automotive Diagnostics: Verify RPMs for performance tuning or fault detection.

Included Components:

• Monarch 5W182 Phasar Tachometer
• 4 “AA” alkaline batteries (optional NiCad batteries and AC charger sold separately)

Pros:

• Precise and Reliable: High accuracy for a broad range of applications.
• Versatile Power Options: Operates with standard batteries or optional rechargeable packs.
• User-Friendly Design: Trigger operation and clear LCD display for quick results.
• Safe and Non-Contact: Laser targeting minimizes risk during use.

Cons:

• Reflective Target Required: Needs a reflective surface on the rotating object for accurate readings.
• Batteries Included, but Rechargeable Kit Sold Separately.

Comparable Products:

1. Extech 461920 – Compact non-contact tachometer with similar features but less ergonomic.
2. Fluke 931 Tachometer – Offers higher-end features and a durable design for industrial applications.
3. Shimpo DT-207LR – A digital laser tachometer with a broader range and higher accuracy.

Related:

• Monarch 5W182 portable tachometer
• Non-contact laser tachometer 5-100,000 RPM
• Pistol grip RPM meter for industrial use
• Monarch Phasar LCD RPM tachometer
• Industrial rotating equipment RPM measurement

Disclaimer:

Monarch is a trademark of Monarch Instrument. The use of this name is for identification purposes only and does not imply endorsement.
