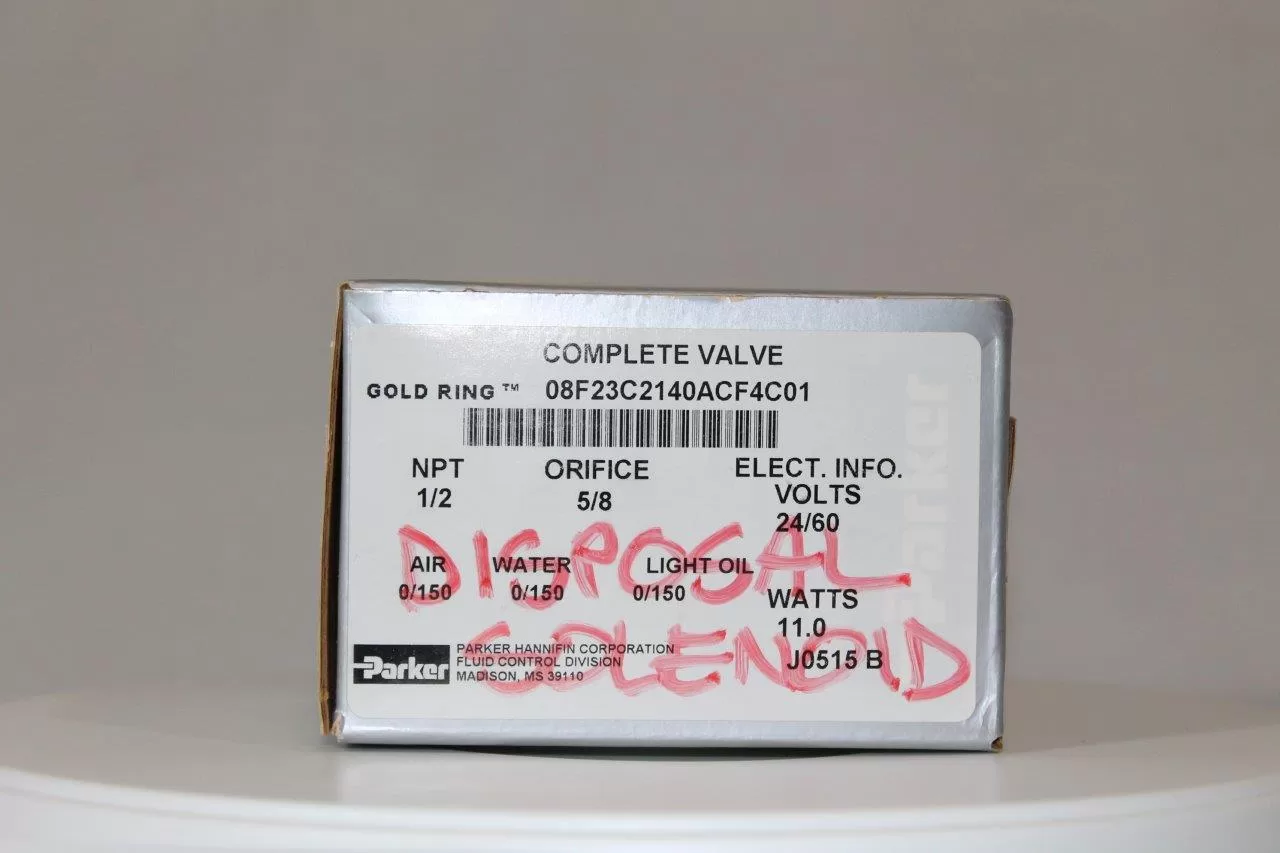

Parker 2-Way Brass Normally Closed, 1/2″, 24 V, 150 PSI NPT General Purpose Solenoid Valves 08F23C2140ACF4C01

Parker 2-Way Brass Normally Closed, 1/2″, 24 V, 150 PSI NPT General Purpose Solenoid Valves 08F23C2140ACF4C01

New: A brand-new, unused, undamaged item in its original packaging.
Description:
Parker 2-Way Normally Closed, 1/2″ NPT Solenoid Valves provide operating pressures up to 300 PSI and flow
factors up to 4.4 CV’s. They offer multiple body materials, mounting positions and Class F or H or NEMA 4X,
7 or 9 coils for all flow applications.
Specifications:
Body Material: Brass
Flow Factor 1 (Cv): 4
Coil Type: 1/2″ NPT Conduit, 18″ Leads, Class F, NEMA 4X
Orifice 1 Size (inch): 5/8
Maximum Pressure Differential (psi): 150 psi (AC)
Voltage (V): 24/60
Power (Watts): 11 Watt (AC)
Seal Material: NBR
Product Series: Gold Ring Series
Valve Type: 2-Way
Function: Normally Closed
Port Size: 1/2 inch
Input Voltage: 24/60
Body Material: Brass
Seal Material: NBR
Orifice 1 Size: 5/8 inch
Flow Coefficient 1: 4 Cv
Power Consumption: 11 Watt (AC) W
Coil Type: 1/2″ NPT Conduit, 18″ Leads, Class F, NEMA 4X
Maximum Pressure Differential: 150 psi (AC) psi
Number of Ports: 2
Actuation Type: Hung Diaphragm
Media: General Purpose for Air, Liquids and Gases
Port Type: NPT
Minimum Pressure Differential: 0 psi
Minimum Fluid Temperature: 0 °F
Maximum Fluid Temperature: 180 °F
Coil Specifications Met: NEMA 4X

Parker 2-Way Brass Normally Closed, 1/2″ Solenoid Valves are used in industrial applications where automatic on/off control of liquids and gases is required. These valves are made of brass, have a 1/2″ NPT connection, operate on 24 V DC power, and have a pressure rating of up to 150 PSI. The normally closed design means that the valve is closed when there is no electrical power and opens when power is applied. The main advantages of these solenoid valves include their durability, reliability, and versatility, making them suitable for use in a wide range of applications.
