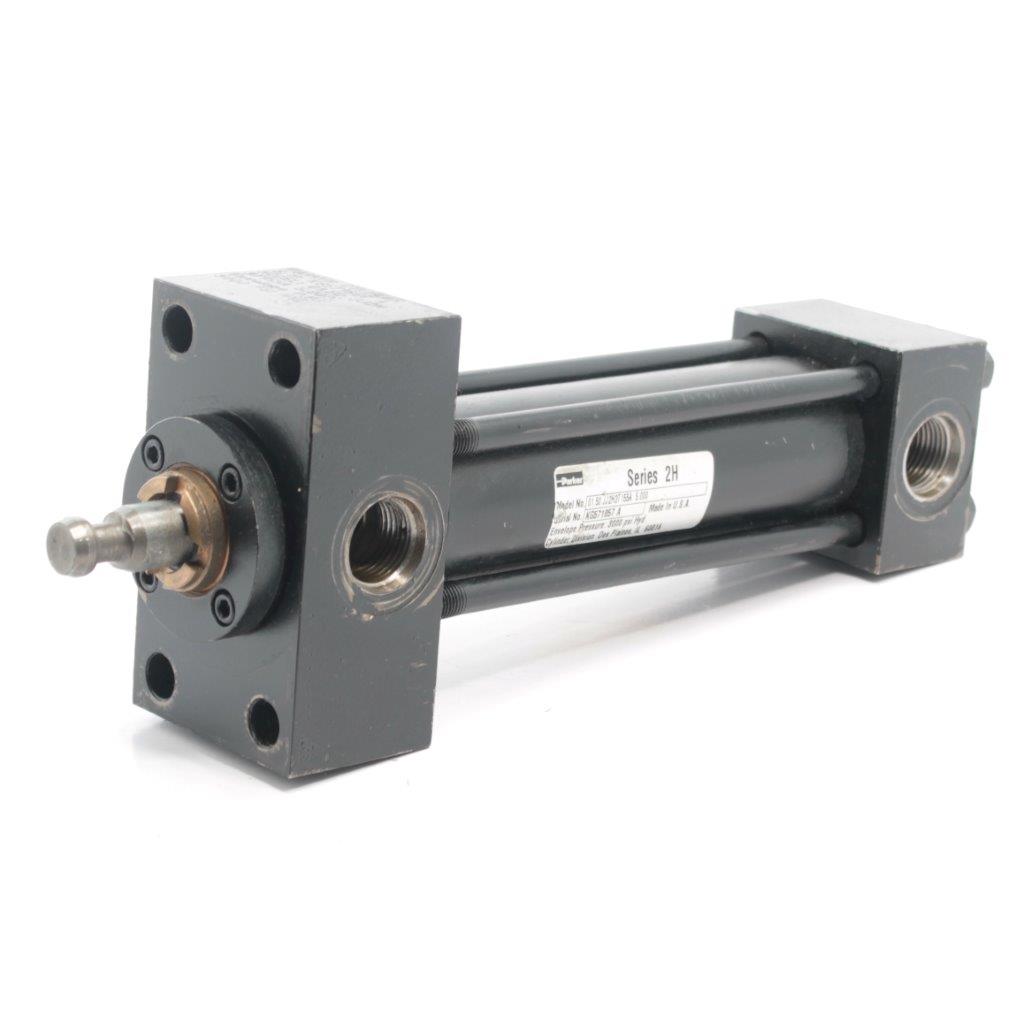

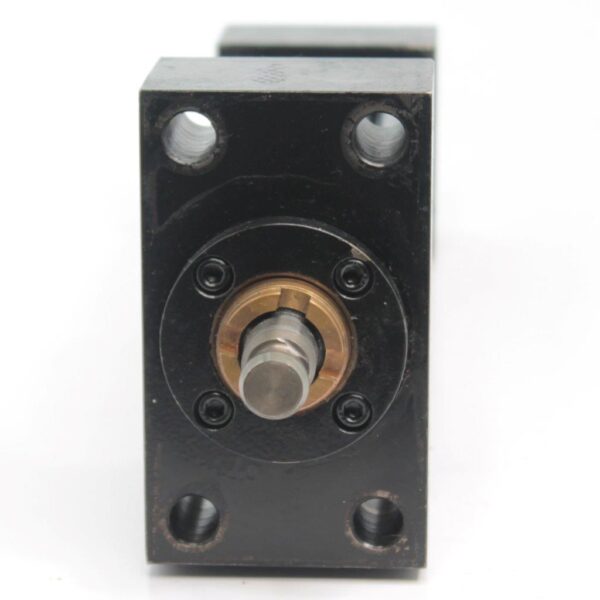

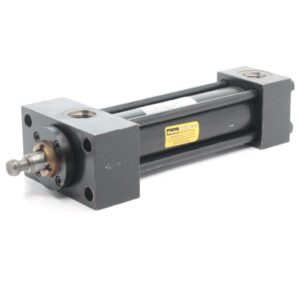

Parker Air Pneumatic Cylinder 2H 01.50 JJ2H 3T155A 5.000

Condition: Used

The Parker 2H 01.50 JJ2H3T 155A 5.000 is a heavy-duty pneumatic cylinder designed for demanding industrial applications. Manufactured by Parker’s Cylinder Division in Des Plaines, IL, this cylinder is built to handle high-pressure environments with reliability and precision.

Product Specifications:

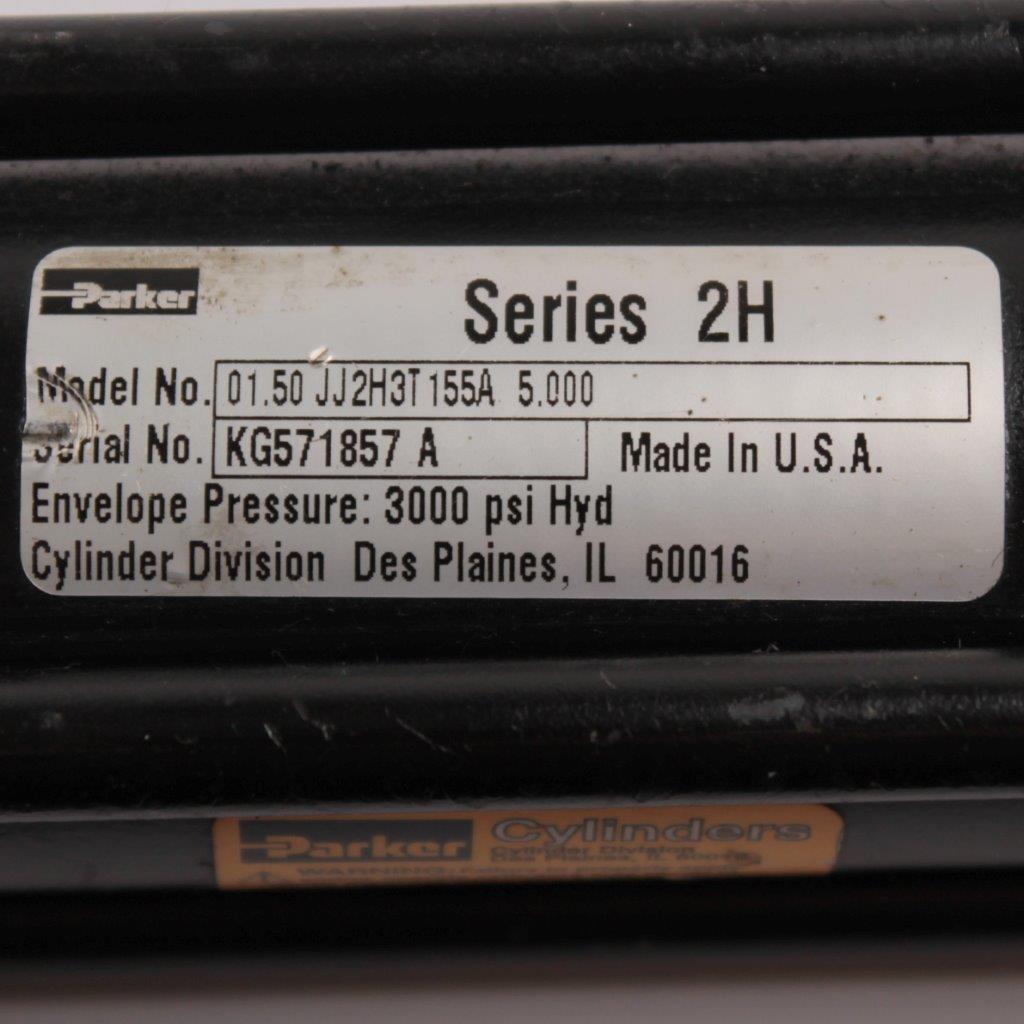

• Brand: Parker
• Model Number: 2H 01.50 JJ2H3T 155A 5.000
• Serial Number: KG571857 A
• Envelope Pressure: 3000 psi Hydraulic
• Location: Cylinder Division, Des Plaines, IL 60016

Detailed Specifications:

• Type: Pneumatic Cylinder
• Series: 2H
• Bore Size: 1.50 inches
• Mounting Style: JJ (Double Rod End)
• Stroke Length: 5.000 inches
• Pressure Rating: 3000 psi hydraulic (indicative of robust construction suitable for high-pressure applications)
• Material: Typically high-strength steel or aluminum for durability and longevity
• Seals: High-performance seals to ensure reliability and prevent leakage under high pressure
• Piston Rod: Precision-ground and polished for smooth operation and extended seal life
• End Caps: Machined end caps to provide strength and rigidity

Parker Model Number: 2H 01.50 JJ2H3T 155A 5.000

1. 2H: Series and Construction Type
   • 2H: Indicates the series and construction type of the cylinder. The “2H” series is a heavy-duty hydraulic cylinder, although it can also refer to pneumatic versions in some contexts. This series is designed for high pressure and demanding industrial applications.
2. 01.50: Bore Size
   • 01.50: Specifies the bore size of the cylinder in inches. In this case, the bore size is 1.50 inches. The bore size determines the diameter of the piston inside the cylinder and affects the force generated by the cylinder.
3. JJ: Mounting Style
   • JJ: Indicates the mounting style of the cylinder. “JJ” typically refers to a double rod end mounting, which means the cylinder has a piston rod extending from both ends of the cylinder body, allowing for force application in both directions.
4. 2H3T: Configuration and Features
   • 2H3T: This segment often contains additional configuration details and specific features. Here’s a possible breakdown:
     • 2H: Reaffirms the series and construction type.
     • 3T: Specific features or options within the series, such as rod end styles, cushion types, or seal configurations. The exact meaning of “3T” can vary, but it generally points to particular options chosen for this model.
5. 155A: Cushioning and Special Modifications
   • 155A: Indicates the type of cushioning or any special modifications. In many Parker cylinders, numbers and letters in this position refer to the presence of cushions at the ends of the stroke to absorb impact and reduce noise and wear. The specifics of “155A” would be detailed in Parker’s product documentation, indicating a particular cushioning arrangement or additional feature.
6. 5.000: Stroke Length
   • 5.000: Specifies the stroke length of the cylinder in inches. In this model, the stroke length is 5.000 inches, meaning the piston can move 5 inches from its retracted to extended position.

Parker 2H 01.50 JJ2H3T 155A 5.000 is a double-acting pneumatic cylinder with a double rod end configuration, providing controlled movement and force application in both directions.

Key Features:

• High Pressure Capability: Designed to operate at envelope pressures up to 3000 psi, making it suitable for heavy-duty applications.
• Double Rod End: JJ mounting style allows for movement and force application in both directions, increasing versatility.
• Precision Engineering: Manufactured to tight tolerances for reliable performance and long service life.
• Durable Construction: Made from high-quality materials to withstand harsh industrial environments.

Applications:

• Industrial Automation: Ideal for use in automated machinery where precise control of motion is required.
• Manufacturing: Suitable for applications in manufacturing processes where high force and reliability are critical.
• Heavy Machinery: Can be used in heavy machinery for tasks such as lifting, clamping, and pressing.
• Hydraulic Systems: Although primarily a pneumatic cylinder, its high-pressure rating allows it to be used in certain hydraulic applications.

Installation and Setup:

1. Preparation:
   • Ensure the system is depressurized before starting installation.
   • Gather necessary tools such as wrenches, mounting hardware, and alignment tools.
2. Mounting the Cylinder:
   • Secure the cylinder using the JJ mounting style, ensuring it is aligned correctly to avoid side loads.
   • Attach the mounting hardware securely to prevent any movement during operation.
3. Connecting to the System:
   • Connect the pneumatic lines to the cylinder ports, ensuring all connections are tight and leak-free.
   • Use high-quality fittings and ensure compatibility with the pressure rating.
4. Final Checks:
   • Inspect all connections and mountings.
   • Gradually pressurize the system and check for any leaks or misalignments.
   • Test the cylinder operation under normal working conditions to ensure proper functionality.

Maintenance Tips:

• Regular Inspections: Periodically check for signs of wear, leakage, or damage to the cylinder and seals.
• Lubrication: Ensure that the piston rod and other moving parts are adequately lubricated to prevent wear and maintain smooth operation.
• Seal Replacement: Replace seals as needed to maintain performance and prevent leaks.
• Cleanliness: Keep the cylinder and surrounding area clean from dust and debris to ensure efficient operation.

Safety and Compliance:

• Pressure Ratings: Ensure the cylinder is used within its specified pressure ratings to prevent accidents and equipment damage.
• Proper Handling: Handle the cylinder with care to avoid damaging the piston rod and other precision components.
• Compliance: Adhere to all relevant safety standards and regulations during installation and operation.

The Parker 2H 01.50 JJ2H3T 155A 5.000 pneumatic cylinder is a high-quality, reliable component designed for demanding industrial applications. Its robust construction and high-pressure capability make it suitable for a wide range of uses in industrial automation, manufacturing, and heavy machinery. Proper installation and regular maintenance will ensure optimal performance and longevity.

Service Bulletin 1110-M3 is available below:
https://www.parker.com/literature/Industrial%20Cylinder/cylinder/Serv/Bulletin_1110-M3_sgls_042009.pdf

P102
