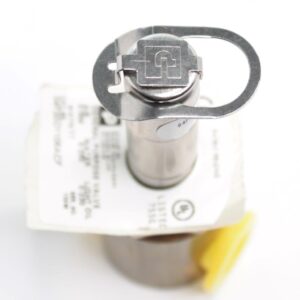

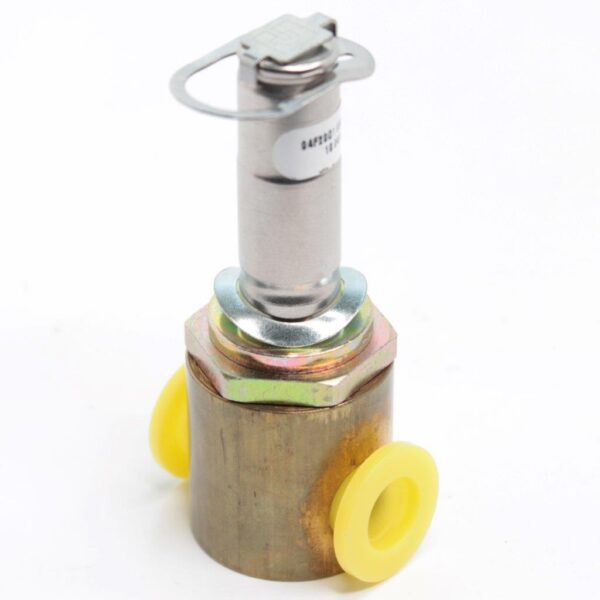

Parker Gold Ring Solenoid Valve | Model 04F20O1106ACF | 2-Way Normally Open | 1/4″ NPT | Brass

Original price was: $134.95.Current price is: $99.95.

1 in stock

Condition: New

The Parker Gold Ring 04F20O1106ACF is a versatile 2-way, direct-acting solenoid valve designed for general-purpose flow control applications. This valve operates in a normally open (NO) configuration, allowing fluid flow when the valve is unpowered. Its brass bar stock body ensures durability and compatibility with various media, including air, inert gases, water, and light oils. The valve supports individual inline installation and is ideal for applications requiring high reliability in flow regulation.


Key Specifications:

  • Model: 04F20O1106ACF
  • Valve Type: 2-Way Direct Acting
  • Configuration: Normally Open (NO)
  • Port Size: 1/4″ NPT (Female)
  • Body Material: Brass (Bar Stock)
  • Seal Material: NBR (Nitrile Butadiene Rubber)
  • Orifice Size: 3/32″ (0.09375 inches)
  • Flow Coefficient (Cv): 0.17
  • Pressure Range: 0 to 300 psi (0 to 20.7 bar)
  • Media Temperature: Up to 180°F (82°C)
  • Ambient Air Temperature: Up to 130°F (54°C)
  • Coil Specifications:
    • Class F or H Solenoid
    • 11 Watts (Chart 4 Selector)

Key Features:

  • Direct Acting Design: Operates without requiring a minimum differential pressure, ideal for low-flow or low-pressure systems.
  • Normally Open Configuration: Allows flow in the unpowered state, suitable for fail-safe applications.
  • High Durability: Brass body with NBR seals ensures resistance to corrosion and wear.
  • Compact Size: Inline mounting design facilitates easy installation in tight spaces.
  • Wide Media Compatibility: Handles air, inert gases, water, and light oils with efficiency and reliability.
  • Flexible Coil Options: Compatible with Class F and H solenoids, ensuring adaptability across various operating conditions.

Applications:

  • Industrial Automation: Ideal for controlling pneumatic and hydraulic systems.
  • Water Systems: Used in water supply lines requiring flow regulation.
  • HVAC: Regulates airflow or refrigerants in heating and cooling systems.
  • Oil and Gas: Handles light oils and gases in energy systems.
  • Medical and Laboratory Equipment: Ensures precision control of inert gases or water in sensitive setups.

Benefits:

  • Handles pressures up to 300 psi, suitable for demanding applications.
  • Compact design for inline mounting in constrained spaces.
  • Flexible operation with multiple coil configurations.
  • Long-lasting NBR seals provide excellent leak prevention.
  • Durable brass body for extended service life in industrial environments.

Comparable Models from Other Manufacturers:

  1. ASCO 8210G Series – 2-way solenoid valves with similar flow and pressure ratings.
  2. Burkert 6011 Series – Compact, direct-acting solenoid valves with brass bodies.
  3. Pneumadyne 2-Way Valves – General-purpose direct-acting solenoid valves.

Pros:

  • Reliable in Various Applications: Wide media compatibility and high-pressure rating.
  • Compact and Lightweight: Easy to install in constrained setups.
  • No Minimum Pressure Required: Can operate at zero differential pressure.

Cons:

  • Limited Flow Coefficient: Cv of 0.17 may not suit high-flow requirements.
  • Temperature Limitations: Operates up to 180°F, which may not be sufficient for extreme environments.

Related:

  • Parker Gold Ring 2-way solenoid valve
  • 1/4″ NPT normally open valve
  • Direct-acting brass solenoid valve
  • 300 psi flow control valve
  • Parker 04F20O1106ACF valve

Disclaimer:

Parker Gold Ring is a trademark of Parker Hannifin Corporation. The use of this name is for identification purposes only and does not imply endorsement.



P101

Weight 1 lbs
Dimensions 5 × 3 × 3 in
