Partial Spool of 3 Wire Shielded Cable 20 AWG | CL3R/CMR | 392 FT

Condition: Partial bundle, no box. Weight: 6.5 lbs.

Product Overview:

This shielded 20 AWG cable is designed for low-voltage applications, suitable for CL3R (Class 3 riser) and CMR (communications riser) installations. With a 75°C temperature rating, this cable can safely operate in environments requiring robust fire resistance and shielding to minimize interference. The markings suggest it is intended for temperature control systems or similar applications involving digital input/output connections.

Key Specifications:

• Gauge: 20 AWG
• Type: Shielded, riser-rated cable
  • CL3R: Approved for Class 3 low-voltage circuits in riser spaces.
  • CMR: Suitable for vertical installations through building risers.
• Fire Rating: FT4-certified for flame resistance.
• Temperature Rating: 75°C (167°F).
• Shielding: Protects against EMI (electromagnetic interference).
• Estimated Length: 392 feet (approximate).
• Weight: 6.5 lbs (partial bundle).

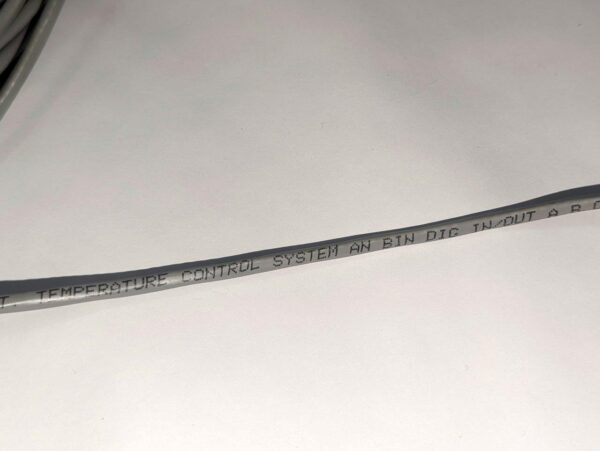

Markings on the Cable:

• 20 AWG: Wire size.
• CL3R or CMR: Dual-rated for riser and low-voltage installations.
• SHIELDED FT4: Shielded cable with FT4 flame test compliance.
• 75°C: Maximum operating temperature.
• TEMPERATURE CONTROL SYSTEM: Indicates intended application for systems managing environmental or process temperatures.
• AN BIN DIG IN/OUT: Likely refers to analog and binary digital input/output compatibility.

Key Features:

• Shielded Design: Reduces signal interference, ensuring stable performance in environments with potential EMI.
• Dual Fire Ratings: Meets CL3R and CMR standards for safe installation in riser spaces and vertical conduits.
• Versatile Applications: Suitable for control systems, data transfer, or low-voltage connections.
• Durability: Rated for 75°C, enabling safe operation in higher-temperature environments.

Applications:

• Temperature Control Systems: Ideal for HVAC and environmental monitoring.
• Building Automation: Connects digital and analog sensors or controllers.
• Industrial Process Control: Used for signal transmission in manufacturing setups.
• Security and Surveillance: Reliable for low-voltage CCTV or access control systems.
• Audio/Video Systems: Suitable for shielded, low-noise connections in AV installations.

Pros:

• Fire-Resistant: Certified for riser applications, ensuring compliance with building codes.
• EMI Protection: Shielded design enhances signal clarity in noisy environments.
• Wide Compatibility: Supports both analog and digital input/output applications.
• Temperature Tolerance: Operates safely at up to 75°C.

Cons:

• Partial Bundle: Approximately 392 ft, which may not meet full project needs.
• No Original Packaging: May require user confirmation of length and specification.

Comparable Cables:

If additional or alternative cable is required, consider the following:

1. Belden 8760 20 AWG Shielded Cable – Dual-rated for CL3R/CMR, excellent for control systems.
2. Southwire 56922243 20 AWG Shielded – Similar specifications for low-voltage installations.
3. Alpha Wire 2466C – Shielded cable with robust EMI protection and riser ratings.

Related:

• 20 AWG shielded riser cable
• CL3R/CMR FT4 shielded control wire
• Temperature control system cable 20 AWG
• Shielded low-voltage riser-rated wire
• HVAC control wire for analog and digital systems

Disclaimer:

This description is based on markings and provided details. For precise compatibility and project requirements, confirm with your specifications or consult the manufacturer.
