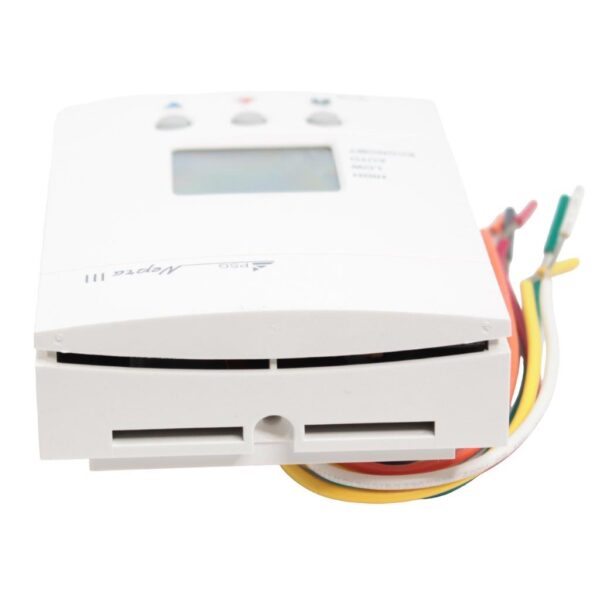

PSG Controls Nepra III DPFC-024U2F Digital Fan Coil Thermostat – 24V, User-Selectable Fan Control
$45.00
1 in stock
Condition: New
The DPFC-024U2F Digital Fan Coil Thermostat is a low-voltage (24VAC), 1H/1C thermostat designed for fan coil units in commercial and residential HVAC systems. Featuring two-speed fan control, this thermostat allows users to adjust airflow based on heating or cooling demand. The digital display provides clear temperature readings, while the simple interface ensures easy operation. This model is ideal for fan coil units in hotels, apartments, offices, and other buildings that require precise temperature management with independent fan speed adjustment.
The PSG Controls Nepra III DPFC-024U2F is a digital fan coil thermostat designed to provide energy-efficient temperature control for 2-pipe and 4-pipe fan coil systems. With user-selectable fan control, large buttons, and an easy-to-read display, it offers flexibility and ease of use. This thermostat is ideal for institutional, hospitality, and property management applications, including schools, hospitals, condominiums, apartments, and hotels.
The field-programmable settings allow installers to customize default setpoints, economy settings, cycle rates, and more, making it adaptable to various HVAC configurations. It operates at 24V AC, with a load rating of 1.5 amps per circuit and a pilot duty rating of 2.0 amps per stage.
Specifications
- Model: DPFC-024U2F
- Color: White
- Voltage: 24VAC
- Max Current: 1.5A
- Heating/Cooling Stages: 1 Heat / 1 Cool (1H/1C)
- Fan Control: 2-speed operation
- Display Type: Digital
- Mounting: Wall-mounted
- Application: Fan coil unit control
Features
- Digital display for accurate temperature monitoring
- Supports 1H/1C systems (1-stage heating, 1-stage cooling)
- 2-speed fan control for better airflow customization
- Low-voltage (24VAC) operation ensures energy efficiency
- White color blends seamlessly with most interior designs
- User-friendly controls for easy temperature adjustment
- Compact, wall-mounted design for space-saving installation
- Load Rating: 1.5A per circuit (24V AC), 2.0A per stage (pilot duty), 1/6 HP fan load
- Fan Control: User-selectable (adjustable to different system needs)
- Compatible with: 2-pipe and 4-pipe fan coil systems
- Energy-Efficient Design: Saves on energy costs compared to mechanical fan coil controls
- Field Programmable: Adjustable setpoints, cycle rates, comfort limits, and economy settings
- Display: Easy-to-read LCD with large buttons for user-friendly operation
- Customization Available: Remote sensing, Molex connectors, setback capability
Applications
The PSG Nepra III DPFC-024U2F thermostat is ideal for use in:
- Fan Coil Units (2-pipe or 4-pipe systems)
- Institutional Buildings (Schools, Hospitals, Universities, Government Buildings)
- Hotels & Hospitality Industry
- Apartment Complexes & Condominiums
- Commercial Office Spaces
- Fan coil unit (FCU) systems in commercial buildings and residences
- Hydronic heating and cooling applications
- Packaged terminal air conditioners (PTAC)
- HVAC systems requiring independent fan speed control
Cross-Referenced Models
- Honeywell TB6575A1000 (digital fan coil thermostat with 3-speed fan control)
- Siemens RAB11 (alternative for 1H/1C fan coil control)
- Aprilaire 8570 (programmable fan coil thermostat)
- Pro1 T521 (similar non-programmable digital thermostat)
Comparable Products
- Honeywell TB8575A1000 – Multi-speed fan coil thermostat
- Siemens RAB21 – Digital fan coil thermostat for low-voltage systems
- White-Rodgers 1F86-344 – Non-programmable fan coil thermostat
Compatible HVAC Systems
The DPFC-024U2F thermostat is commonly used in:
- 2-speed fan coil units in commercial and residential buildings
- Low-voltage (24VAC) heating and cooling systems
- Packaged terminal air conditioners (PTAC) requiring independent fan control
- Hydronic fan coil units with 1H/1C functionality
Related
Fan coil thermostat, 2-speed fan control, digital HVAC thermostat, 24VAC low-voltage thermostat, heating and cooling fan coil control, DPFC-024U2F white thermostat, non-programmable fan coil thermostat, digital temperature controller for HVAC, PTAC thermostat, wall-mounted fan coil unit controller.
Common Questions
- How to install the DPFC-024U2F digital fan coil thermostat?
- Is the DPFC-024U2F thermostat compatible with PTAC systems?
- What fan coil units work with the DPFC-024U2F thermostat?
- How to wire a 2-speed fan thermostat for a fan coil system?
- Best non-programmable thermostat for fan coil unit control?
P112
| Weight | 2 lbs |
|---|---|
| Dimensions | 7 × 6 × 3 in |
