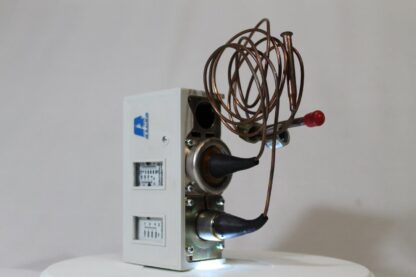

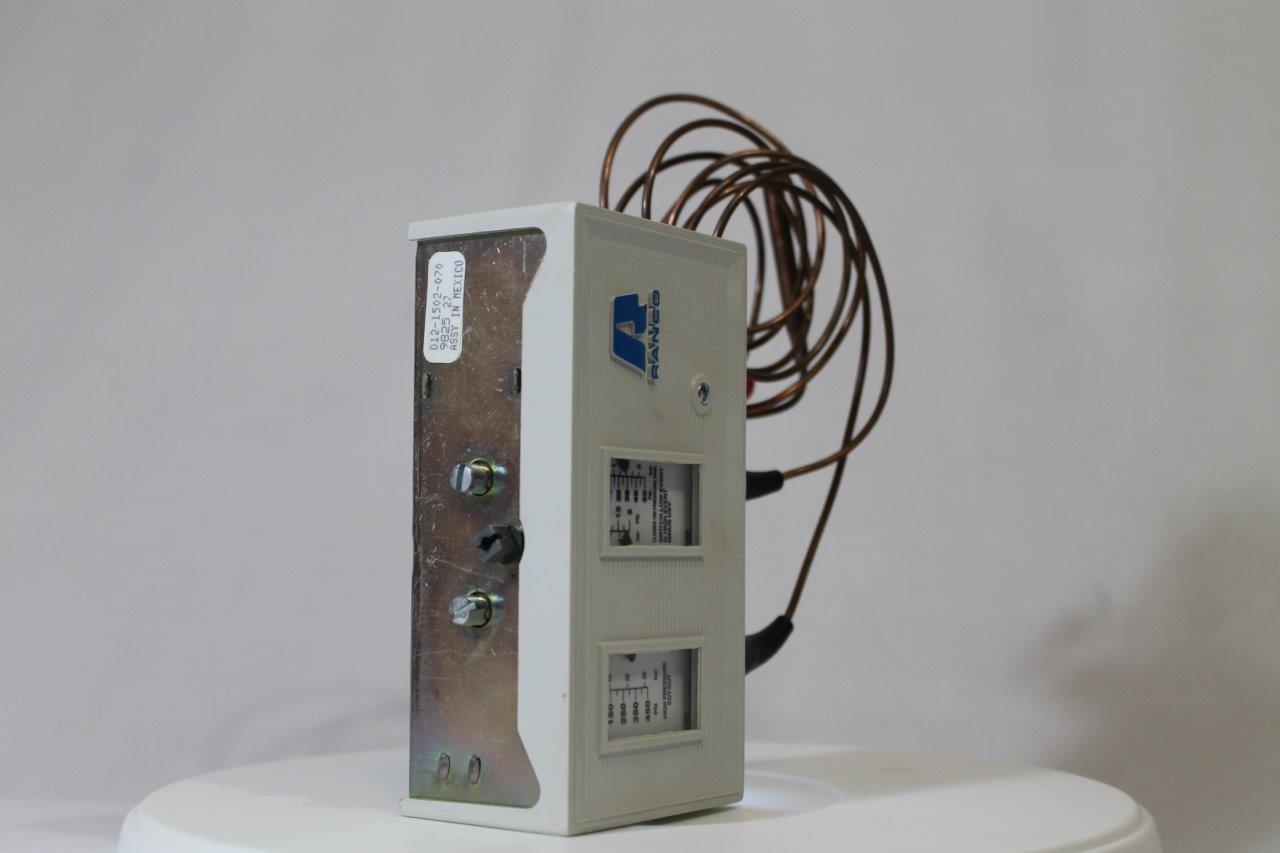

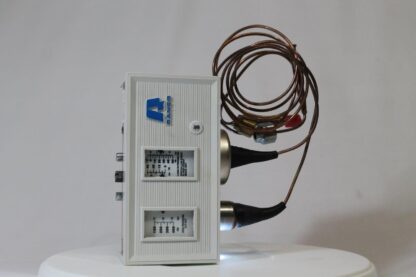

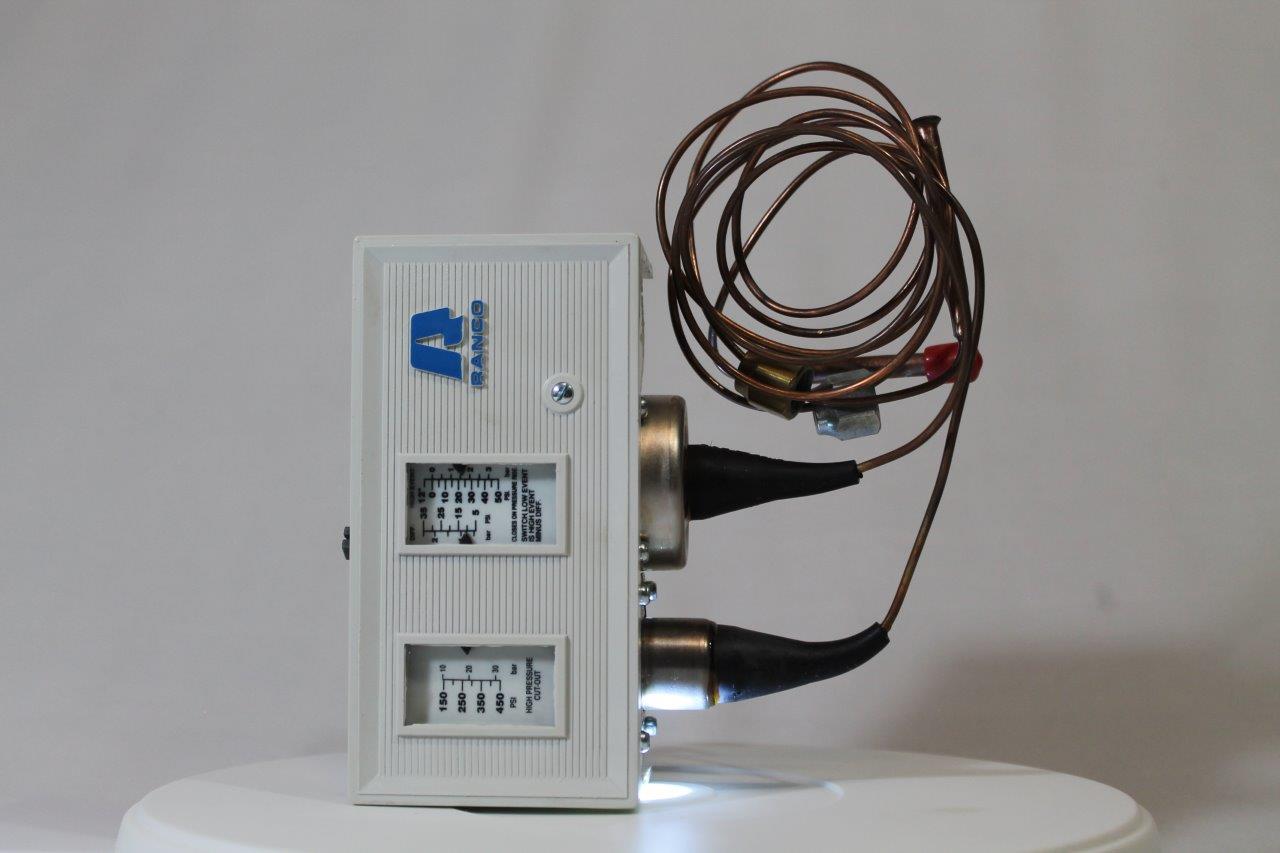

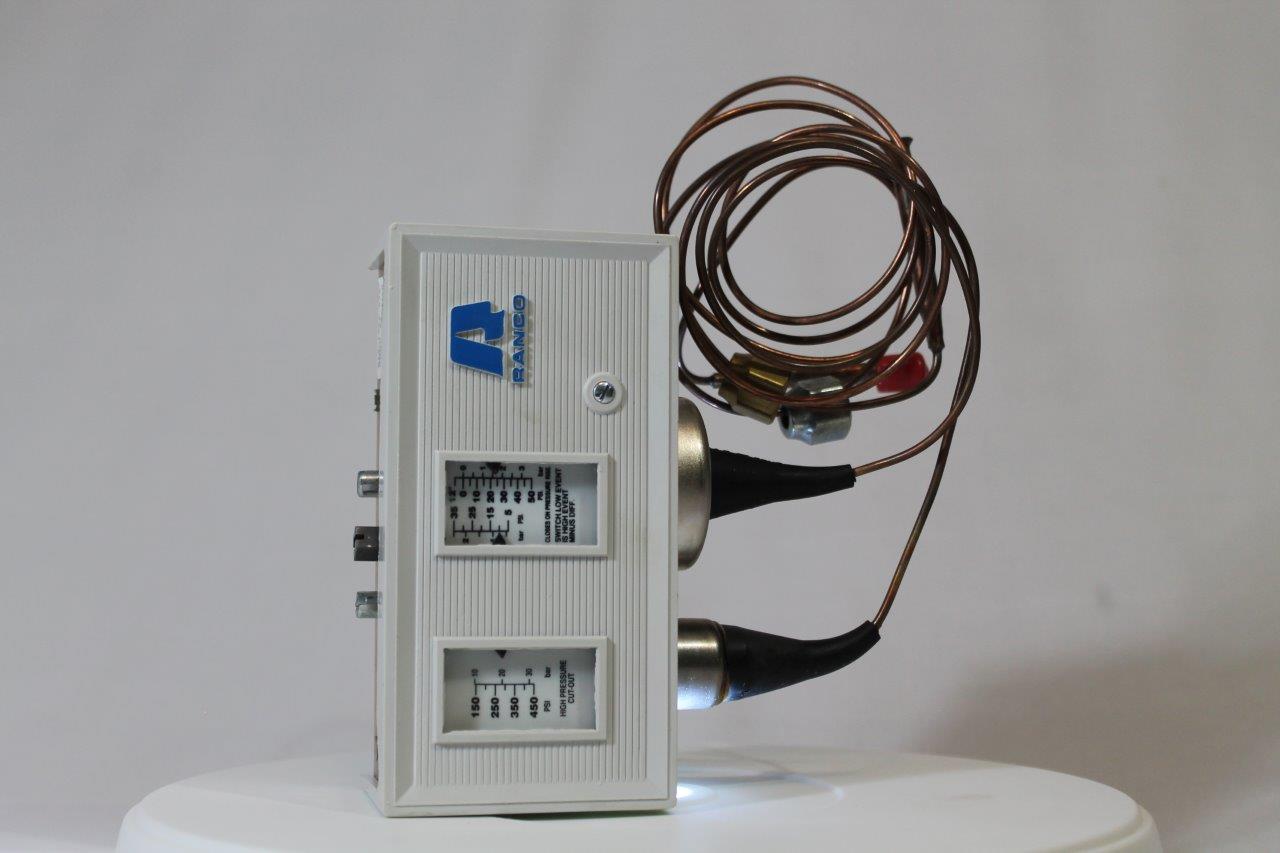

Ranco O12-1502 Dual Pressure Control, 120/240 VAC, 1/4 Inch SAE Flared Nut Connection, 150 – 450 Ps…

Ranco O12-1502 Dual Pressure Control, 120/240 VAC, 1/4 Inch SAE Flared Nut Connection, 150 – 450 Ps…

Description:
The Ranco Dual Pressure Controls combine the functions of a single high-pressure limit control and a
single low-pressure control in one unit with a single pole, single throw (SPST) switch.
Ranco Dual Pressure Control, Series: O, 120/240 VAC, 1/4 Inch SAE Flared Nut, SPST Switching Action,
150 – 450 psi, 70 psi Differential, Import, Automatic/Manual Reset
– Convertible feature allows selection of manual or reset function when operating at high pressure (O12‑4833/O12-4834)
– A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12‑4834)
– A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
– High-limit adjustment screw
– Low-pressure differential and range adjusting screw
– Selector screw for manual or automatic
– Reset button

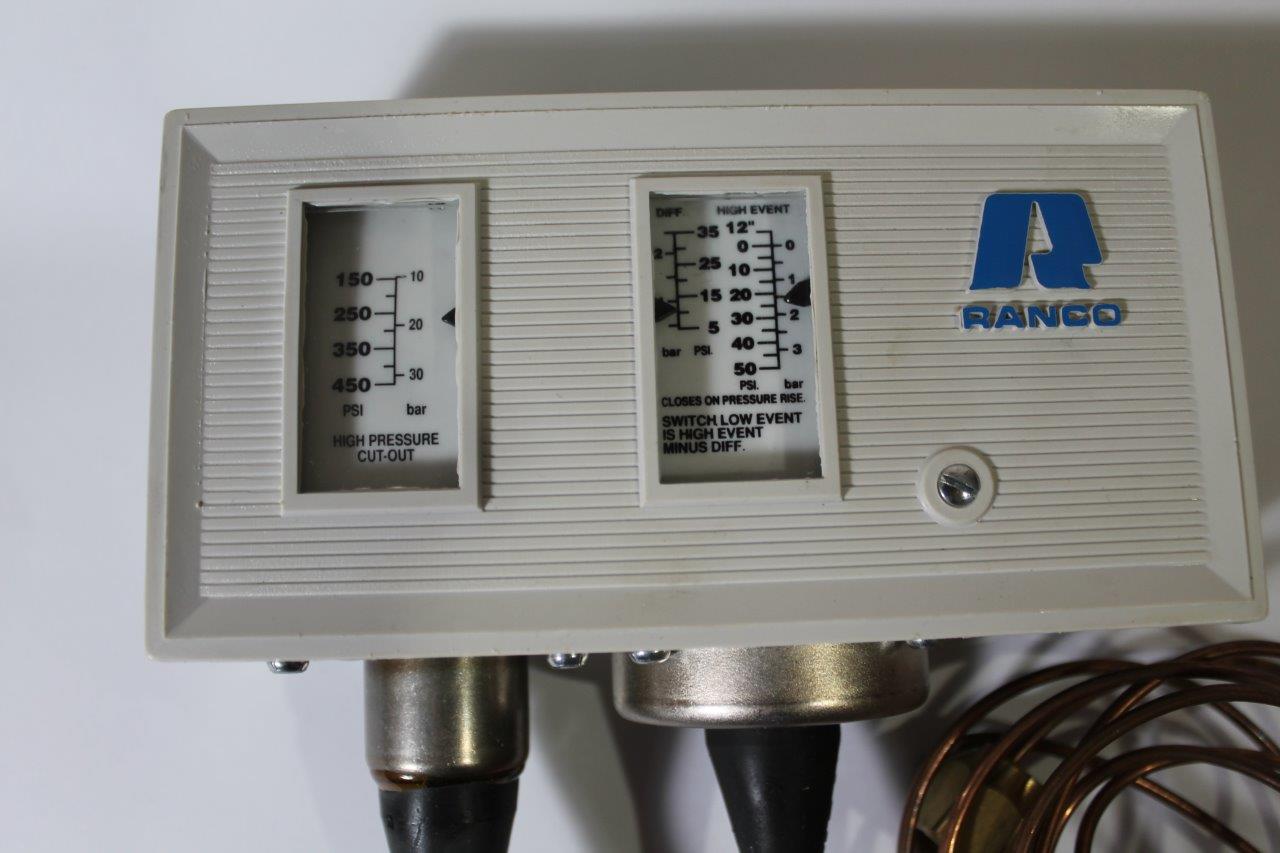

– Low-pressure scale plate
– High-impact plastic cover with center mount screw
– High-pressure scale plate

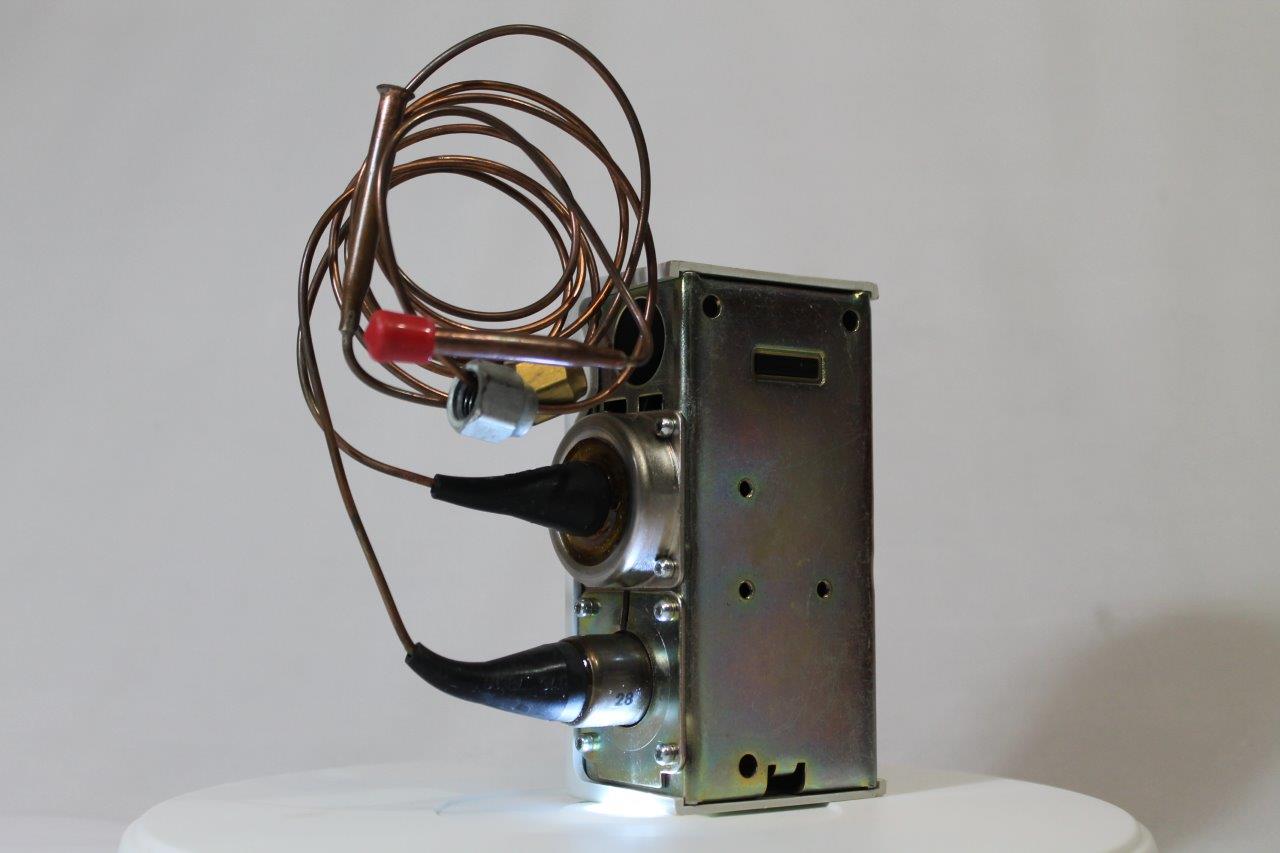

– Super Cap® capillary protection system
– Color-coded for easy identification of pressure line
– High-side capillary flare nut (silver)
– Low-side capillary flare nut (brass)
Specifications:
Series Application: Dual Pressure Control
High Pressure (Open High) Cut-Out PSI: 150 to 450 PSI (10 to 31 bar)
Low Pressure (Open Low) Cut-In: 12″ Hg to 50 PSI (0.4 to 3.5 bar)
Capillary Length: 36″ (0.9m)
Switch: SPST
High Pressure (Open High) Differential PSI: 70 (5) Fixed
High Reset: Auto
Low Pressure (Open Low) Differential: 5 to 35 PSI (0.3 to 2.4 bar)
Low Reset: Auto
Pressure Connection: 1/4″ SAE flare nut
Brand: Ranco
MPN: O12-1502
UPC: 662013922566
