Raytek FLUKE RAYCI1A Infrared Temperature Sensor, 12–24VDC, Type J Thermocouple Output, 0–115°C (32–240°F), IP65 Stainless Housing

$235.00

2 in stock

Condition: New – Includes sensor, mounting nuts, 1m cable, and user manual.

The Raytek RAYCI1A Infrared Temperature Sensor by Fluke/Raytek is an industrial-grade, non-contact infrared sensor designed for temperature monitoring in harsh environments. It provides a Type J thermocouple analog output, making it a direct replacement for contact probes in 4-wire systems without modification. With a rugged IP65 (NEMA 4) stainless steel enclosure, the RAYCI1A performs reliably in ambient temperatures up to 70°C (160°F) without cooling, or 260°C (500°F) with an optional cooling jacket.

This sensor is ideal for continuous, maintenance-free monitoring of processes involving materials like plastics, rubber, textiles, metals, and more.


Features:

  • Temperature Range: 0 to 115°C (32 to 240°F)
  • Output Type: Type J Thermocouple equivalent (50Ω impedance)
  • Power Requirement: 12–24 VDC
  • Accuracy: ±2% of reading or ±3°C (6°F), whichever is greater
  • Repeatability: ±1% of reading or ±1°C (2°F), whichever is greater
  • Response Time (95%): 350 milliseconds
  • Temperature Resolution: <0.5°C (1°F)
  • Emissivity: Fixed at 0.95
  • Spectral Response: 7–18 µm
  • Optical Resolution: 4:1 (Distance-to-Spot ratio)
  • Ambient Temp Capability:
    • Up to 70°C (160°F) without cooling
    • Up to 260°C (500°F) with water-cooled housing (optional)
  • Enclosure Rating: IP65 / NEMA-4
  • Mounting Hardware Included: Yes (2 mounting nuts)
  • Cable: 1 meter (3.2 ft) included

Applications:

  • Blow molding
  • Bonding & laminating
  • Coating & curing
  • Converting & printing
  • Drying & heating processes
  • Extrusion & embossing
  • Thermoforming & moulding
  • Paint drying ovens
  • Asphalt paving & temperature monitoring

Cross-Referenced / Related Models:

  • Raytek CI Series
  • Fluke RAYCI2A (different temperature range/output)
  • Omega OS36 Series (J-type thermocouple IR sensor alternative)
  • Exergen IRt/c.10A-J-72C (similar thermocouple output infrared sensor)

Comparable Products:

  • Omega OS37-J (Infrared J-type thermocouple output sensor)
  • Exergen IRt/c Series (non-contact J-type output for industrial settings)
  • Fluke RAYMT4 (lower-cost handheld IR temp sensor)
  • LumaSense IMPAC IN5 (advanced industrial IR sensors)

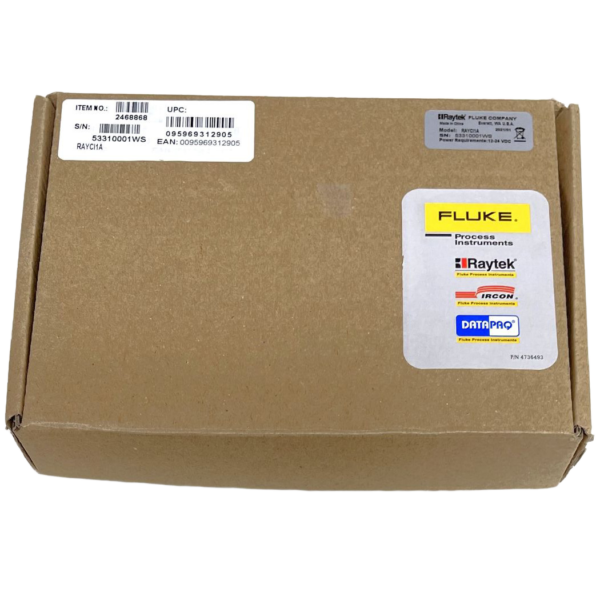

What’s Included:

  • Raytek RAYCI1A Infrared Temperature Sensor
  • Two (2) mounting nuts
  • 1-meter (3.2 ft) cable
  • Operator’s manual

Related:

Infrared temperature sensor, Raytek CI1A, Fluke RAYCI1A, Type J output sensor, non-contact temperature sensor, IP65 IR sensor, thermocouple output infrared, 12V 24V infrared sensor, stainless steel IR sensor, industrial temperature probe, Raytek infrared sensor for extrusion, printing, drying, thermoforming


Common Requests:

  1. “Can the Raytek RAYCI1A replace a standard J-type thermocouple?”
  2. “What’s the temperature range and optical resolution of the RAYCI1A?”
  3. “Is the sensor suitable for outdoor or wet environments?”
  4. “Can this infrared sensor be integrated into a 4-20mA system?”
  5. “What’s the difference between RAYCI1A and RAYCI2A models?”

Trademark Disclaimer: Raytek® and Fluke® are registered trademarks of their respective owners. Use of these names is for reference purposes only and does not imply any affiliation or endorsement.

Weight 2 lbs
Dimensions 7 × 7 × 5 in
