Replacement Kit For Equipment Using A Ram Model H1M1-01 (790-001) Ignition Module for Groen 088252

Replacement Kit For Equipment Using A Ram Model H1M1-01 (790-001) Ignition Module for Groen 088252

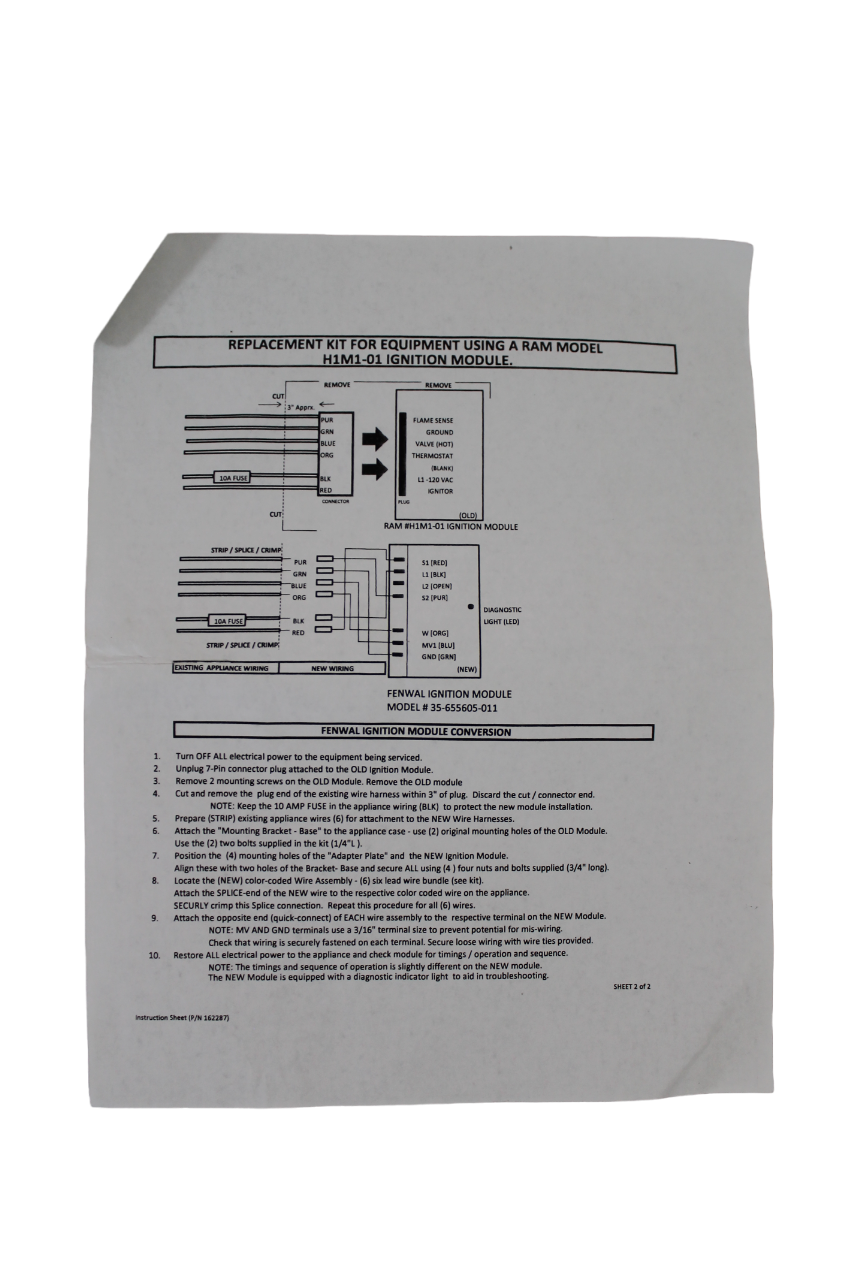

The item appears to be in an unused condition, comes with manual and the connector, but would rather claim it as used as it might have been briefly connected.

Description:
Ram Ignition Control Module w/ Wire Harness, RAM-H1M1-01, Groen Boiler NGB, Braising Pan CHFP, HFP, NHFP, Kettle DH.
Replacement Kit For Equipment Using A Ram Model H1M1-01 Ignition Module.
Ignition Control for Groen – Part# 088252.
The RAM hot surface ignition controls are 24 VAC. When the thermostat
calls for heat, RAM’s HSI control simultaneously energizes the hot surface
ignitor and initiates current sensing function. Gas valve(s) remain closed
until current sense threshold is reached. Once the current draw threshold
has been reached or exceeded, the gas valve(s) and flame rectification circuits are energized. Upon proof of flame, the hot surface ignitor is shut off.
Main burner flame is continuously monitored. Loss of flame detection
results in RAM-H cycling to check the current draw of the hot surface ignitor. If the hot surface ignitor is below the current draw threshold, the gas
valve(s) will remain off and the hot surface ignitor will remain on until the current threshold is reached.

Specifications:
Input
Ignitor: 120VAC 50/60HZ
Thermostat: 24VAC 50/60HZ
Current Draw: 0.25A
Ambient Temperature Range: -40°F to 175°F
Relay Contact Ratings:
Ignitor: 10A at 120VAC
Valve: 10A at 24VAC

NL24 E2
