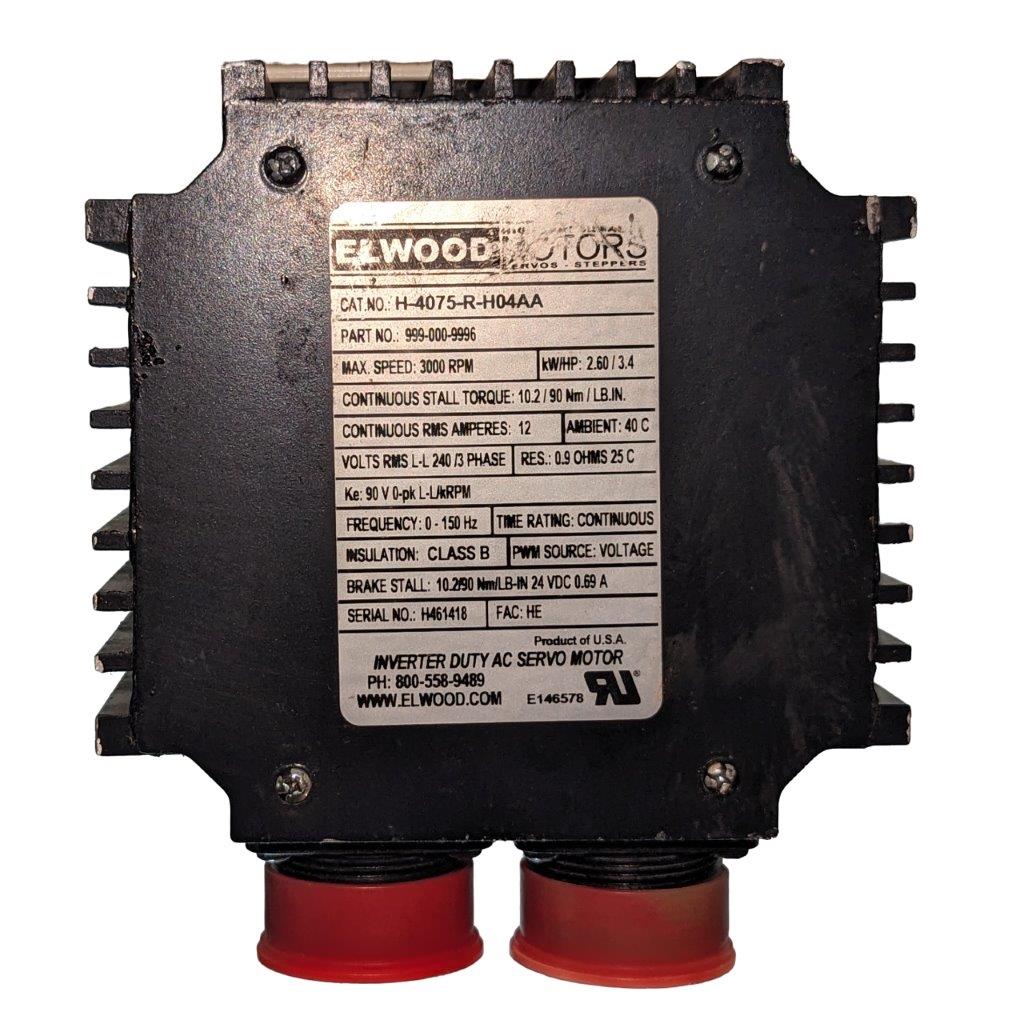

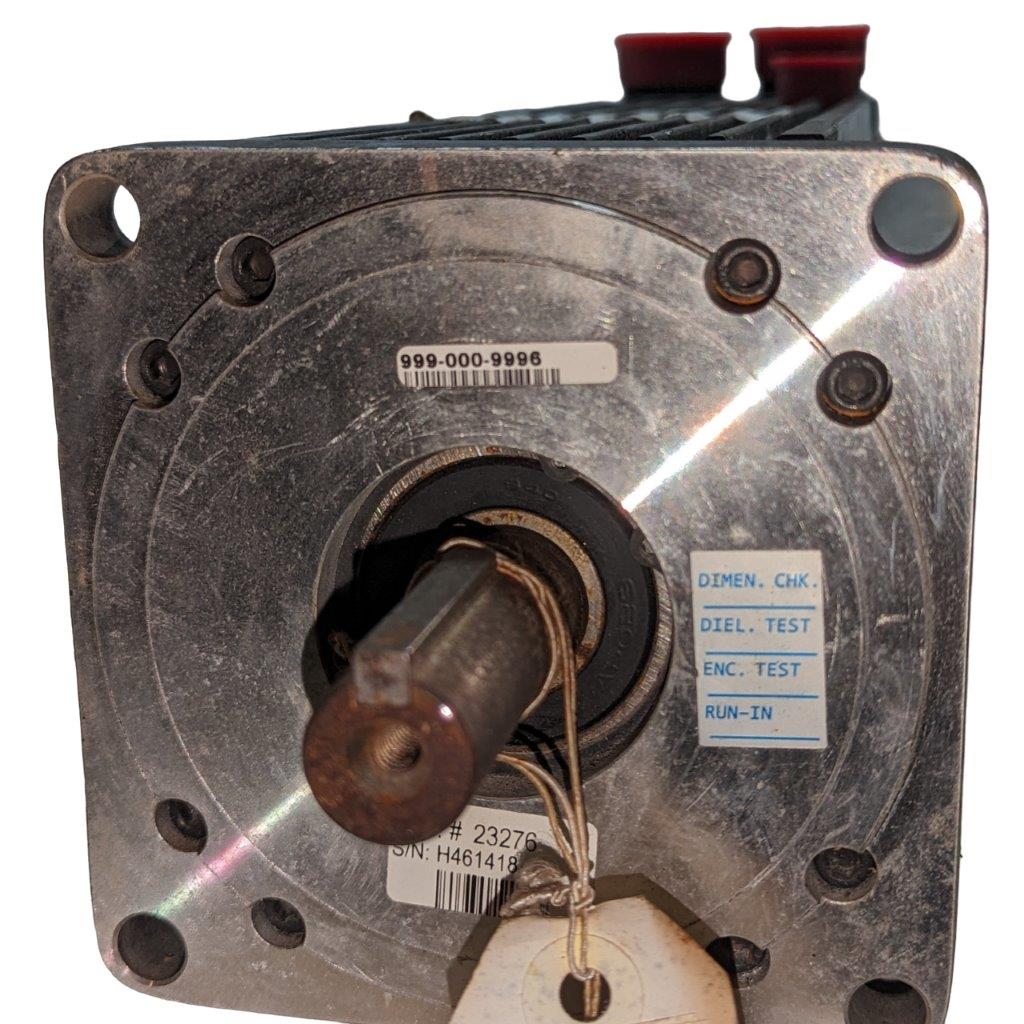

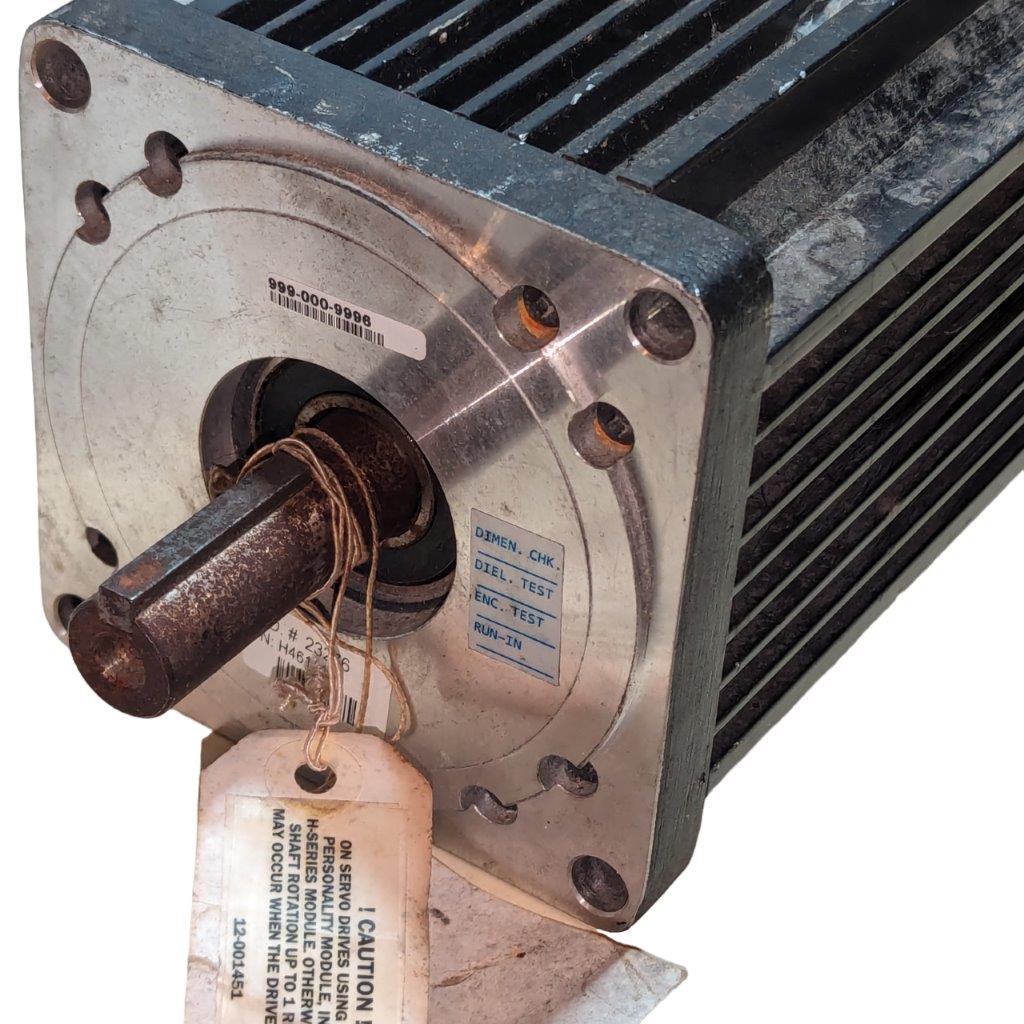

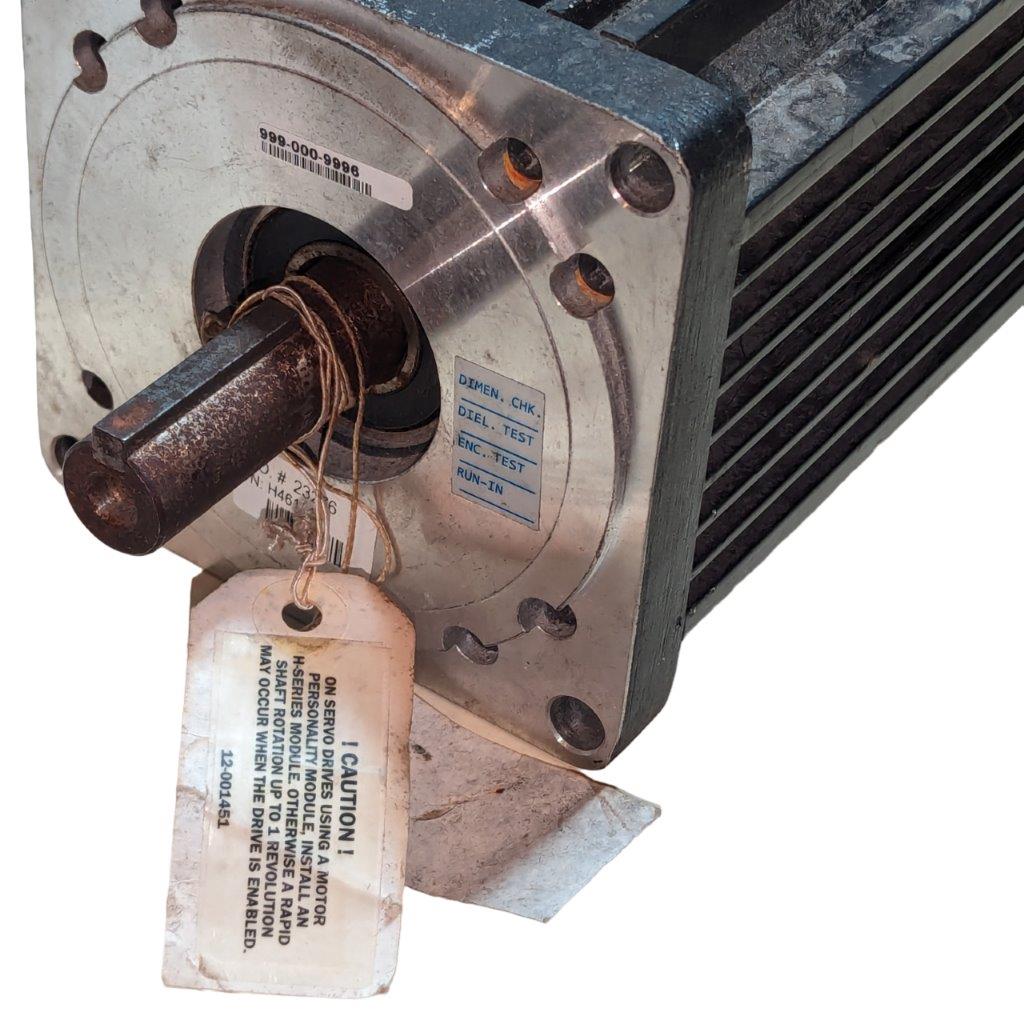

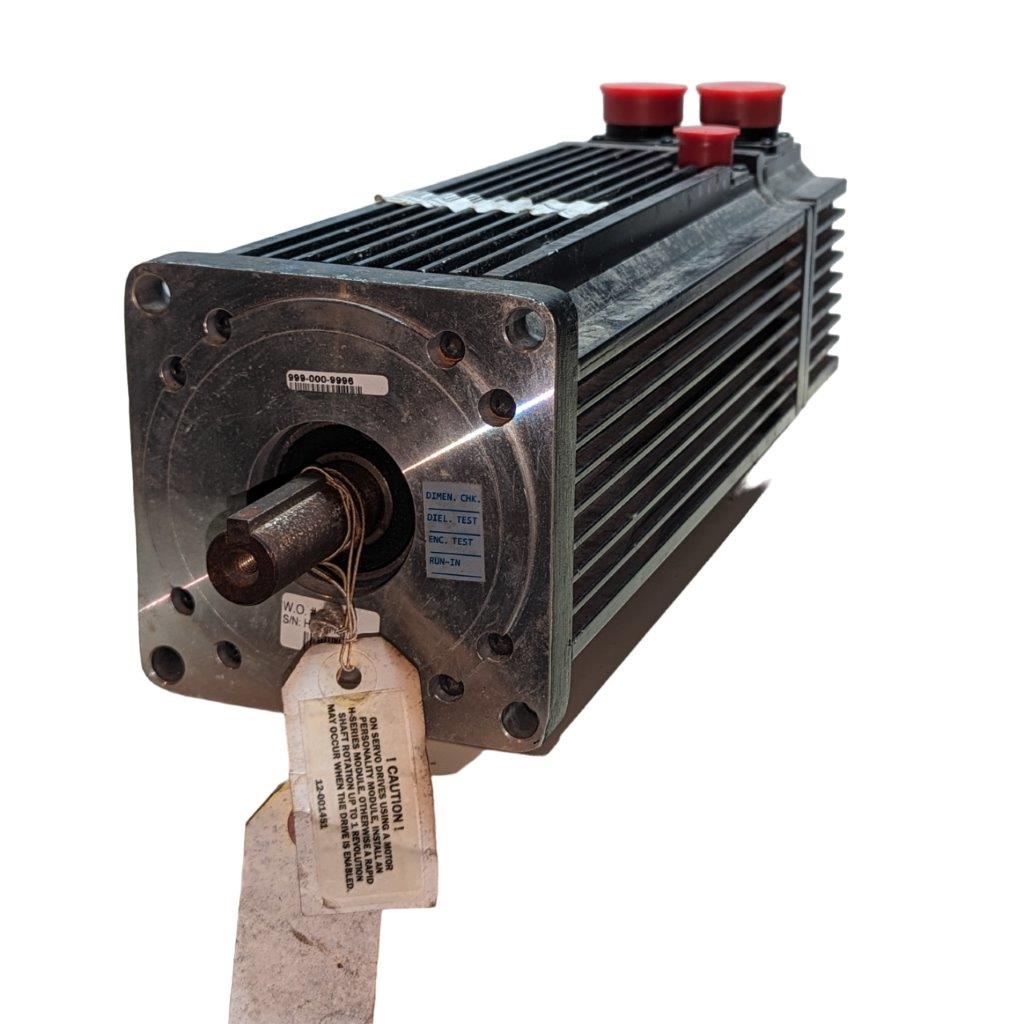

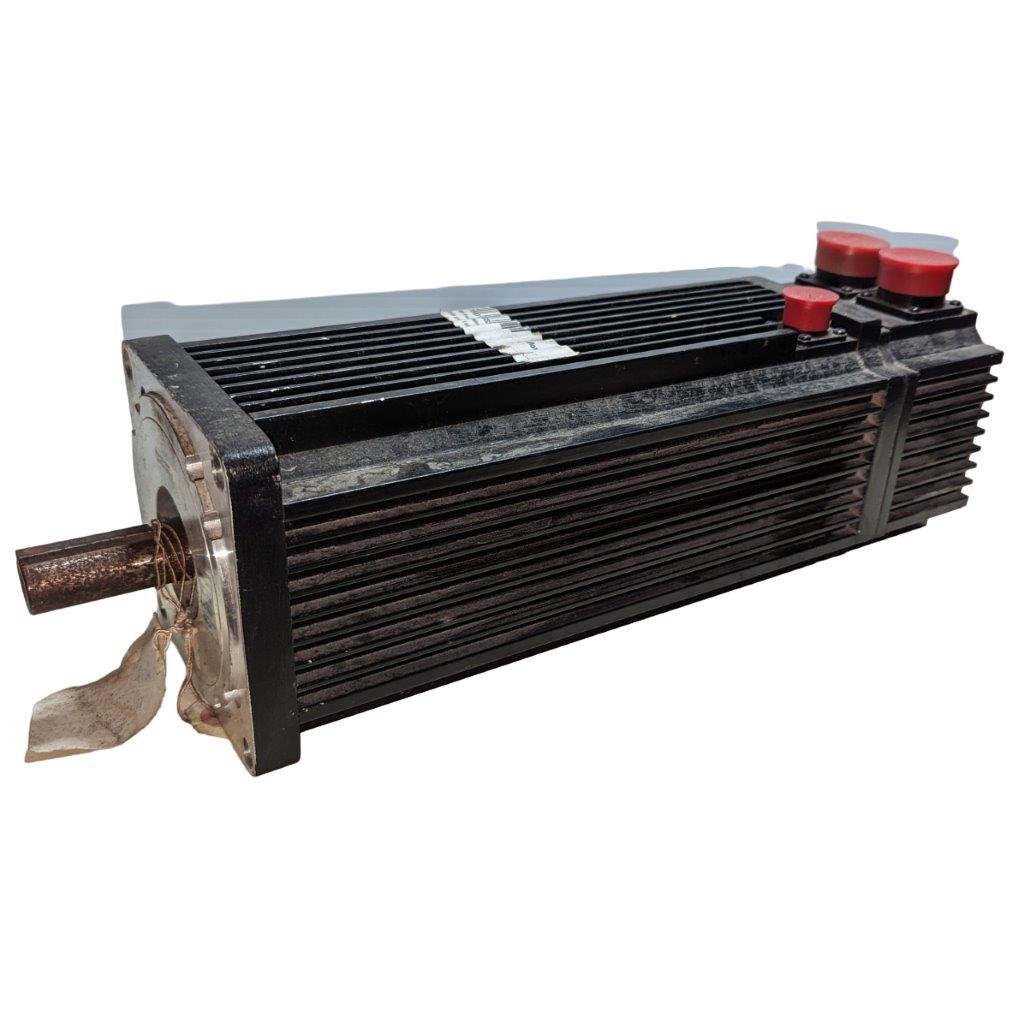

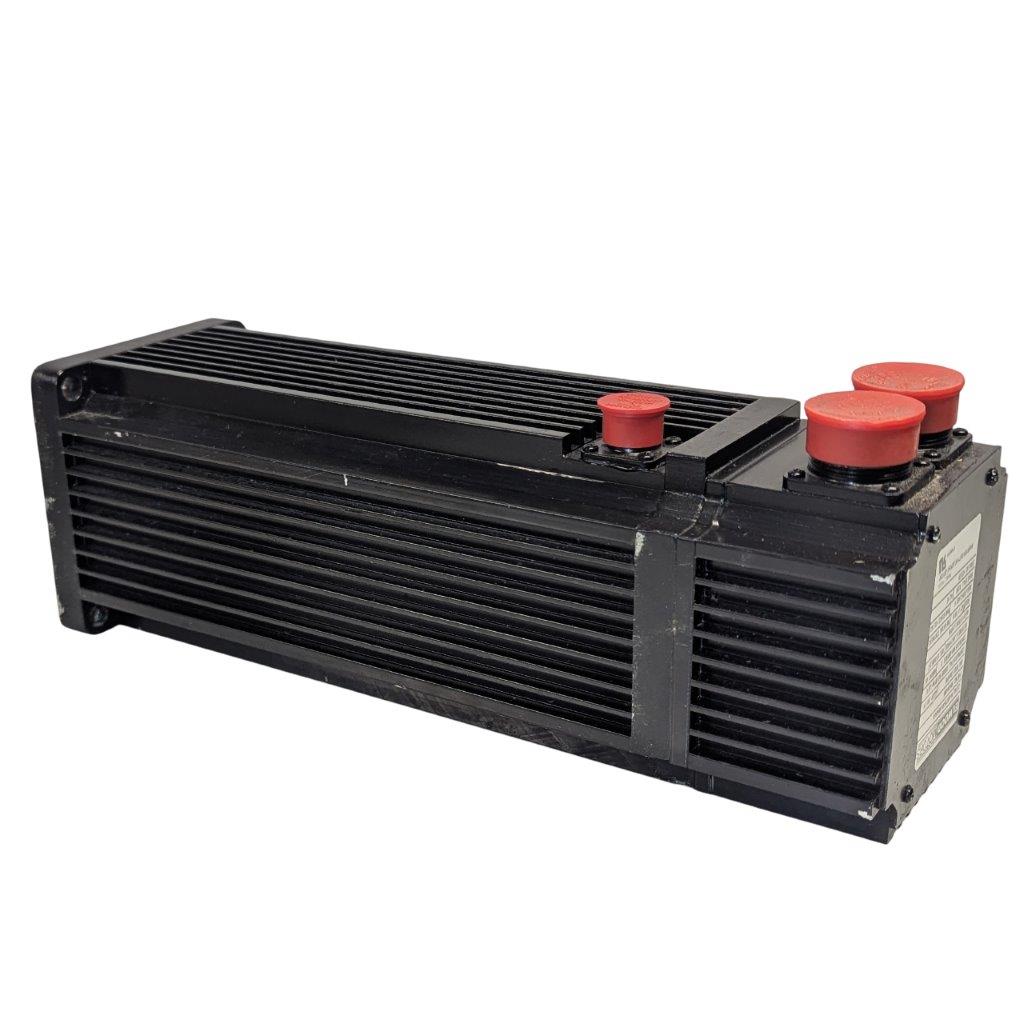

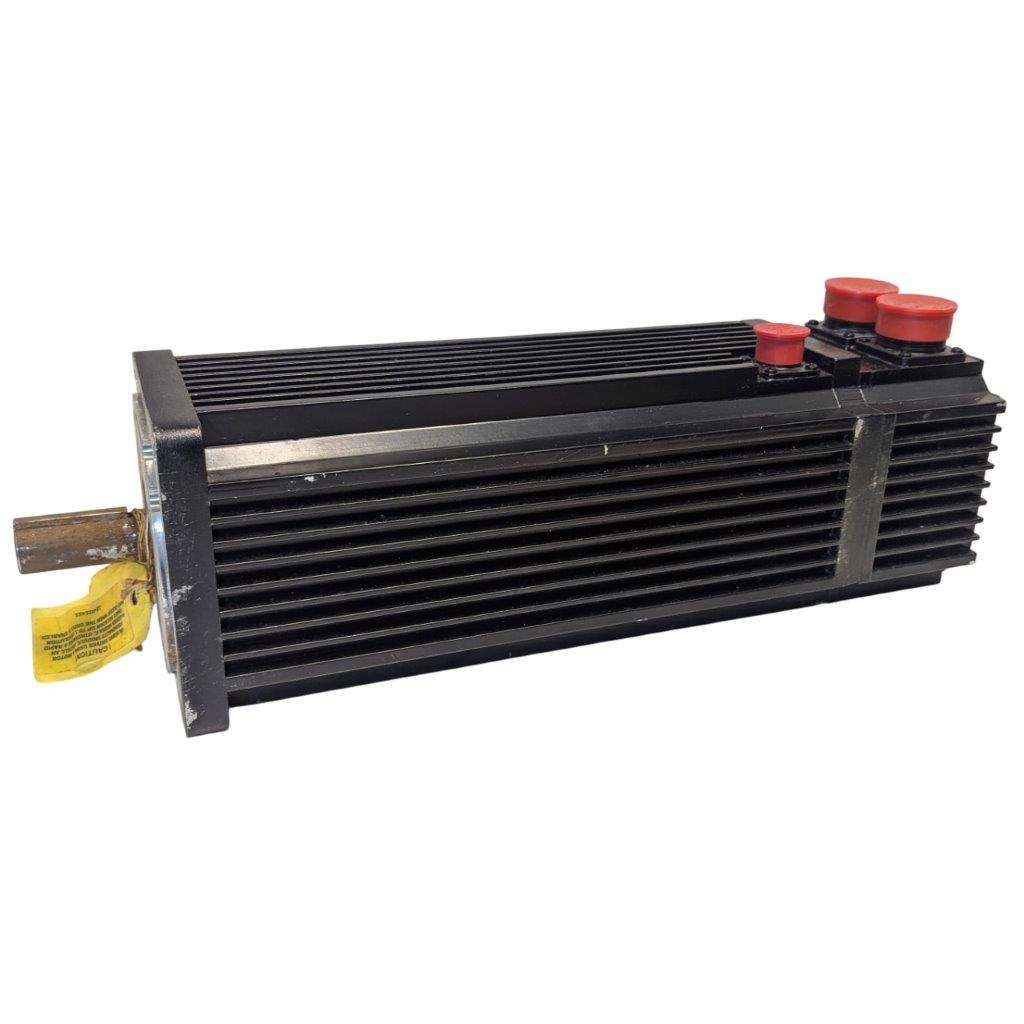

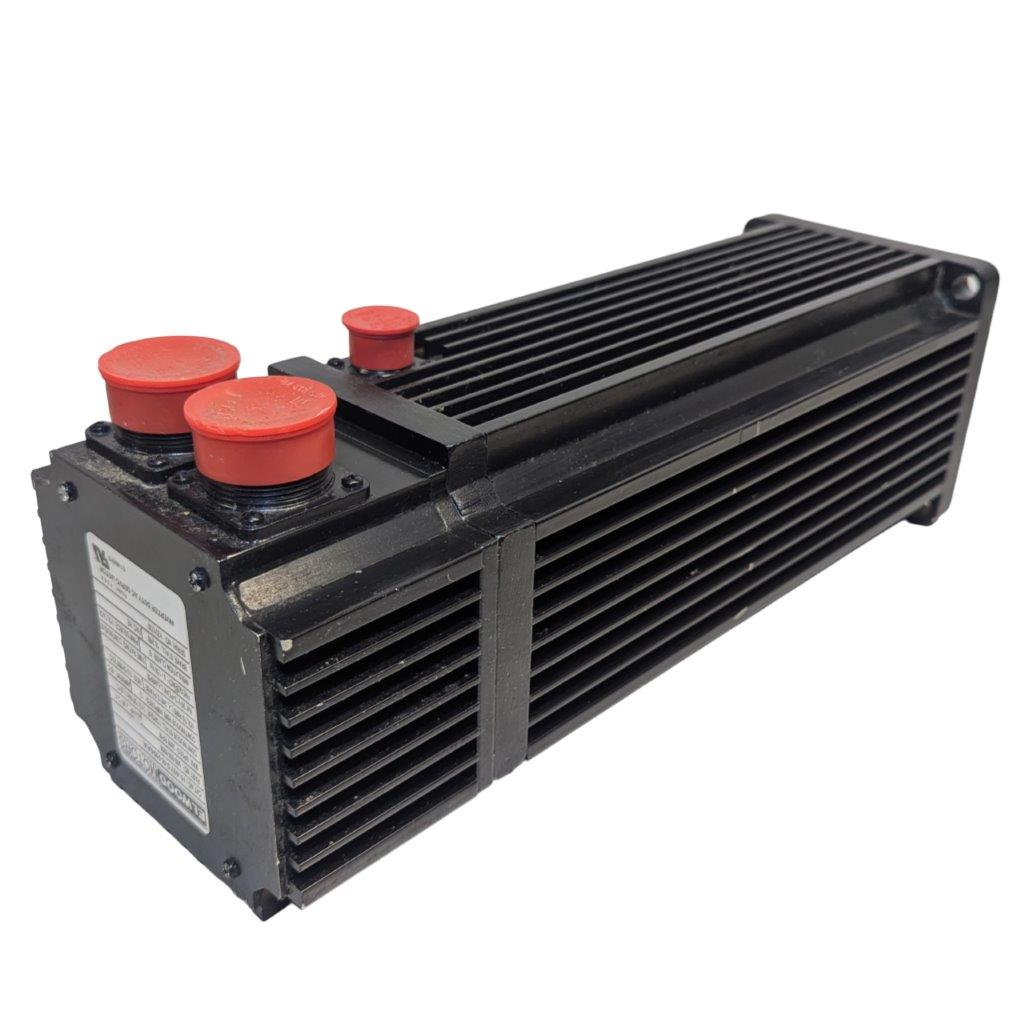

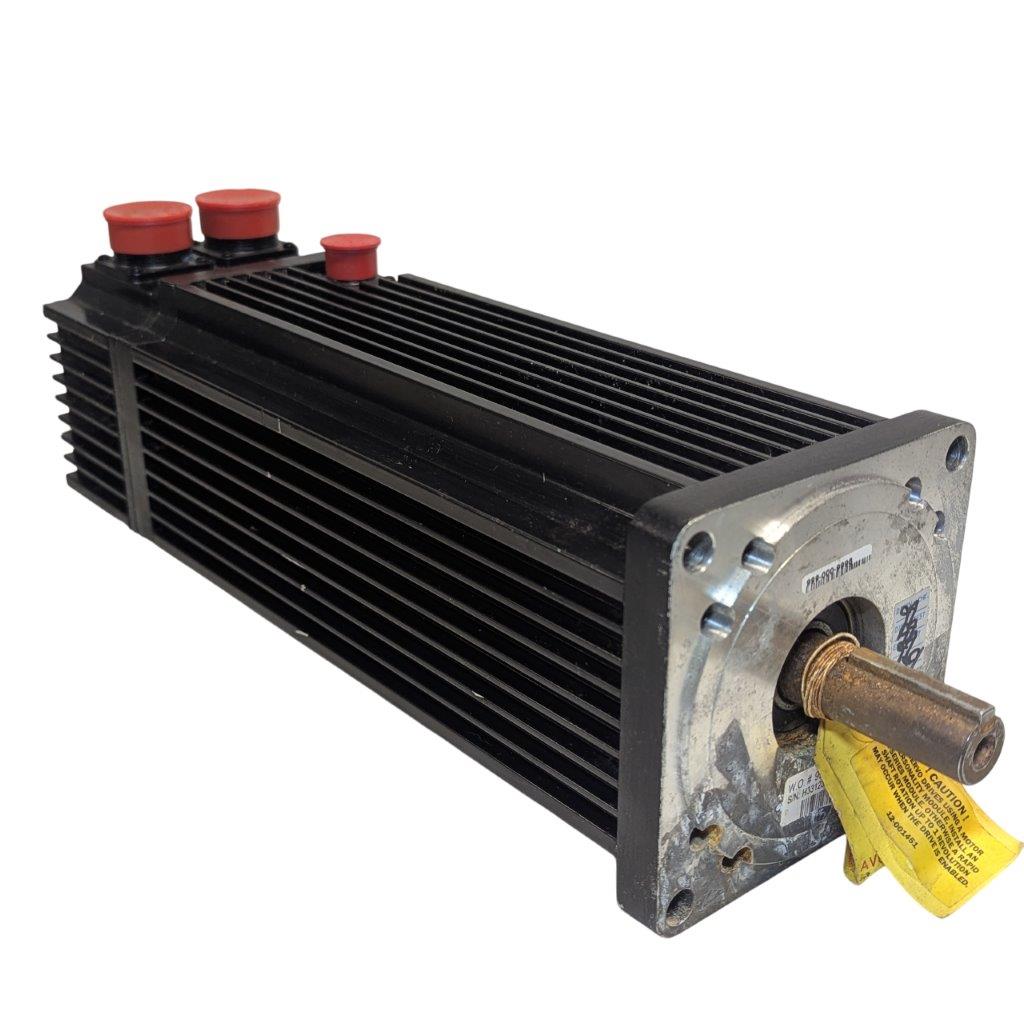

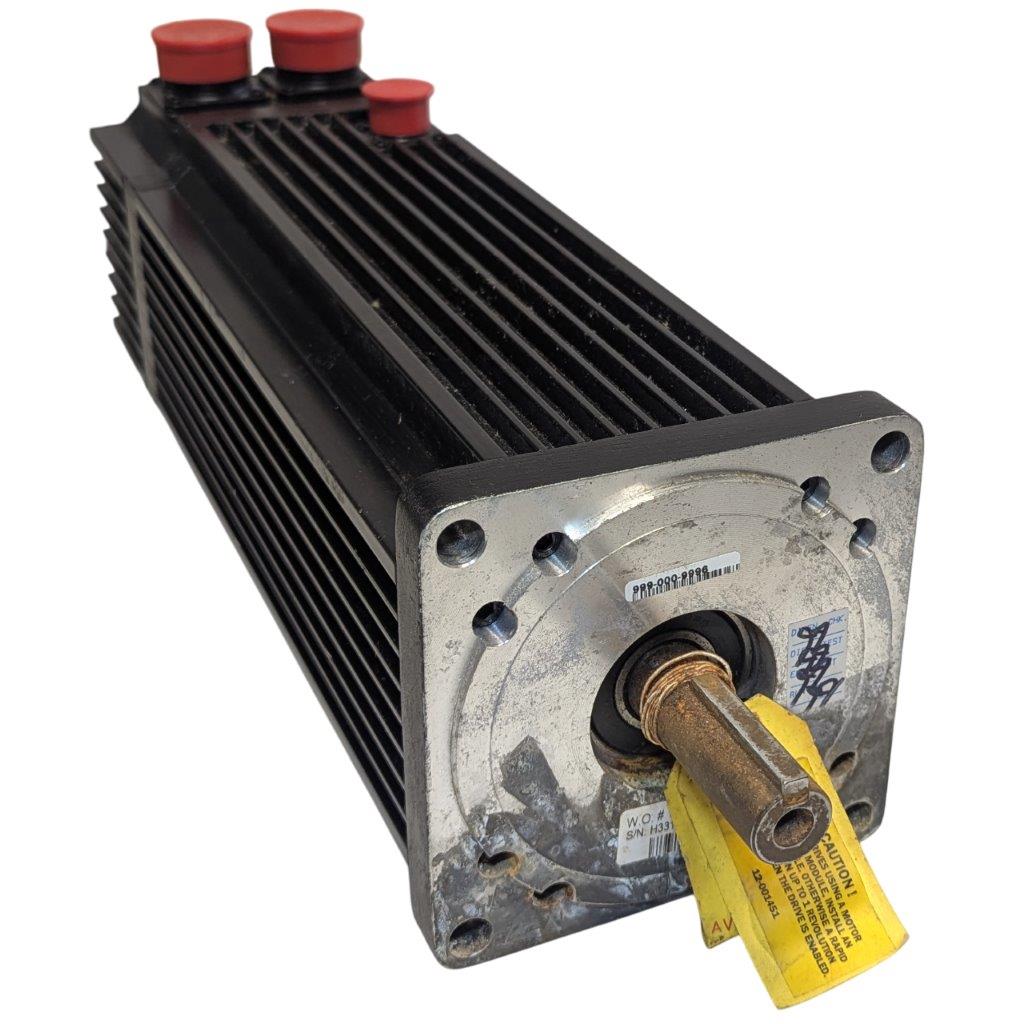

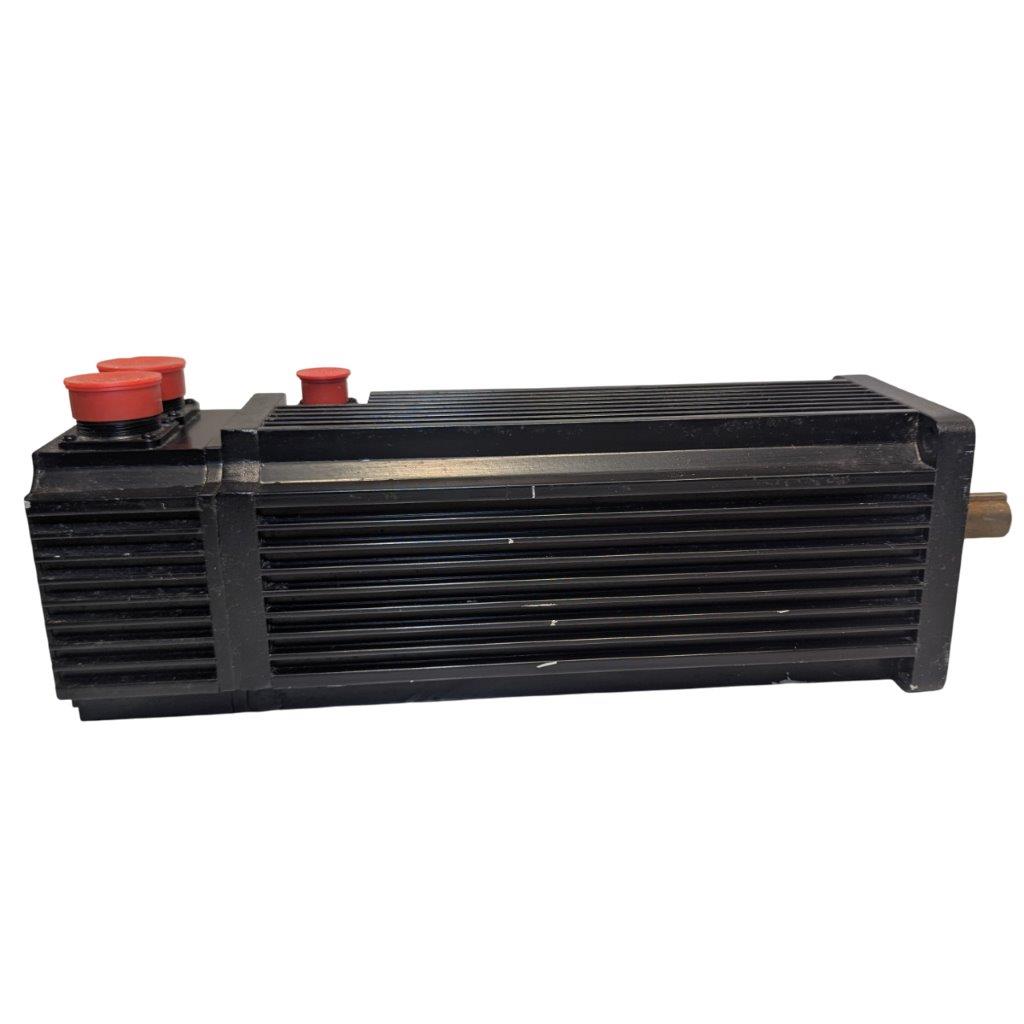

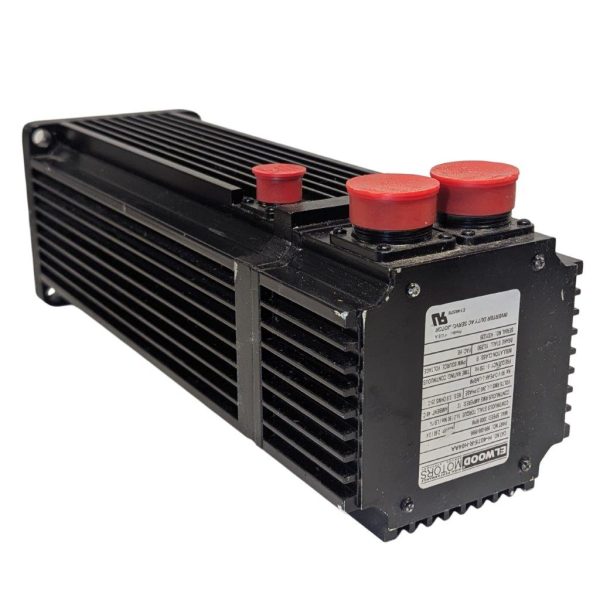

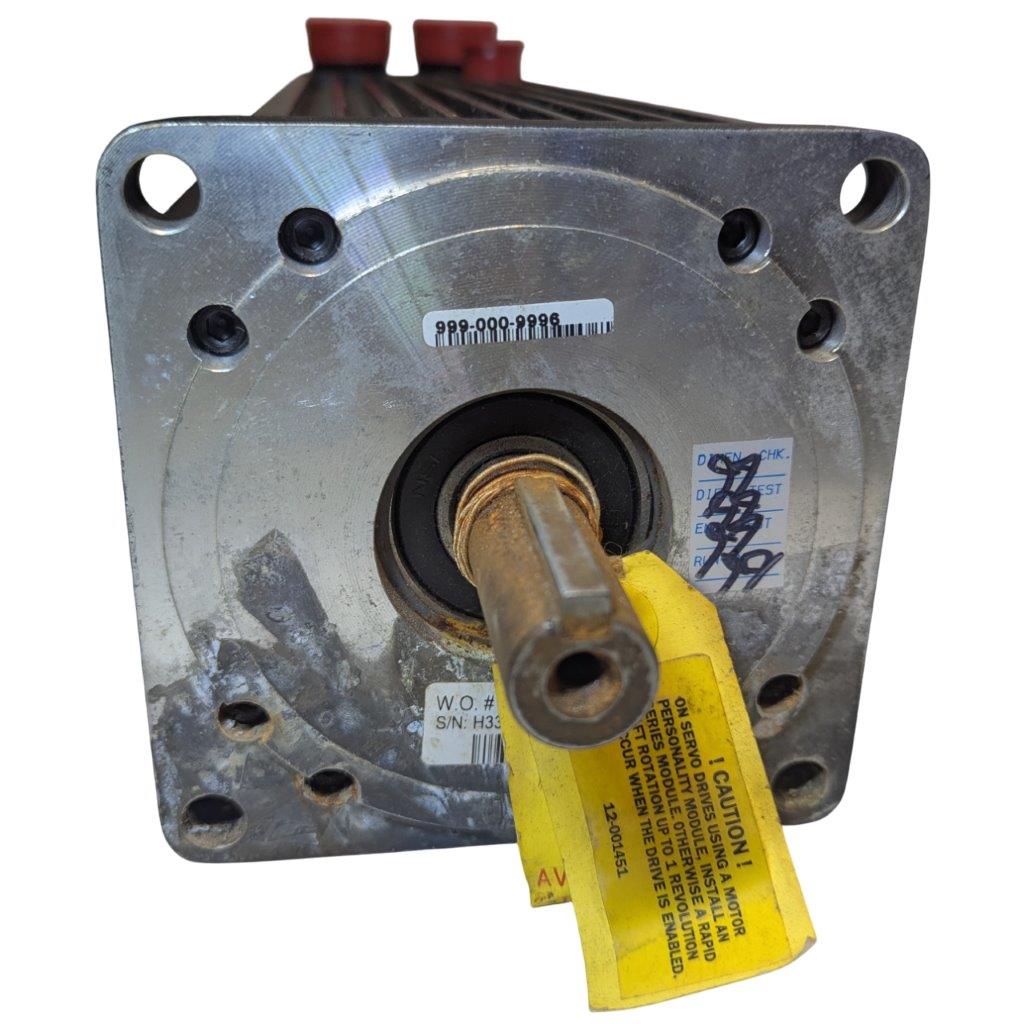

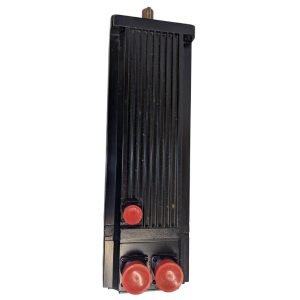

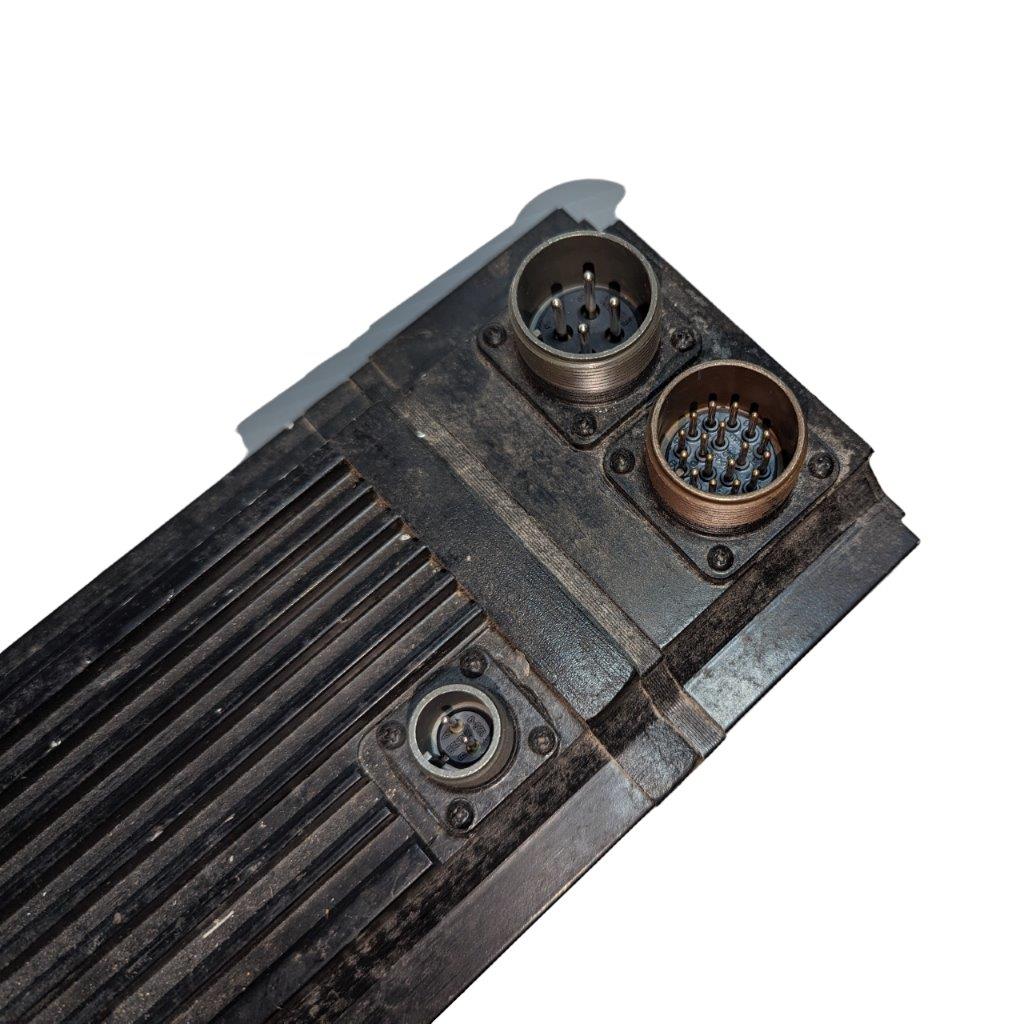

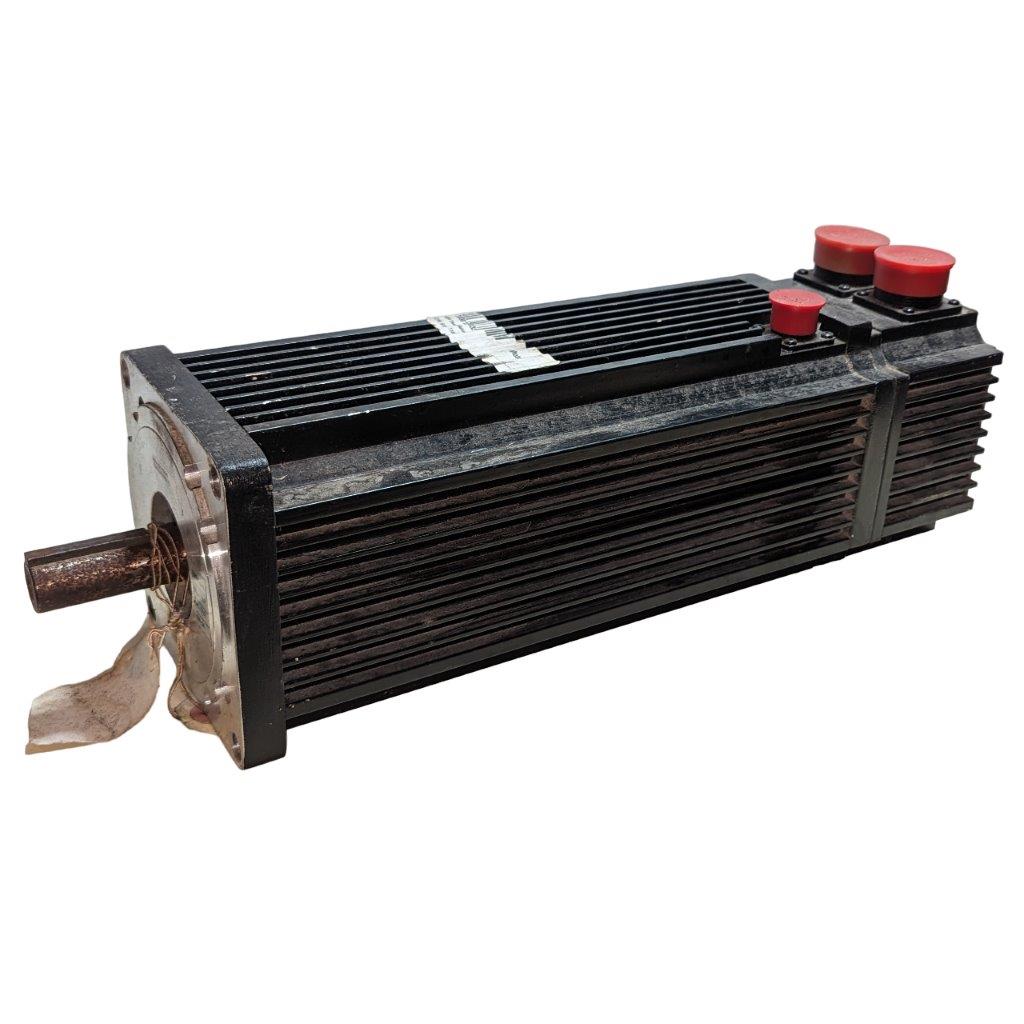

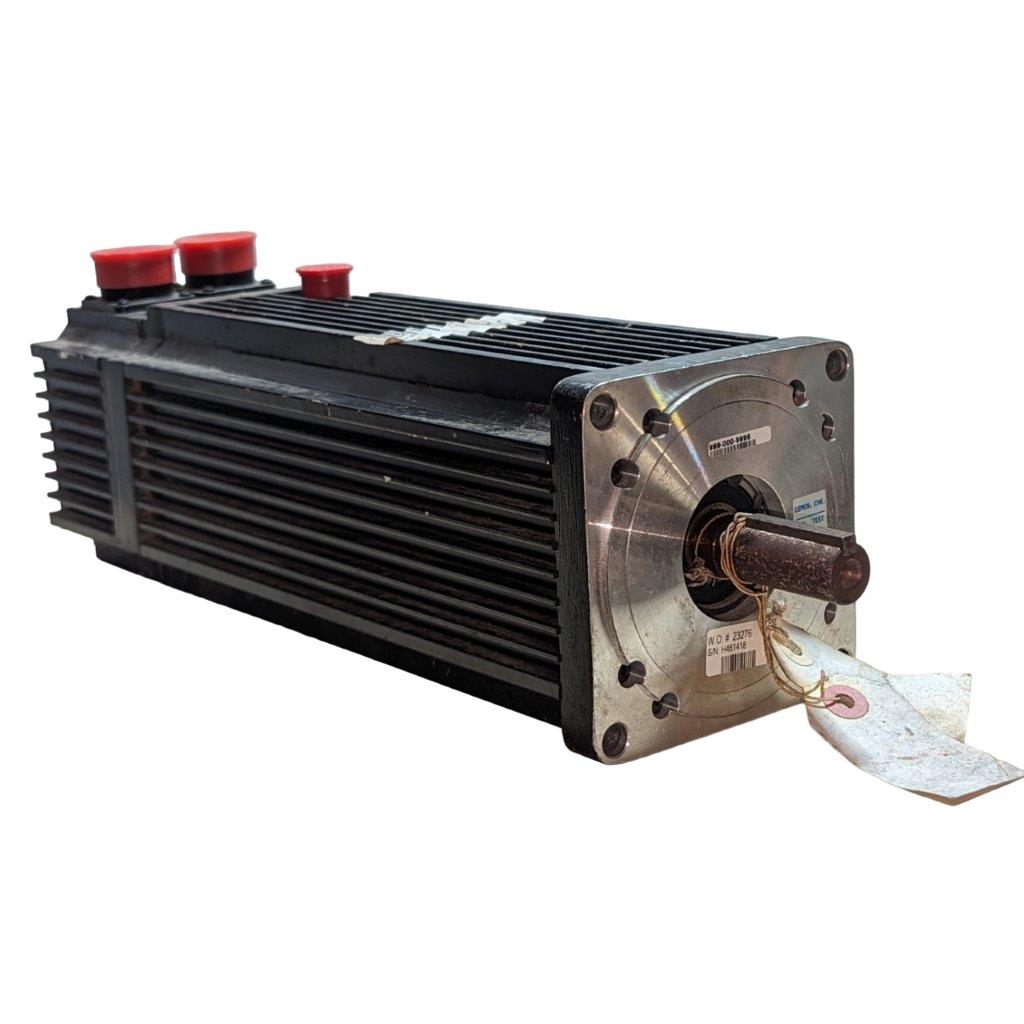

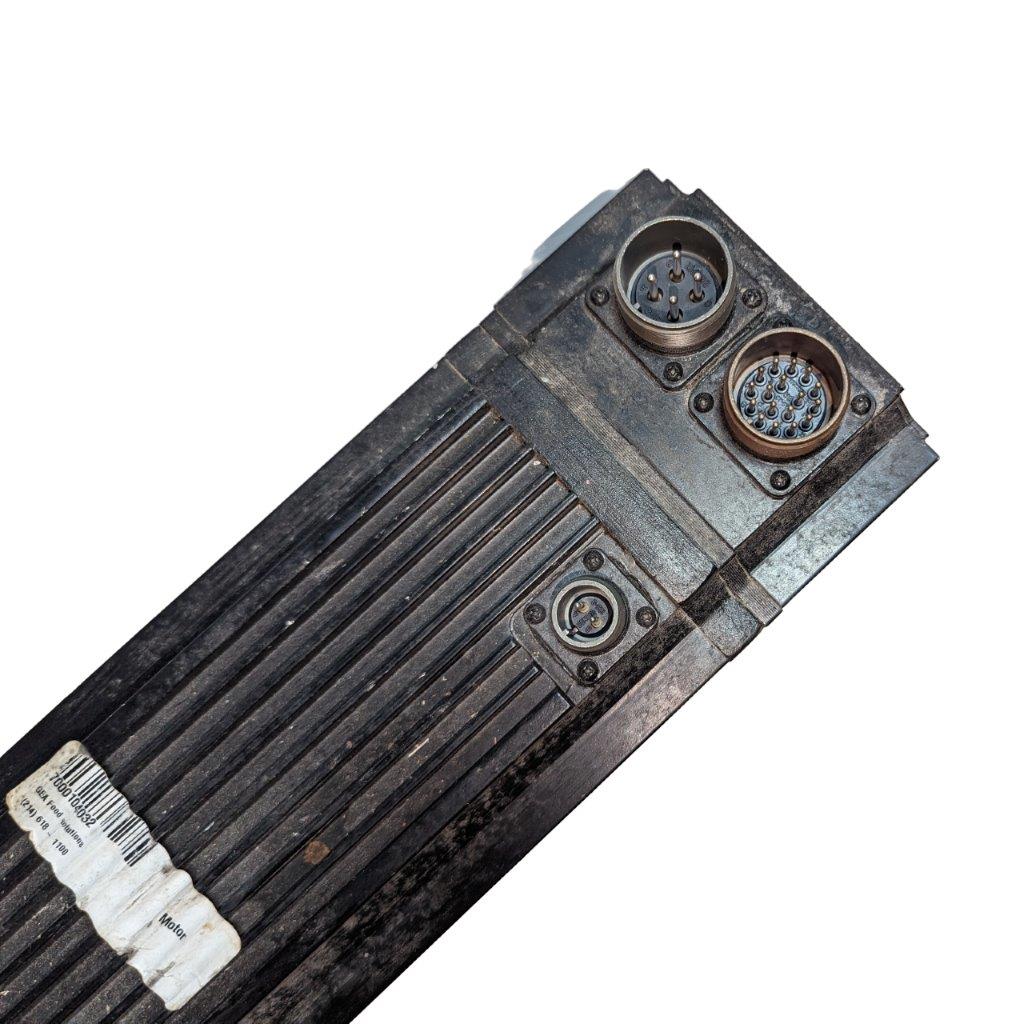

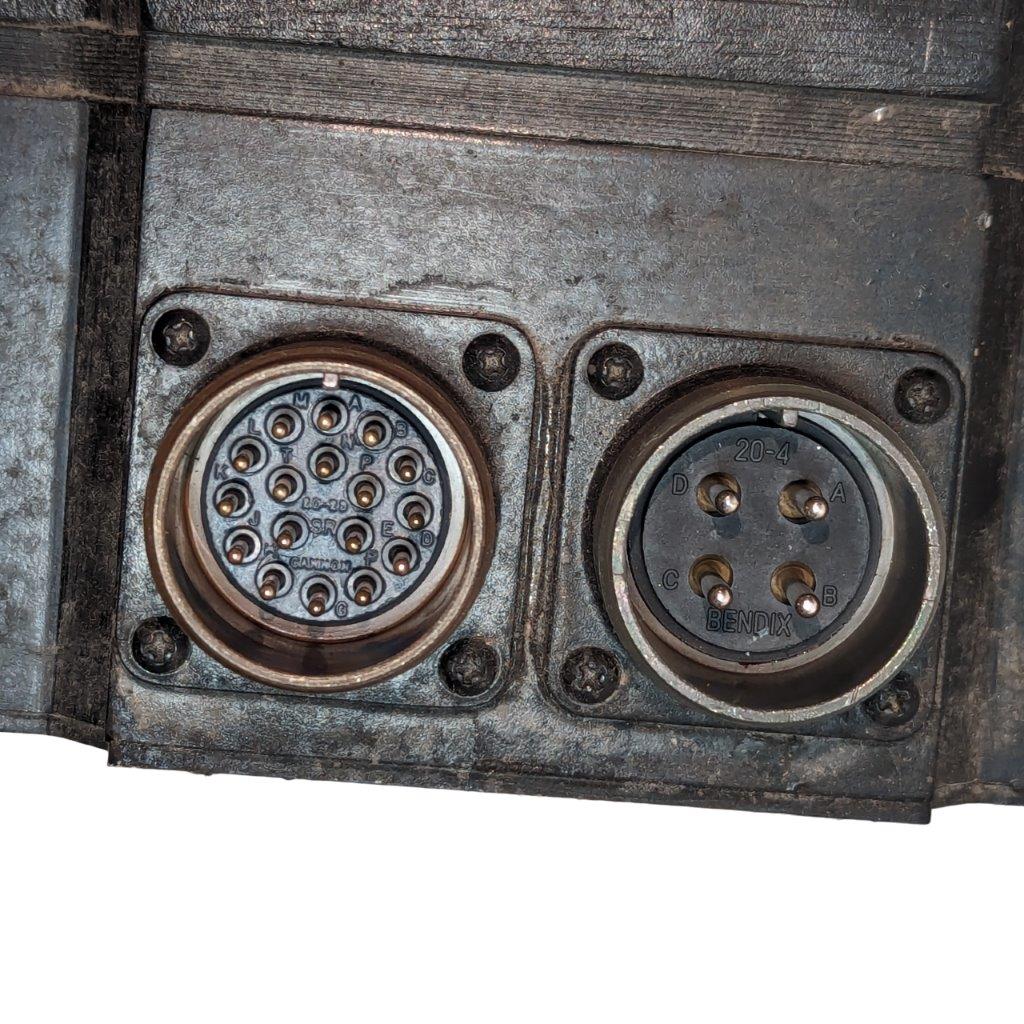

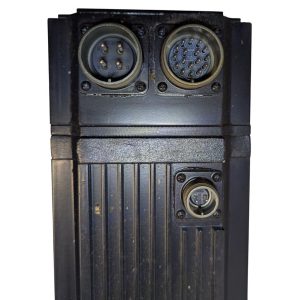

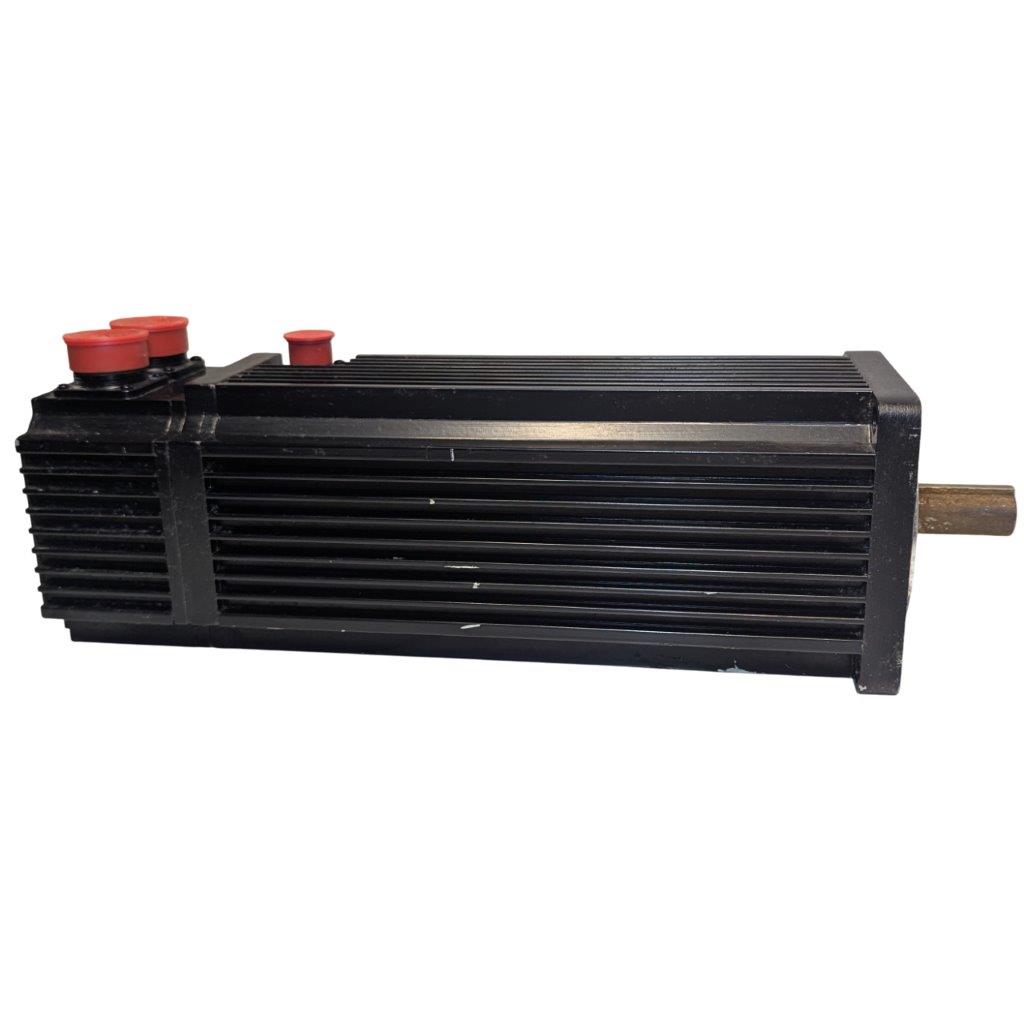

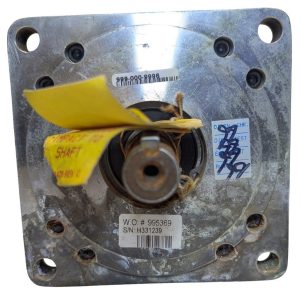

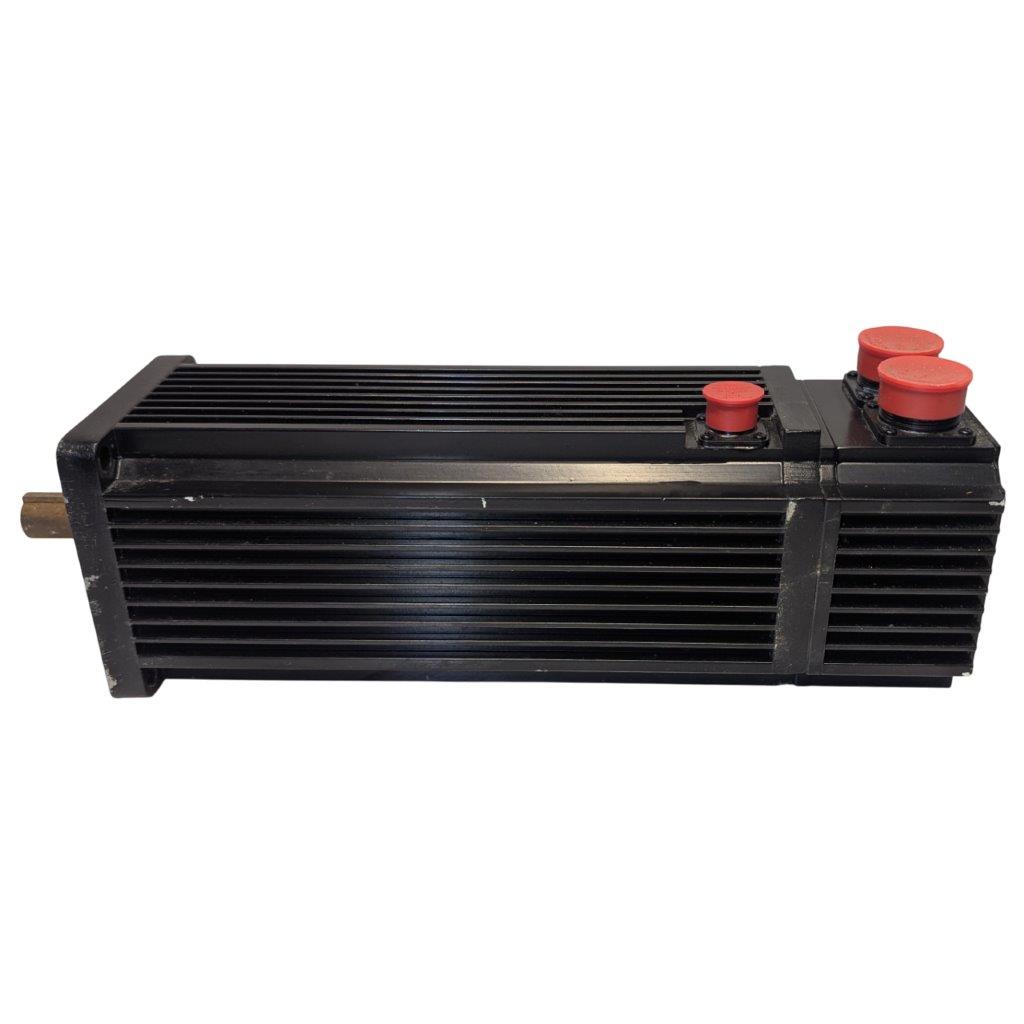

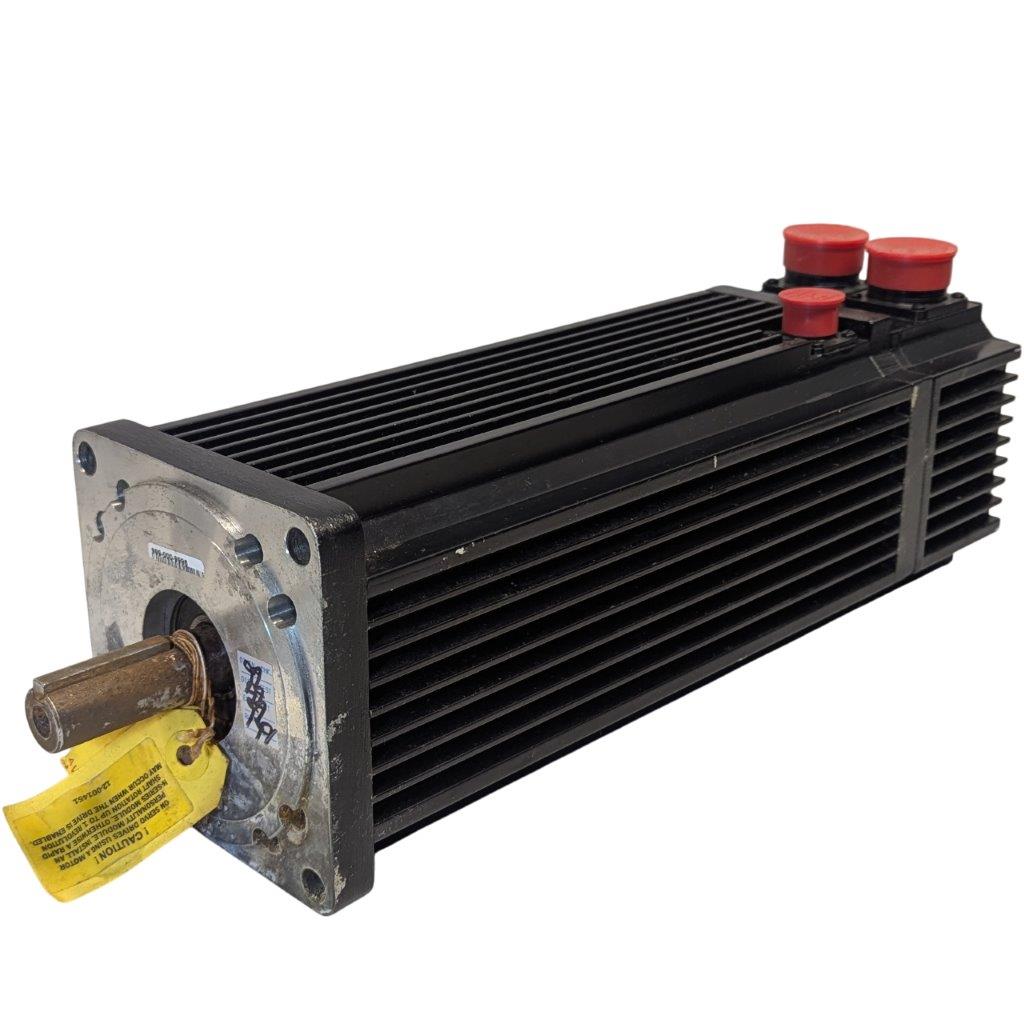

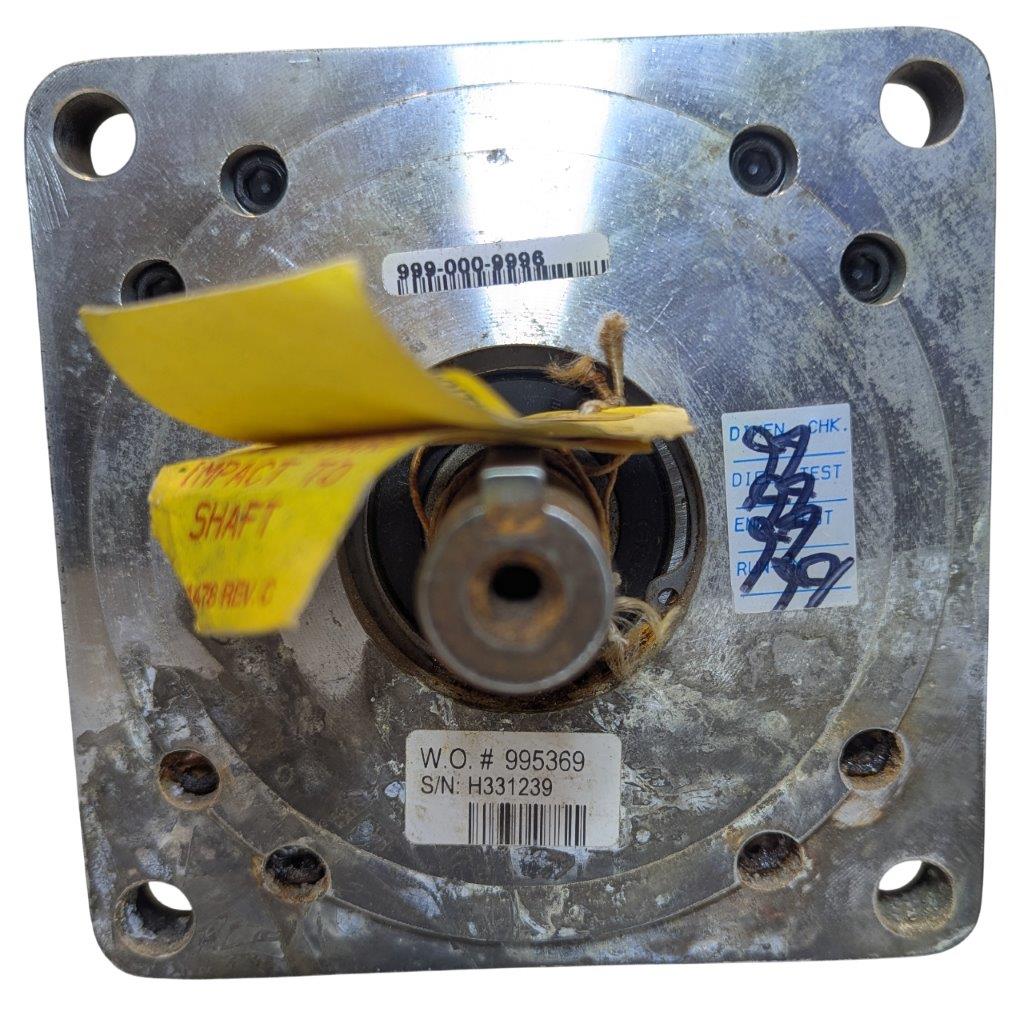

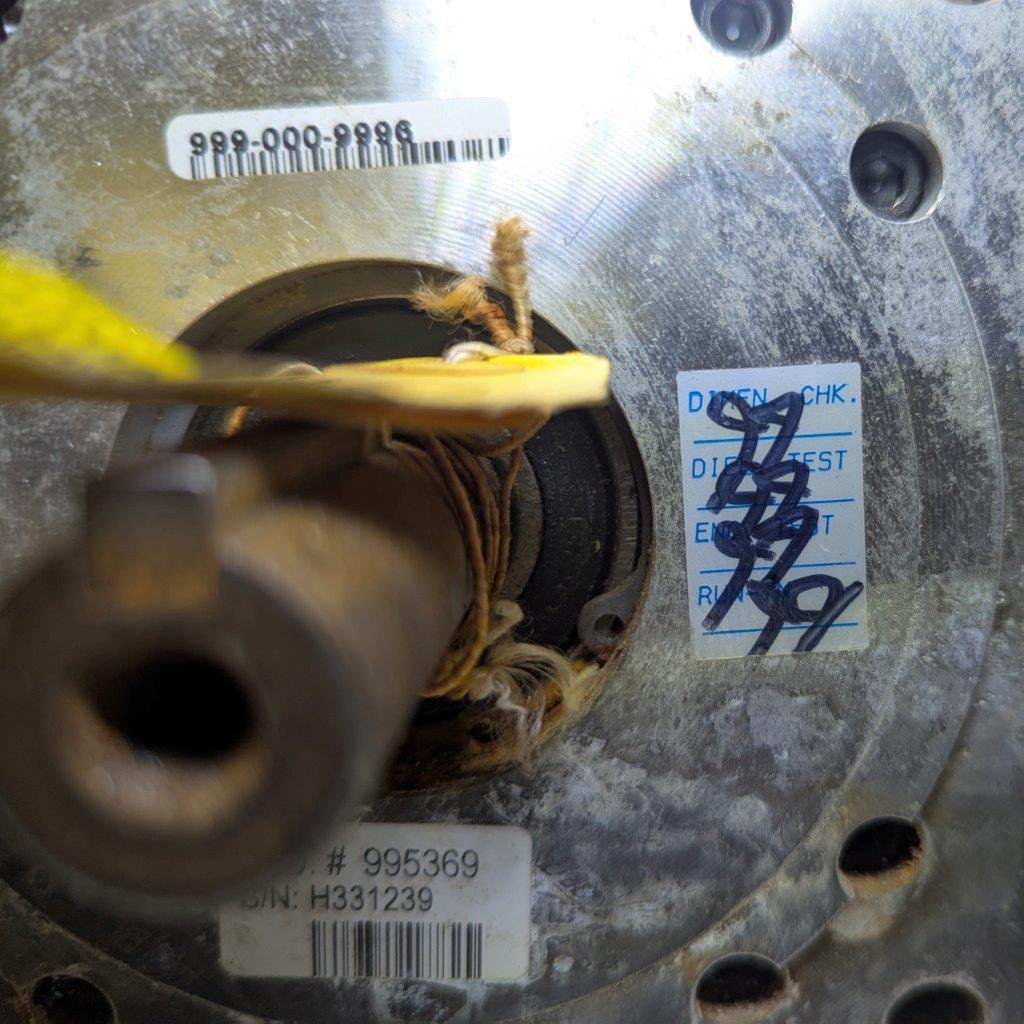

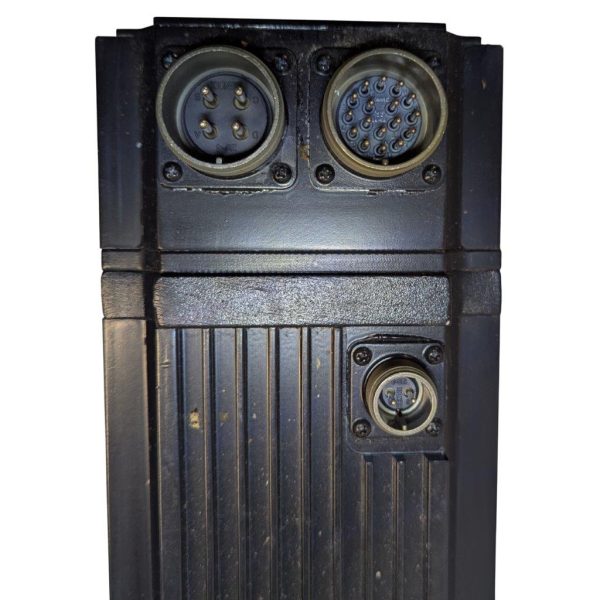

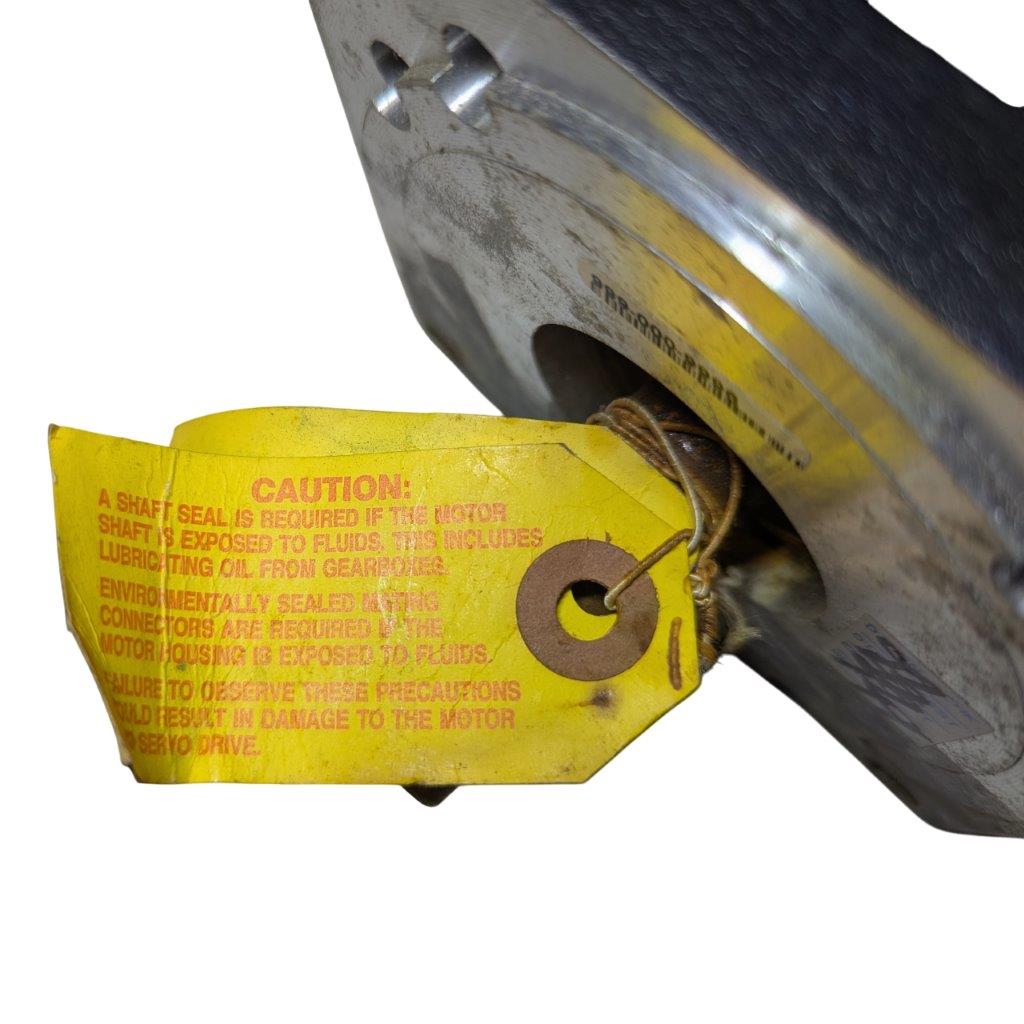

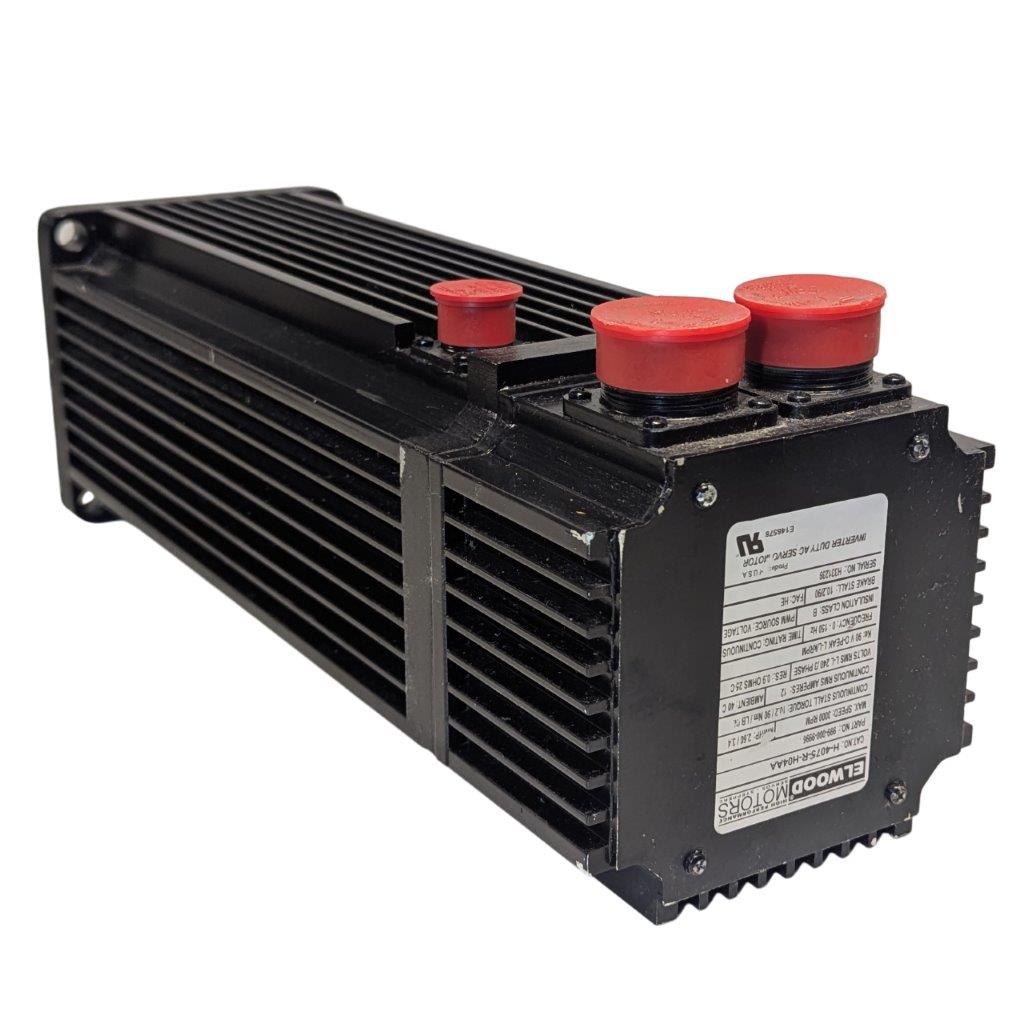

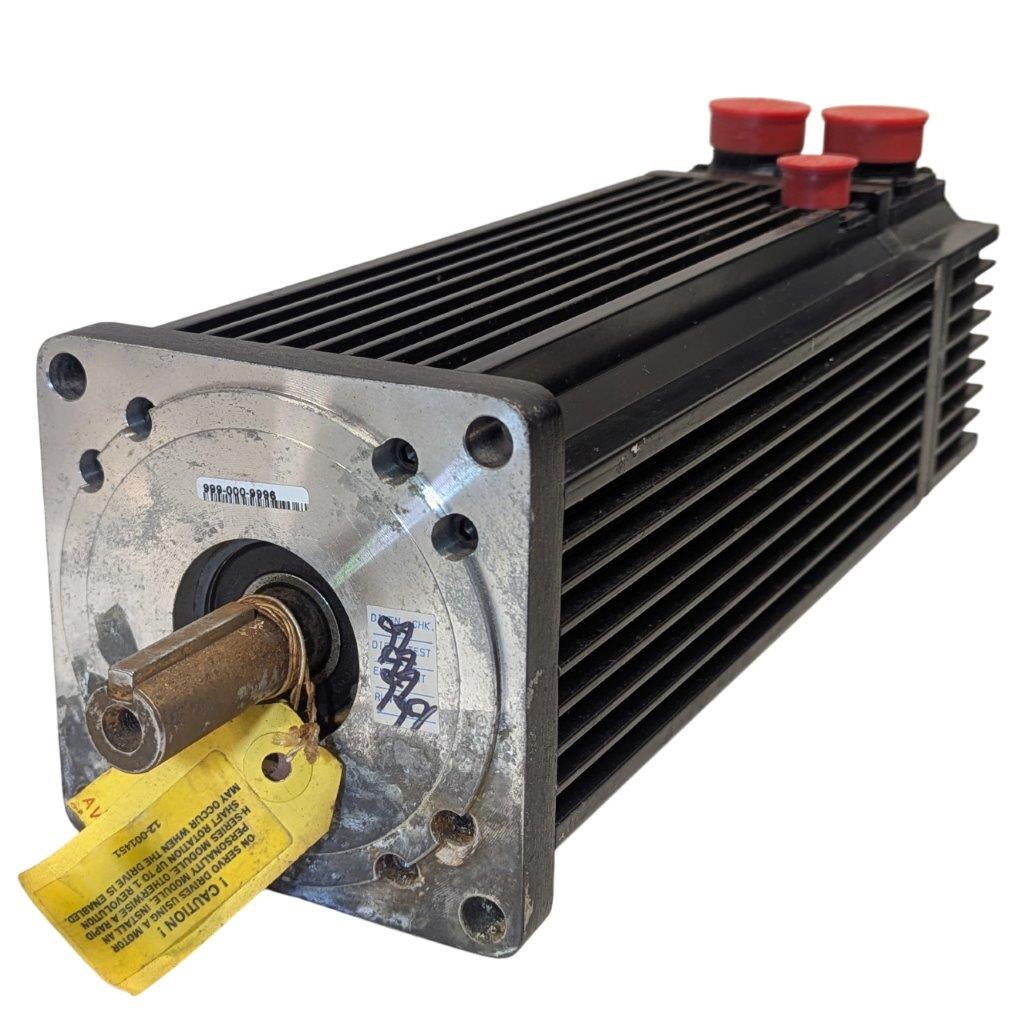

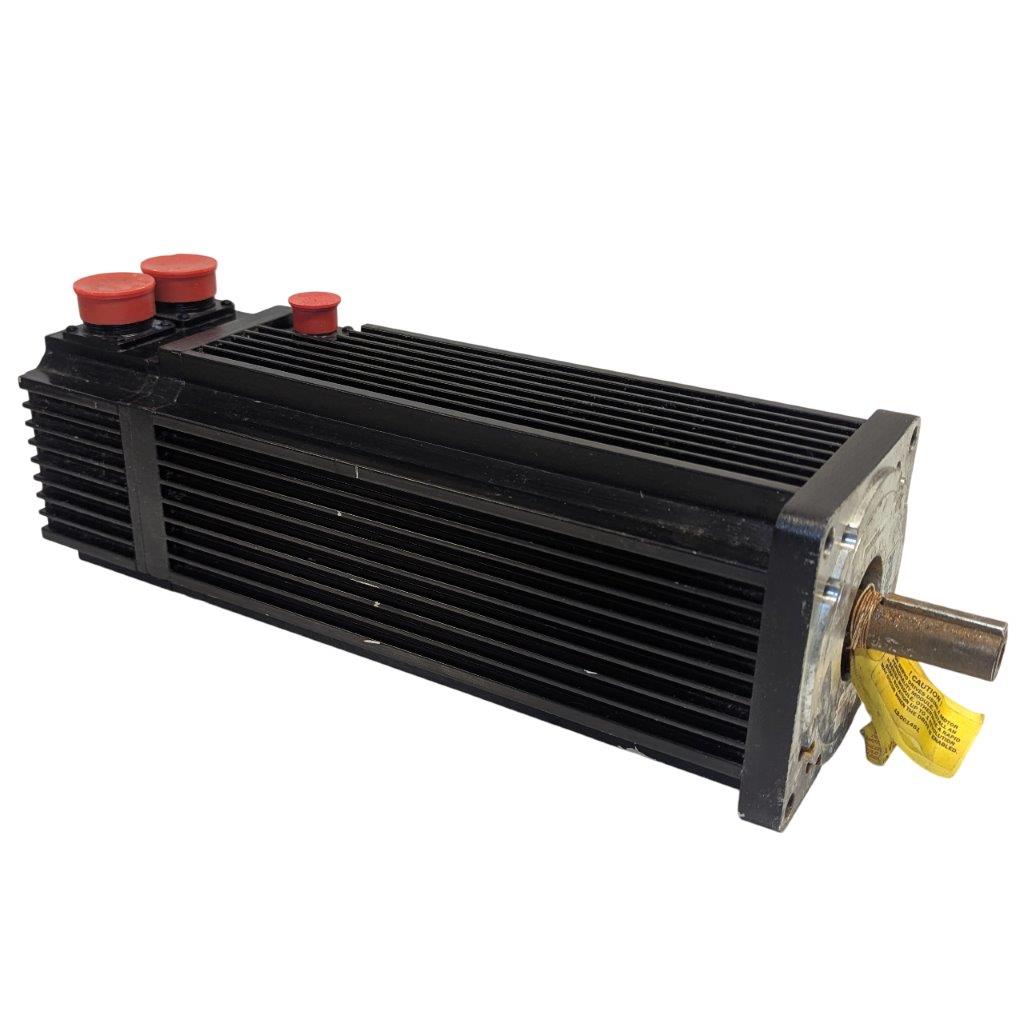

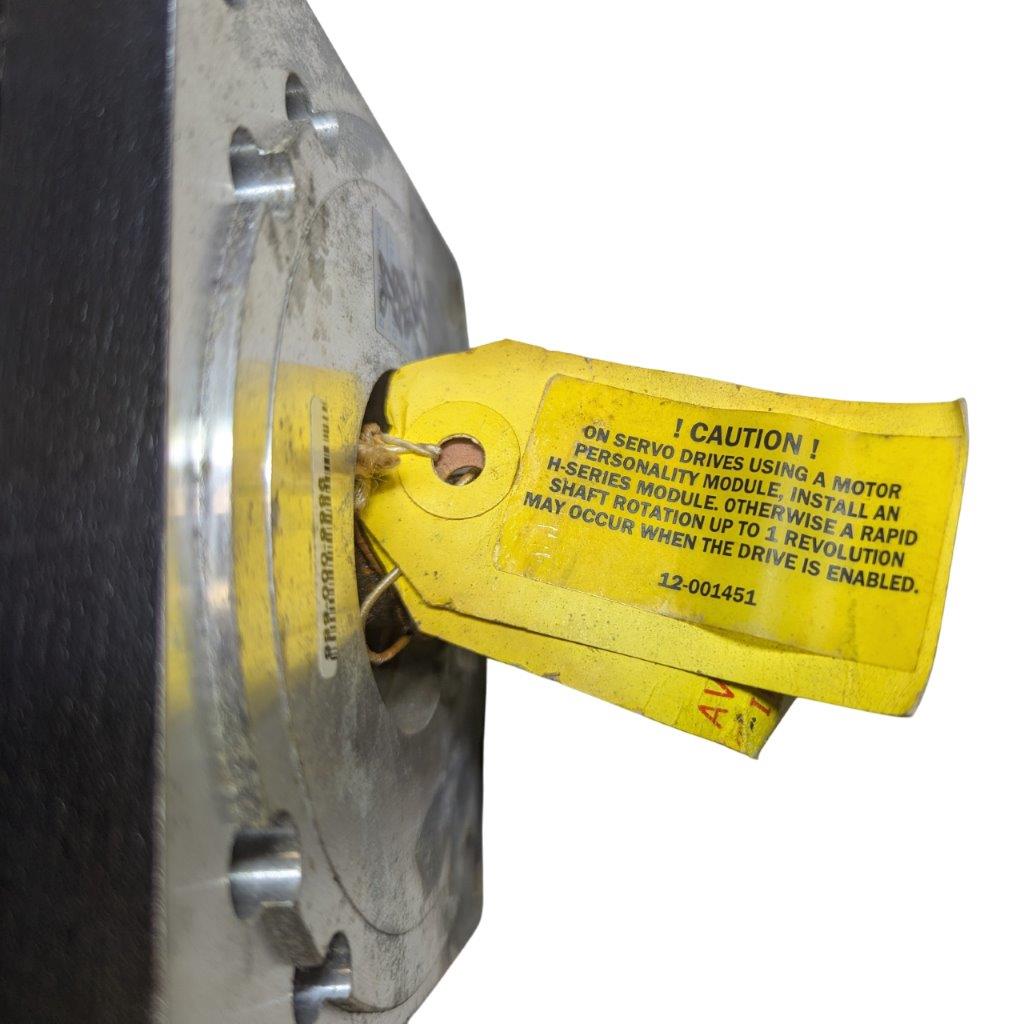

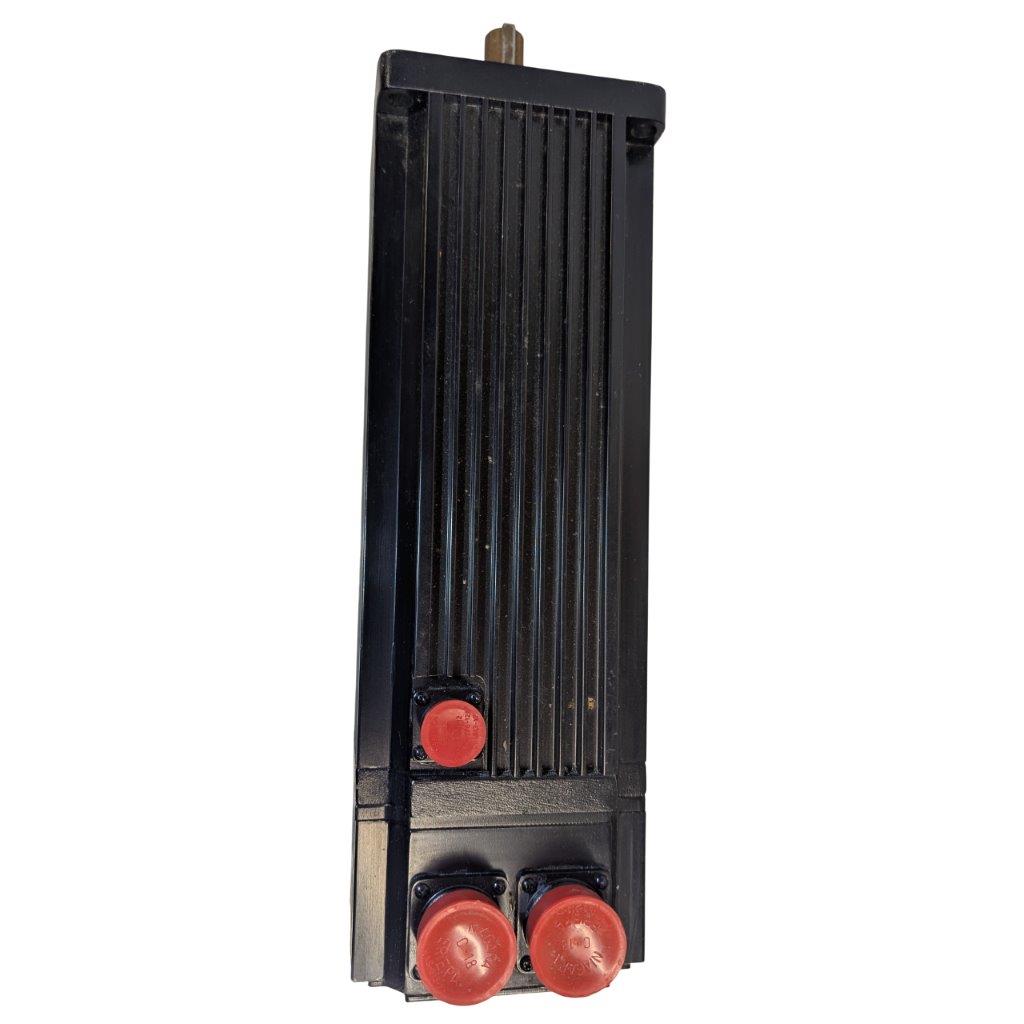

Inverter Duty AC Servo Motor Allen Bradley / Elwood H-4075-R-H04AA (P/N: 999-000-9996)

Condition: New overstock, not used. Shows some minor scratches and discoloration due to storage.

Product Overview:

The Allen Bradley / Elwood H-4075-R-H04AA is an industrial-grade inverter duty AC servo motor designed for precise and reliable performance in demanding applications. This motor is suitable for use in a variety of environments, capable of maintaining performance under continuous operation. Its 3-phase, 240V configuration and high-speed capacity make it ideal for applications requiring speed and power control. Built with durability in mind, it also features a brake stall mechanism for enhanced safety and operational control.

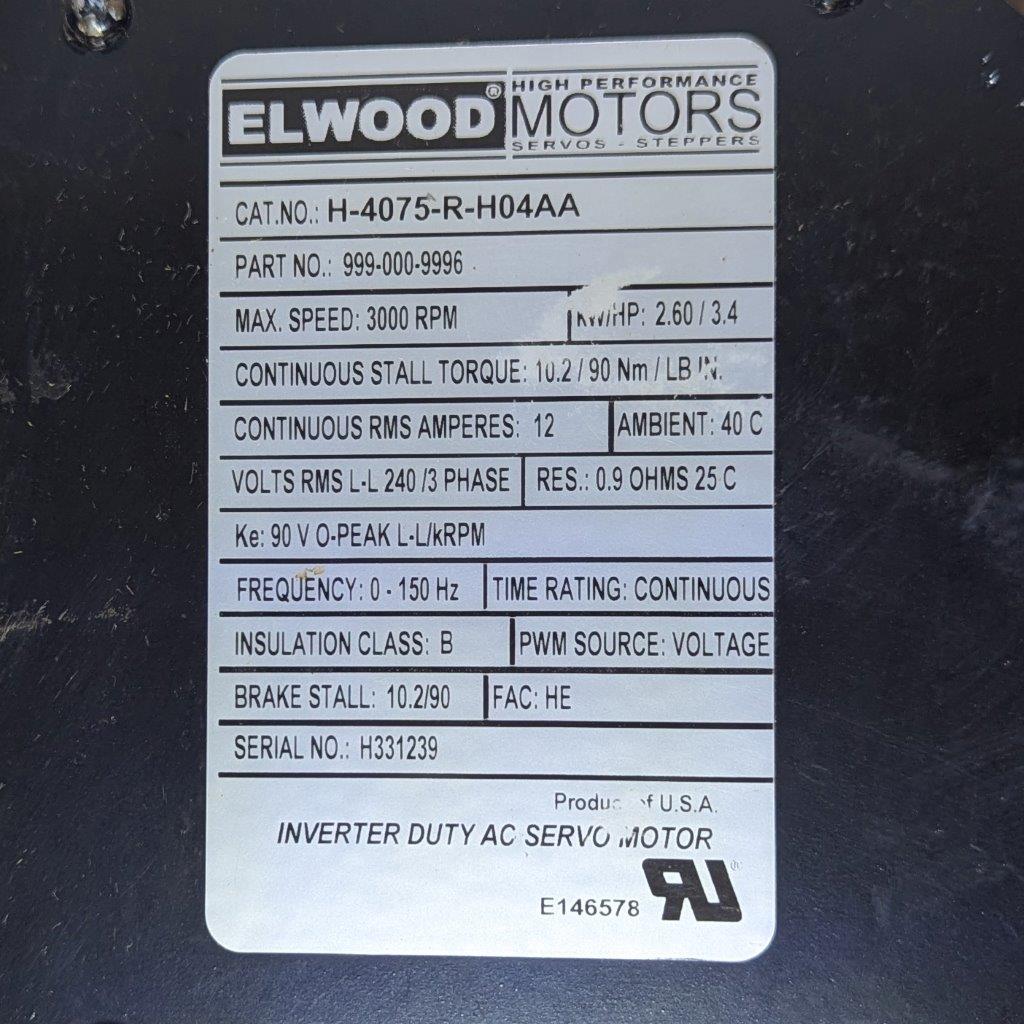

Key Specifications:

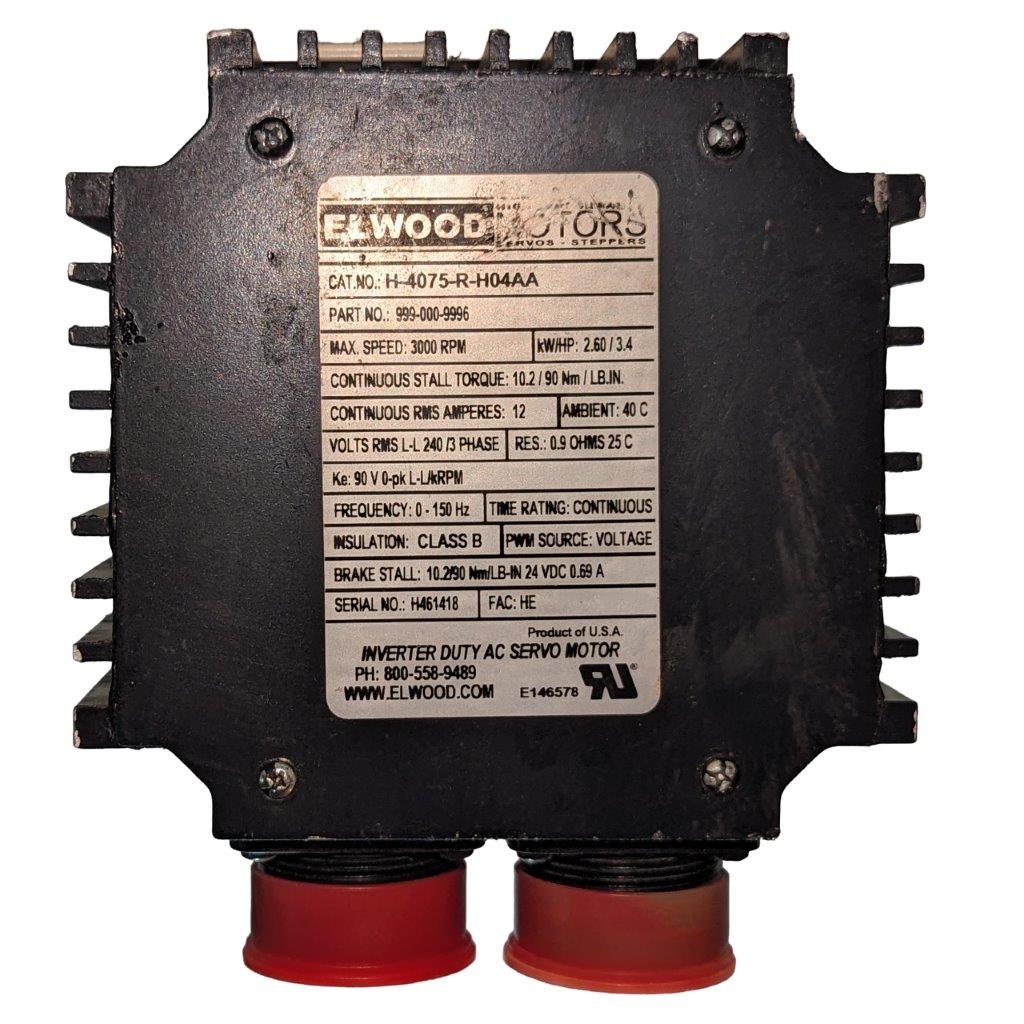

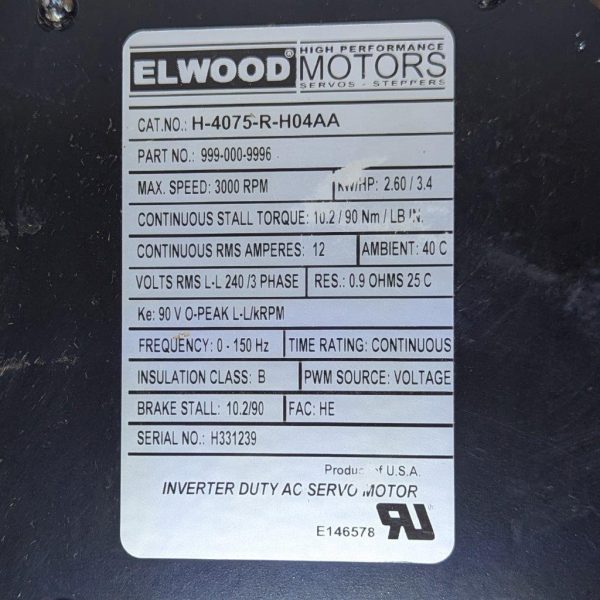

• Model: H-4075-R-H04AA
• Part Number: 999-000-9996
• Max Speed: 3000 RPM
• Power Rating: 2.6 kW / 3.4 HP
• Continuous Stall Torque: 10.2 Nm / 90 lb-in
• Continuous RMS Current: 12 Amperes
• Voltage: 240 Volts RMS (L-L) / 3-Phase
• Resistance: 0.9 Ohms (at 25°C)
• Ke: 90 V (0-pk L-L/kRPM)
• Frequency Range: 0-150 Hz
• Time Rating: Continuous operation
• Insulation Class: B
• Ambient Temperature: 40°C

Elwood’s replacement motors for Rockwell Automation/Allen-Bradley legacy servos are designed as form, fit, and function equivalents to the original models. Elwood supports a wide range of legacy series, including the F-Series, H-Series (which replaced the S-Series), N-Series, W-Series, and 1326AS Series. Additionally, Elwood’s H-Series motors are also compatible replacements for H-Series servo motors from ElectroCraft, Reliance Electric, and HSM motors from Giddings & Lewis (G&L).

Model: H-4075-R-H04AA | (H4075RH04AA) | 193476

OEM Components:

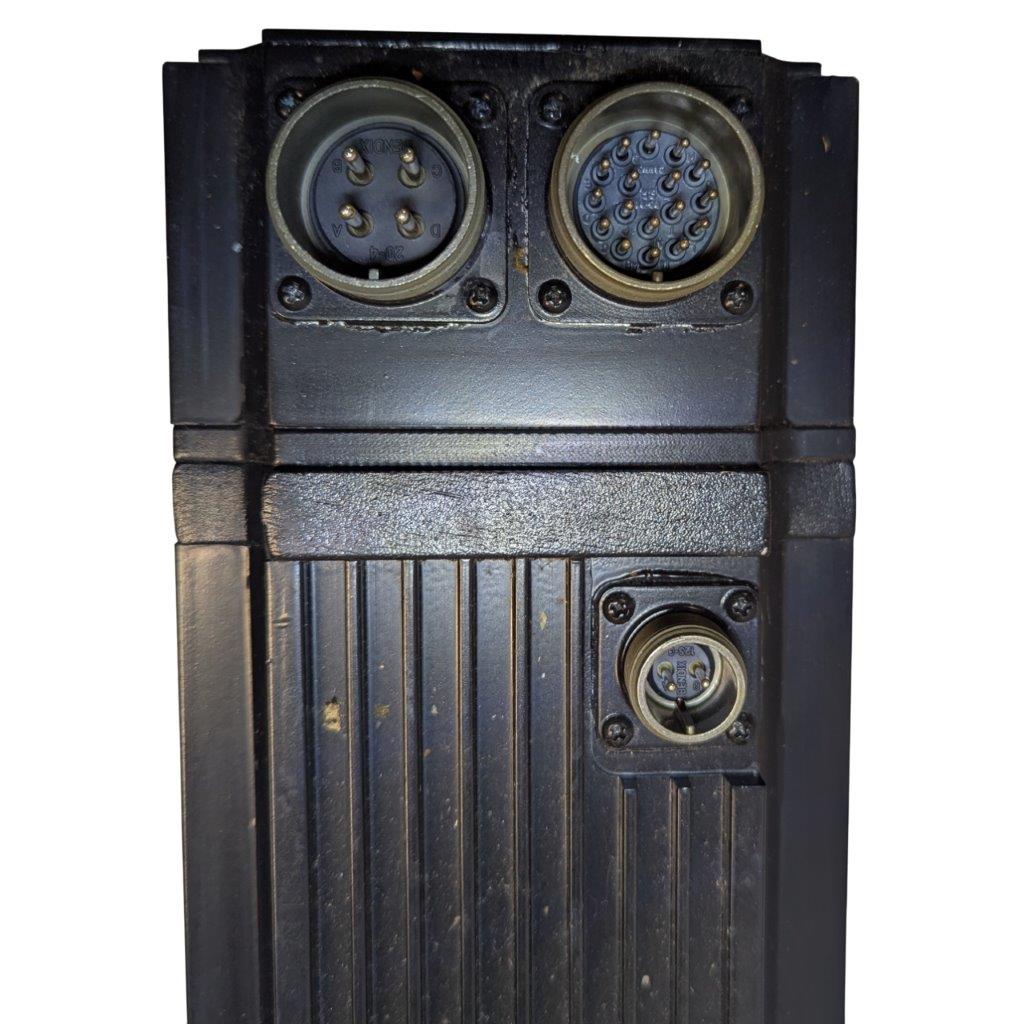

Elwood’s H-Series motors feature all original equipment manufacturer components, including windings, mounting configurations, connectors, and feedback systems that serve as direct replacements for the original motors. No modifications to hardware or software are required when replacing Rockwell Automation/Allen-Bradley motors with Elwood motors. Elwood’s H-Series is fully compatible with existing and new BRU, Ultra, Kinetix, and RSLogix systems, ensuring seamless integration.

Brake and Control Specifications:

• Brake Stall Torque: 10.2 Nm / 90 lb-in
• Brake Voltage: 24 VDC
• Brake Current: 0.69 Amperes
• PWM Source: Designed for use with Pulse Width Modulation (PWM) voltage sources for precise control.

Key Features:

• Inverter Duty Design: Engineered to handle the varying frequencies and voltages typical of inverter-based systems, ensuring efficient and controlled operation.
• High Torque Output: Capable of delivering up to 10.2 Nm continuous stall torque, ideal for applications that require consistent torque output under load.
• Durable Build: Designed with Insulation Class B for long-term performance and durability in industrial environments up to 40°C.
• Brake Mechanism: Equipped with a 24 VDC brake stall feature for secure stopping and holding, enhancing safety and operational control.

Applications:

• Automated Machinery: Suitable for CNC machines, robotics, and other automated systems requiring precise speed and torque control.
• Industrial Automation: Ideal for use in conveyor systems, packaging equipment, and other applications requiring continuous motion control.
• Pump and Fan Systems: Designed for inverter-driven pump and fan applications where consistent and reliable performance is crucial.
• Material Handling: Perfect for motors driving lifting or rotating mechanisms that require controlled motion and precise positioning.

Pros:

• High Performance: Capable of reaching up to 3000 RPM, suitable for high-speed industrial applications.
• Precision Control: PWM compatibility allows for precise control of speed and torque in demanding settings.
• Built-in Brake: 24 VDC brake for safe, controlled stopping and holding during operations.
• Durability: Engineered for continuous operation and harsh environments with its robust insulation and thermal management.

Cons:

• Cosmetic Wear: May show some scratches and discoloration due to storage, but does not affect functionality.
• Heavy-Duty Use Required: Designed primarily for industrial applications, making it less suitable for light-duty or non-industrial use.

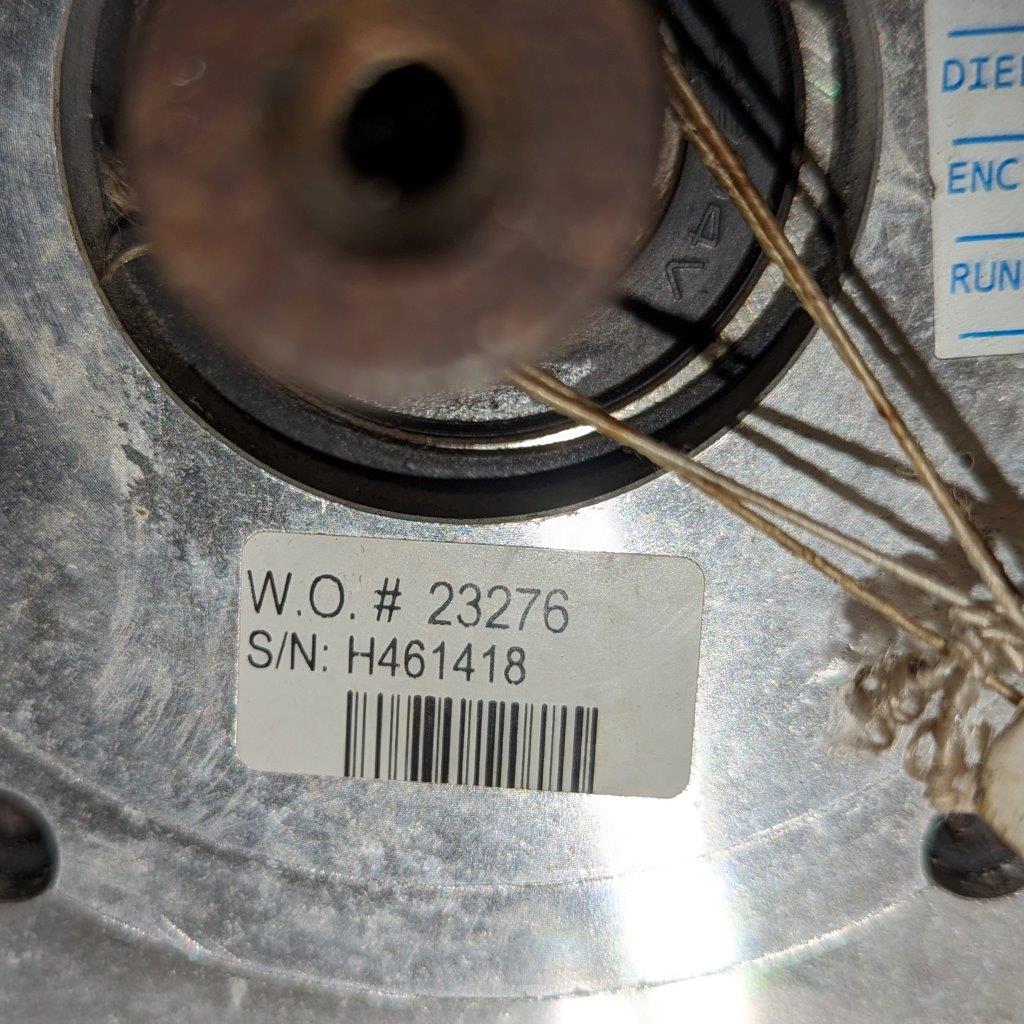

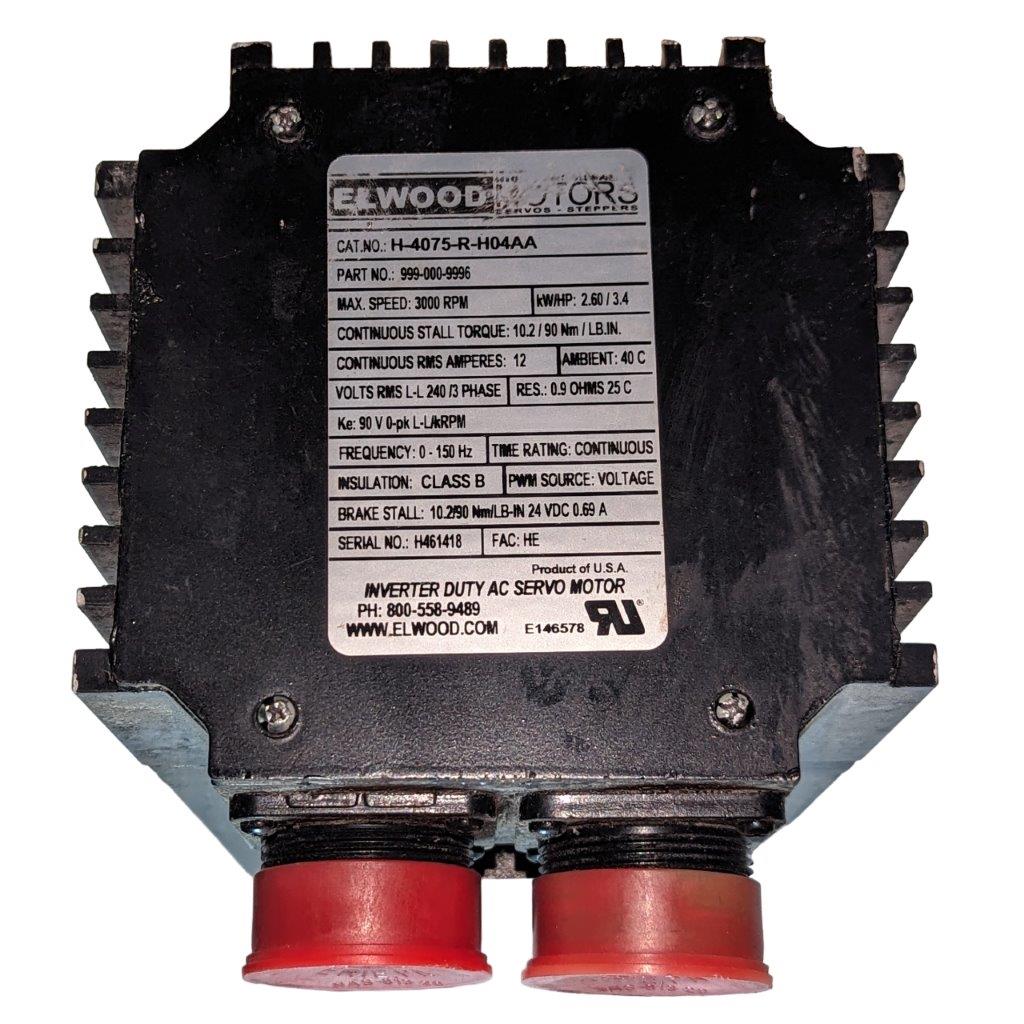

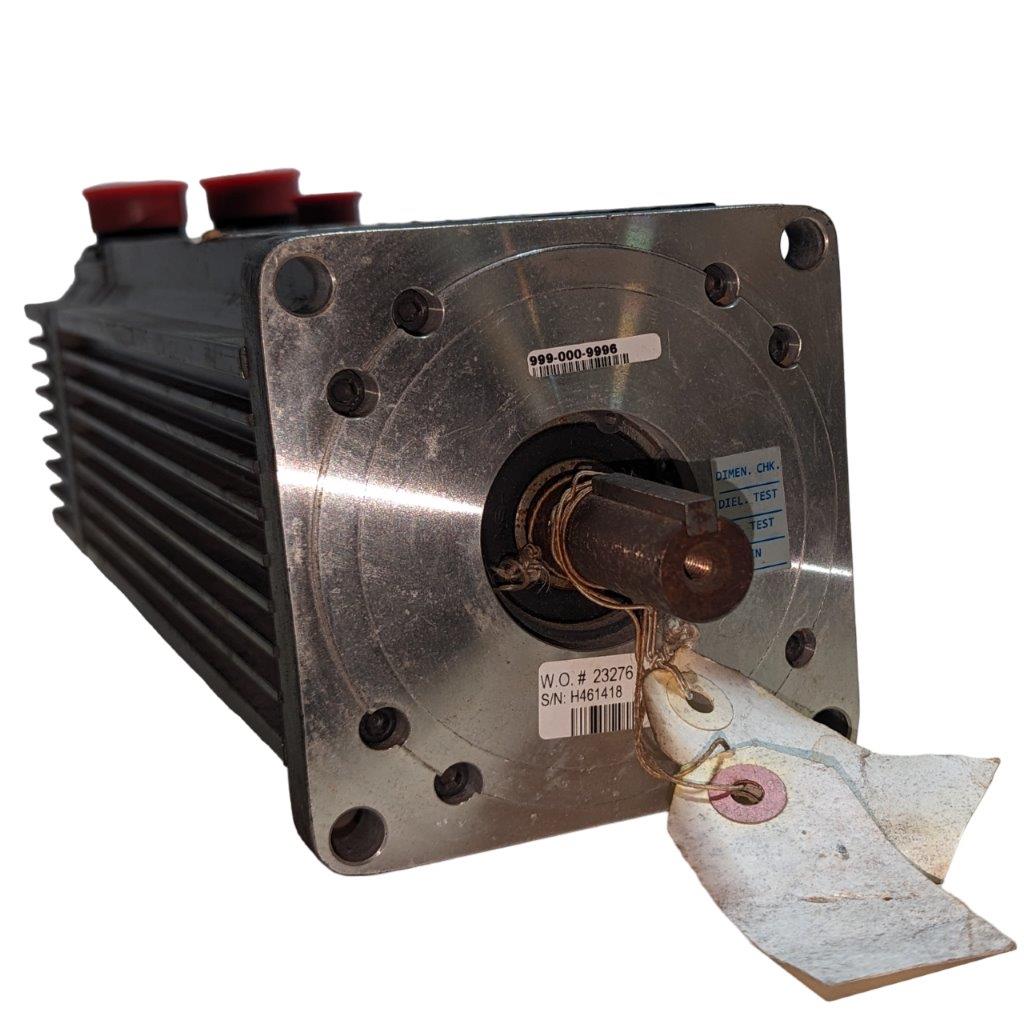

Serial Number Information:

• Serial No.: H461418
• Factory Code: HE

Disclaimer:

Allen Bradley and Elwood are trademarks of their respective owners. The use of these names is for identification purposes only and does not imply endorsement.

Relevant Models for Allen Bradley / Elwood H-4075-R-H04AA:

1. Allen Bradley H-4075-R-H05AA – A variant with different torque ratings.
2. Elwood AC Servo Motor Series – Other models offering varying voltage and torque specifications.
3. Allen Bradley MPL-B330P-MJ22AA – An alternative servo motor model with similar characteristics for comparable applications.
