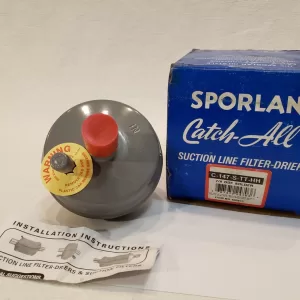

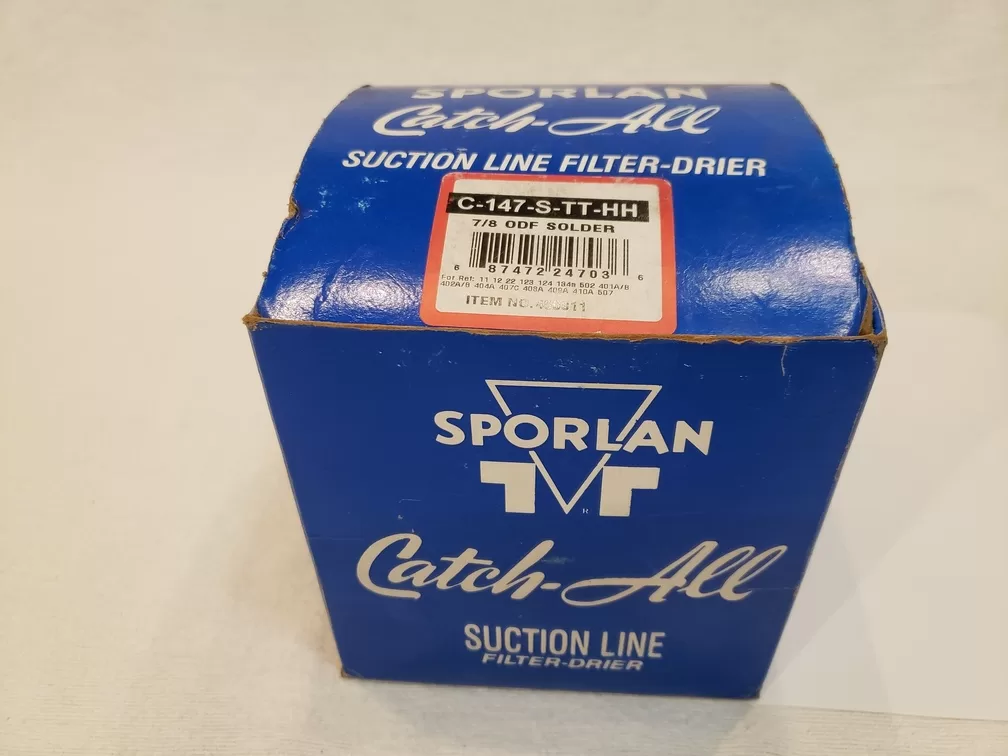

SPORLAN C-147-S-TT-HH 5116 450 psig 7/8 ODF Solder SUCTION LINE FILTER DRIER

SPORLAN C-147-S-TT-HH 5116 450 psig 7/8 ODF Solder SUCTION LINE FILTER DRIER

A brand-new, unused, undamaged item in its original packaging Sporlan Catch-All Liquid and Suction Line Filter-Driers are the choice for today’s systems with R-410A. For use with R12, R134a, R22, R404A, R407C, R410A, R500, R502, R507. No. 40811.

PROVEN BENEFITS:
Short overall length, suitable for cramped piping situations — shorter than other similar type filter-driers.
Suitable for use on 1 through 5 ton air conditioning systems, with suction line sizes in the range of 1/29 to 1-1/89. Also applicable on the common suction line of heat pump systems.

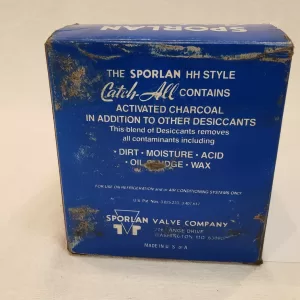

The famous Sporlan HH corer moves all types of contaminants including moisture, acid, dirt, and sludge. A blend of two desiccants, plus activated charcoal, gives maximum performance.
Access valves permit measuring the pressure drop across the filter-drier during clean-up, following a hermetic motor burnout.

APPLICATION
The short overall length of these filter-driers permit easy installation, even on systems with restricted space. While designed for the minimum possible overall length, these filter-driers are suit-able for use on most air conditioning systems. The filter-drier has two access valves for measuring the pressure drop across the filter-drier core during the clean-up process.
Heat pump systems frequently have cramped piping in the very compact cabinet. The C-140 Series Catch-All is not a reversible filter-drier, therefore it must be installed in the common suction line. The service technician needs a short suction line filter-drier to fit in this restricted space. The C-140 Series Catch-All meets this essential need.

CONSTRUCTION
The core is held in place by a leaf spring at the inlet end. Filtration occurs on the core surface, and a 100 mesh screen is used as a safety filter at the outlet end. The screen and core are sealed to the shell wall with a fiberglass pad. The threaded valve core for each access valve is supplied in a separate envelope. This way the heat sensitive valve core can be installed after brazing the Catch-All into the line. The Catch-All utilizes copper connections for ease in brazing with any type of alloy.
While designed for use in the suction line these filter-driers may be installed in the liquid line, if desired under unusual circumstances. The performance of these filter-driers in the liquid line is similar to the popular C-160 Series Catch-All Filter-Driers.

Specifications
TYPE: C-147-S-TT-HH
CONNECTION SIZE Inches ODF Solder: 7/8
OVERALL LENGTH: 4.97 Inches (126mm)
SOLDER SOCKET DEPTH: 0.75 Inches (19mm)
DIAMETER OF BODY: 4.44 Inches (113mm)
SHIPPING WEIGHT: 2.0 lb (0.9kg)

Refrigerant Type: R-507 R-12 R-404A R-22 R-410A R-134A
