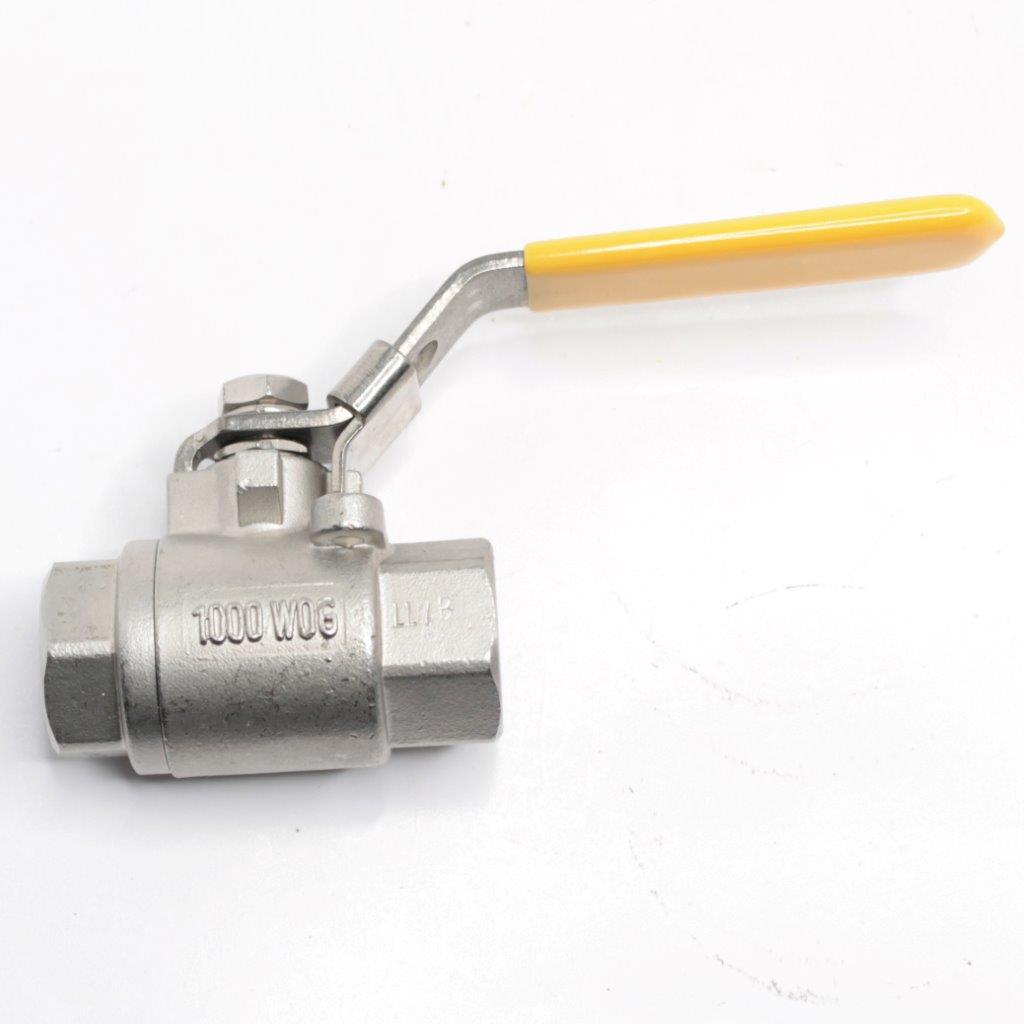

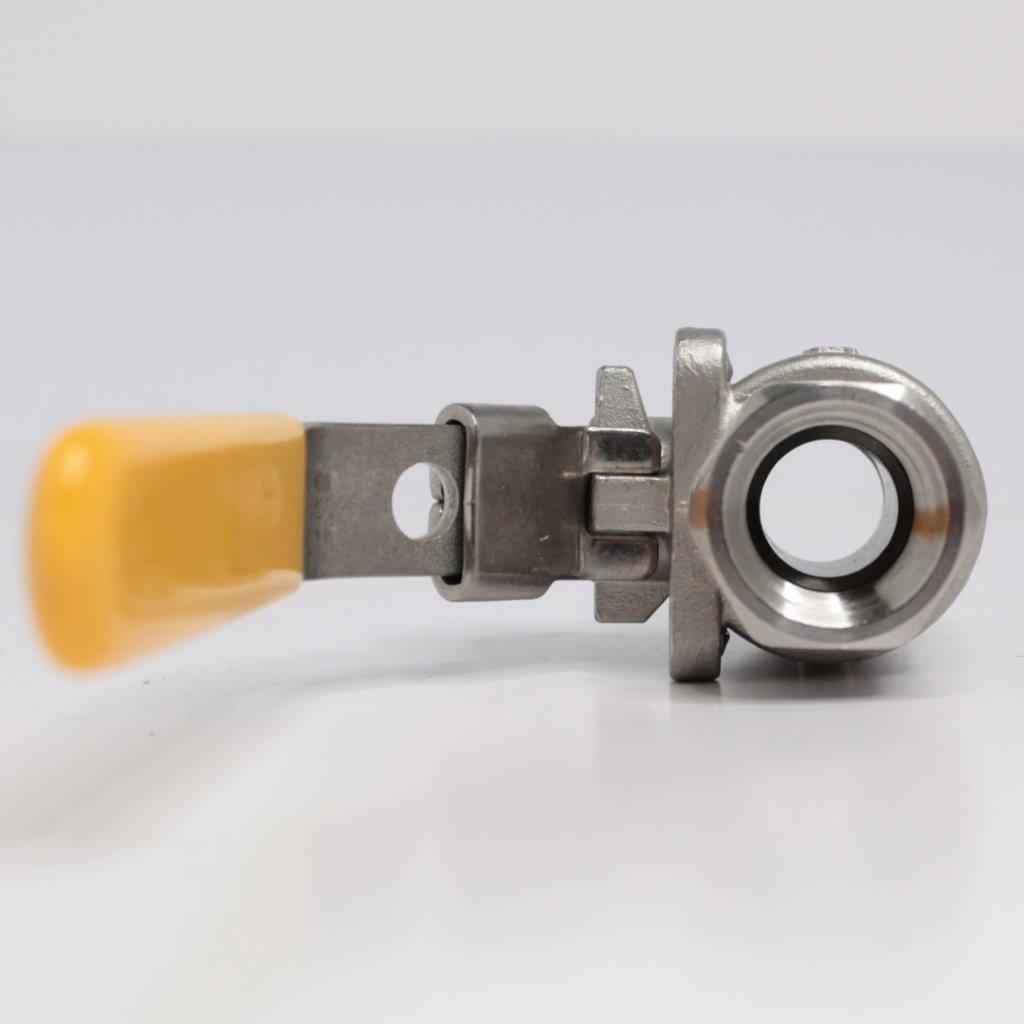

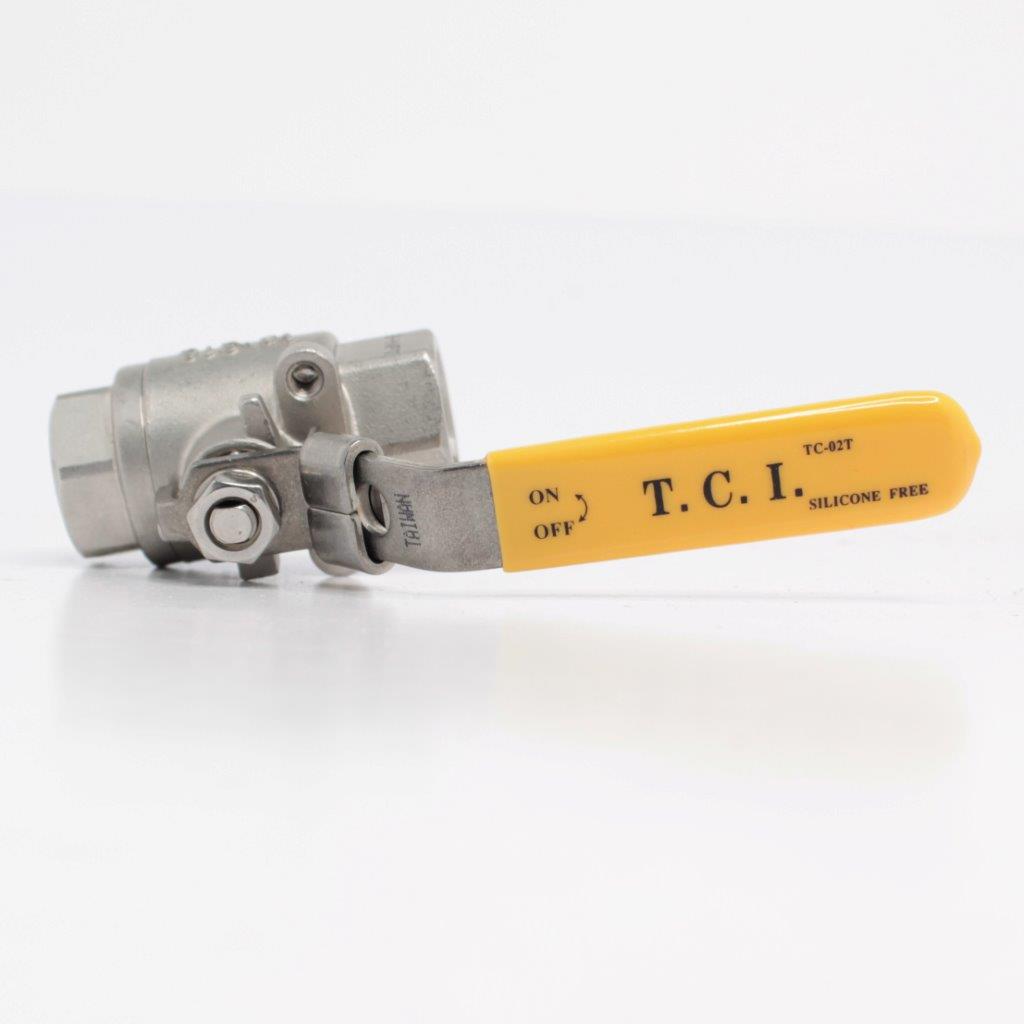

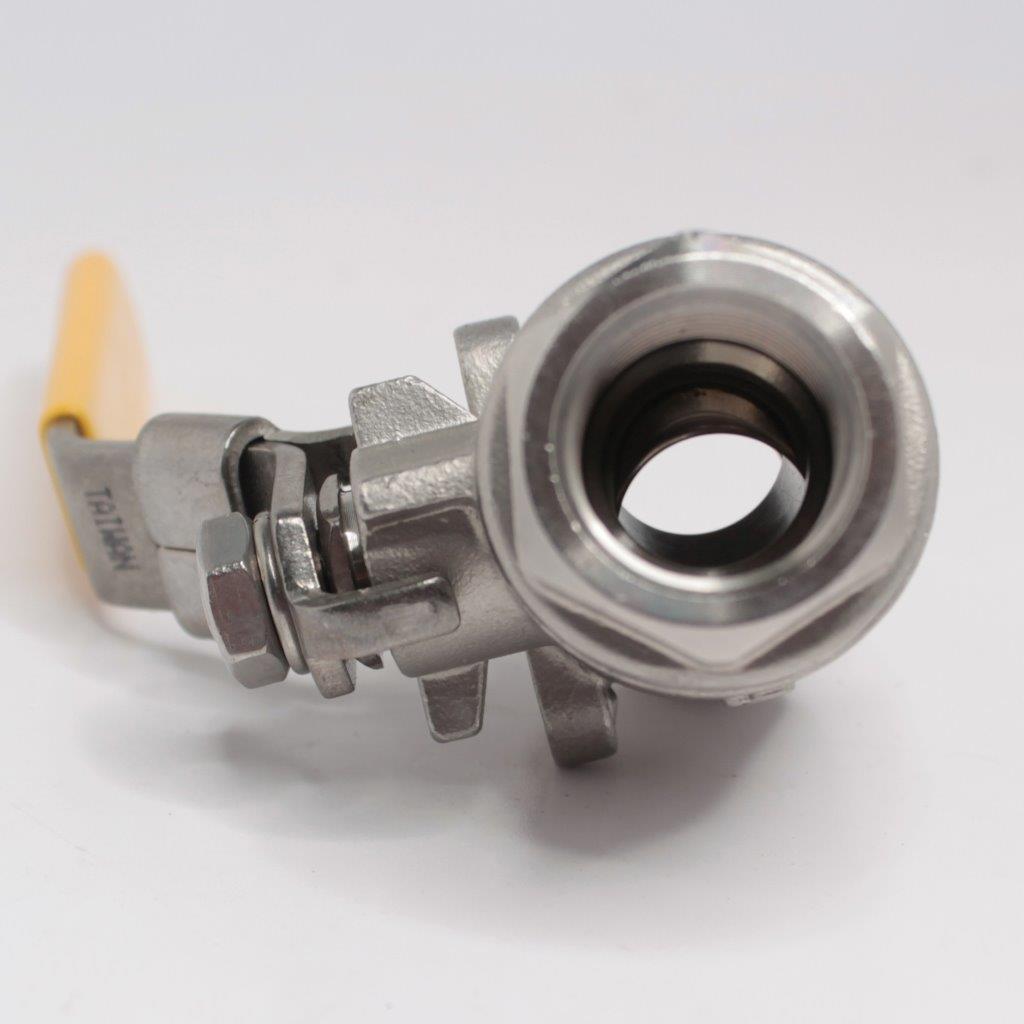

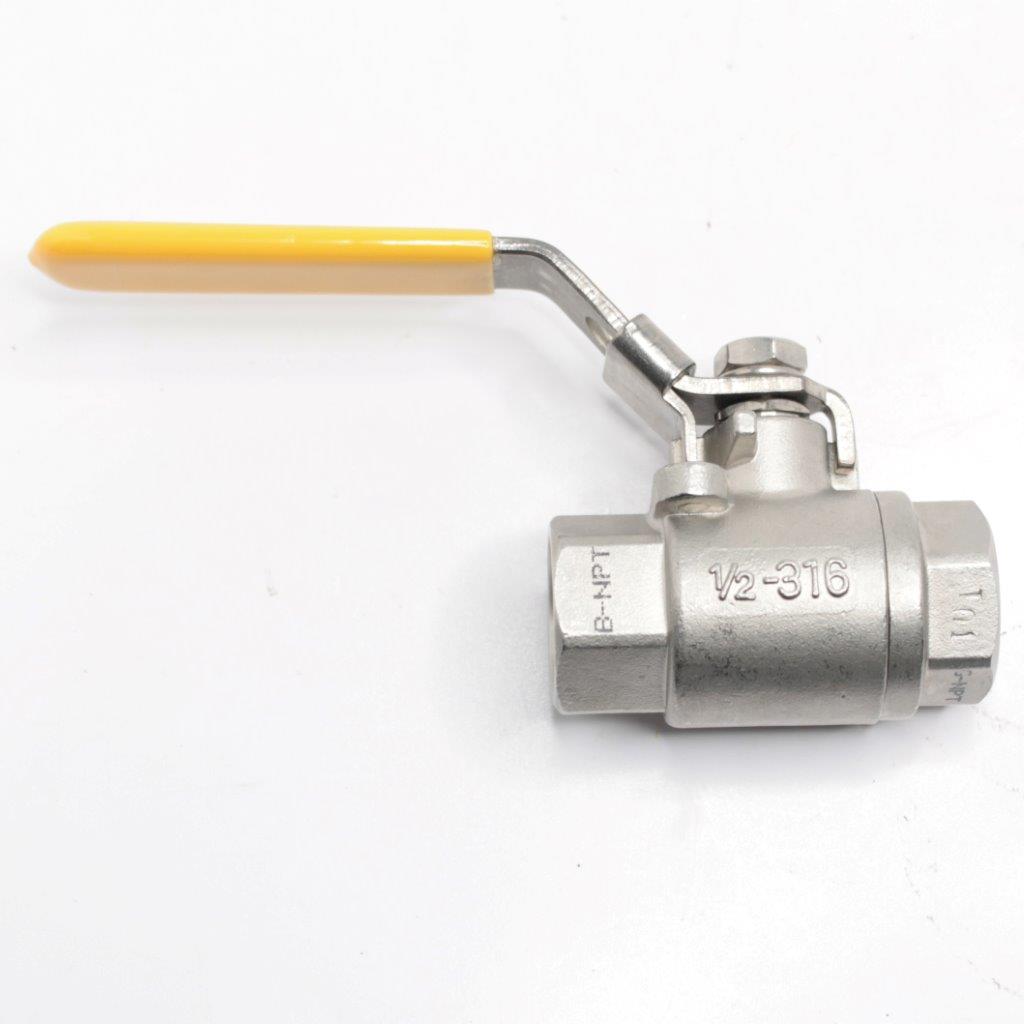

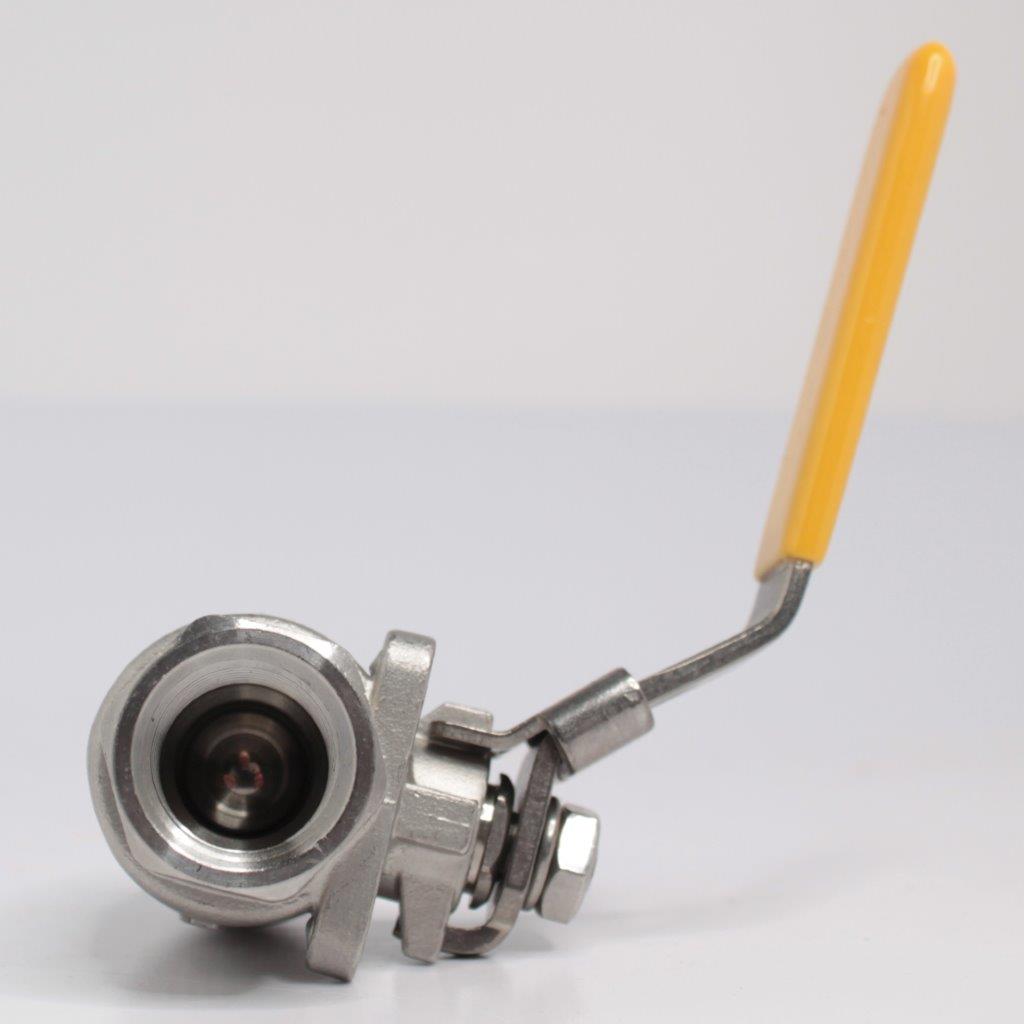

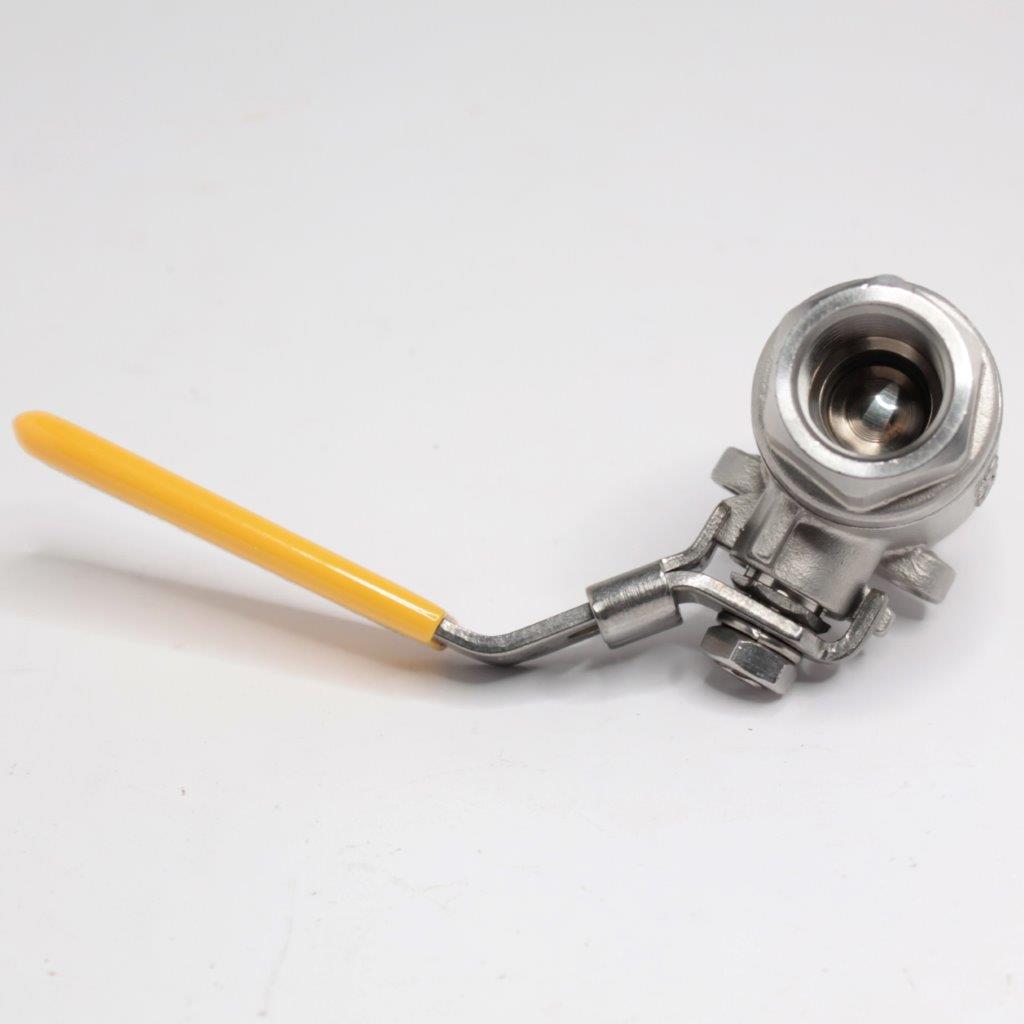

Stainless Steel Ball Valve TCI model TC-02T 1/2 inch 1000WOG

The provided details describe a high-quality stainless steel ball valve designed for various industrial applications. The valve is engineered to handle high pressures and is silicone-free, making it suitable for environments where silicone contamination must be avoided.

Product Specifications:

• Type: Stainless Steel Ball Valve
• End Connections:
  • b-NPT: British National Pipe Thread
  • G-NPT: General National Pipe Thread
• Size: 1/2 inch
• Material: 316 Stainless Steel
• Pressure Rating: 1000 WOG (Water, Oil, Gas)
• Model: LL7B
• Manufacturer: T.C.I.
• Model Number: TC-02T
• Special Feature: Silicone-free

Key Features:

• High-Quality Material: Made from 316 stainless steel, known for its excellent corrosion resistance and durability.
• Wide Application Range: Suitable for use with water, oil, and gas (WOG) systems, capable of handling pressures up to 1000 psi.
• NPT Threads: Features NPT threads for reliable and secure connections.
• Silicone-Free: Designed to be silicone-free, preventing contamination in sensitive applications such as food processing, pharmaceuticals, and other industries where silicone presence is a concern.
• Compact Design: The ball valve has a compact and robust design, ensuring reliable performance in various industrial settings.

Applications:

• Industrial Systems: Ideal for controlling the flow of water, oil, and gas in industrial pipelines.
• Food and Beverage Industry: Suitable for use in food processing systems where contamination must be avoided.
• Pharmaceuticals: Perfect for pharmaceutical manufacturing and processing environments.
• Chemical Processing: Can be used in chemical plants due to its high corrosion resistance and durability.
• General Purpose: Suitable for general-purpose use in commercial and residential plumbing systems.

General Installation and Setup:

1. Preparation:
   • Ensure all parts are clean and free from debris before installation.
   • Verify that the valve and piping system are compatible in terms of size and thread type (b-NPT or G-NPT).
2. Connecting the Valve:
   • Apply thread sealant or Teflon tape to the male threads of the piping to ensure a tight seal.
   • Hand-tighten the valve onto the piping, then use a wrench to secure the connection further, avoiding over-tightening which could damage the threads or the valve.
3. Testing the Connection:
   • Once installed, test the valve by opening and closing it several times to ensure smooth operation.
   • Pressurize the system and check for leaks around the connections. Tighten if necessary.
4. Operational Testing:
   • Operate the valve under normal working conditions to ensure it performs correctly and there are no leaks or operational issues.

Maintenance Tips:

• Regular Inspection: Periodically check the valve for signs of wear, corrosion, or leaks.
• Cleaning: Keep the valve clean and free from debris to ensure smooth operation.
• Lubrication: If required, lubricate the valve stem and ball with an appropriate lubricant that is compatible with the media being handled.
• Replacement: Replace any worn or damaged parts promptly to maintain system integrity and safety.

Safety and Compliance:

• Handling: Handle the valve with care to avoid damaging the threads and internal components.
• Compatibility: Ensure that the valve is compatible with the media (water, oil, gas) and pressure requirements of your system.
• Installation: Follow proper installation procedures to prevent leaks and ensure a secure, reliable connection.

The Stainless Steel Ball Valve (LL7B, TC-02T) is a robust and versatile component suitable for a wide range of industrial applications. Its high-quality 316 stainless steel construction, high pressure rating, and silicone-free design make it an ideal choice for environments requiring stringent contamination control and reliable performance. Proper installation and regular maintenance will ensure the valve’s long-term reliability and optimal operation.
