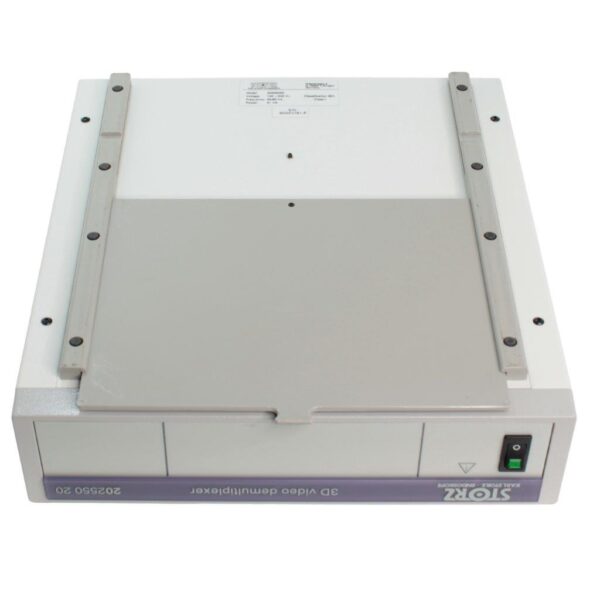

Karl Storz Endoscopy 202550 20 3D Video NTSC PAL Demultiplexer

$490.00

1 in stock

Condition: Used, appears to be working

The Karl Storz Endoscopy 202550 20 3D Video NTSC PAL Demultiplexer is a specialized medical device used to manage and display 3D endoscopic video outputs. It offers compatibility with both NTSC and PAL video formats and supports separate outputs for the left and right eye video feeds. This device is essential for providing clear and distinct 3D video feeds, which are critical for detailed endoscopic procedures.

Product Specifications:

  • Model: Karl Storz Endoscopy 202550 20
  • Type: 3D Video NTSC PAL Demultiplexer
  • Compatibility: NTSC and PAL video formats

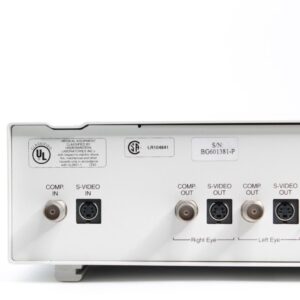

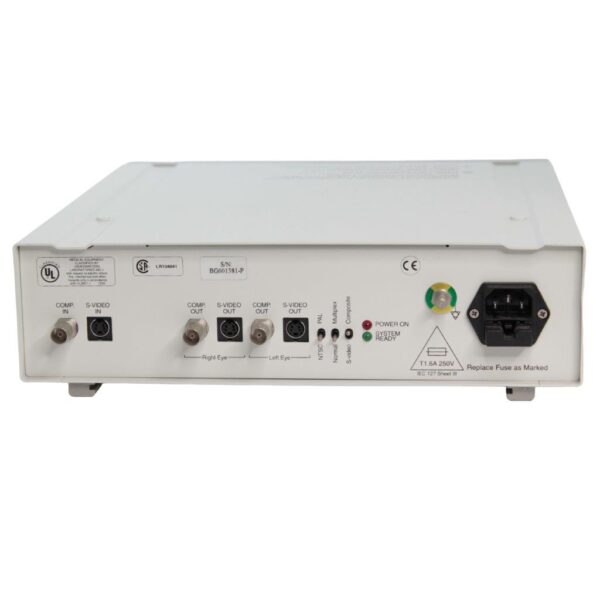

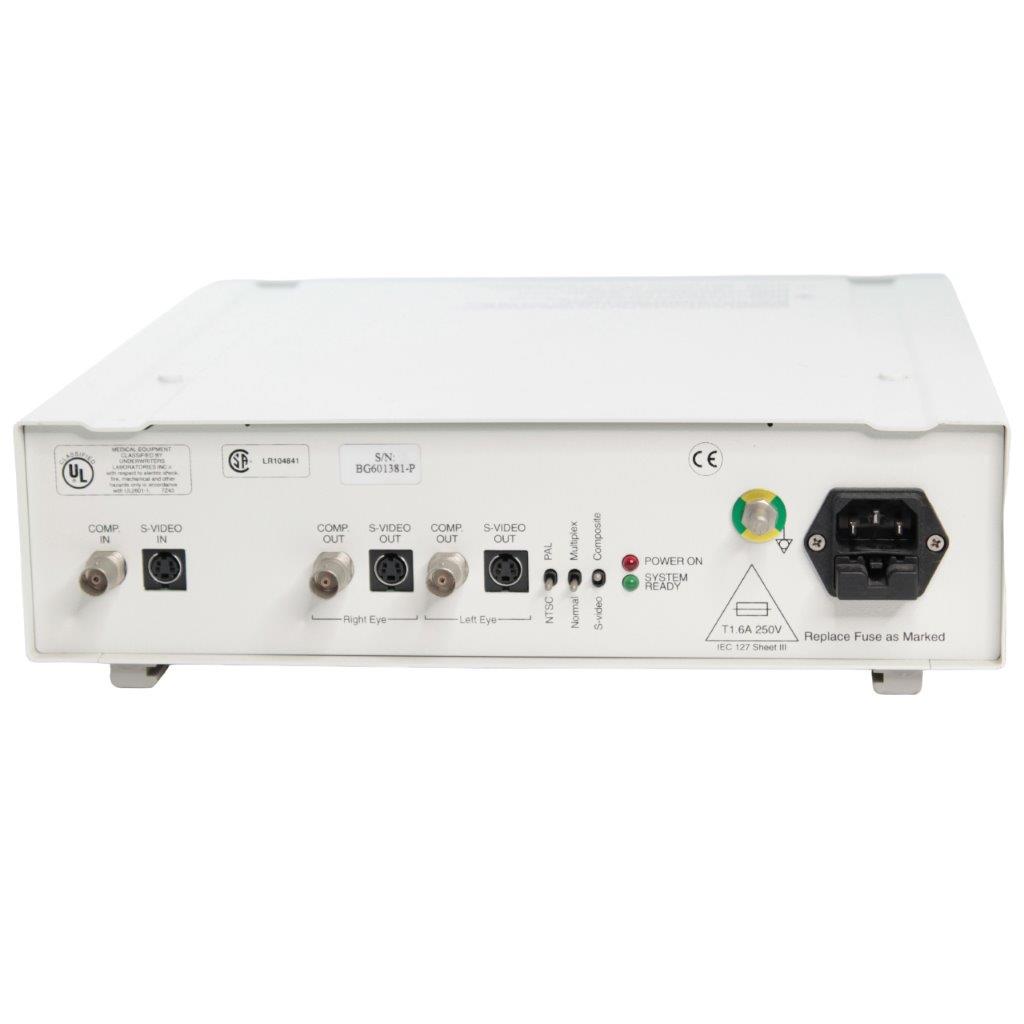

  • Outputs:
    • Right Eye: 1x Composite, 1x S-Video
    • Left Eye: 1x Composite, 1x S-Video
  • Switches:
    • NTSC/PAL Switch
    • Normal/Multiplex Switch
    • S-Video/Composite Switch
  • Condition:
    • Working condition: Pulled from a working environment
    • Physical condition: Good, with minor scuffs, scratches, and cosmetic marks on the chassis
  • Included Parts: Power cable only
  • Not Included: User Guide, Accessory Cables
  • Warranty: Minimum 60 Day money back warranty (minus shipping)

Features:

  • Dual Video Outputs: Provides separate outputs for left and right eye video feeds, essential for 3D endoscopy.
  • Format Compatibility: Supports both NTSC and PAL video formats, making it versatile for various regions and equipment.
  • Switches for Flexibility: Includes multiple switches to easily toggle between video formats and output types.
  • Reliable Performance: Tested to power on, ensuring functionality in a medical setting.

Applications:

  • Medical Endoscopy: Used in medical procedures to display 3D endoscopic video feeds, providing clear and detailed visuals for surgeons and medical professionals.
  • Training and Education: Useful in medical training environments to demonstrate 3D endoscopic techniques and procedures.
  • Research: Applicable in medical research for detailed visual studies of endoscopic procedures.

Installation and Setup:

  1. Power On: Connect the power cable to the device and plug it into a power source. Verify that the device powers on.
  2. Connecting Outputs: Use composite or S-Video cables to connect the right and left eye outputs to your display or recording equipment.
  3. Setting Video Format: Use the NTSC/PAL switch to select the appropriate video format for your equipment and region.
  4. Choosing Output Type: Select between S-Video and Composite outputs using the S-Video/Composite switch.
  5. Normal/Multiplex Mode: Use the Normal/Multiplex switch to toggle between the modes based on your specific needs.

Maintenance and Care:

  • Regular Cleaning: Wipe the chassis with a soft, dry cloth to remove dust and prevent buildup.
  • Inspect Connections: Regularly check the video output connections to ensure they remain secure and free from damage.
  • Firmware Updates: Check for any firmware updates or manufacturer recommendations to ensure optimal performance.

Warranty and Return Policy:

  • Warranty: This device includes a minimum 60-day money-back warranty, excluding shipping costs. This warranty covers functionality issues but not cosmetic damage.
  • Return Policy: If the device fails to perform as expected within the warranty period, contact the seller to arrange for a return and refund.

Conclusion:

The Storz Endoscopy 202550 20 3D Video NTSC PAL Demultiplexer is a reliable and versatile device essential for 3D endoscopic video management. Its support for both NTSC and PAL formats and dual video outputs make it a valuable tool in medical and educational environments. Ensure you have the necessary accessory cables and user guide for optimal use.



NL27f

Weight 7 lbs
Dimensions 15 × 13 × 5 in
