Supco SRL260 260f Thermostat Manual Reset

$6.00

We might NOT have it anymore

Add to Wishlist
Compare
UPC: 687152153282

Supco SRL260
For sale is Supco SRL Small Manual Rollout Limit Thermostat, SPST, 260 deg F. Call to inquire 773-234-5l55.

DESCRIPTION
The SRL series of 1/2 in bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

SPECIFICATIONS:
Amperage Rating: 3/1.5 amp Inductive, 15/10 amp Resistive
Brand Name: Supco
Connection Type: 1/4 Inch Vertical
Item Name: Limit Thermostat
Series: SRL
Switch Type: SPST
Temperature Rating: 260 deg F
Type: Small Manual Rollout
VA Rating: 125 VA Pilot Duty

FEATURES:
Offered in a broad temperature range to cover most heating applications
36T electrical ratings
Auto and manual reset
Manual rollout safety in gas fired furnaces, unit heater and roof top units
3 amp at 120 VAC/1.5 amp at 240 VAC Full Load
15 amp at 120 VAC, 10 amp at 240 VAC resistive

NCLUDED IN PURCHASE:
New, unused, unopened,item in original package Supco SRL260
Brand: Supco
UPC: 687152153282

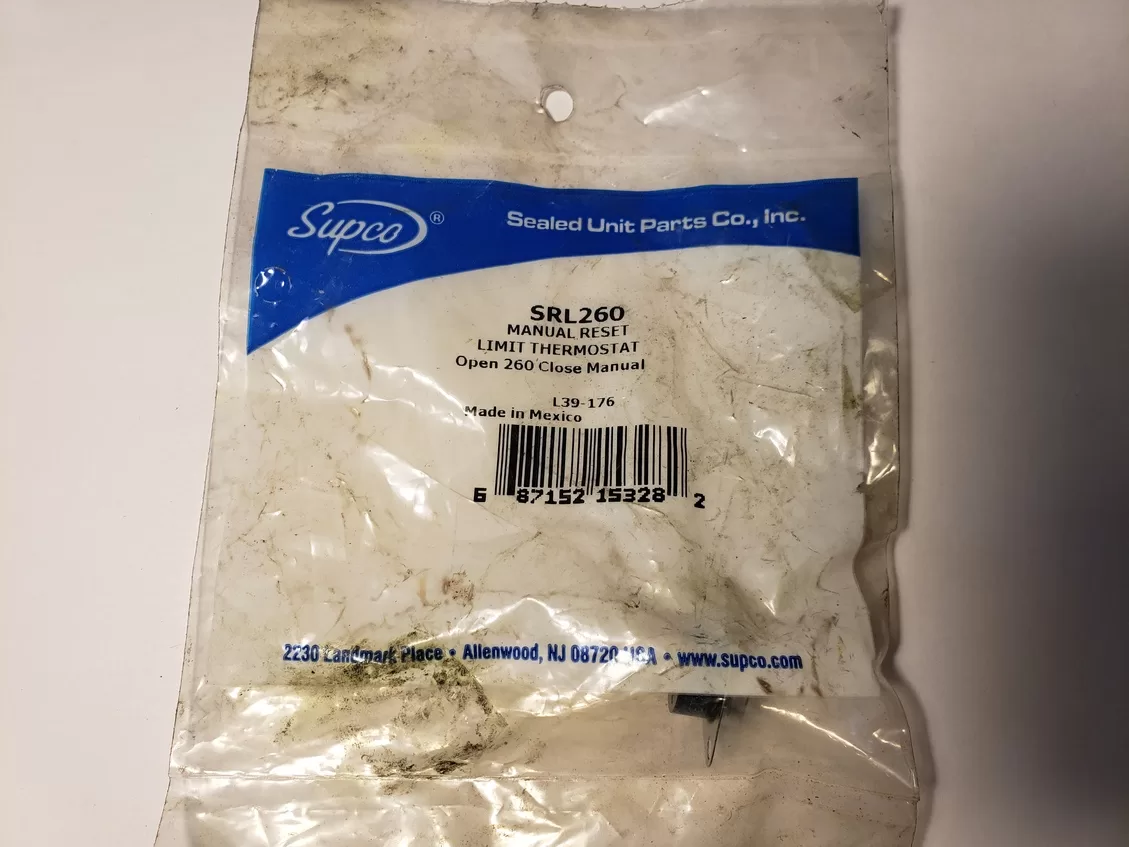

Please see pictures for further details (click to enlarge)

Weight 1 lbs
Dimensions 7 × 7 × 2 in
