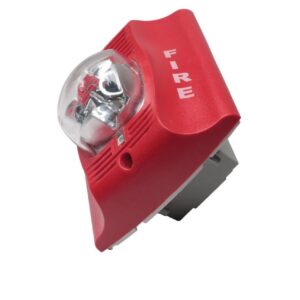

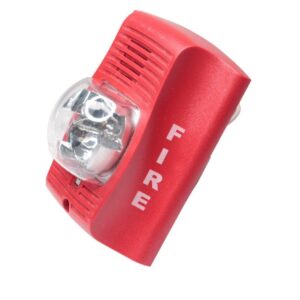

System Sensor P2RHK-120 2-Wire Horn Strobe, High cd, Red, Outdoor NO Waterproof box

System Sensor P2RHK 2-Wire Horn Strobe, High cd, Red, Outdoor, NO Waterproof box

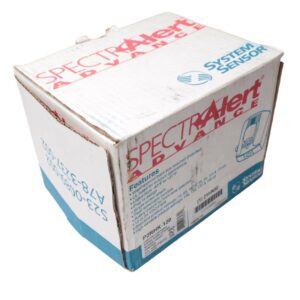

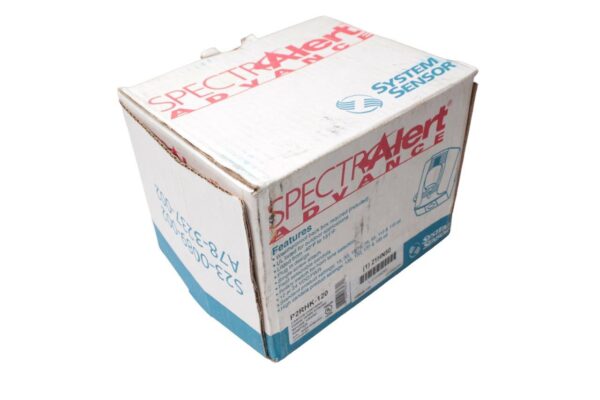

New: A brand-new, unused, undamaged item in its original packaging.

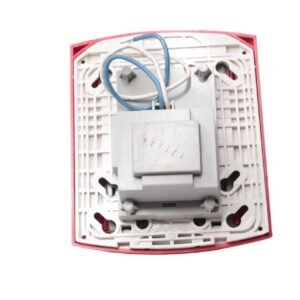

Waterproof box container and mounting screws are missing. Only what is in the pictures is included.
Weatherproof backbox code is MWBB and Alarm Wall Back Box is BBS-2 for indoor use (not included).

Description:
SpectrAlert® Advance outdoor audible visible products are rich with features that cut installation times and maximize profits.
– Weatherproof per NEMA 4X, IP56
– Listed to UL 1638 (strobe)
– Compatible with System Sensor synchronization protocol and legacy SpectrAlert products
– Field-selectable candela settings: 15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185
– Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
– Rotary switch for horn tone and three volume selections
– Horn rated at 88+ dBA at 16 volts
– Rated from –40°F to 151°F
– Universal mounting plate with an onboard shorting spring that tests wiring continuity before devices are installed
– Plug-in design with minimal intrusion into the back box
– Tamper-resistant construction
– Listed for ceiling or wall mounting

Specifications:
Brand: System Sensor
Model: P2RHK
SKU: P2RHK
UPC: 783863032790

SpectrAlert Advance presents the most comprehensive range of outdoor horns, strobes, and horn strobes available in the industry. Offering options with white or red plastic housings, suitable for wall or ceiling mounting, and featuring plain or FIRE-printed designs, SpectrAlert Advance accommodates nearly every application need. This versatility extends to various environments, including indoor, outdoor, wet, and dry settings, with an operational temperature range spanning from -40°F to 151°F.

Much like the entire SpectrAlert Advance lineup, the outdoor horns, strobes, and horn strobes designed for wall installations boast a multitude of features that enhance flexibility and simplify installation. To begin, installers can take advantage of field-selectable settings, such as candela intensity, automatic voltage selection between 12- or 24-volt operation, horn tone options, and three volume levels. This adaptability empowers installers to easily tailor devices to suit specific requirements.

Additionally, SpectrAlert Advance devices utilize a universal mounting plate for both wall and ceiling placements. This mounting plate incorporates an integrated shorting spring that guarantees wiring continuity before the devices are mounted. This enables installers to verify proper wiring without subjecting the devices to potential construction-related damage. Once the mounting plates are in place, the installation process is expedited through a plug-in design that utilizes a single secured screw, significantly reducing the likelihood of costly ground faults.
