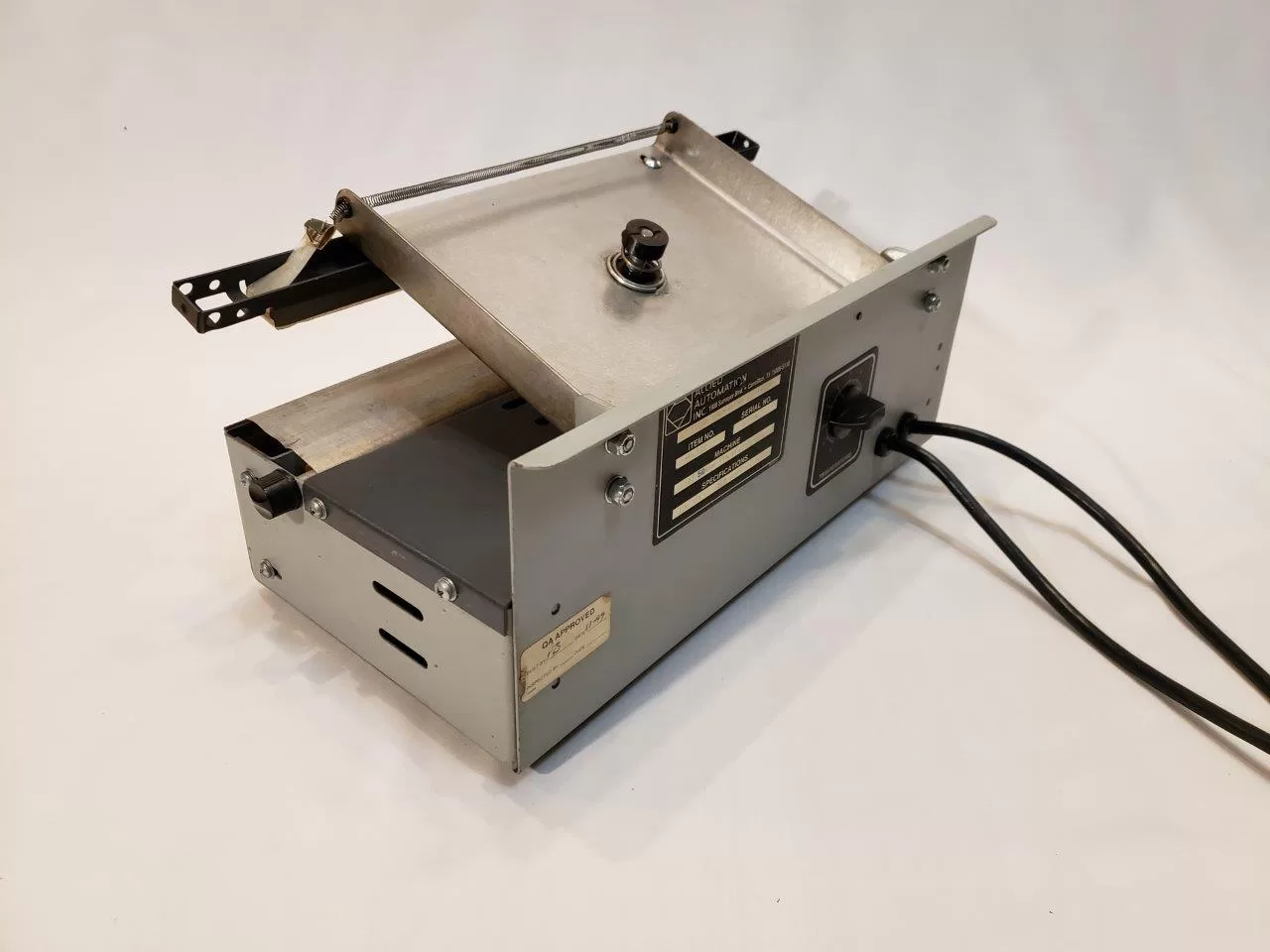

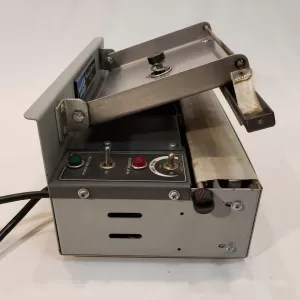

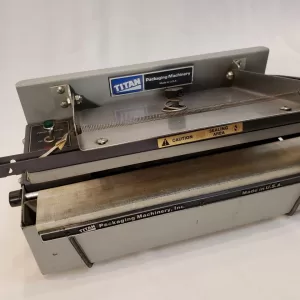

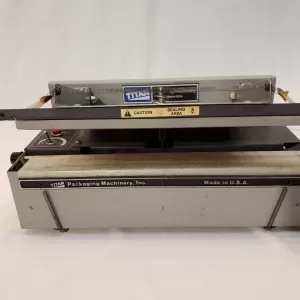

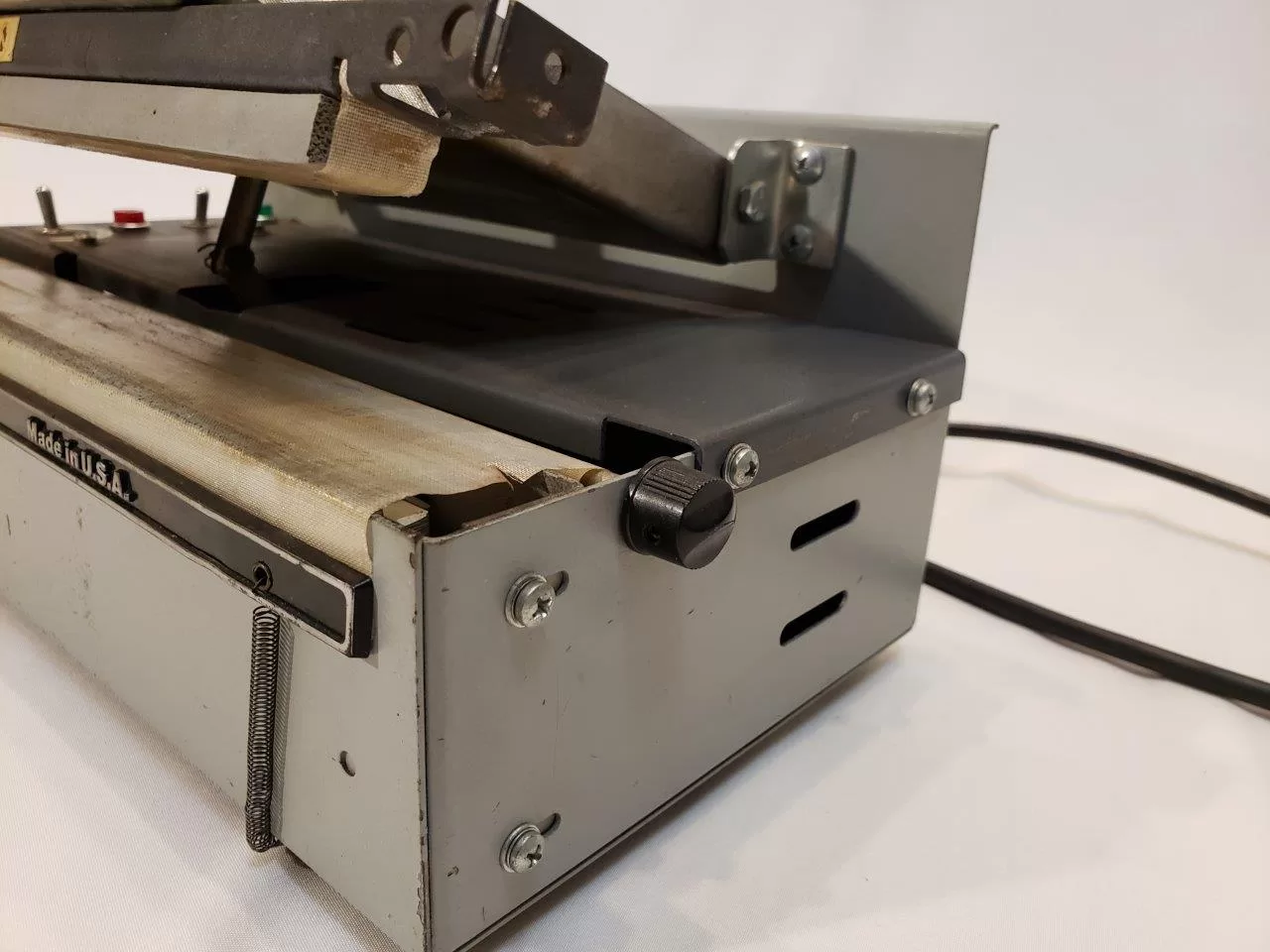

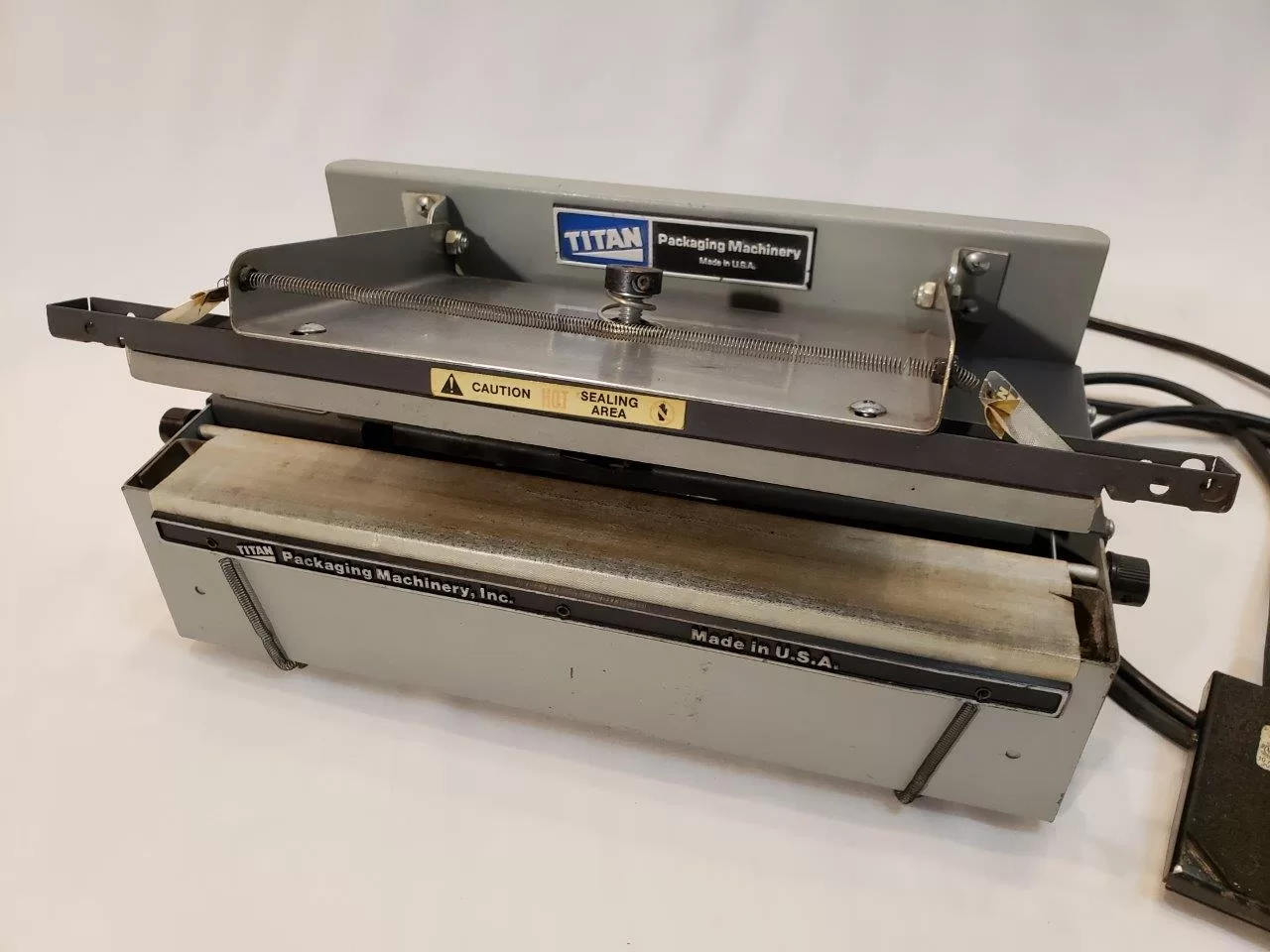

Titan Electro-Sealer 312T 902122 12″ Bar Type Heat Sealer 120VAC 5A

Titan Electro-Sealer 312T 902122 12″ Bar Type Heat Sealer 120VAC 5A

Titan Electro-Sealers ensure consistent heat seals on polyethylene, anti-stat, aircraft, bubble laminate and other thermoplastic materials up to30-mil total thickness. Electro-Sealers make airtight seals on almost any thermoplastic film through wrinkles, folds or gussets and the wide seal, is generally stronger than the bag itself. This series is available as a single 1/8″ (3mm) wide bar sealer, as a single trim sealer, as a double 1/8″ (3mm) bar sealer or as a double sealer with a bar seal and a trim seal. The double seal or seal and trim wires are ¼” (6mm) apart. The jaw can be ordered as either 12″ (30cm) wide or 18″ (45cm) wide. The motorized unit drives the seal jaw using a foot-switch activation or can be set to repeat at 25 cycles per minute. The motorized jaw assembly produces consistent seals by assuring even pres-sure through the entire seal area.

Technical Information
Model: 312T
Part Number 120vAC: 902122
Amp Draw: 2
Type of sealer: trim
Maximum cycle rate / min.: 25
Max. bag width inch (cm): 12 (30)
Unit Dimensions inch (cm): 14.5L X 7.5W X 6H (37L X 19W X 15H)

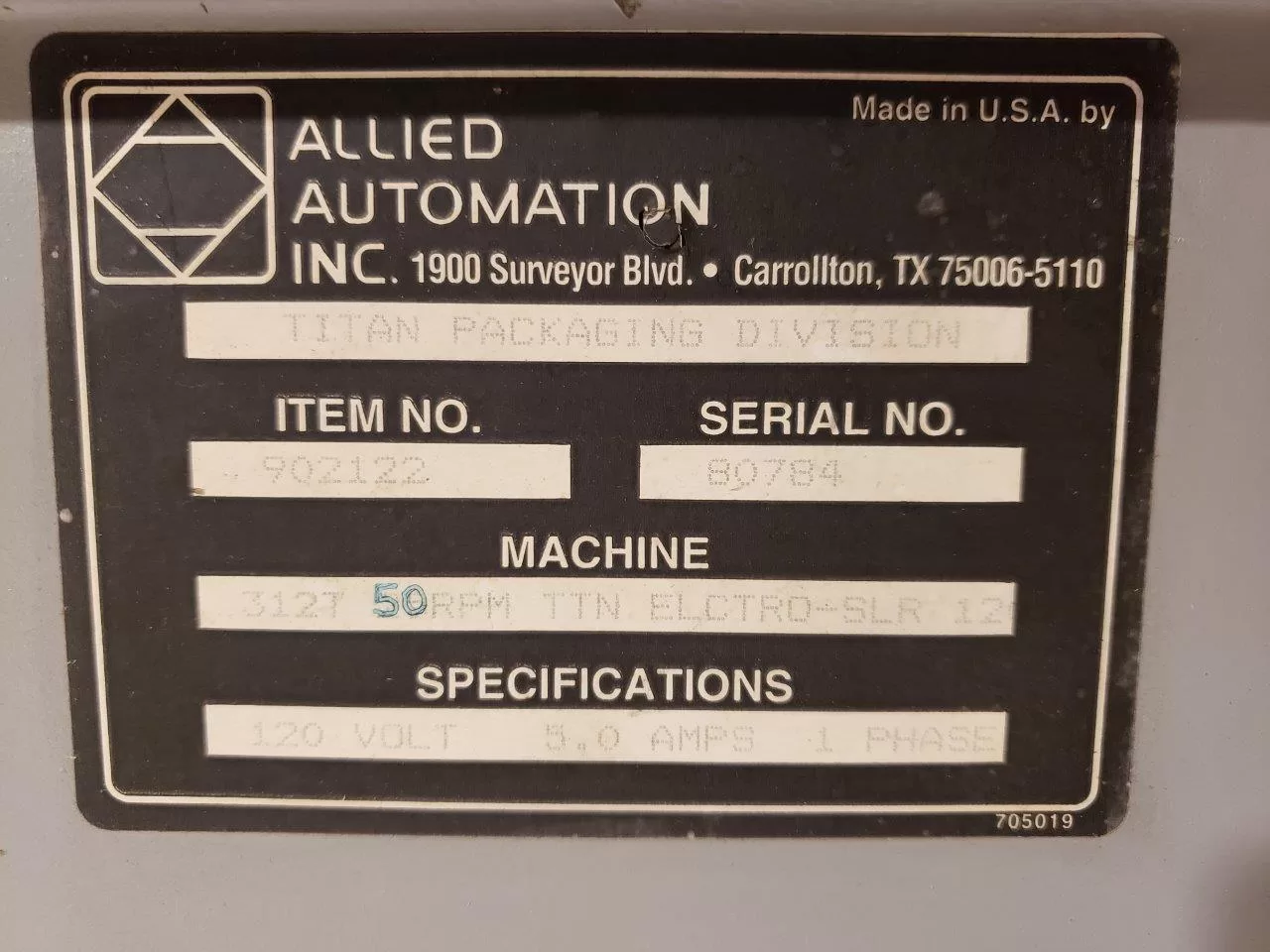

Specifications: 120 Volt, 5.0 Amps, 1 Phase
