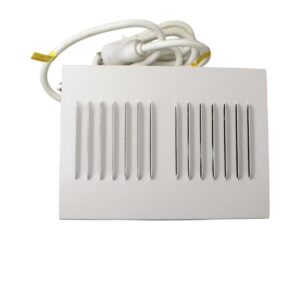

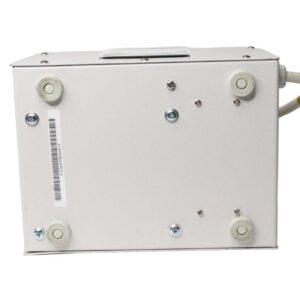

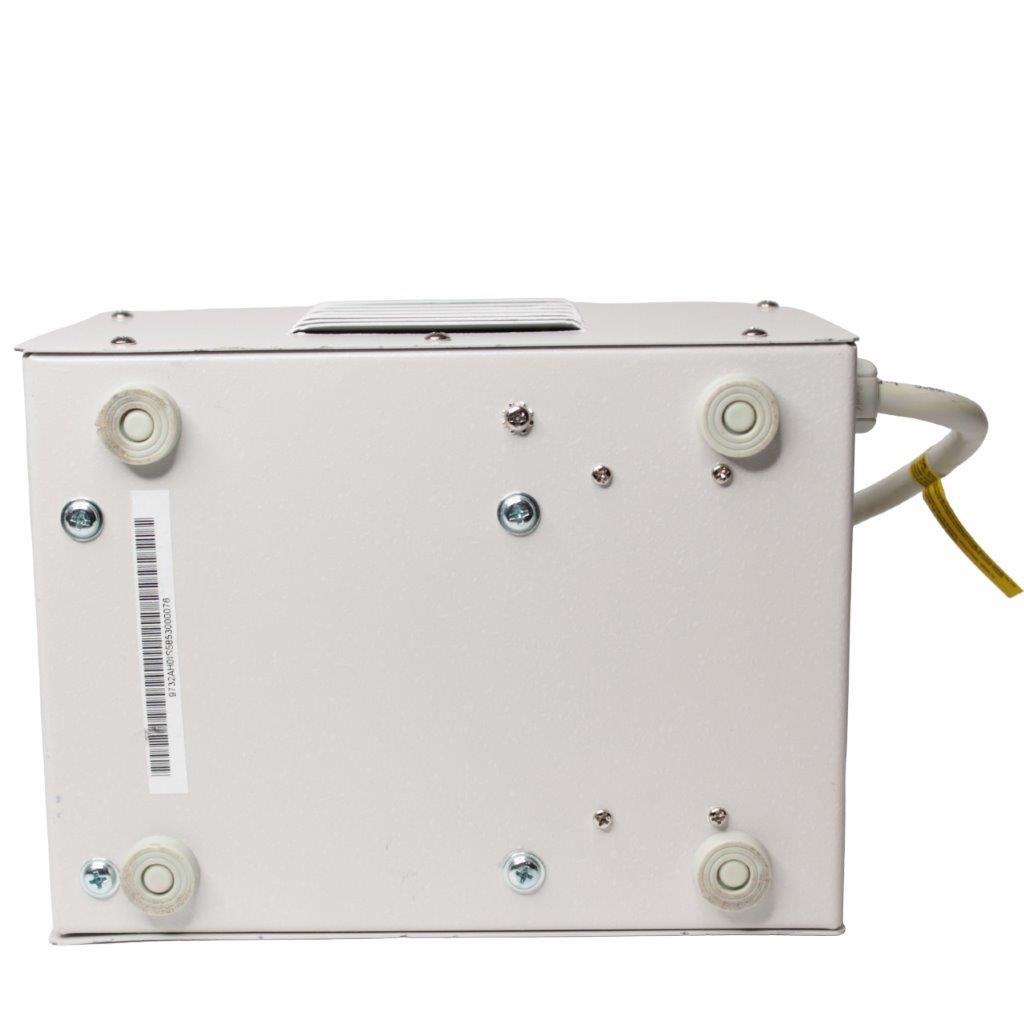

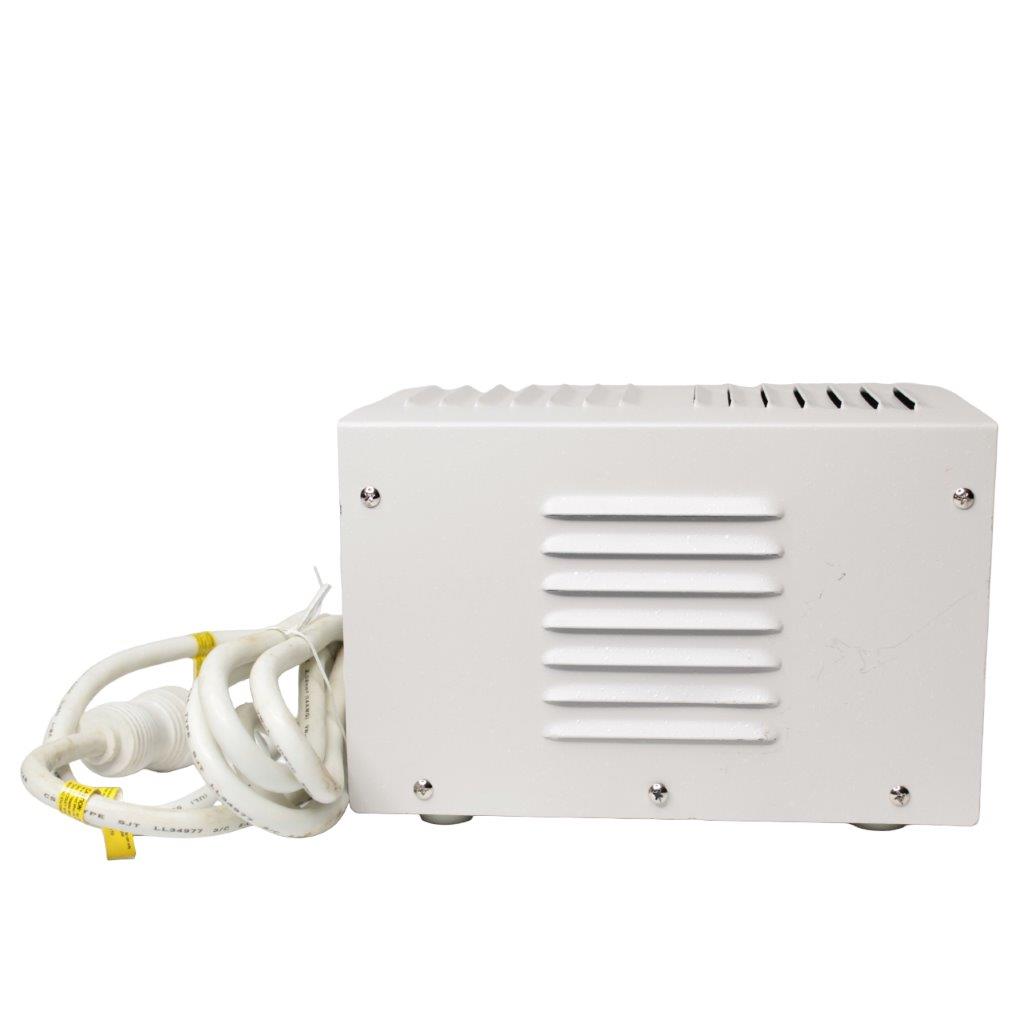

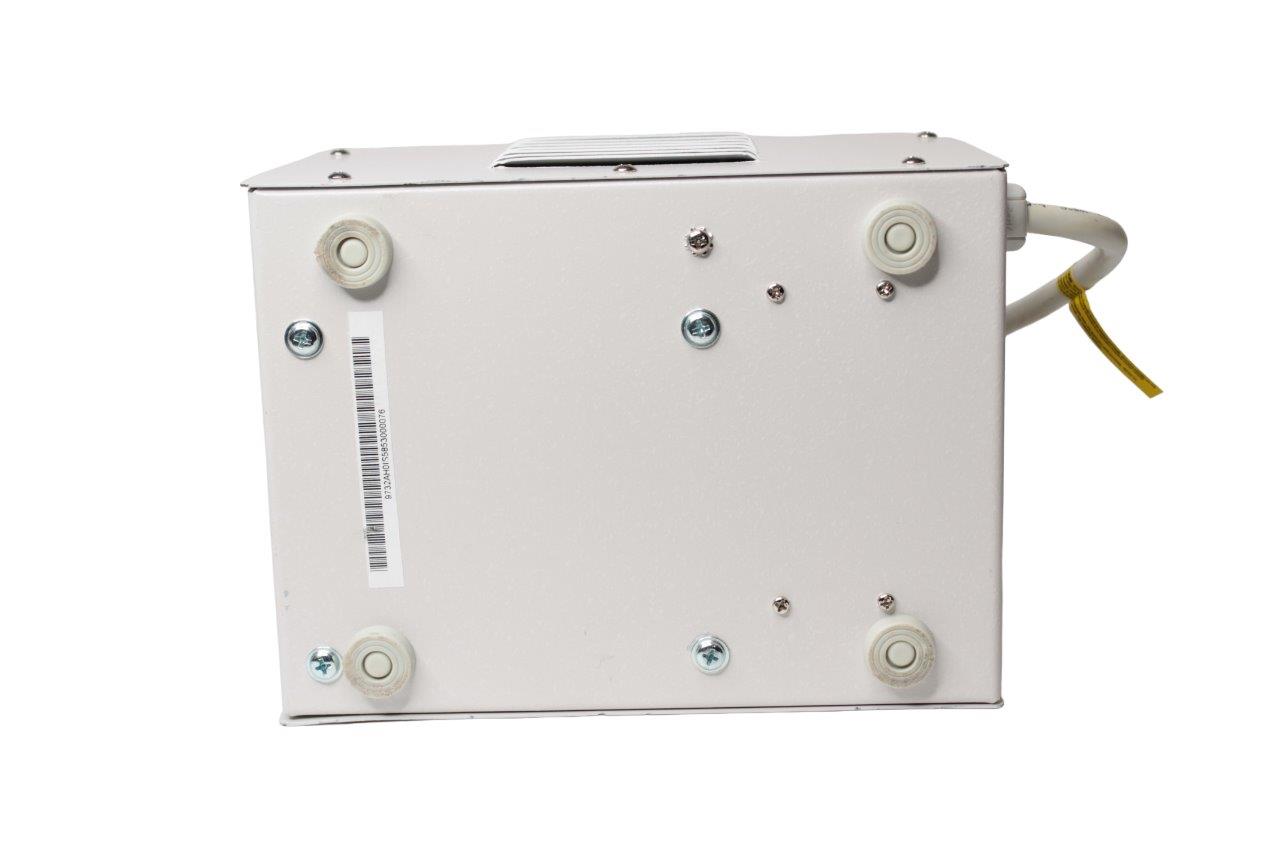

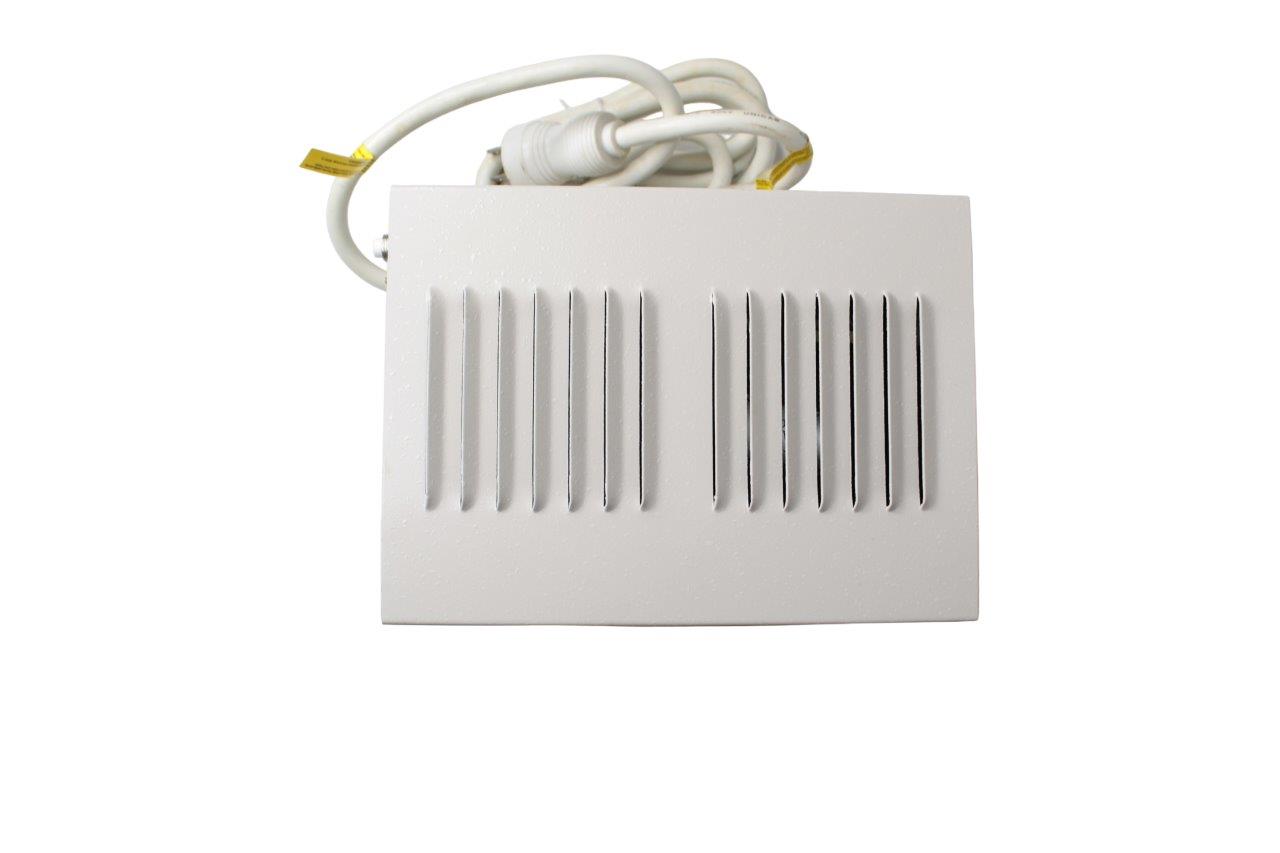

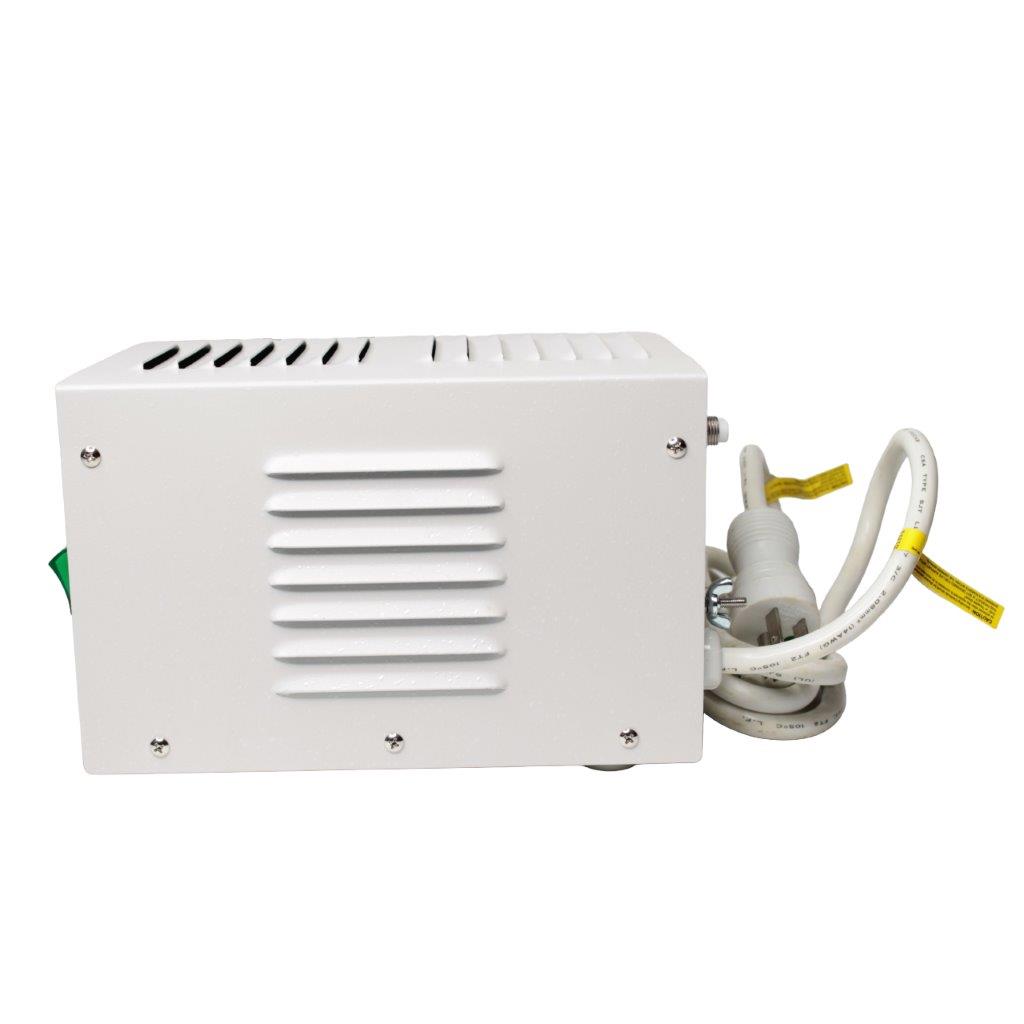

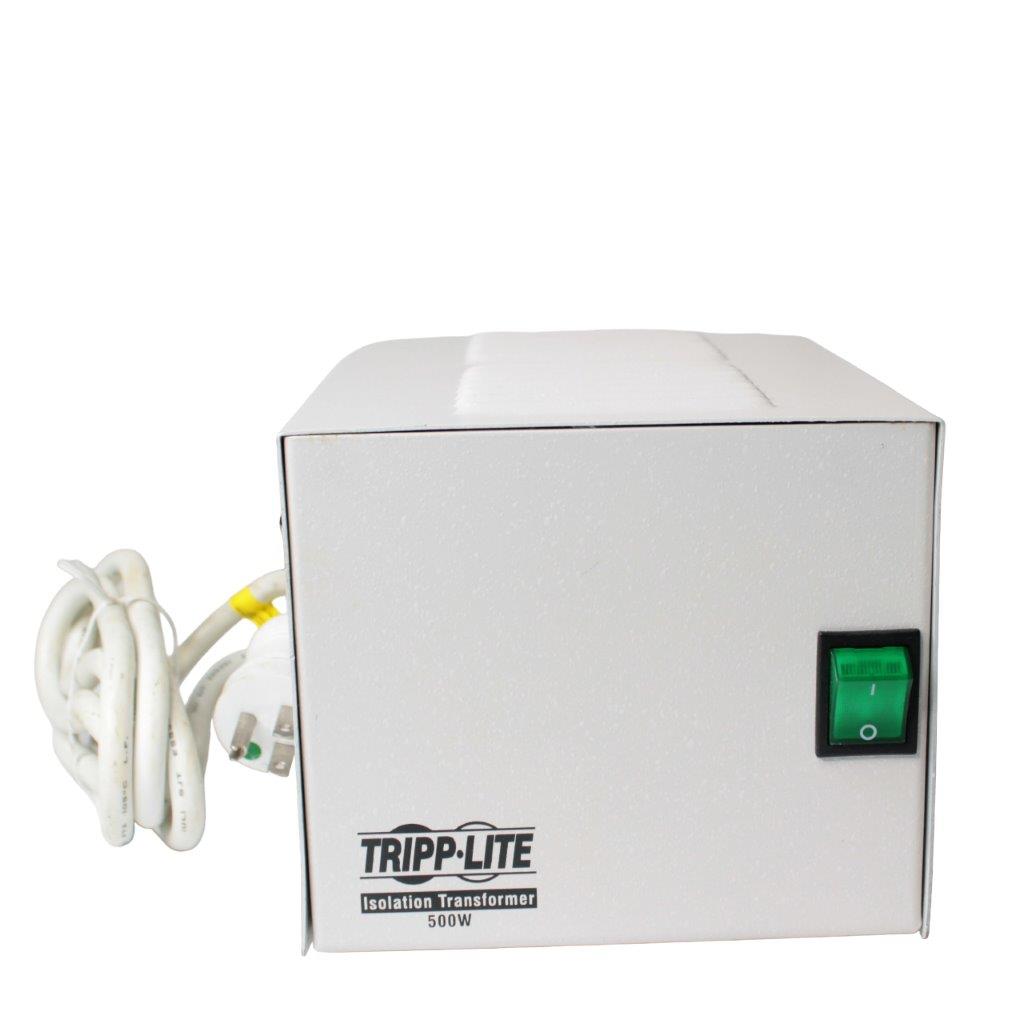

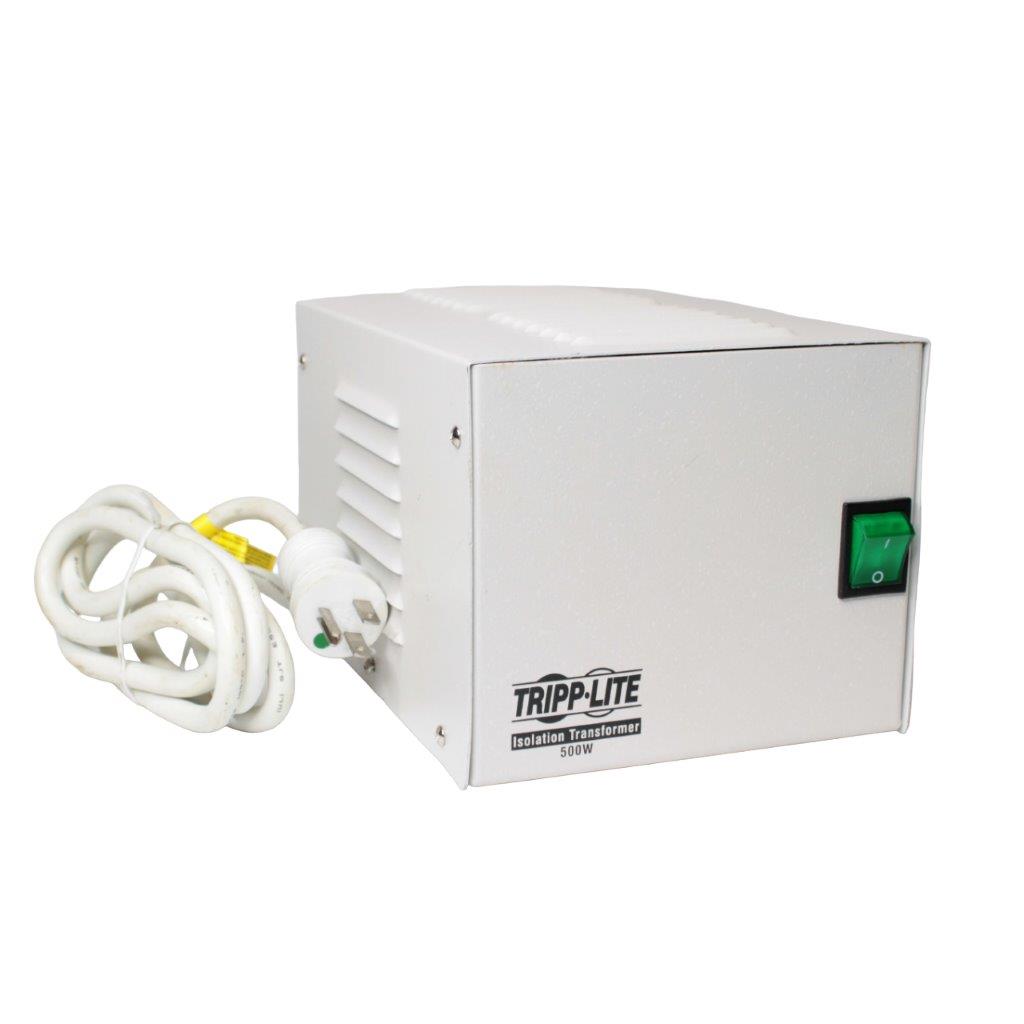

Tripp Lite IS500HG Isolation Transformer 500W Medical Surge 120V 4 Outlet TAA GSA

Tripp Lite IS500HG Isolation Transformer 500W Medical Surge 120V 4 Outlet TAA GSA

Description:
– Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
– 500 watts, 4 5-15R-HG hospital outlets, 10-ft. power cord with NEMA 5-15P-HG plug
– Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
– Leakage less than 100 microamps
Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to

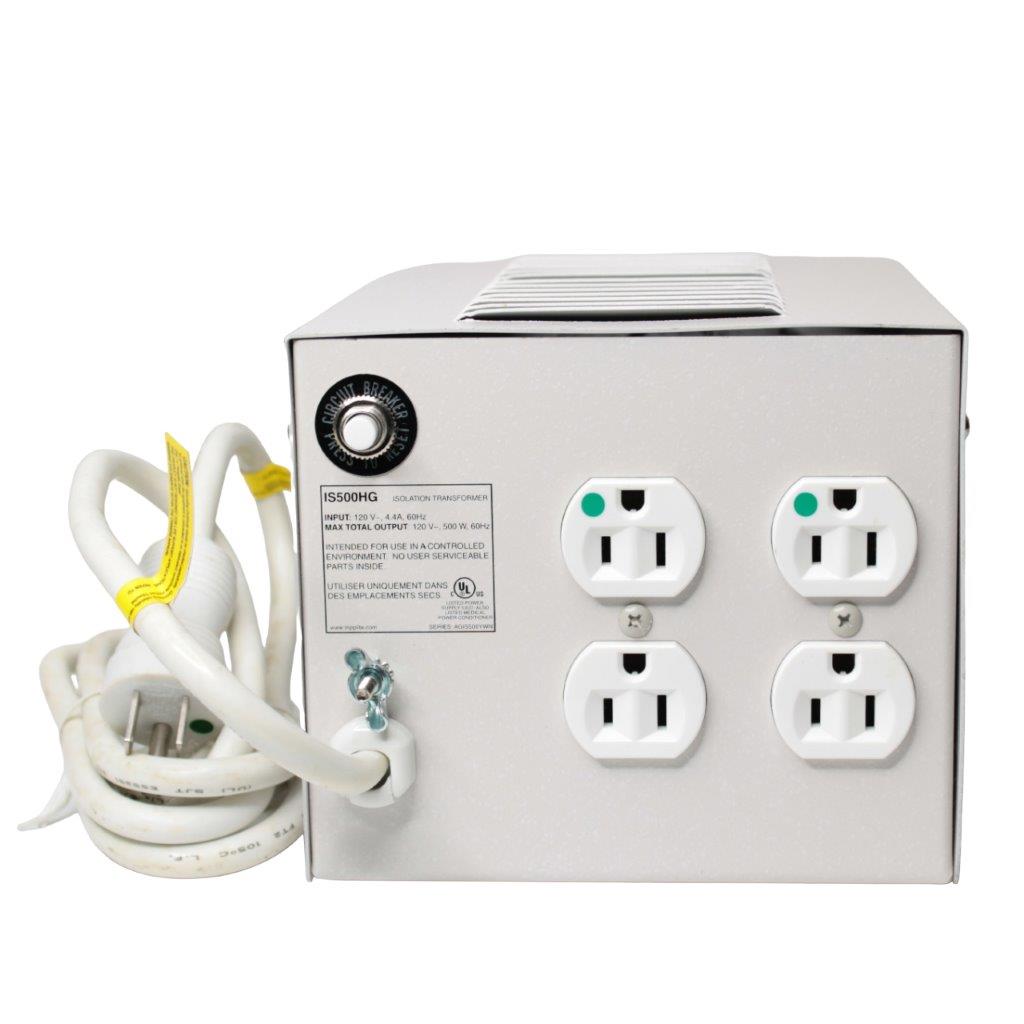

harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS500HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input – NEMA 5-15P Hospital Grade; Output – 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 2.1A.

Specifications:
OVERVIEW
Amp Capacity: 4.2A at 120V AC
Efficiency: 96%
Form Factor: Small tower format
Input Plug Type: NEMA 5-15P-HG
Leakage Current: Less than 100 microamps
Let-through Voltage (Combination Wave): L-N: 250V L-G: 250V N-G: 0.5V
Let-through Voltage (Ring Wave): L-N: 20V L-G: 20V N-G: 0.5V
Noise Suppression Rating: 35-65 DB
Nominal Voltage / Frequency: 120 /60Hz
Output Receptacle Qty / Type: 4 NEMA 5-15R-HG
Over Current Protection: 1 X THERMAL, 2 POLE, ROCKER
Total Harmonic Distortion: Less than 1%
Transformer Type: Medical-grade, low impedance transformer-based line isolation transformer
Unit Dimensions (HWD/in.): 5.75 x 6.25 x 9.25
VA / Watt Capacity: 500
Brand: Tripp Lite
Model: IS500HG
