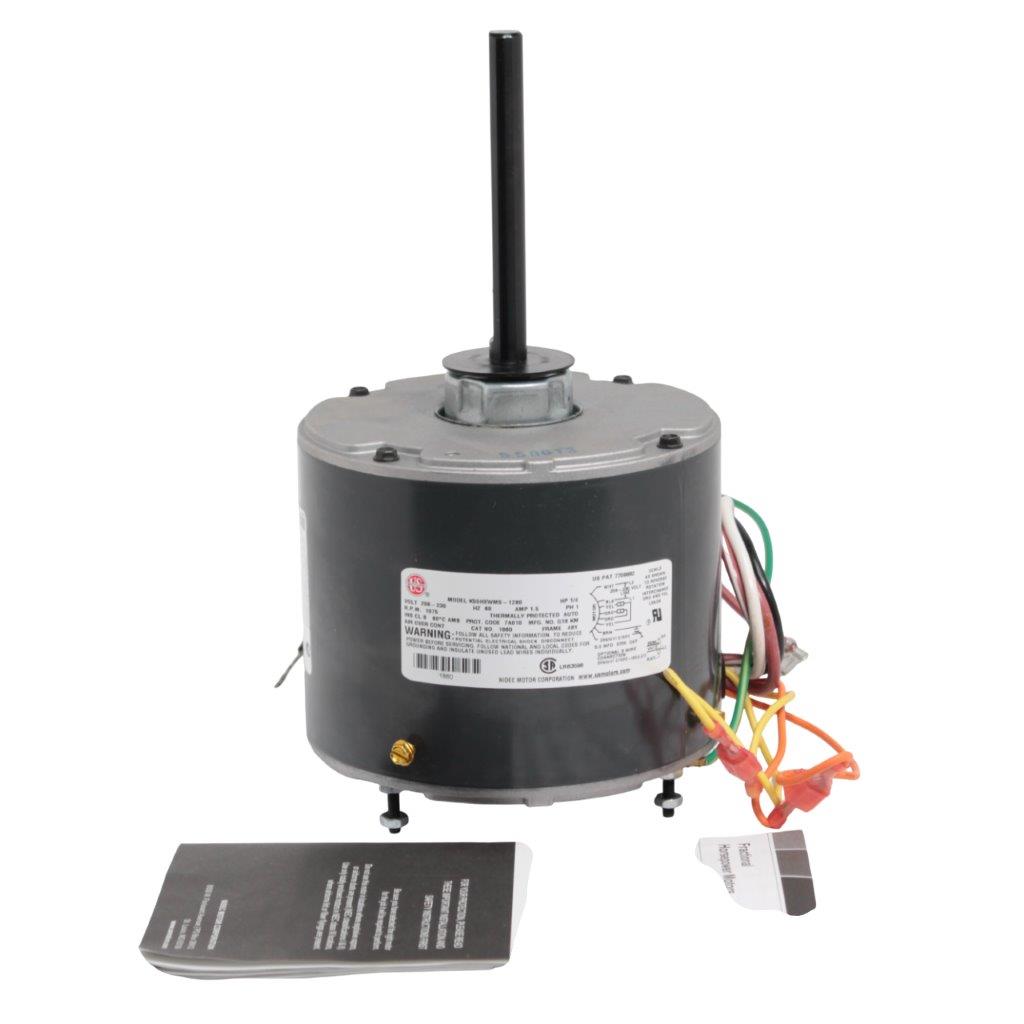

US Motors 1860 Outdoor Condenser Fan Motor – 1/4 HP, 208–230V, 1075 RPM, 48Y Frame, Reversible, TEAO Enclosure

Condition: New – Requires 5 µF 370V capacitor (not included).

The US Motors 1860 condenser fan motor is a durable and efficient 1/4 HP single-speed motor built for outdoor condenser unit applications. With its 5.6-inch diameter (48Y frame), 1075 RPM, and PSC (Permanent Split Capacitor) design, it’s ideal for residential and light commercial HVAC systems. The Totally Enclosed Air Over (TEAO) enclosure, ball bearings, and Class B insulation ensure reliability in demanding outdoor conditions up to 140°F (60°C).

This motor is equipped with reversible shaft rotation, extended studs for flexible mounting, and automatic thermal overload protection. Its design is compatible with most OEM mounting configurations and is a trusted replacement for many major brands.

Specifications:

• Horsepower: 1/4 HP
• Voltage: 208–230 VAC
• Amperage: 1.5–1.7 A
• Speed: 1075 RPM
• Speeds: Single-speed
• Frequency: 60 Hz
• Phase: Single (1 Ph)
• Frame Size: 48Y (5.6″ Diameter)
• Shaft Dimensions: 1/2″ Diameter x 5″ Length
• Rotation: Reversible (CW/CCW)
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Insulation Class: B
• Bearing Type: Ball

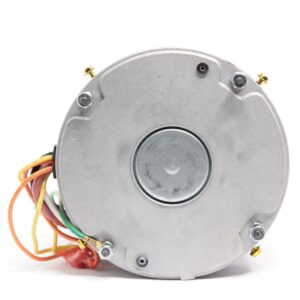

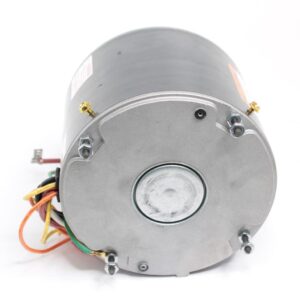

• Mounting Type: Stud mount with extended studs
• Duty: Continuous
• Thermal Protection: Automatic reset

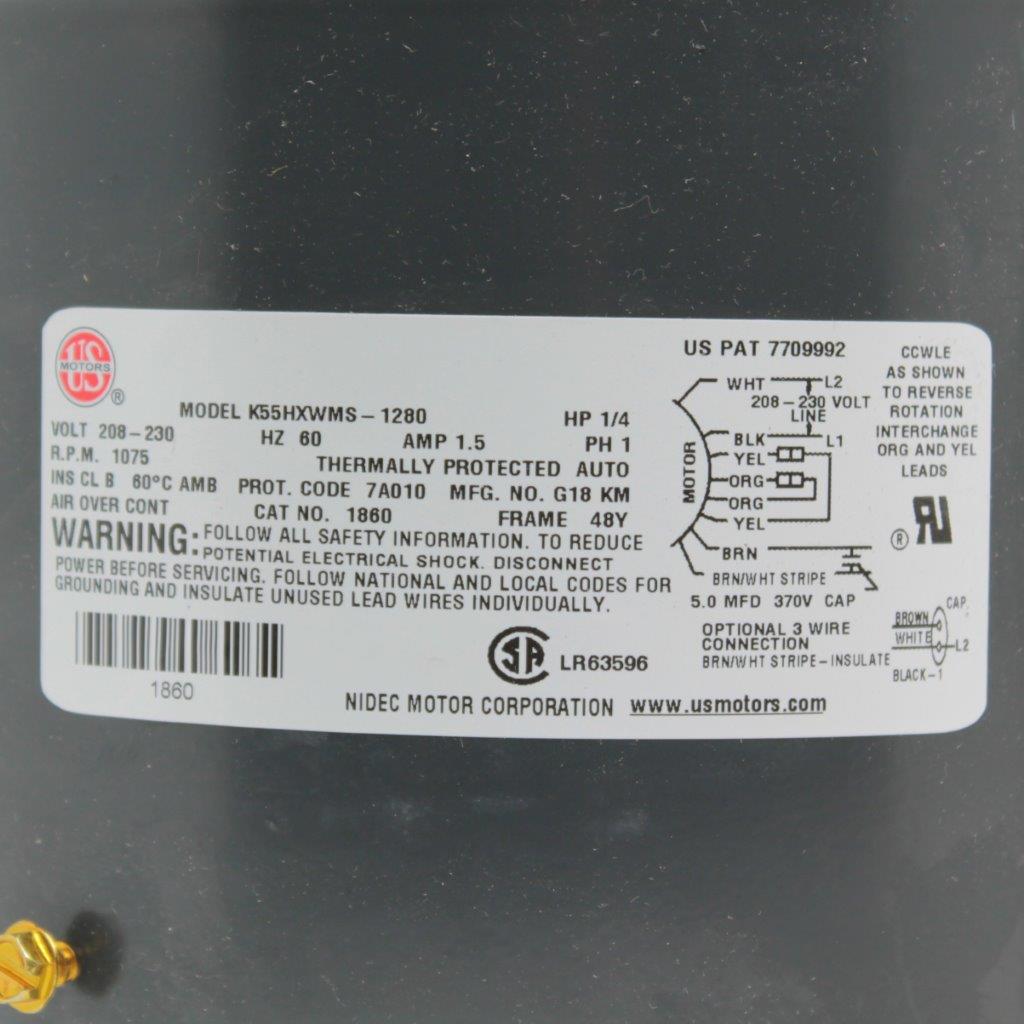

• Capacitor Required: 5 MFD, 370V (not included)
• Max Ambient Temperature: 140°F (60°C)
• Lead Length: 30″
• Drain Holes: Both ends
• Hub: Hubless, lead end
• Service Factor: 1.0

Features:

• Built to handle high ambient outdoor temperatures (140°F)
• Ball bearing system for longer motor life and low maintenance
• Reversible rotation for flexible installation
• Continuous-duty motor for reliable HVAC use
• Fully enclosed for protection from debris, dust, and moisture
• Sleeve bearing all-angle thrust system
• Stud mounting and belly band compatible (band not included)

Applications:

• Outdoor HVAC condenser fans
• Residential and commercial air conditioning systems
• Direct replacements for OEM motors in heat pump and AC units
• Compatible with Goodman, ICP, Carrier, Trane, and more (check specs)

Cross-Referenced & Replacement Models:

• Mars 10728, 10733
• Century FSE1026SF / FE1026SF
• Fasco D7909, D7749
• GE 3728, 3732
• Packard 43732
• AO Smith ODG1026
• US Motors 1876
• Smart Electric 238228
• ICP/Tempstar/Comfortmaker Y4632
• First Choice Y4632

Comparable Products:

• Emerson K55HXLGG-4183
• Genteq 3733
• Century FE1026SF
• Fasco D7909
• Rotom R43732

Related:

Condenser fan motor, 1/4 HP outdoor motor, 1075 rpm HVAC motor, reversible rotation fan motor, 230V air conditioning motor, PSC condenser motor, US Motors HVAC replacement, ball bearing condenser motor, 5.6 inch diameter motor, 48Y frame condenser fan motor

Common Requests:

1. “Is the US Motors 1860 a direct replacement for Mars 10728?”
2. “What capacitor do I need for this motor?”
3. “Can I mount this shaft-up or shaft-down?”
4. “Does this fan motor fit in a Goodman condenser unit?”
5. “How do I reverse the direction of rotation?”

Disclaimer: All trademarks and brand names are the property of their respective owners. Names are used for reference only and do not imply affiliation or endorsement.
