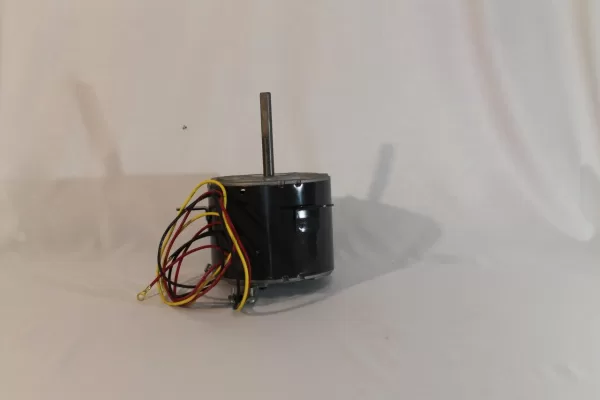

US Motors, Emerson, Lennox 1/3 HP, 208-230V, 1 PH, 1050 RPM, CCWLE, Frame 48Y, Condenser Fan Motor w/3 Mounting Ears P-8-8041 K55HXFCM-3264
$175.00
US Motors, Emerson, Lennox 1/3 HP, 208-230V, 1 PH, 1050 RPM, CCWLE, Frame 48Y, Condenser Fan Motor w/3 Mounting Ears P-8-8041 K55HXFCM-3264
A brand-new, unused item.
The US Motors, Emerson, Lennox 1/3 HP, 208-230V, 1 PH, 1050 RPM, CCWLE, Frame 48Y, Condenser Fan Motor w/3 Mounting Ears P-8-8041 K55HXFCM-3264 is a specific type of electric motor designed for use in condenser fan applications. It is commonly used in HVAC systems, particularly in air conditioning units, heat pumps, and refrigeration systems. This motor is engineered to provide efficient and reliable operation to ensure proper cooling performance in these systems. With its specific voltage, horsepower, and rotational speed ratings, it is suitable for replacing or upgrading existing condenser fan motors in various residential and commercial HVAC units.

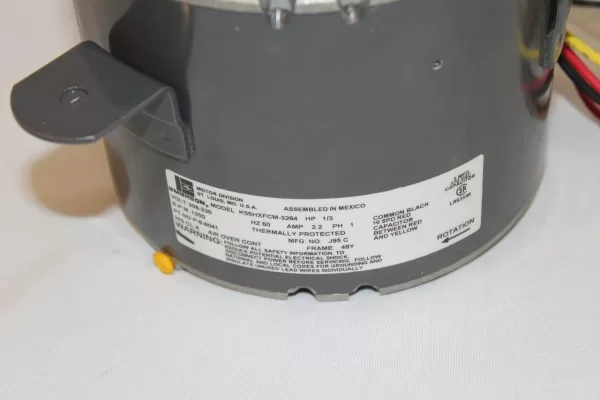

Model: K55HXFCM-3264
Manufactured by: Lennox
Description
HP: 1/3
Voltage: 208-230
RPM: 1050
OEM: P-8-8041
HZ: 60
AMP: 2.2
PH: 1
| Weight | 15 lbs |
|---|---|
| Dimensions | 10 × 7 × 7 in |
| Voltage | 208-230V |
| Speed | 1050 RPM |
| Current | 2.2 A |
| Horse Power (HP) | 1/3 |
| Capacitor | 5MFD / 370VAC |
| Power Phase | Single Phase |
| Frame Size | 48Y |
| Brand | Emerson |
