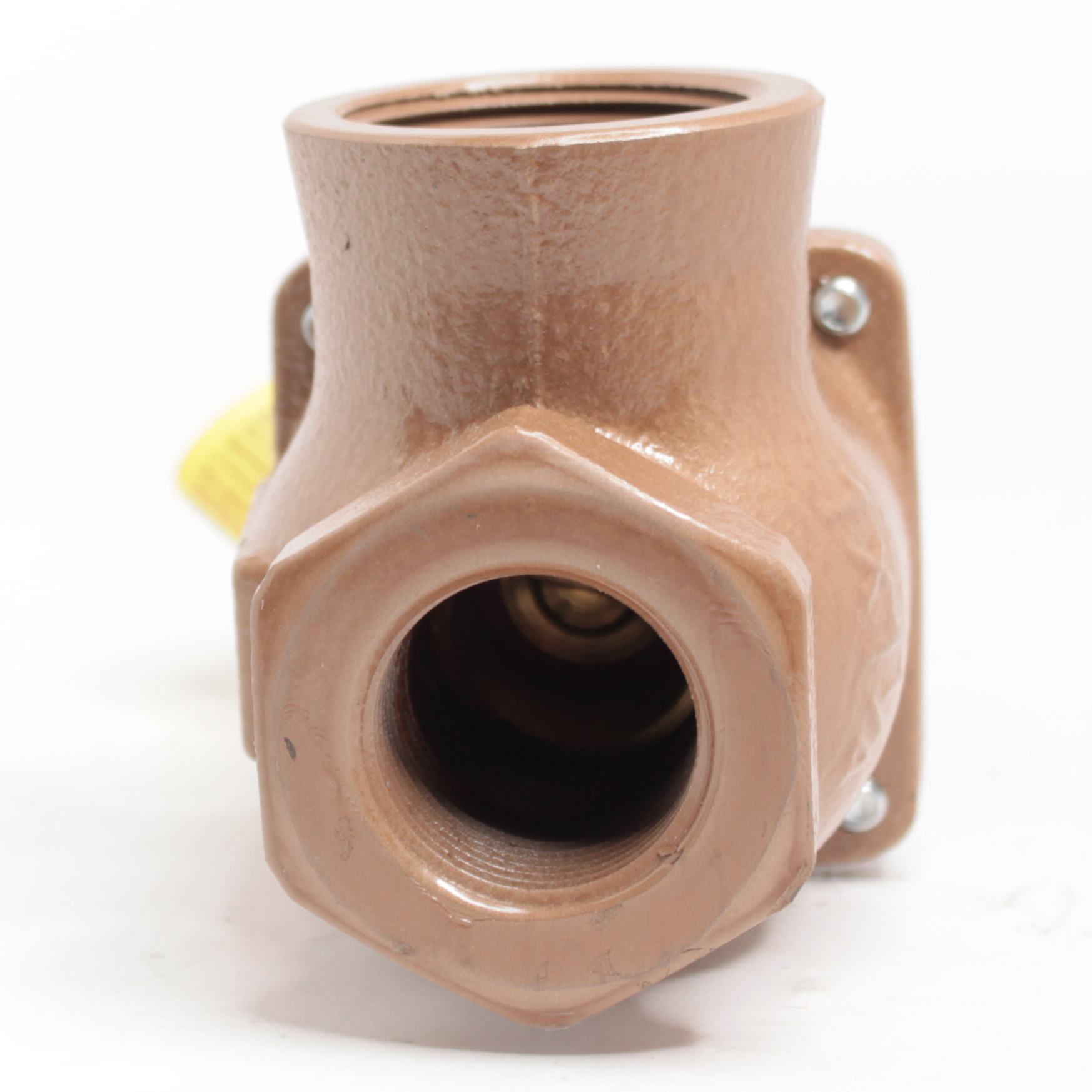

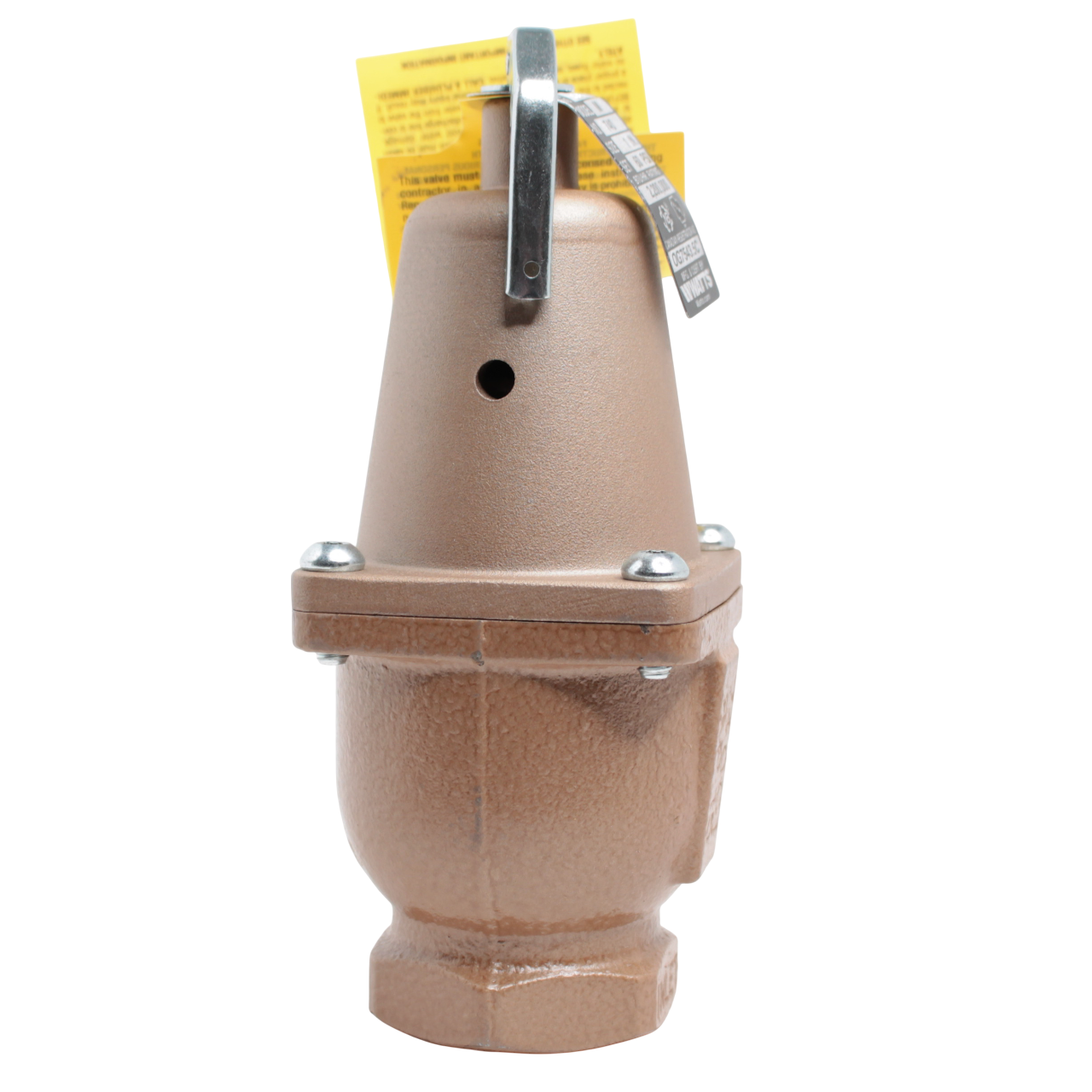

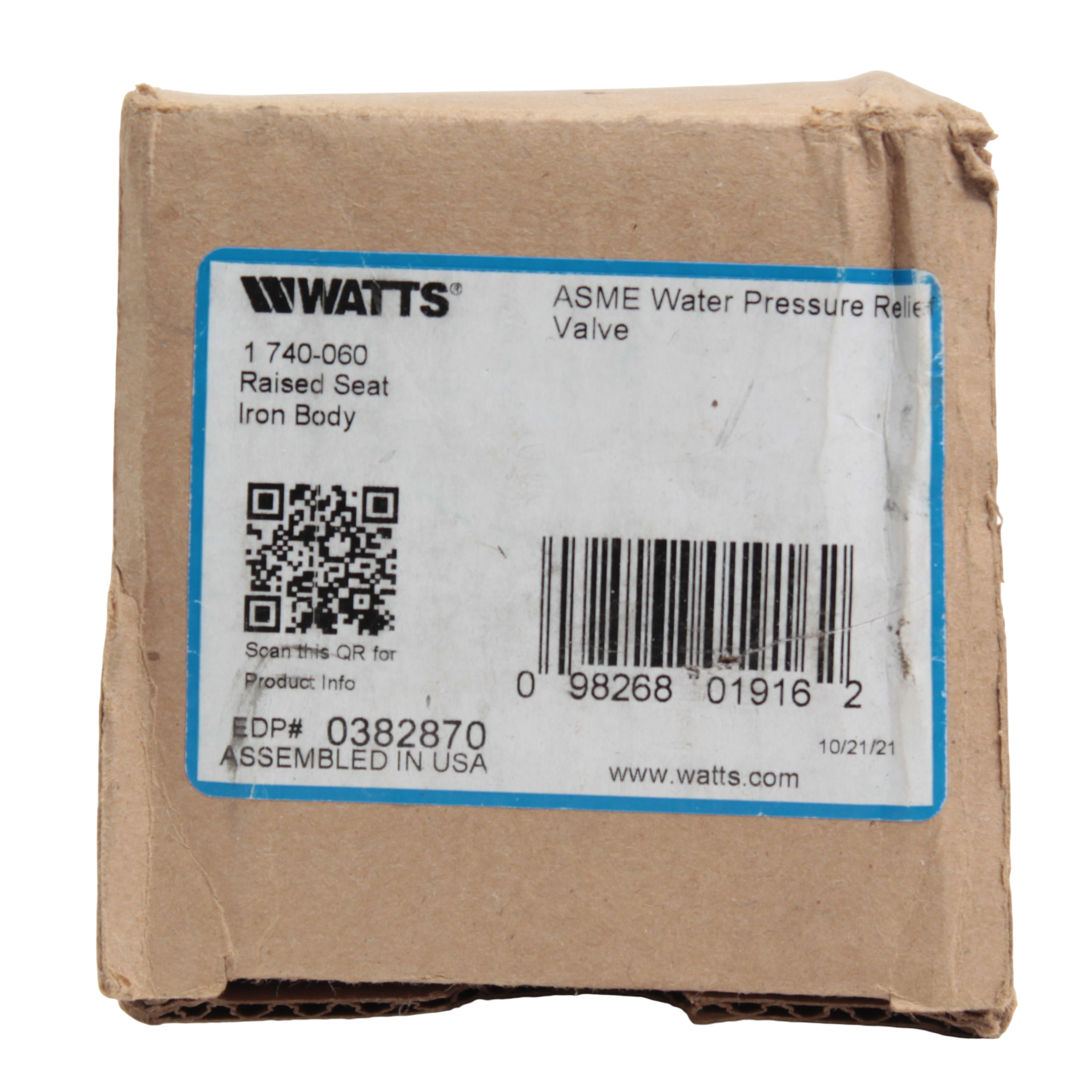

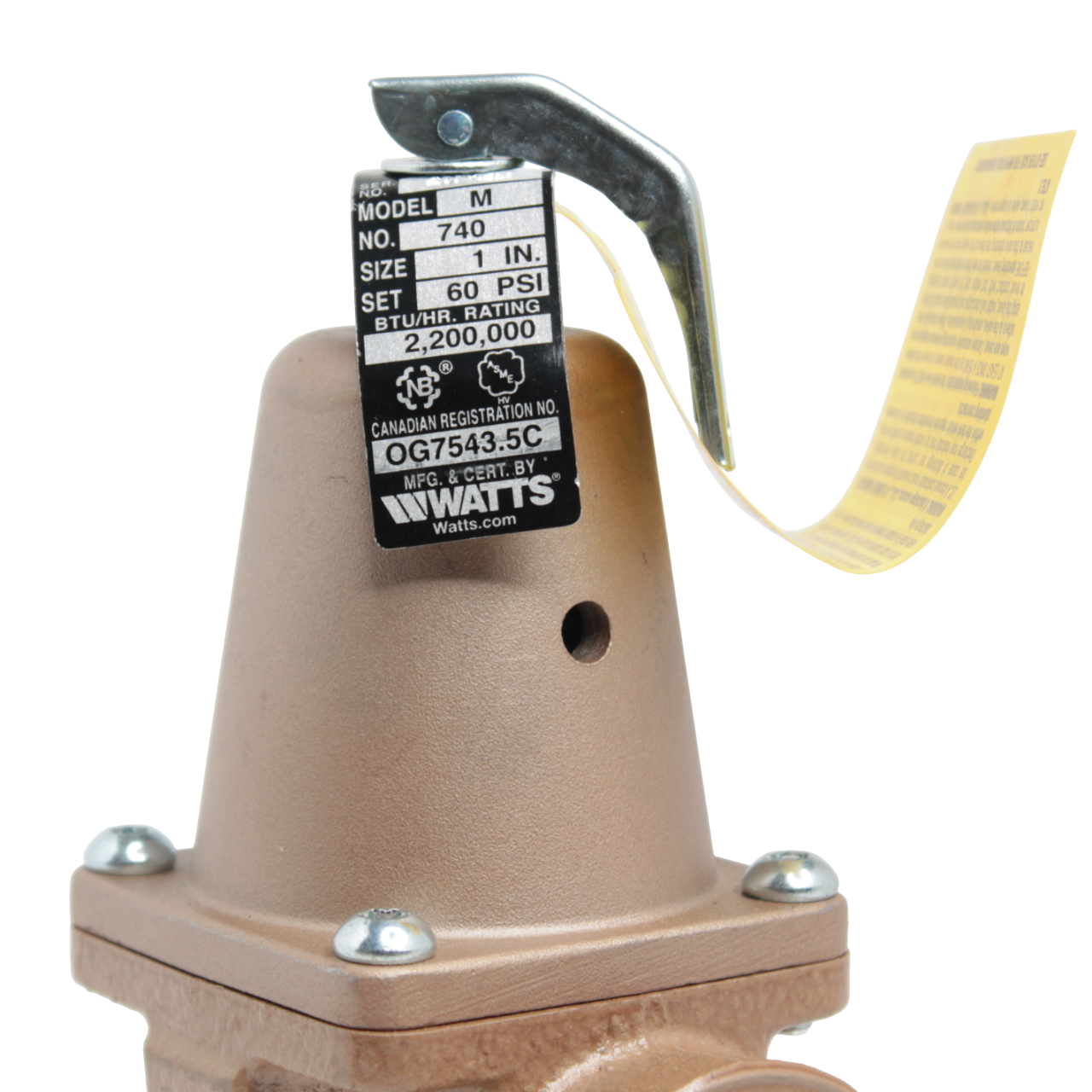

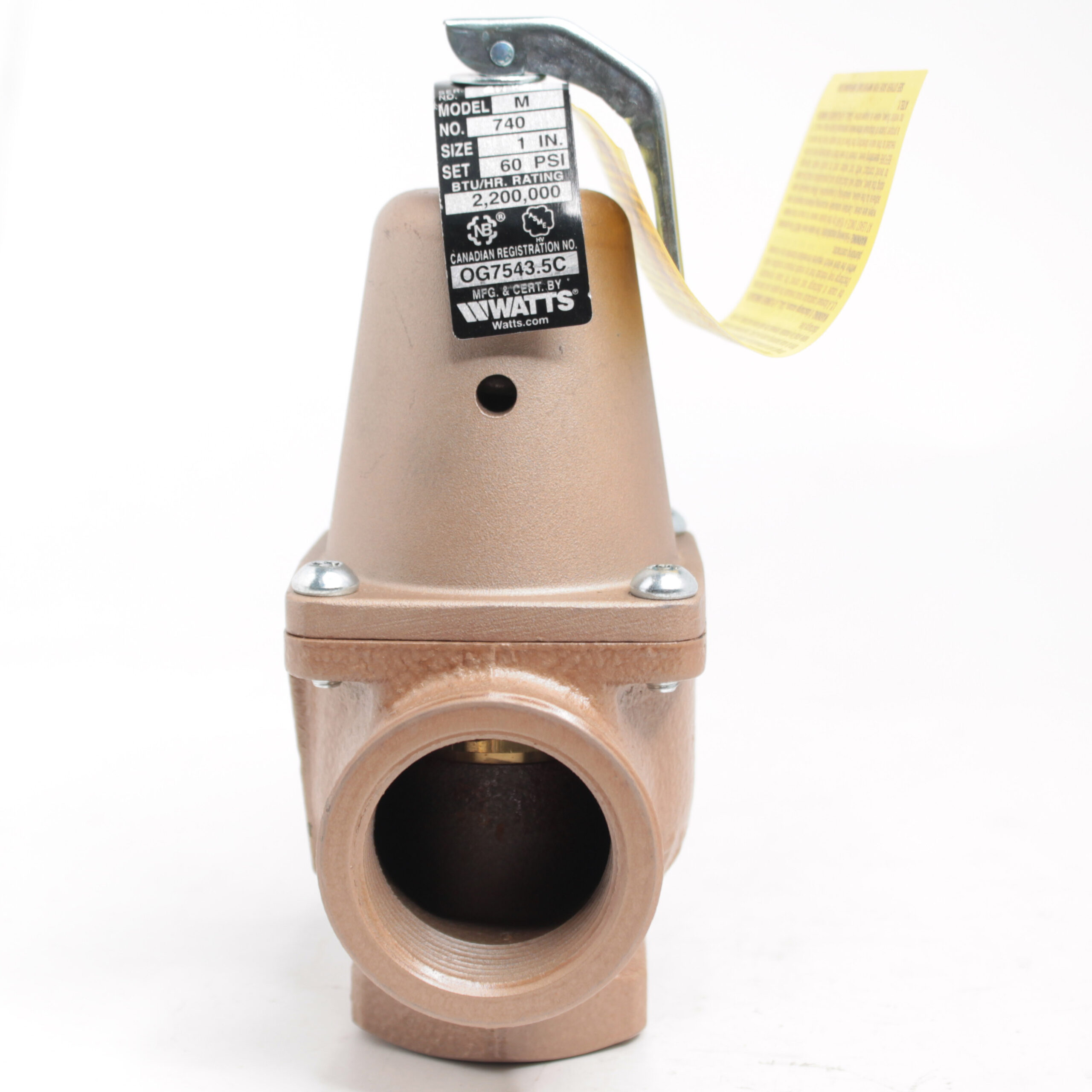

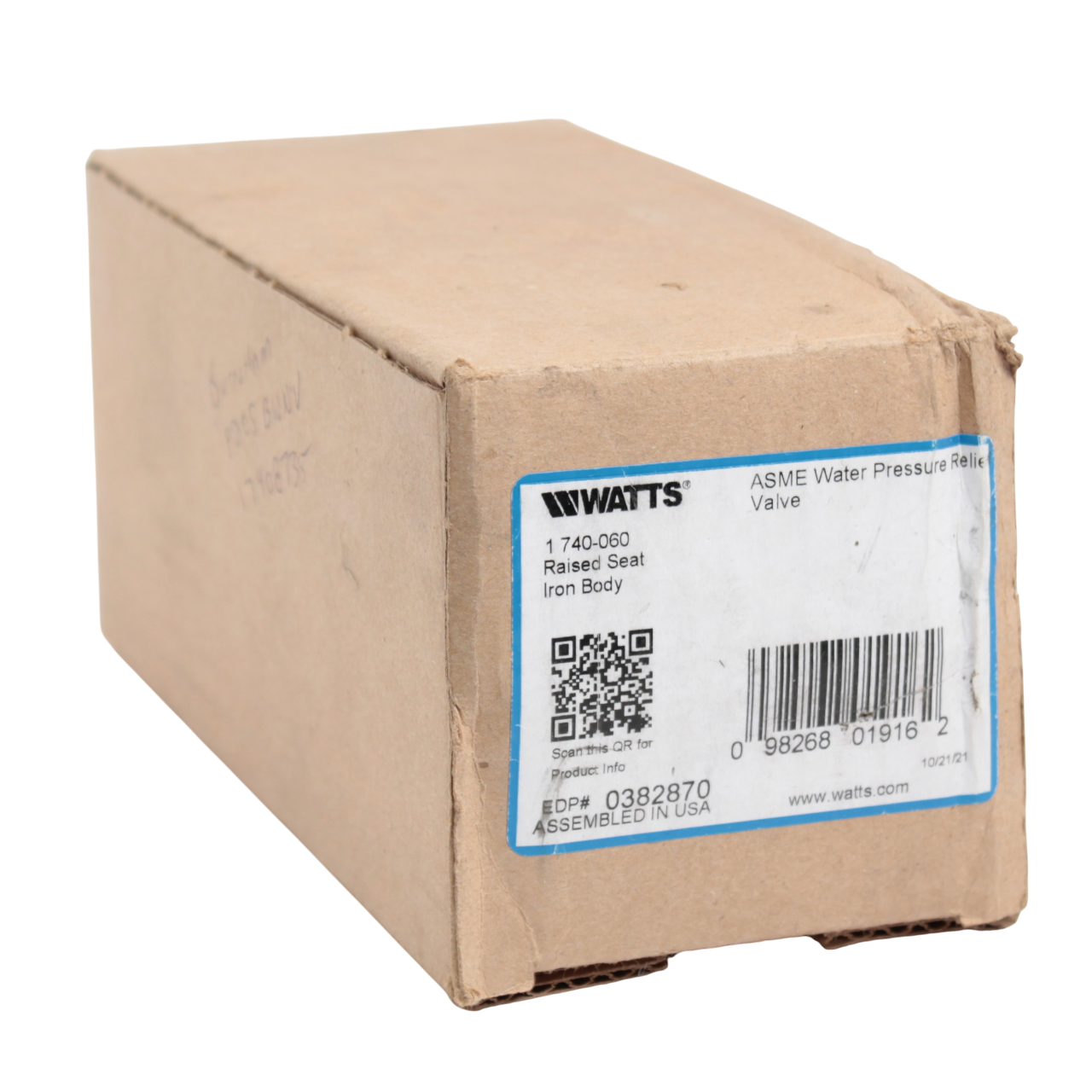

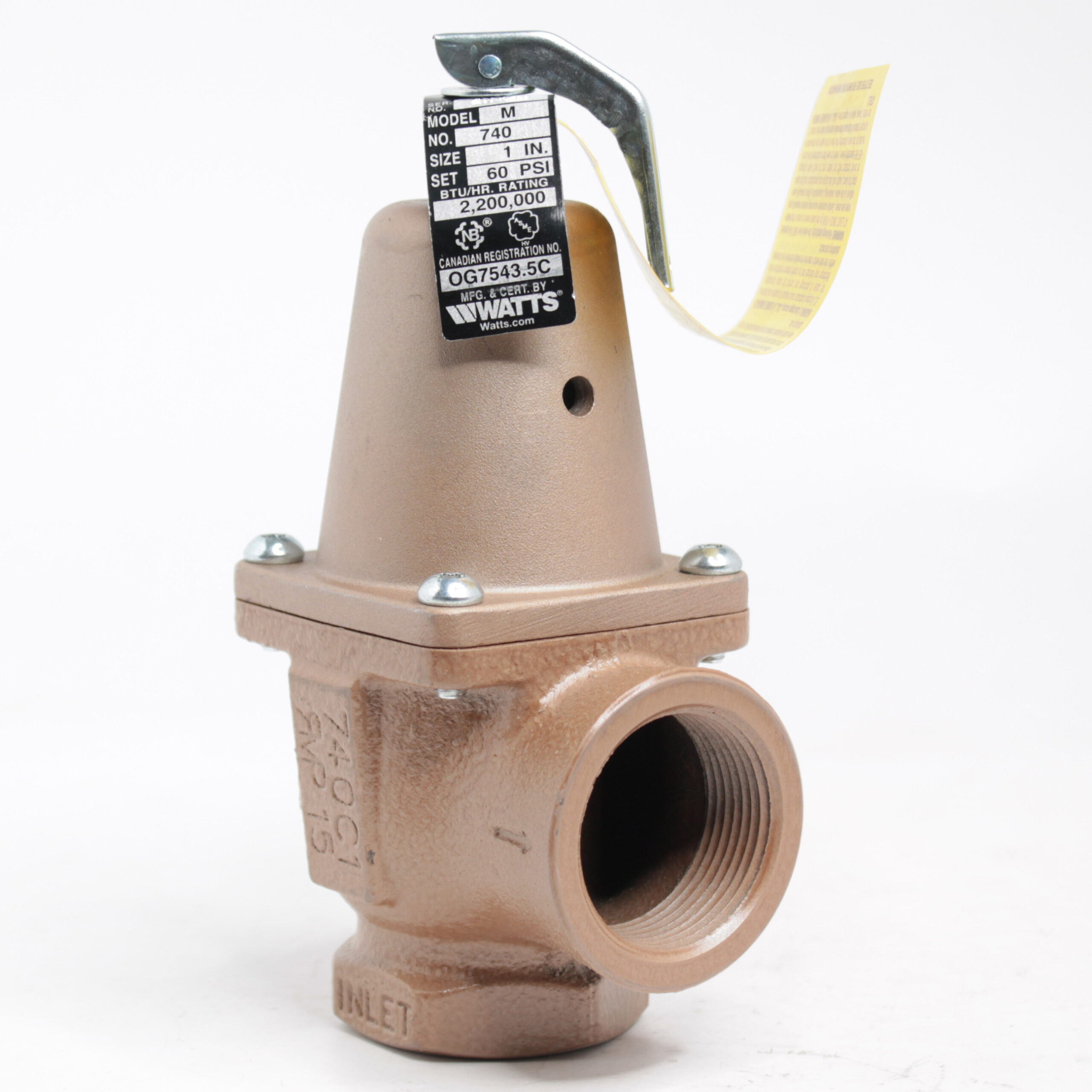

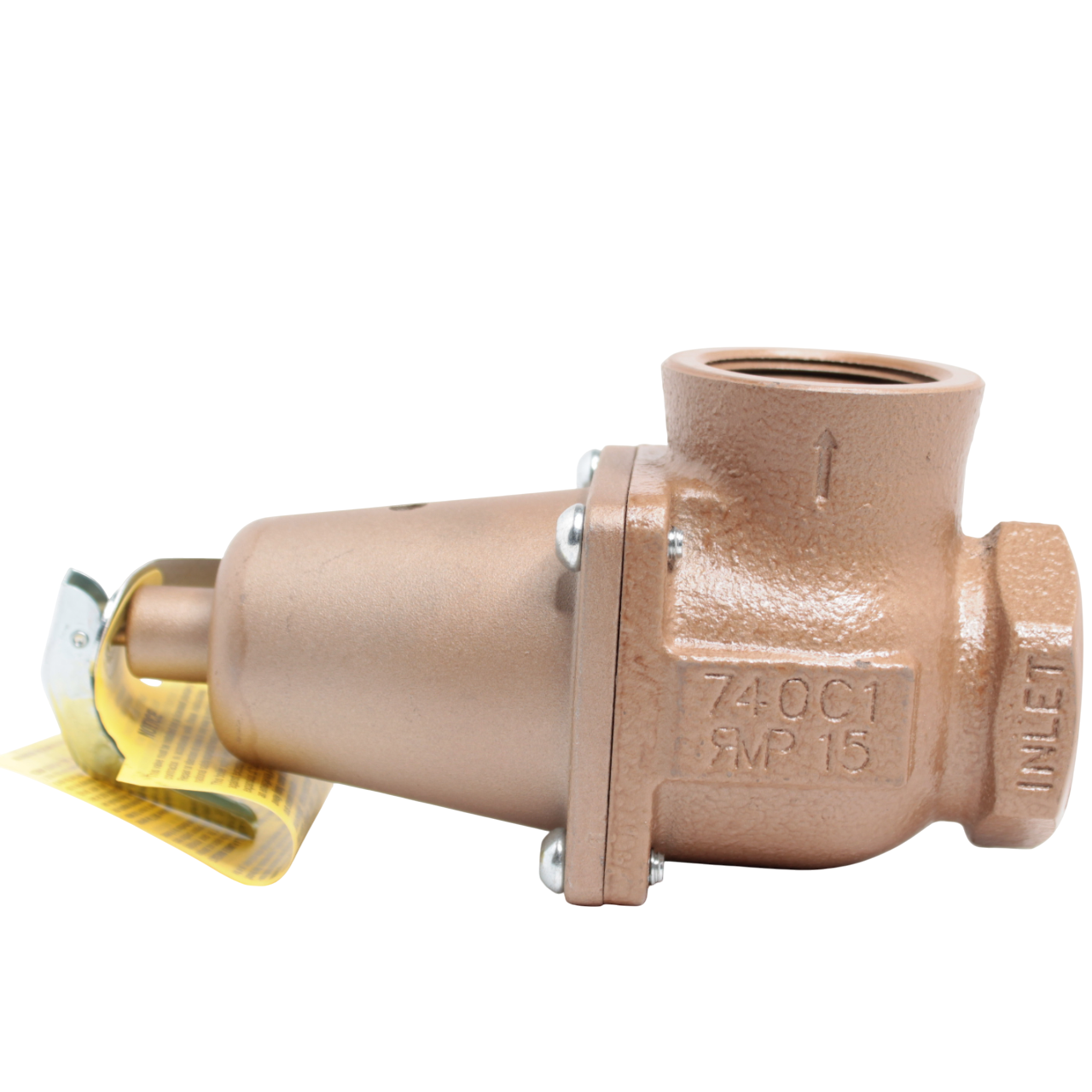

Watts 740-060 ASME Safety Relief Valve, 1″ x 1-1/4″, 60 PSI, 2,200,000 BTU/hr

Condition: New

This is a Watts 740-060 Safety Relief Valve, designed for water heating and pressure relief applications in high-capacity heating systems. It has a 1-inch inlet and 1-1/4-inch outlet, with a 60 PSI pressure setting and a BTU rating of 2,200,000 BTU/hr. This model is ASME-rated and features a raised seat iron body for durability. It is a crucial component for preventing overpressure situations in commercial and industrial water heating systems.

Features:

• Manufacturer: Watts
• Model: 740-060 (M Series)
• Pressure Setting: 60 PSI
• Inlet Size: 1 inch (NPT)
• Outlet Size: 1-1/4 inch (NPT)
• BTU/hr Rating: 2,200,000
• Material: Raised Seat Iron Body for strength and reliability
• Certifications: ASME-rated for water pressure relief applications
• Canadian Registration Number (CRN): OG7543.5C
• UPC: 098268019162
• EDP Number: 0382870

Applications:

The Watts 740-060 ASME Safety Relief Valve is designed for use in:

• Boilers and Hot Water Heating Systems
• Commercial Water Heaters
• Industrial Process Water Systems
• Hydronic Heating Applications
• Pressure Relief for High-Capacity Hot Water Systems

Cross-Referenced Models:

This relief valve is comparable to:

• Apollo 10-600 Series (Similar PSI and Flow Rate Options)
• Conbraco 10-604-06 (1” x 1-1/4”, 60 PSI, ASME Rated)
• Cash Acme 24030-0045 (Similar Water Relief Valve with ASME Certification)
• Bell & Gossett 790-60 (Comparable 60 PSI Safety Relief Valve)

Related:

• Watts boiler safety relief valve 740-060
• 1-inch water pressure relief valve 60 PSI
• ASME-rated hot water heating system relief valve
• Watts 740C1 pressure safety valve replacement
• High-BTU boiler relief valve 1-inch inlet

Questions:

1. What is the flow capacity of a Watts 740-060 safety relief valve?
2. How to install and maintain an ASME 60 PSI water relief valve?
3. Where to buy a replacement Watts 1-inch boiler safety valve?
4. What are the Canadian certification requirements for Watts 740-060?
5. How to choose a proper pressure relief valve for a commercial water heater?
