WD-1B Kele Leak Water Detector-SPDT Output

WD-1B Kele Leak Water Detector-SPDT Output

New: A brand-new, unused, undamaged.

2 detectors are available. Price for one, you may order more.
Description:

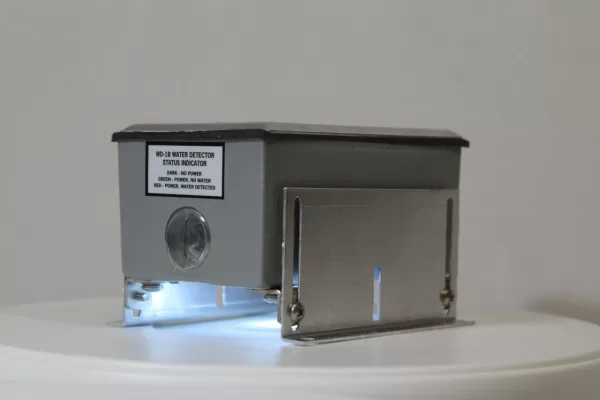

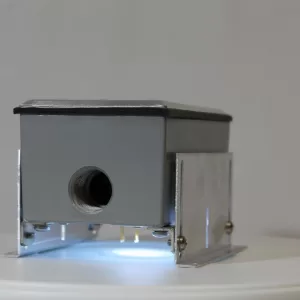

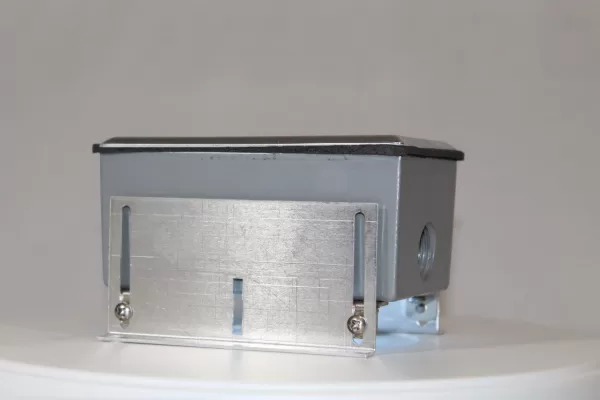

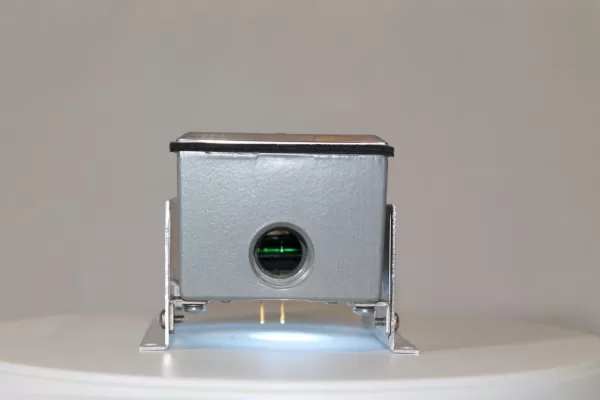

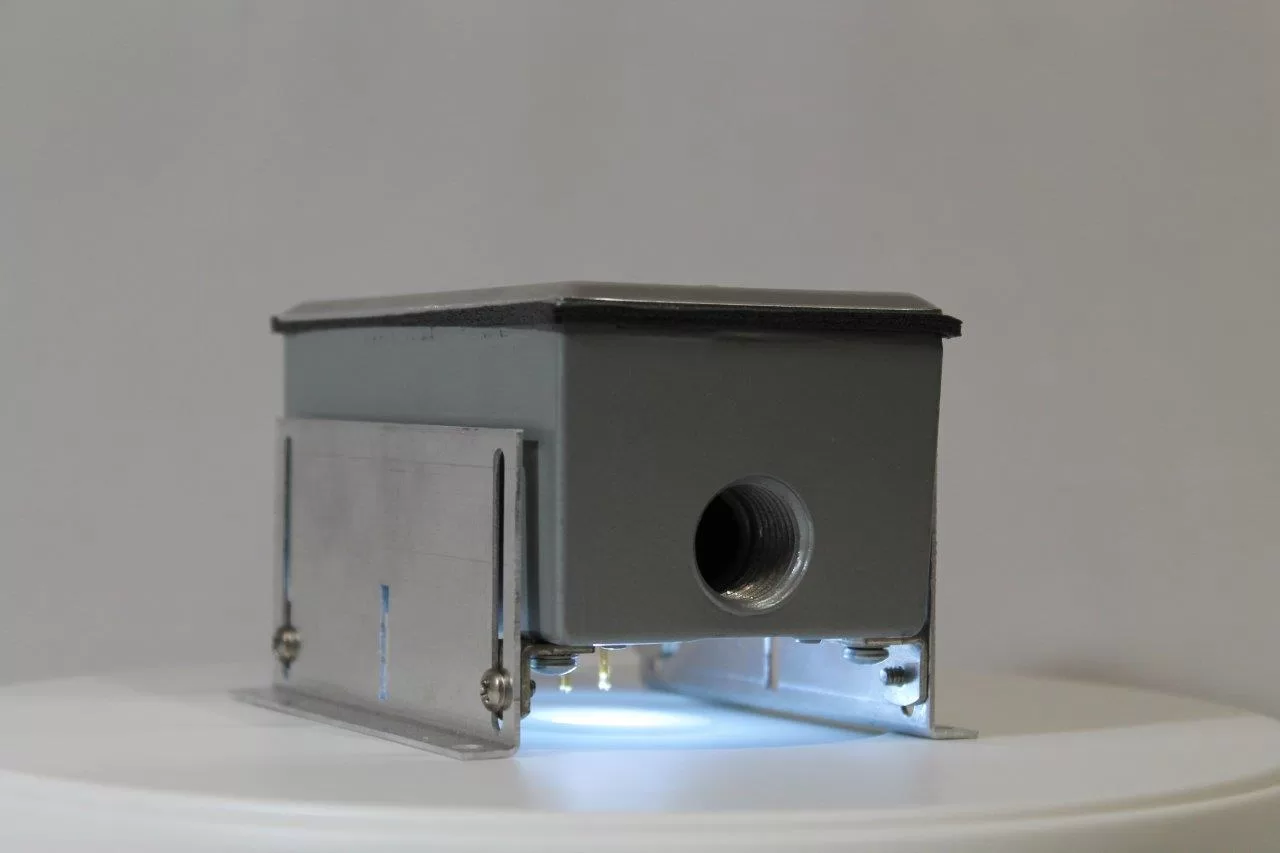

The WD-1B water detector features gold-plated probes and microchip technology for dependable water detection of conductive liquids. The Model WD-1B can be operated from 11-27 Volt AC or 11-27 Volt DC in HVAC and Building Automation System, BAS, applications. For application flexibility, SPDT contacts connect to a monitoring system. A height-adjustable, cast-aluminum, weatherproof enclosure comes standard.

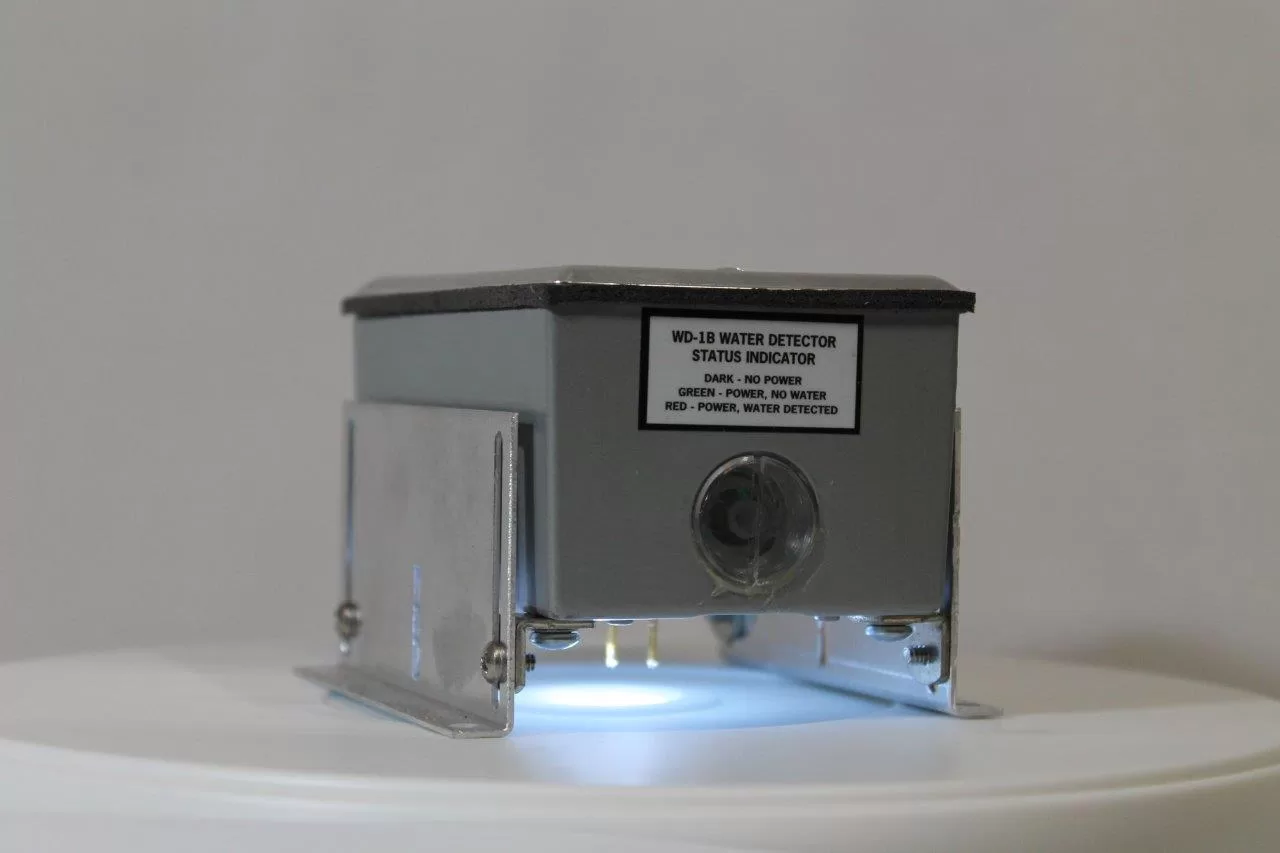

A green LED visible outside the box indicates power. A red LED indicates water detected. The Model WD-1B is also available with an external tape style sensor, the Model WD-2-T.
– Weather resistant enclosure
– Easy to install
– SPDT alarm contacts
– 11-27 VAC/DC(50/60 Hz)
– Reliable operation
– LEDs for power and alarm indication (green, red)
– Adjustable detection level
Specifications:
Supply Voltage: 11-27 VAC @ 1.7 VA; 11-27 VDC @ 30 mA
Relay Type: SPDT
Relay Rating: 1 A @ 24 VAC/VDC, 1/2 A @ 120 VAC
Display: Green LED = Power; Red LED = Alarm
Probe: Gold plated, 1.5″ adjustable
Operating Temperature: 32° to 158℉ (0° to 70℃)
Enclosure Rating: NEMA 4, Cast aluminum, weather resistant with adjustable legs
Dimensions: 4.3″H X 3.75″W X 4.5″L (10.7 X 9.5 X 11.4 cm)
Weight: 0.98 lb (6.44 Kg)

The WD-1B Kele Leak Water Detector is primarily used to detect water leaks in commercial and residential buildings, HVAC systems, and data centers. The SPTD (Single Pole Double Throw) output allows for the activation of a relay, which can trigger an alarm or shutdown equipment in the event of a leak.

Secondary uses for the WD-1B Kele Leak Water Detector may include detecting leaks in other systems such as swimming pools, aquariums, or irrigation systems, as well as for use in industrial processes where water detection is important to prevent damage or shutdown equipment.
