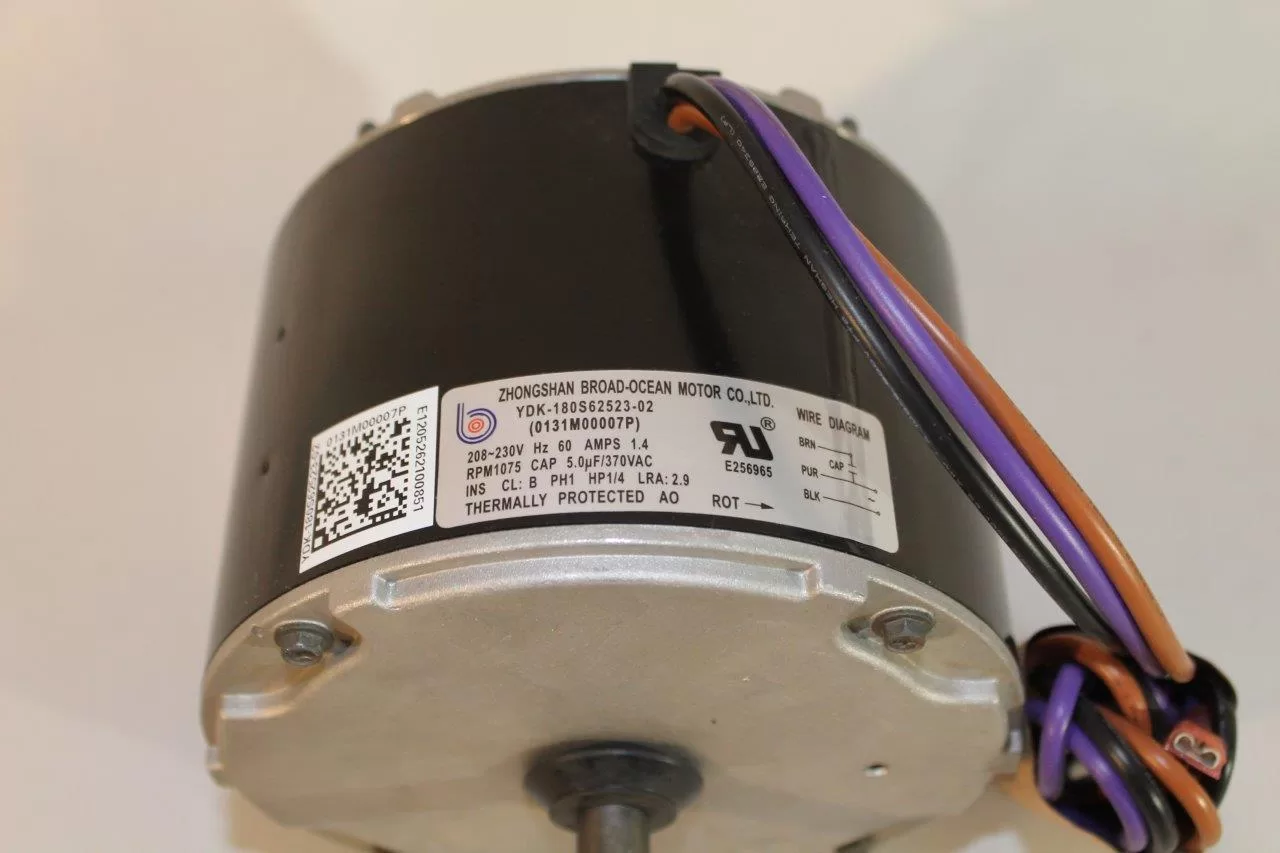

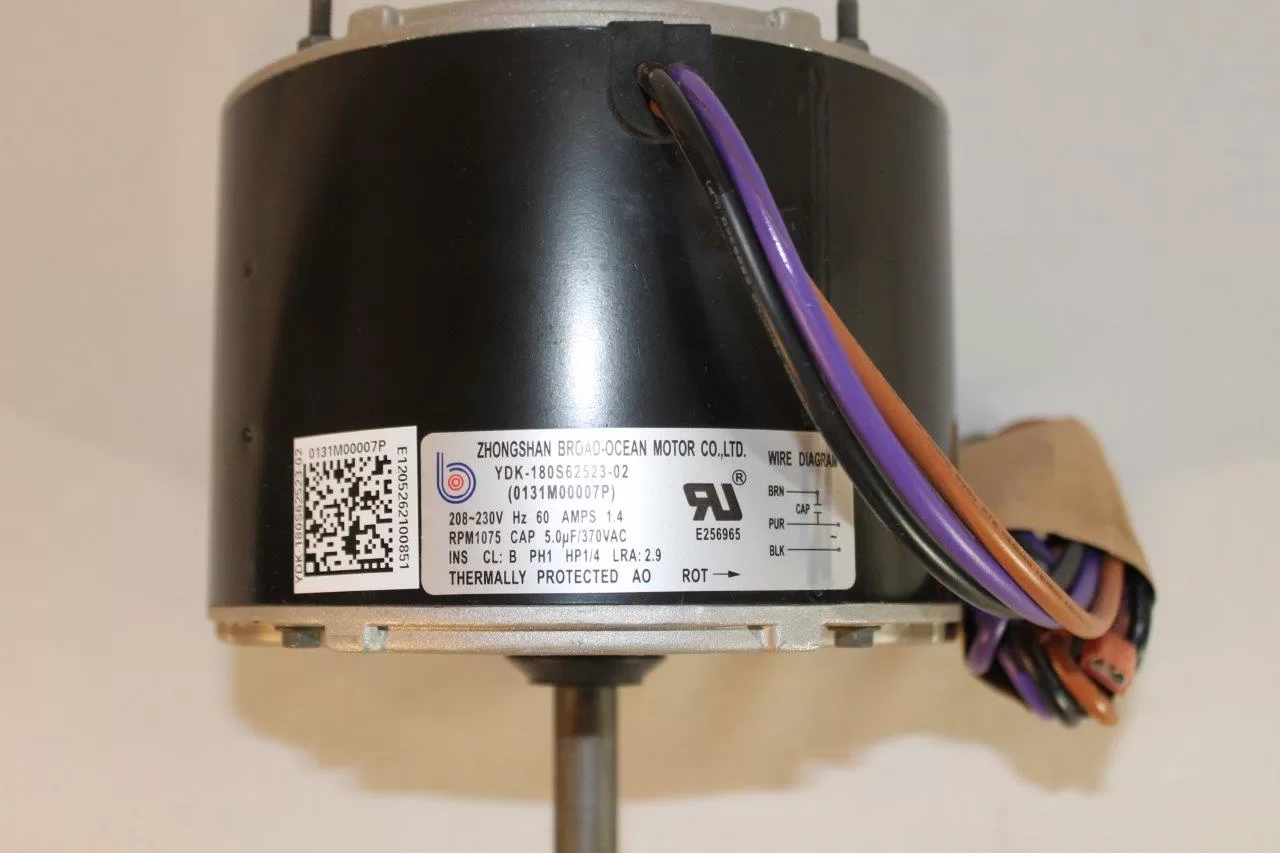

Zhongshan Broad-Ocean Condenser Fan Motor YDK-180S62823-02 – OEM 0131M00007P
$159.00
Zhongshan Broad-Ocean Condenser Fan Motor YDK-180S62823-02 – OEM 0131M00007P
A brand-new, unused.
Manufacturer: ZHONGSHAN BROAD-OCEAN
Manufacturer Item: YDK-180S62523-02
Alternate Part: 0131M00007P
Specifications
COMPATIBLE VOLTAGE: 208-230 VOLT
ELECTRICAL PHASE: 1 PHASE
MOTOR HERTZ: 60 HERTZ
MOTOR RPM: 1001-1100 RPM

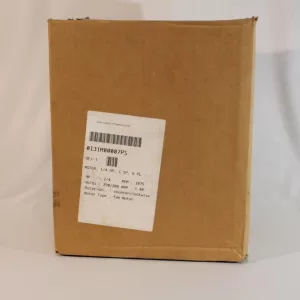

PACKAGING: BOXED
ROTATION: CCW
SHAFT: SINGLE SHAFT
SPEEDS: 1 SPEED
Description
1/4 HP ELECTRIC MOTOR
VOLTS:208/230
HERTZ:60
PHASE:1
AMPS:1.4
RPM:1075
LRA:2.9
ROTATION:COUNTER CLOCKWISE
SPEED:1
SHAFT:SINGLE
SHAFT SIZE:3″L X 1/2″DIA
MOTOR TYPE:FAN MOTOR
WEIGHT:9LBS 9.8OZ
DIMS:8″H X 5-5/8″DIA
| Horse Power (HP) | 1/4 |
|---|---|
| Speed | 1075 RPM |
| Current | 1.4 A |
| Voltage | 208-230V |
| Capacitor | 5MFD / 370VAC |
